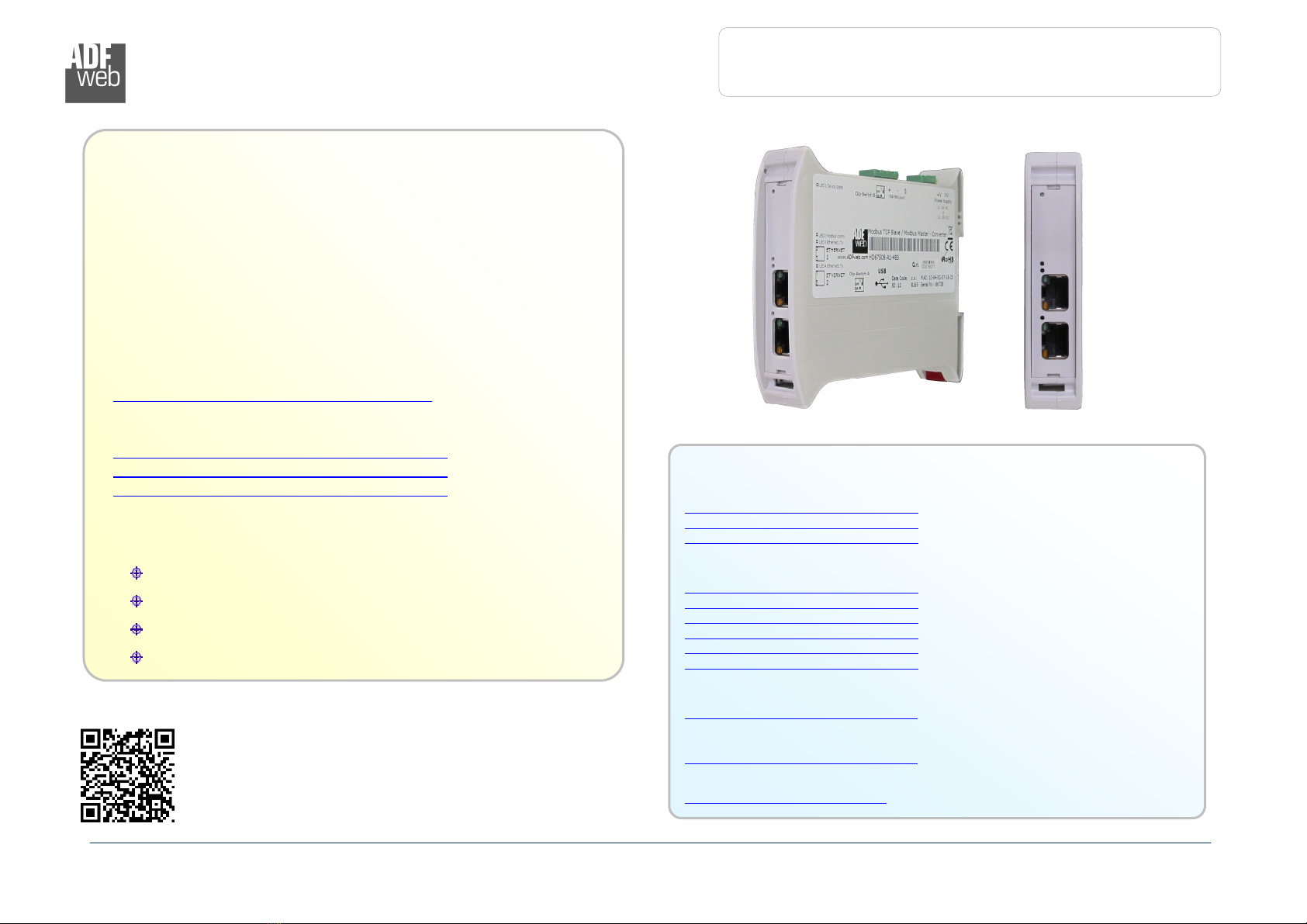

ADF Web HD67508-A1-232 User manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 1 of 28

User Manual

Revision 1 100

English

Modbus TCP Slave / Modbus Master – Converter

(Ethernet Switch Inside for enter/exit connection)

(Order Code: HD67508-A1-232, HD67508-A1-485,

HD67508-A1-422)

for Website information:

www adfweb com?Product=HD67508-A1

for Price information:

www adfweb com?Price=HD67508-A1-232

www adfweb com?Price=HD67508-A1-485

www adfweb com?Price=HD67508-A1-422

Benefits and Main Features:

35mm Rail DIN mount

Wide supply input range

Two Ethernet ports

Temperature range: -40°C/+85°C (-40°F/+185°F)

For others products, see also the following links:

RS232 / RS485 / SB / Ethernet

www adfweb com?Product=HD67118 (RS232 / RS485 - Converter)

www adfweb com?Product=HD67119 (USB / RS485 - Converter)

www adfweb com?Product=HD67038 (RS485 / RS232 / Ethernet - Converter)

CAN / CANopen / Modbus / Modbus TCP

www adfweb com?Product=HD67001 (CANopen / Modbus Master - Converter)

www adfweb com?Product=HD67502 (CANopen / Modbus Slave - Converter)

www adfweb com?Product=HD67011 (CAN / Modbus Master - Converter)

www adfweb com?Product=HD67012 (CAN / Modbus Slave - Converter)

www adfweb com?Product=HD67514 (CAN / Modbus TCP Master – Converter)

www adfweb com?Product=HD67515 (CAN / Modbus TCP Slave – Converter)

Modbus RT Slave / Modbus TCP Master - Converter

www adfweb com?Product=HD67510

Do you have your customer protocol? Then go to:

www adfweb com?Product=HD67003

Do you need to choose a device? Do you want help?

www adfweb com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 2 of 28

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLES OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 8

CONFIGURATION 8

POWER SUPPLY 9

FUNCTION MODES 10

LEDS 11

ETHERNET 12

RS232 12

RS485 13

RS422 14

USE OF COMPOSITOR SW67508 15

NEW PROJECT / OPEN PROJECT 16

SOFTWARE OPTIONS 17

SET COMMUNICATION 18

OPERATION MODE 20

TRANSLATE TABLE 21

UPDATE VIA UDP 23

MECHANICAL DIMENSIONS 25

ORDER CODE 26

ACCESSORIES 26

DISCLAIMER 27

OTHER REGULATIONS AND STANDARDS 27

WARRANTIES AND TECHNICAL SUPPORT 28

RETURN POLICY 28

PDATED DOC MENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document

With this “Document Code” go to web page www adfweb com/download/

and search for the corresponding code on the page Click on the proper

“Document Code” and download the updates

REVISION LIST:

Revision

Date Author Chapter Description

1 012 07/02/2013

Nt All Added new chapters

1 013 29/01/2014

Fl All Revision

1 014 12/02/2014

Fl All Revision

1 100 13/12/2021

Ff All Revision

WARNING:

ADFweb com reserves the right to change information in this manual about

our product without warning

ADFweb com is not responsible for any error this manual may contain

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 3 of 28

SEC RITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and

safety regulation are required for each individual application The same applies also when using accessories

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e

independent limit switches, mechanical interlocks, etc )

ALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job

ESID AL

ISKS

The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage

CONFORMITY

The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 4 of 28

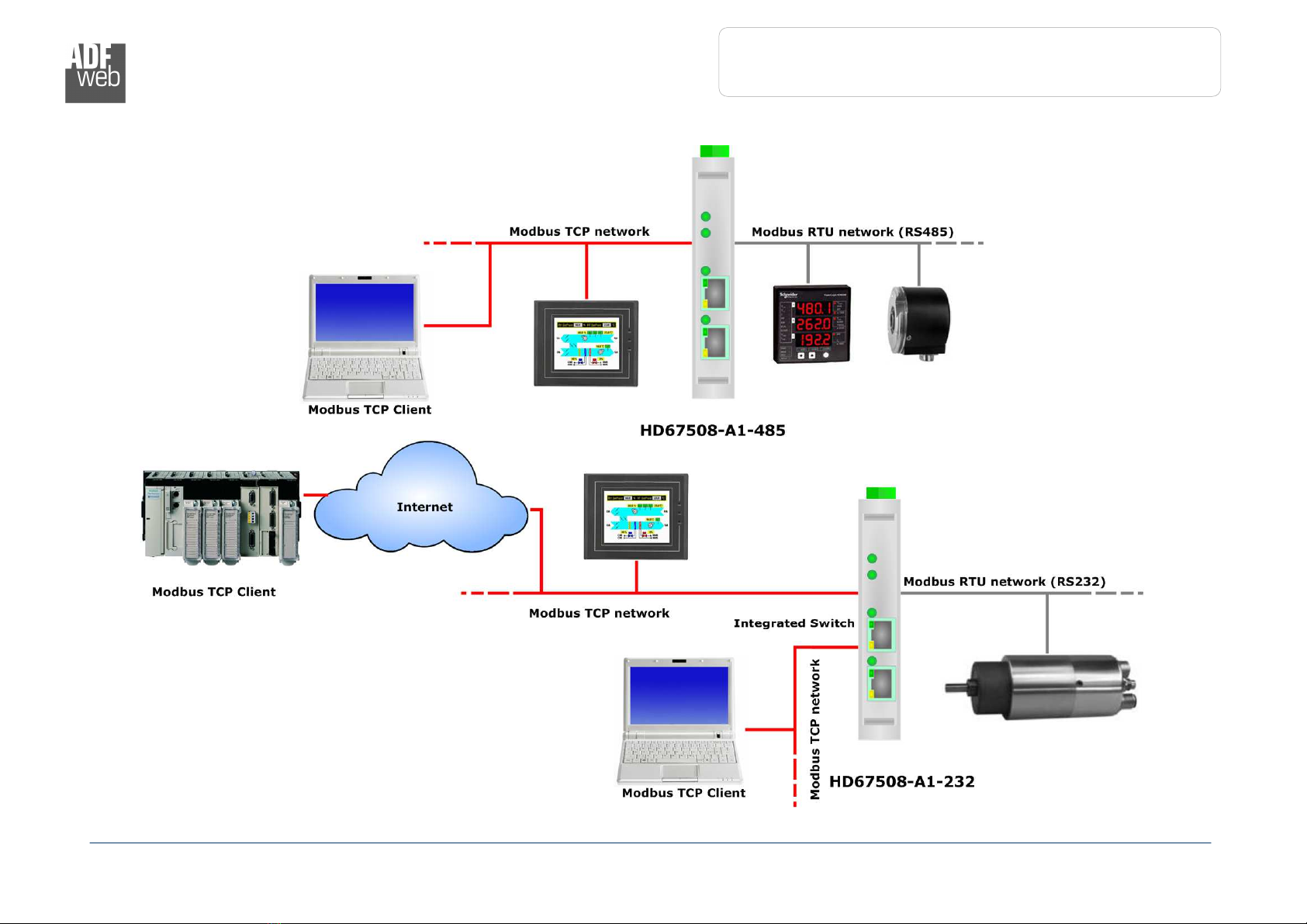

EXAMPLES OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 5 of 28

CONNECTION SCHEME:

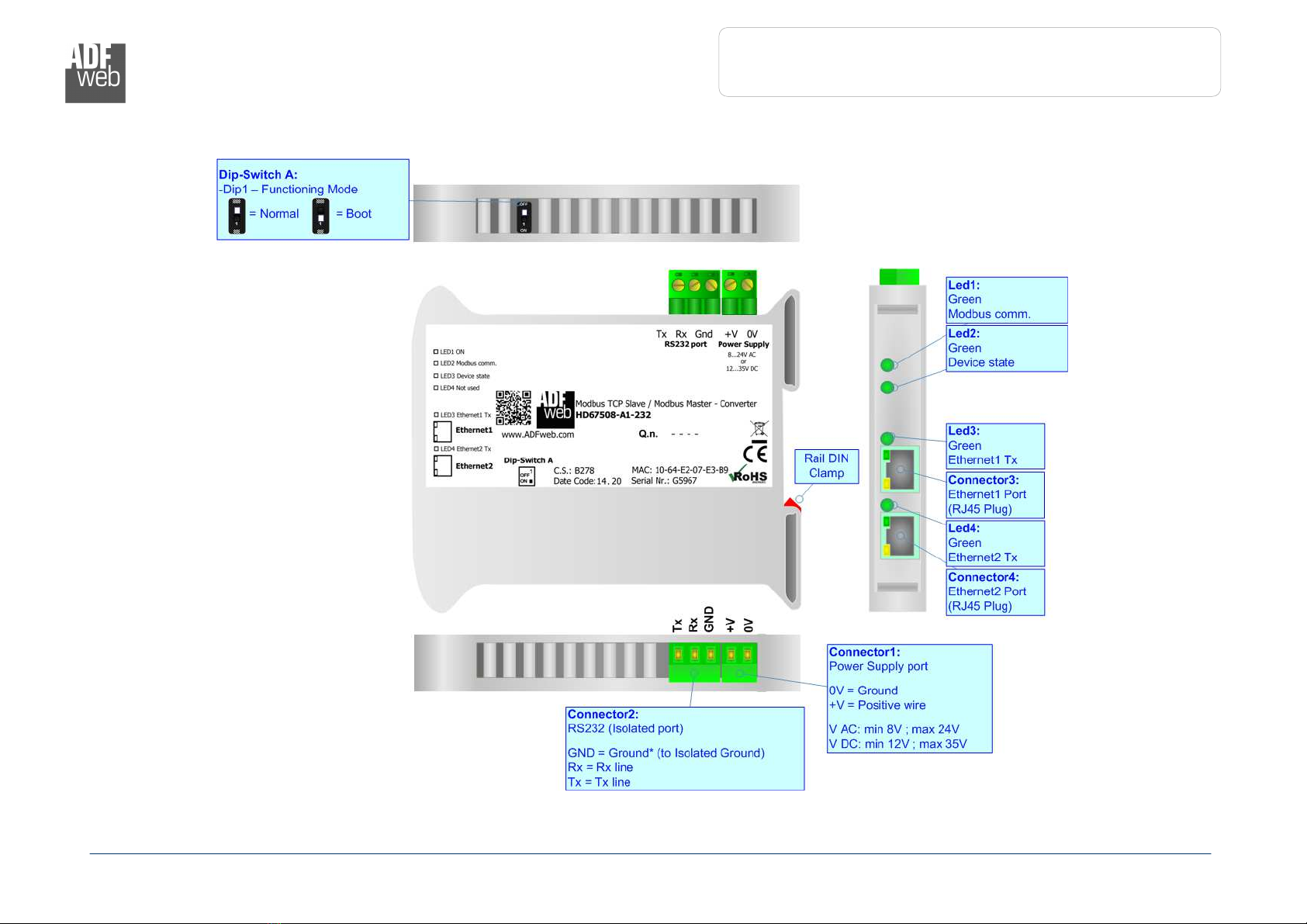

Figure 1a: Connection scheme for HD6750 -A1-232

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 6 of 28

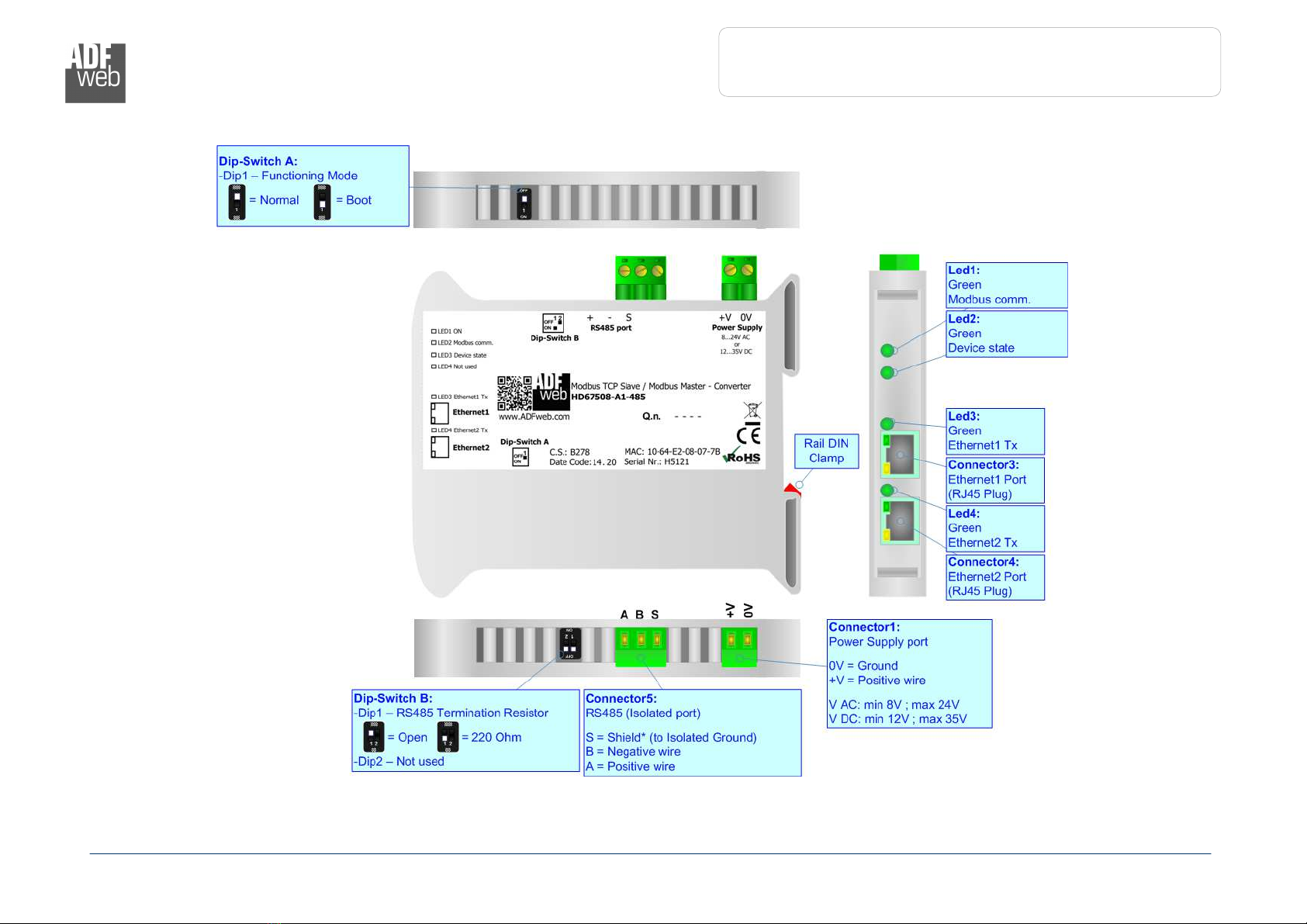

Figure 1b: Connection scheme for HD6750 -A1-4 5

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 7 of 28

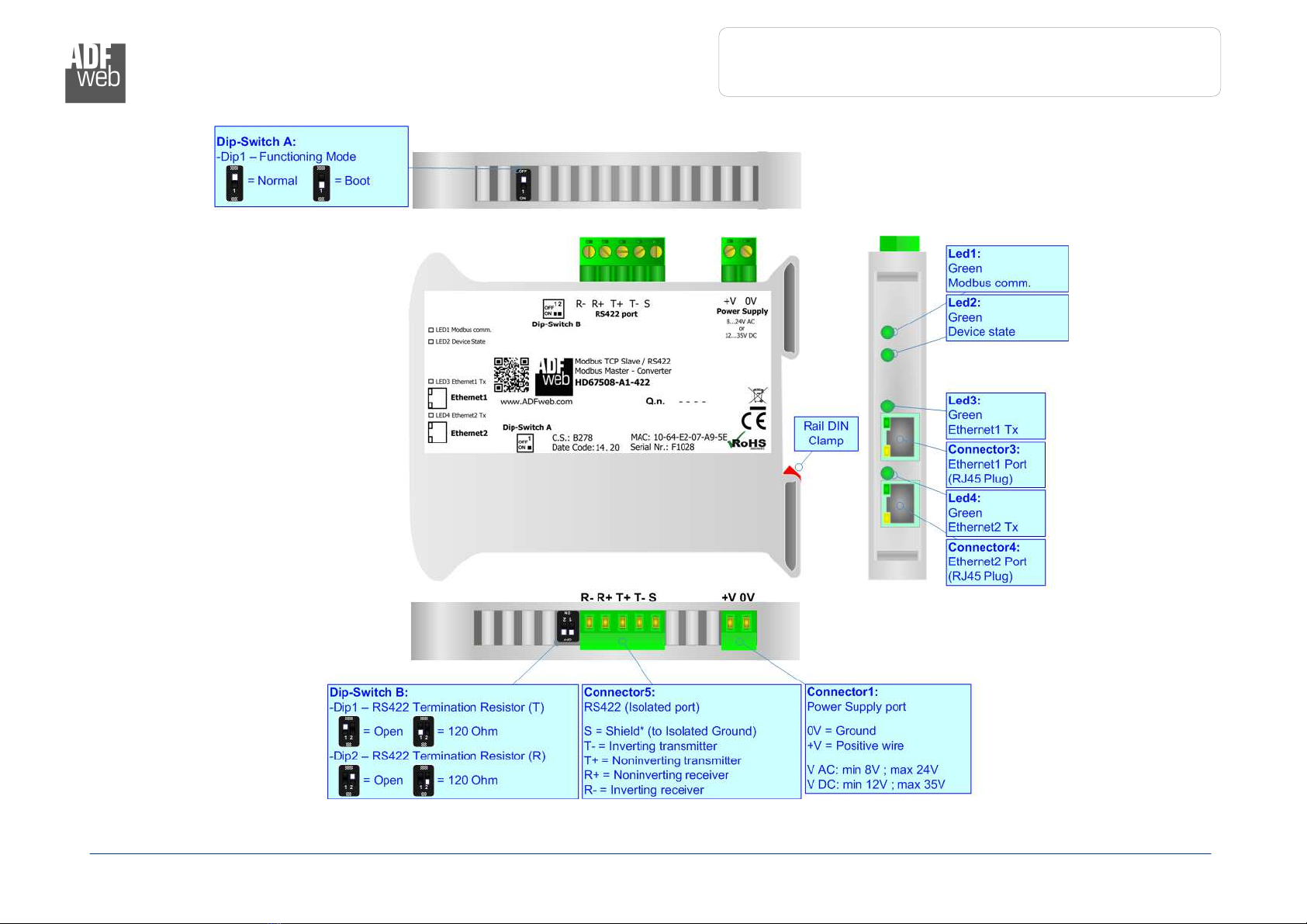

Figure 1c: Connection scheme for HD6750 -A1-422

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 8 of 28

CHARACTERISTICS:

The “Modbus TCP Slave / Modbus Master – Converter” allows the following characteristics:

Triple isolation between RS232/RS485/RS422 - Power Supply, RS232/RS485/RS422- Ethernet, Power Supply - Ethernet;

Internal Ethernet switch;

Ethernet 10Base-T / 100Base-T, autosensing for Modbus TCP ;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC

Temperature range -40°C / +85°C [-40°F / +185°F];

This device is able to manage a maximum of ten simultaneous connections from Ethernet side

It can be used in two operative ways:

In the “Routing Mode” the command Modbus is forwarded on the serial line using the same requested addresses

In the “Natting Mode” the device addresses and data are altered through a translation table of the addresses

CONFIG RATION:

You need Compositor SW67508 software on your PC in order to perform the following:

Define the parameters of Modbus TCP line;

Define the parameters of Modbus Serial line;

Update the device

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 9 of 28

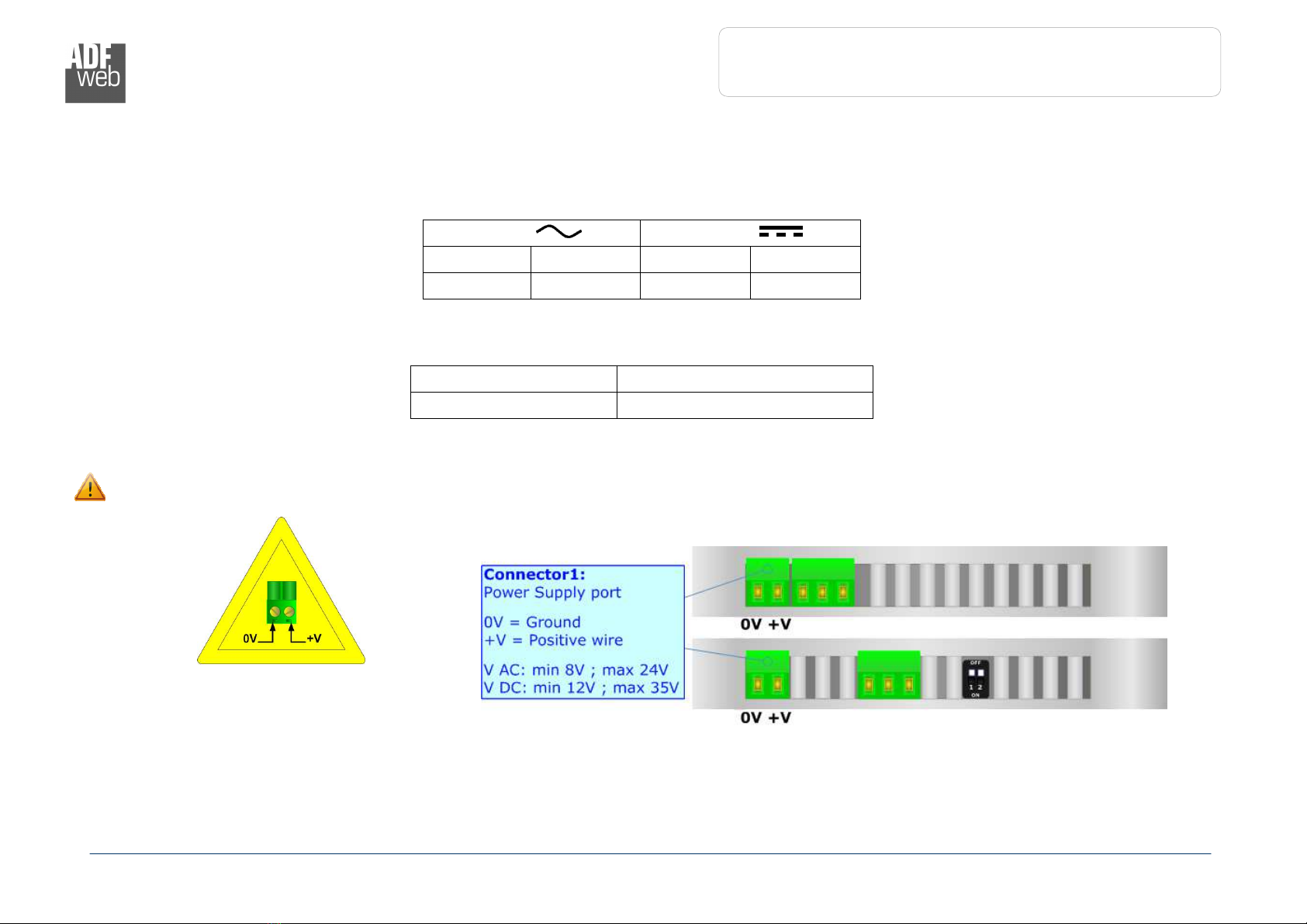

POWER S PPLY:

The devices can be powered at 8…24V AC and 12…35V DC The consumption depends to the code of the device For more details see the two

tables below

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67508-A1-xxx 3 5

Warning

: Not reverse the polarity power

HD67508-A1-xxx

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Modbus TCP Slave

Modbus Master

Document code: MN67508_ENG Revision 1 100 Page 10 of 28

F NCTION MODES:

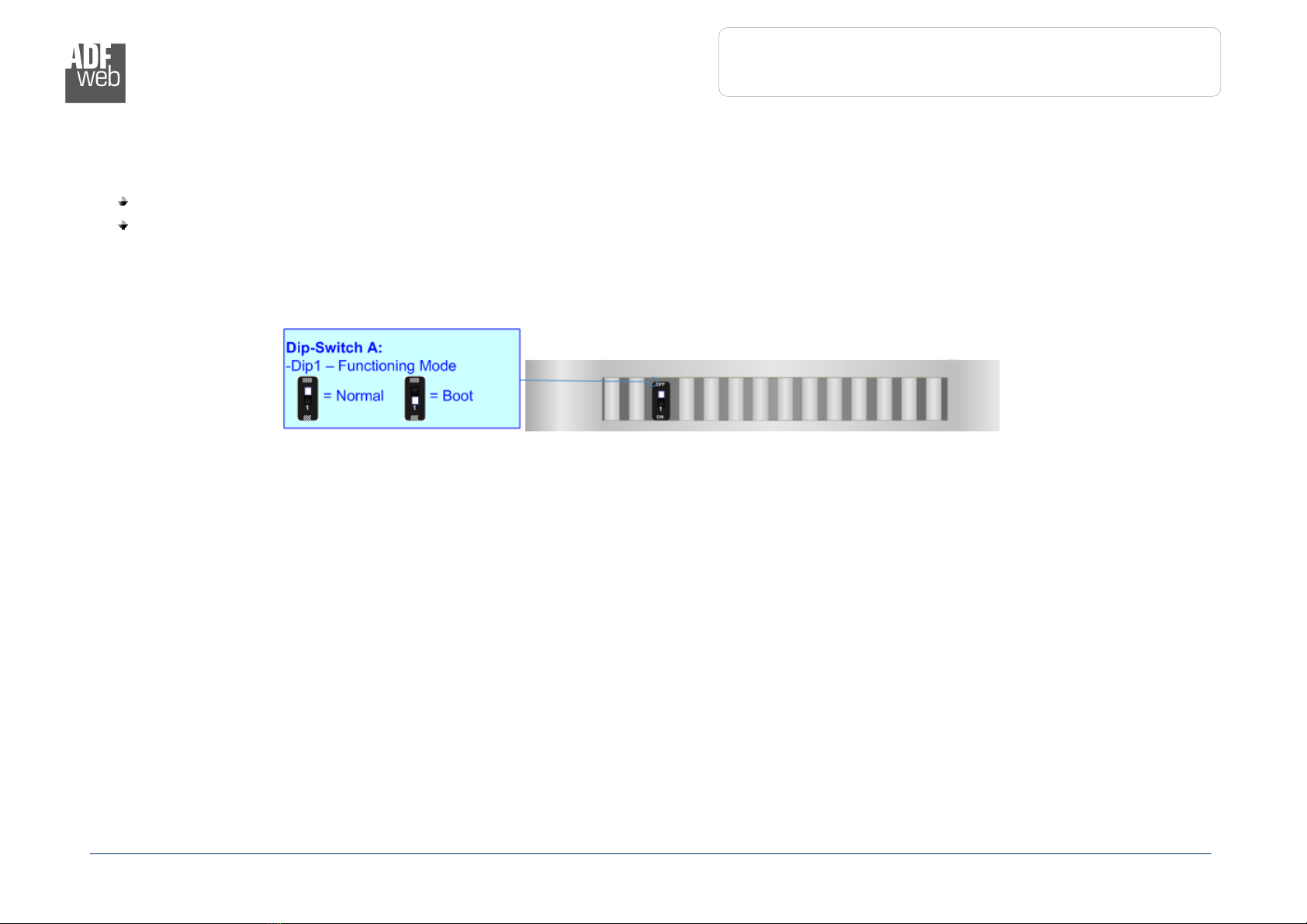

The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section
