ACU-RITE 01506 User manual

Instruction Manual

Professional Weather Center

model 01506 / 01524 / 01534

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: 5-in-1....... 3

Features: Display ................... 4

Back of Display...................... 6

Setup .................................... 7

5-in-1 Sensor Setup ................ 7

Display Setup ........................ 8

Set the Time, Date & Units ...... 9

Backlight Settings................... 9

Placement Guidelines ............10

5-in-1 Sensor Installation........11

Using the Weather Center .....12

Rainfall Tracking ...................13

Troubleshooting ....................14

Care & Maintenance.............16

Calibration ...........................16

Specications........................18

FCC Information ...................18

Customer Support .................19

Warranty..............................19

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Archive:l Products

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display with Tabletop Stand

2. 5-in-1 Sensor

3. Sensor Mounting Bracket

4. Mounting Hardware

5. Power Adapter

6. Instruction Manual

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

►

Features & Benets

5-IN-1 SENSOR

1. Rainfall Collector Funnel

2. Solar Cell Panel

Converts sunlight into power to run

internal aspirating fan.

Internal Aspirating Fan

(not shown)

Draws ambient air into

sensor to reduce solar radiation

heating, resulting in more accurate

temperature measurement.

3. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

4. Battery Compartment

5. Temperature & Humidity Sensors

(internal)

6. Mounting Bracket

7. Wind Speed Anemometer

8. Wind Direction Vane

9. Mounting Bracket

10. Mounting Hardware

Includes anchors & screws.

Qty Diameter Length

5 #4 3/4”

1 #4 1/2”

1 #6 1/2”

11. Debris Filter

Pre-installed to prevent debris from

entering the rain gauge.

,c,~hG:

TD O OR MPH

□

-j'\w SE~

-- ... 2l"----- .,,,,.;;28

--□

J-

..-

□

HIGH

.._ LOW:J

□

~h~

AVG.

ill PEAK\

~~~~l

□

/22/

1712:38P__!,M====1=

RAINFALLilll

AUTO DIM

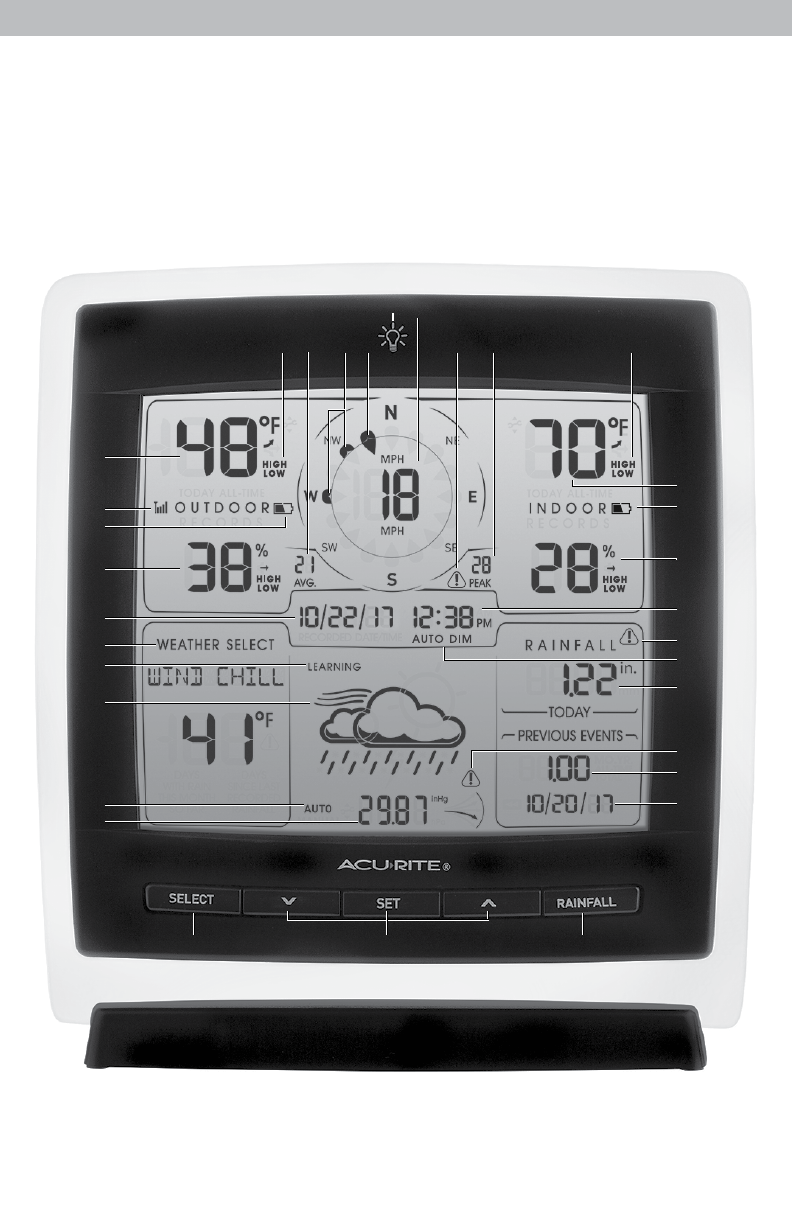

Features & Benets

Display

27 26

31 30 2928 25 24 31

10 14

11 12 13

-8-

·.r

1. Current Outdoor Temperature

Arrow icon indicates direction the

temperature is trending.

2. Outdoor Sensor Signal Strength

3. Sensor Low Battery Indicator

4. Current Outdoor Humidity

Arrow icon indicates the direction the

humidity is trending.

5. Date

6. Weather Select

Displays heat index, dew point, wind

chill, “feels like” calculations, days

with rain this month, and days

since last rain.

7. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

8. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls

data from your 5-in-1 sensor to

generate your personal forecast.

9. Auto or Manual Pressure Mode

Indicates pressure mode preference.

AUTO Pressure Mode

Pressure will self-calibrate over a

14 day Learning Mode.

MANUAL Pressure Mode

Indicates raw pressure value,

no adjustment for sea level (can be

calibrated).

10. Barometric Pressure

Arrow icon indicates the direction the

pressure is trending.

11. SELECT Button

Press to change the Weather Select

category data being display.

12.

, SET, TButtons

For setup preferences and access to

historical records.

13. RAINFALL Button

Press to display historical rainfall

data.

14. Date Stamp for Historical

Rainfall Data (#15)

15. Historical Rainfall Totals

16. Storm Alert Indicator

Activates when barometric

pressure drops.

17. Current Rainfall Total

Rainfall recorded since 12:00am.

18. AUTO DIM Indicator

Indicates display is in auto-dimming

brightness mode (see page 9).

19. Rainfall Alert Indicator

Indicates rainfall of more than 1”

(25 mm) of rain in 2 hours or less.

20. Clock

21. Current Indoor Humidity

Arrow icon indicates the direction the

humidity is trending.

22. Display Low Battery Indicator

23. Current Indoor Temperature

Arrow icon indicates the direction the

temperature is trending.

24. Peak Wind Speed

Highest speed from past 60 minutes.

25. Wind Speed Alert Indicator

Activates when wind speed is over

50 mph.

26. Current Wind Speed

27. Button

Dimmer control while using power

adapter. Activates momentary

backlight while on battery power.

28. Current Wind Direction

29. Previous 2 Wind Directions

30. Average Wind Speed

Average of all speeds over the

past 2 minutes.

31. HIGH/LOW Indicators

HIGH indicates a high record is

shown on the display. LOW indicates

a low record is shown.

Back of Display

BACK OF DISPLAY

1. Integrated Hang Hole 6. A-B-C Switch

For easy wall mounting. ID code that must match 5-in-1

sensor’s A-B-C switch to ensure

2. Plug-in for Power Adapter units synchronize.

3. Battery Compartment 7. Power Adapter

4. Removable Tabletop Stand 8. Battery Compartment Cover

5. CLEAR ALL/RESET Button (not shown)

Press to clear record currently

being viewed. Press AND HOLD

for more than 10 seconds for full

reset to factory defaults.

•

• •

•

SETUP

5-in-1 Sensor Setup

1 Set the A-B-C Switch

Locate the A-B-C switch inside the

battery compartment. Set the A-B-C

switch to A, B or C. You must select

the same letter choices for both the

sensor and the display in order for

the units to synchronize.

2 Install or Replace Batteries

Batteries MUST be installed for

this product to operate. AcuRite

recommends high quality alkaline

or lithium batteries for the best

product performance. Heavy duty

or rechargeable batteries are not

recommended.

The 5-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the 5-in-1 sensor for temperatures

below -4ºF / -20ºC.

1. Slide off the battery

compartment cover.

2. Insert 4 x AA batteries into the

battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Remove Rain Gauge Stabilizer

Locate and remove the rain gauge

stabilizer (plastic tab) taped into

the bottom of the sensor. The rain

gauge will not function until this is

removed.

A B C

1 A-B-C Switch

Set to match

display

2 Install Batteries

4 AA Batteries

3 Rain Gauge Stabilizer

Remove and discard

• •

•

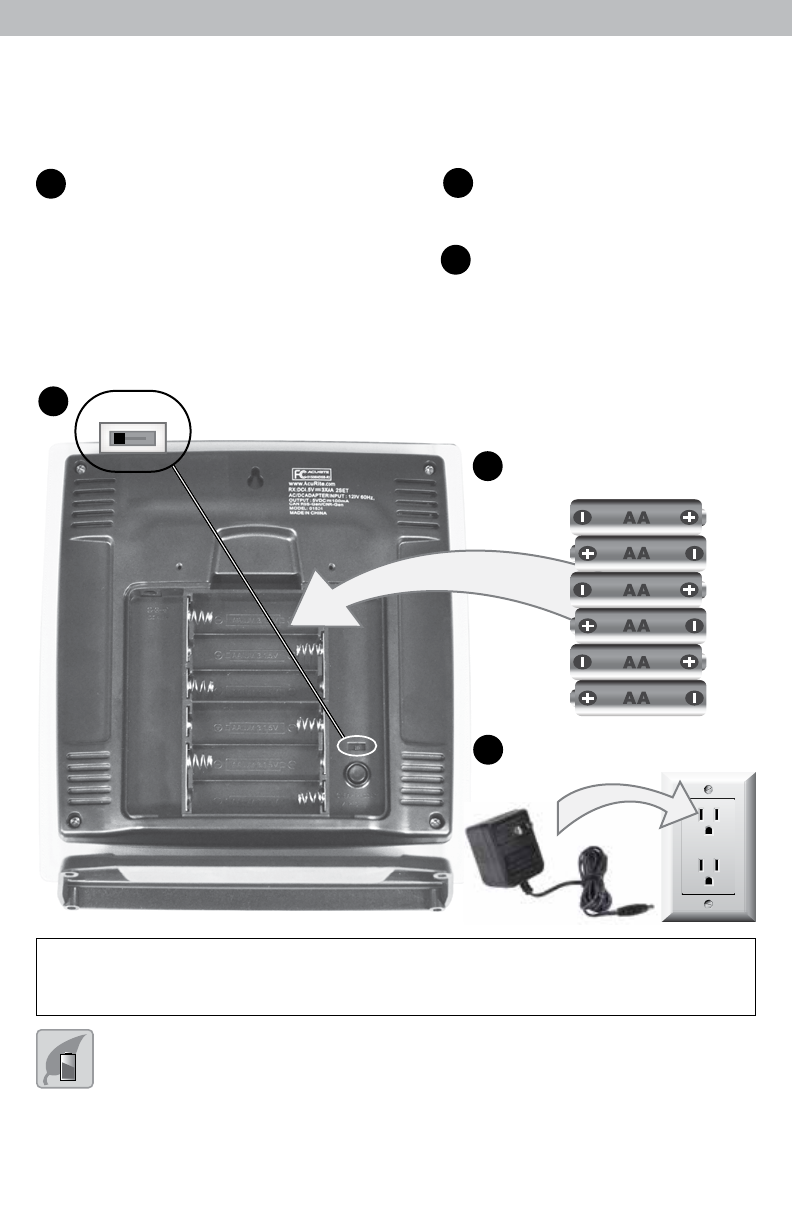

Display Setup

AcuRite recommends high quality alkaline batteries for the best product

performance. Heavy duty or rechargeable batteries are not recommended.

1 Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can be

set to A, B or C. However, you must

select the same letter choices for

both the sensor and the display in

order for the units to synchronize.

2 Plug Power Adapter into

Electrical Outlet

Install or Replace Batteries

(optional)

Insert 6 x AA alkaline batteries

into the battery compartment,

as shown. Follow the polarity

(+/-) diagram in the battery

compartment.

A B C

IMPORTANT: Batteries are a backup power source to preserve records in the event of a

power outage. Power adapter is recommended as the primary power source to enjoy the

full functionality of this product.

2 Plug in Power Adapter

3 Install Backup Batteries

6 AA Batteries (optional)

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

-8-

·.r

-8-

·-.r

Set the Time, Date & Units

Press the “SET” button, located on the front of the display, to enter SET MODE.

Once in set mode, the preference you are currently setting will blink on the

display.

To adjust the currently selected (ashing) item, press and release the “T“ or

“

“ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “SET” button again to adjust

the next preference. The preference set order is as follows:

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE UNITS (ºF or ºC)

WIND UNITS (MPH, KPH, or Knots)

RAIN UNITS (inches or mm)

PRESSURE UNITS (inHg or hPa)

You will automatically exit SET MODE if no buttons are pressed for 20 seconds.

Enter setup mode at any time by pressing the “SET” button.

Display Backlight Settings

This weather station’s display features three different lighting settings: High

(100%) brightness, Medium (60%) brightness and Low (30%) brightness.

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the “ ” button.

When display is powered with the power adapter, backlight remains on at

100% brightness. Press “ ” button once to dim to 60% brightness; press

again to dim to 30%, press a 3rd time to enter “AUTO DIM” mode. “AUTO

DIM” appears below time.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day & year.

MARCH 11- NOVEMBER 4 6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 30% brightness

NOVEMBER 5 - MARCH 10 7:30 a.m. - 7:00 p.m.= 100% brightness

7:01 p.m. - 7:29 a.m. = 30% brightness

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display and the sensor are critical to the accuracy and

performance of this product.

Display Placement

Place the display in a dry area free of dirt and dust. To ensure

accurate temperature measurement, place out of direct sunlight

and away from heat sources or vents. Display stands upright for

tabletop use or is wall-mountable.

5-in-1 Sensor Placement

The 5-in-1 sensor is designed to remain outdoors all year long.

Choose an open location with no obstructions above or around

the sensor for the most accurate measurements.

Important Placement Guidelines

Display and sensor must be within 330 feet (100 m) of each other.

MAXIMIZE WIRELESS RANGE

Place units away from large metallic items, thick walls, metal surfaces, or other

objects that may limit wireless communication.

PREVENT WIRELESS INTERFERENCE

Place both units at least 3 feet (.9 m) away from electronic devices (TV,

computer, microwave, radio, etc.).

LOCATE AWAY FROM HEAT SOURCES

Position sensor away from heaters, air conditioners, chimneys, exhaust vents,

asphalt and concrete (surfaces that radiate heat).

LOCATE AWAY FROM HUMIDITY SOURCES

Avoid installing the sensor near pools, spas, or other bodies of water. Water

sources may impact humidity accuracy.

LOCATE AWAY FROM SPRINKLER HEADS

DO NOT install the sensor where it will be sprayed by a sprinkler system. This

may force water inside the sensor.

LOCATE AWAY FROM WIND & RAIN OBSTRUCTIONS

DO NOT mount the sensor with obstructions around it.

Consider a location that is a wide open area, with few

structures around to ensure accurate measurements.

Visit us online to view installation photos and

video, or learn more about AcuRite technology:

www.AcuRite.com/5in1 View Video

This manual suits for next models

Table of contents

Other ACU-RITE Weather Station manuals

ACU-RITE

ACU-RITE 00837W User manual

ACU-RITE

ACU-RITE 00973 User manual

ACU-RITE

ACU-RITE 00595 User manual

ACU-RITE

ACU-RITE 00639W User manual

ACU-RITE

ACU-RITE 02032C User manual

ACU-RITE

ACU-RITE 00593W User manual

ACU-RITE

ACU-RITE WIRELESS WEATHER STATION User manual

ACU-RITE

ACU-RITE 06018RM User manual

ACU-RITE

ACU-RITE 00613 User manual

ACU-RITE

ACU-RITE 00821SBDI User manual

ACU-RITE

ACU-RITE 309 User manual

ACU-RITE

ACU-RITE 11132-1500RX User manual

ACU-RITE

ACU-RITE 01121 User manual

ACU-RITE

ACU-RITE 02030RM User manual

ACU-RITE

ACU-RITE 02048HD User manual

ACU-RITE

ACU-RITE 250 User manual

ACU-RITE

ACU-RITE 01602BPDIA2 User manual

ACU-RITE

ACU-RITE 00832 User manual

ACU-RITE

ACU-RITE 01021 User manual

ACU-RITE

ACU-RITE 00639W User manual

ACU-RITE

ACU-RITE 615 User manual

ACU-RITE

ACU-RITE 00251W User manual

ACU-RITE

ACU-RITE 06034RM User manual

ACU-RITE

ACU-RITE 1050 User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

La Crosse Technology

La Crosse Technology C86371 instruction manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

La Crosse Technology

La Crosse Technology WS-2210 Operation manual

La Crosse Technology

La Crosse Technology WS-811561 manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions
