ACU-RITE 13020 User manual
Instruction Manual
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: Sensor..... 2
Features & Benets: Alarm...... 3
Setup .................................... 5
Sensor Setup ......................... 5
Alarm Setup .......................... 6
Setup Preferences .................. 7
Intelli-Time Clock.................... 7
Placement Guidelines ............. 8
Using the Alarm Clock............ 9
USB Charging........................ 9
Using the Projector................10
Backlight Settings..................10
Troubleshooting ....................11
Care & Maintenance.............12
Specications........................13
FCC Information ...................13
Customer Support .................14
Warranty..............................14
Projection Alarm Clock
model 13020 / 13026
180º
2
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LCD screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Alarm clock
2. Outdoor sensor
3. Power adapter
4. Instruction Manual

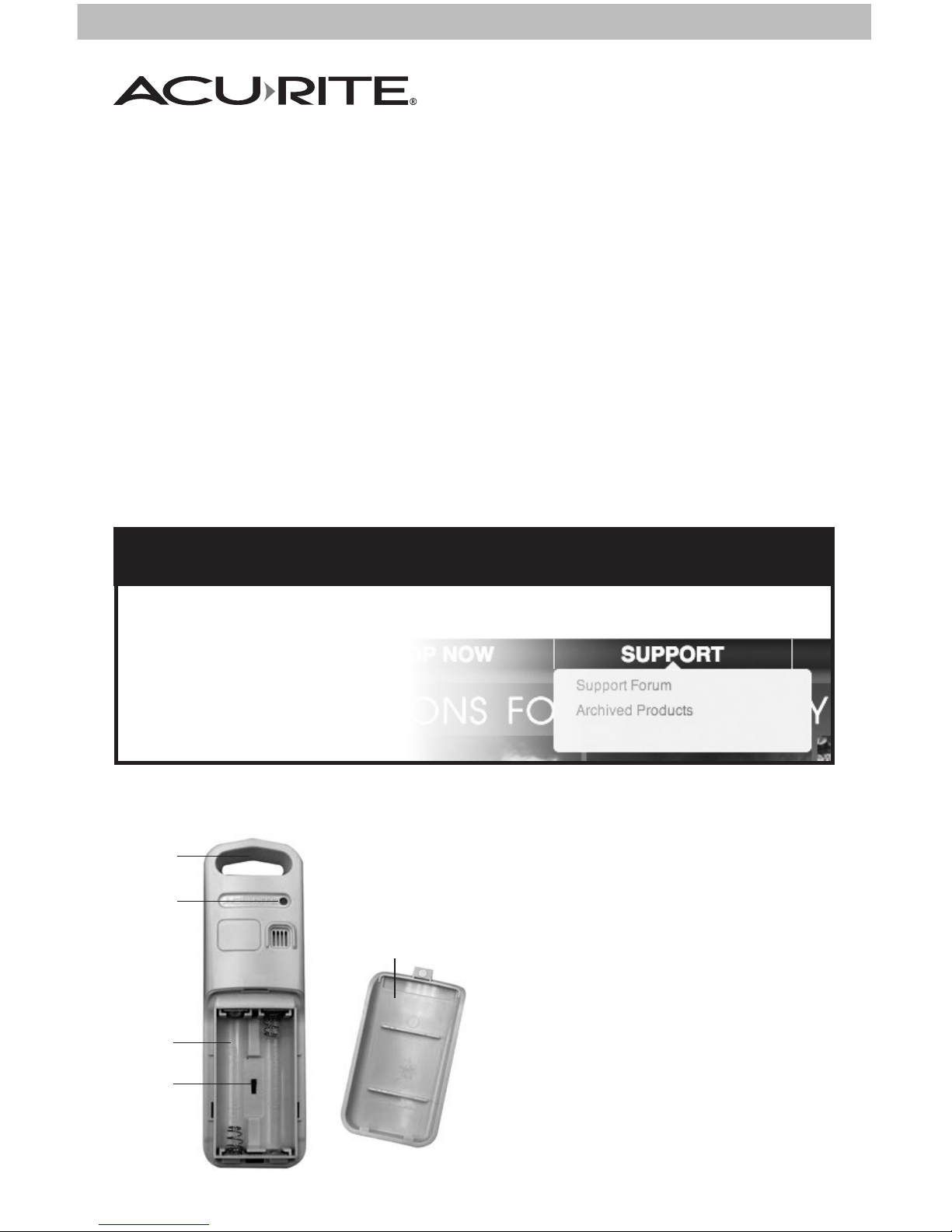

PRODUCT REGISTRATION
Register online
to receive 1 year
warranty protection
www.AcuRite.com
IMPORTANT PRODUCT MUST BE REGISTERED
TO RECEIVE WARRANTY SERVICE
►
Register a Product
Features & Benets
4
3
2
1
5
OUTDOOR SENSOR
1. Integrated Hanger
for easy placement.
2. Wireless Signal Indicator
Flashes when data is being
sent to the display unit.
3. Battery Compartment
4. A-B-C Switch
ID code that must match display’s
A-B-C switch to ensure units
synchronize.
5. Battery Compartment Cover
3
180º
Features & Benets
FRONT OF ALARM
6. Projector Power On/Off
7. Flip Projection 180
˚
for versatile viewing angles.
8. Projection Information
Toggle between time, indoor
temperature or outdoor temperature
9. Projection Color
Toggle between red or amber.
10. UP, SET & DOWN Buttons
for setup preferences.
11. Alarm Setup
12. Alarm On/Off Button
13. Snooze Button
BACK OF ALARM
14. A-B-C Switch
ID code that must match sensor’s
A-B-C switch to ensure units
synchronize.
15. ˚C/˚F Switch
Select degrees Celsius or degrees
Fahrenheit temperature units.
16. Zone Button
Set time zone preference.
17. RESET Button
Full reset to factory defaults.
18. Projector Focus
Adjust the size and focus of the
projected image.
19. DC 5v Power Input
20. USB Charging
for compatible smartphones.
21. + Brightness Button
Increase display brightness.
22. — Brightness Button
Decrease display brightness.
23. Battery Compartment
24. Battery Compartment Cover
(not shown)
CHARGE
USB DEVICE
DC 5 v
6 7
8 9
10
11 12
1514 17
1819 20
21
22 23
1613
4
Features & Benets
1
3
2
1. Current Indoor Temperature
Arrow icon indicates direction
temperature is trending.
2. Current Outdoor Temperature
Arrow icon indicates direction
temperature is trending.
3. Intelli-Time®Clock
Pre-programmed to the correct
time and automatically updates for
Daylight Saving Time.
4. Intelli-Time®Date
Pre-programmed to the correct date.
5. Moon Phase
6. Alarm On/Off
7. Alarm Set Time
8. Alarm Days Active
Indicates daily alarm or
weekday-only alarm setup.
4
5
6
7
8
5
SETUP
Set the A-B-C Switch
The A-B-C switch is located inside
the battery compartment. It can
be set to A, B or C. However,
you must select the same letter
choices for both the sensor and the
display unit in order for the units to
synchronize.
Install or Replace Batteries
AcuRite recommends high quality
alkaline or lithium batteries for the
best product performance. Heavy
duty or rechargeable batteries are
not recommended.
The sensor requires lithium
batteries in low temperature
conditions. Cold temperatures can
cause alkaline batteries to function
improperly. Use lithium batteries in
the sensor for temperatures below
-4ºF / -20ºC.
1. Slide off the battery
compartment cover. Take note
of the A-B-C switch setting inside
the battery compartment for
display unit setup.
2. Insert 2 x AA batteries into
the battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
Sensor Setup
2
1
1A-B-C Switch
set to match
display unit
2Install Batteries
2 AA batteries
A B C
6
CHARGE
USB DEVICE
DC 5 v
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be
used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used
batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire,
as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge
non-rechargeable batteries. DO NOT short-circuit the supply terminals.
Alarm Clock Setup
Set the A-B-C Switch
Locate the A-B-C switch inside
the battery compartment. Set
the A-B-C switch to A, B or C.
You must select the same letter
choices for both the display unit
and the sensor in order for the
units to synchronize.
Plug in Power Adapter
For the best performance, plug
in the power adapter as the main
power source for this product.
Install or Replace Backup
Batteries
1. Remove the battery
compartment cover.
2. Insert 3 x AA alkaline
batteries into the battery
compartment, as shown.
Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
2
3
1
A B C
2
Install
Batteries
3 AA alkaline
batteries
IMPORTANT: Batteries are a backup power source to preserve records in the event of a
power outage. Power adapter recommended as the primary power source to enjoy the full
functionality of the product.
3
Plug in Power
Adapter
1A-B-C Switch
set to match
sensor
7
Intelli-Time®Clock
Intelli-Time clock and calendar are pre-programmed to the correct time and
date, and update automatically for Daylight Saving Time. All you need to do is
select your time zone using the “ZONE” button.
Set the Time, Date & Language
Press and hold the “ ” button, located on the right side of the display, to
enter SET MODE. Once in set mode, the preference you are currently setting
will blink on the display.
To adjust the currently selected (ashing) item, press and release the “ ” or
“ “ buttons (press and HOLD to fast adjust).
To save your adjustments, press and release the “ ” button to adjust the next
preference. The preference set order is as follows:
LANGUAGE (English or French)
TIME ZONE (PST MST CST EST AST HAST AKST)
AUTO DST (Automatically adjust time -/+ on DST dates)
CLOCK HOUR
CLOCK MINUTE
CALENDAR MONTH
CALENDAR DATE
CALENDAR YEAR
You will automatically exit SET MODE if no buttons are pressed for 5 seconds.
Enter setup mode at any time by pressing the “ ” button.
Manual Clock Quick-Adjust
Self-timed clocks may drift by a few minutes over time. You can adjust the time
using the “Quick Adjust” feature.
To access “Quick Adjust” mode, press AND HOLD the “ ” OR “ ” buttons
for at least 8 seconds. The minutes will ash to indicate they can be adjusted.
Press the “ ” or “ ” buttons to adjust the minutes. After 3 seconds of
inactivity, any adjustments will be saved and the clock will return to normal
operation.
8
Alarm Clock Placement
Place alarm clock in a dry area free of dirt and dust. To help ensure
an accurate indoor temperature measurement, be sure to place the
display away from heat sources or vents.
Outdoor Sensor Placement
Sensor must be placed outside to observe outdoor conditions.
Sensor is water resistant and is designed for general outdoor use,
however, to extend its life place the sensor in an area protected
from direct weather elements.
Hang the sensor using the integrated hang holes or hanger, or by
using string (not included) to hang it from a suitable location, like a
well covered tree branch. The best location is 4 to 8 feet above the
ground with permanent shade and plenty of fresh air to circulate
around the sensor.
Placement for Maximum Accuracy
AcuRite sensors are sensitive to surrounding environmental conditions. Proper
placement of both the display unit and outdoor sensor are critical to the
accuracy and performance of this product.
Important Placement Guidelines
• To ensure accurate temperature measurement, place units out of direct
sunlight and away from any heat sources or vents.
• Display unit and outdoor sensor must be within 330 ft (100 m) of each other.
• To maximize wireless range, place units away from large metallic items, thick
walls, metal surfaces, or other objects that may limit wireless communication.
• To prevent wireless interference, place both units at least 3 ft (.9 m) away
from electronic devices (TV, computer, microwave, radio, etc.).
Setup is Complete
The sensor will now synchronize with the alarm clock. It may take a few
minutes for synchronization to complete.
TV
3
(100 meters)
(330 feet maximum)
(.91 m)
AT
LEAST
APART
9
Using the Alarm Clock
Set Alarm Time
Press and release the “ ” button to enter ALARM SET MODE.
To adjust the currently selected (ashing) item, press and release the “ ” or
“ “ buttons (press and HOLD to fast adjust).
To save your adjustments, press and release the “ ” button to adjust the next
preference. The preference set order is as follows:
ALARM CLOCK HOUR
ALARM CLOCK MINUTE
ALARM EVERY DAY or WEEKDAY ONLY SELECTION
You will automatically exit ALARM SET MODE if no buttons are pressed for 5
seconds. Enter setup mode at any time by pressing the “ ” button.
Momentary Backlight
During power adapter use, press the Snooze button for momentary backlight
at 100% brightness. During battery-powered use, press any button for
momentary backlight.
Moon Phase
Track the phases of the moon, conveyed through simple lunar phase icons.
USB Charging
Charge your mobile device by plugging your device’s
USB power cord (not included) into the USB charging
port on the back of the alarm clock.
USB charging is only available during power adapter
use; USB charging is not active when operating on
battery-power only.
Note: Follow the manufacturer’s instructions for your mobile
device(s) to determine compatibility with the USB charging
feature on this product. Some devices may not support USB
charging or may require a higher power rating than this product provides.
Observe the charging status on your device. Ensure your device is working
properly before attempting to charge.
OPERATION
CHARGE
USB DEVICE
DC 4.5 v
FULLNEW WAXING
CRESCENT
WANING
CRESCENT
WAXING
GIBBOUS
WANING
GIBBOUS
1ST
QUARTER
3RD
QUARTER
10
Using The Projector
The projector can be rotated to project the time, indoor temperature, or
outdoor temperature on a wall or on the ceiling.
Press the projector power button “ ” to turn the projector ON/OFF.
Press the “ ” button to ip the projection image 180º for use on a ceiling
or wall.
Press the “ “ button, located on the left side of the display, to select the
information you want to be projected:
CURRENT TIME
INDOOR TEMPERATURE ( )
OUTDOOR TEMPERATURE ( )
Press the color selection button ( ) to choose between a RED or AMBER
projection.
If the projected information is hard to read or blurry, use the “FOCUS” dial on
the back of the projector to make the projected image clearer.
NOTES:
• Do not stare into the projector lens directly!
• Do not touch the projector lens.
• Some rough surfaces will not display the projection clearly.
Display Backlight
Display backlight has 6 brightness levels: 100% (default), 70%, 50%, 30%,
10% and 5%. The backlight will be ON 100% intensity by default, you may
adjust the backlight using the dimmer control buttons located on the back of
the unit.
BATTERY POWER NOTE: The display unit is intended to be plugged in during
use with included AC power adaptor; batteries are optional for maintaining
settings in case of a power outage. Please note that to conserve backup
battery power, the projector and display illumination only activate momentarily
for 10 seconds at a time when the unit is powered by batteries alone. The
display dimmer option is only available when the unit is plugged in.
This manual suits for next models
1
Table of contents
Other ACU-RITE Alarm Clock manuals
ACU-RITE
ACU-RITE Atomic Clock User manual
ACU-RITE
ACU-RITE 15607 User manual
ACU-RITE
ACU-RITE 13041CAUDI User manual
ACU-RITE
ACU-RITE Intelli-Time 13041RM User manual
ACU-RITE
ACU-RITE 13024 User manual
ACU-RITE
ACU-RITE Set and Forget User manual
ACU-RITE
ACU-RITE Set & Forget 19956 User manual
ACU-RITE
ACU-RITE Intelli-Time 13027W5 User manual
ACU-RITE
ACU-RITE 13131A3 User manual
ACU-RITE
ACU-RITE 47311 User manual
ACU-RITE
ACU-RITE Intelli-Time 13001 Operating instructions
ACU-RITE
ACU-RITE Intelli-Time 13019W2 User manual
ACU-RITE
ACU-RITE 13131 User manual
ACU-RITE
ACU-RITE 13036 User manual
ACU-RITE
ACU-RITE Intelli-Time 13030 User manual
ACU-RITE
ACU-RITE 47391 User manual
ACU-RITE
ACU-RITE 13131W2 User manual
ACU-RITE
ACU-RITE 13131A3 User manual
ACU-RITE
ACU-RITE 13040 User manual
ACU-RITE
ACU-RITE 15606 User manual
