ACTi PMIC-0100 User manual

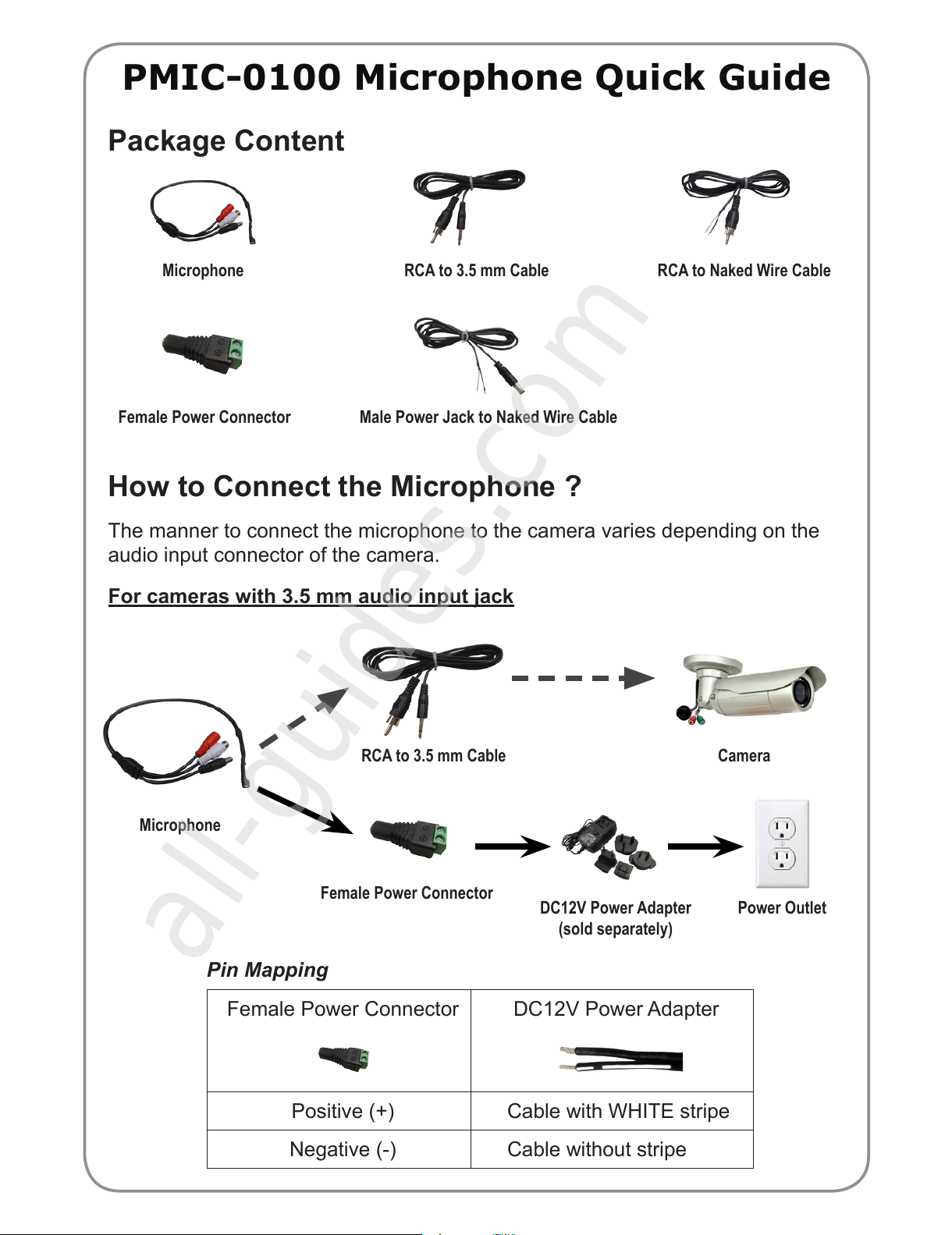

PMIC-0100 Microphone Quick Guide
Package Content
How to Connect the Microphone ?
The manner to connect the microphone to the camera varies depending on the
audio input connector of the camera.
Microphone
RCA to 3.5 mm Cable Camera
Female Power Connector DC12V Power Adapter
(sold separately)
Power Outlet
Pin Mapping
Female Power Connector DC12V Power Adapter
Positive (+) Cable with WHITE stripe
Negative (-) Cable without stripe
Microphone RCA to 3.5 mm Cable RCA to Naked Wire Cable
Female Power Connector Male Power Jack to Naked Wire Cable
For cameras with 3.5 mm audio input jack
All manuals and user guides at all-guides.com
all-guides.com
Pin Mapping
Wire Color Terminal Block
RCA to Naked Wire
White AI (Audio Input)
Black AI GND (Ground)
Male Power Jack to
Naked Wire
White 12V
Black GND (Ground)
NOTE:
• The above pictures are for reference only. Terminal blocks and labels vary
depending on camera model.

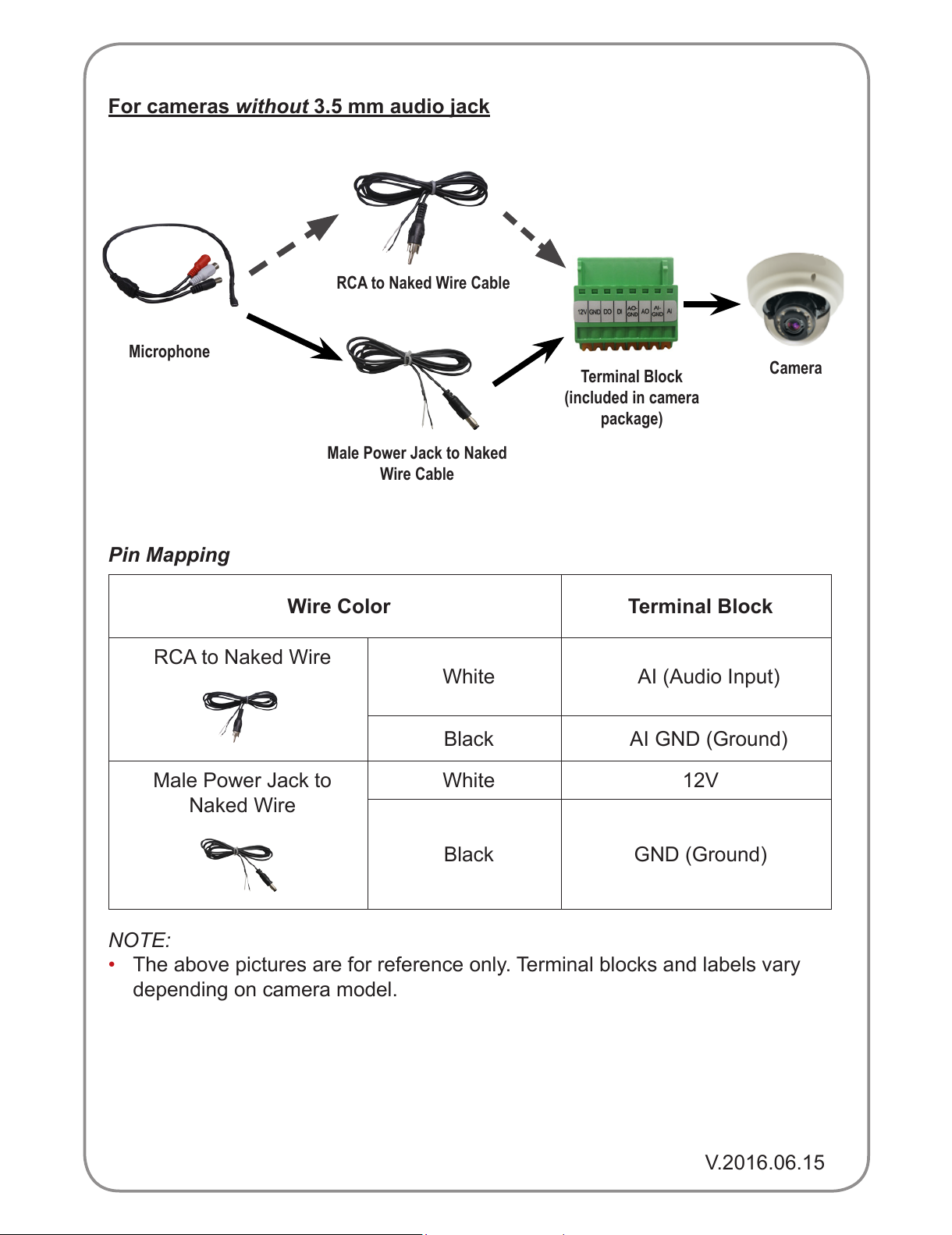

For cameras without 3.5 mm audio jack
Microphone
RCA to Naked Wire Cable
Camera
Male Power Jack to Naked
Wire Cable
Terminal Block
(included in camera
package)
V.2016.06.15
