CHAPTER 1 INTRODUCTION
1.1 GENERAL DESCRIPTION
The AR-B3001 is a low cost, high accuracy, low noise,
low drift A/D interface boards for the IBM PC/XT/AT and
their compatibles. It is half-length boards that install
internally in an expansion slot of an IBM Personal
Computer to turn the computer into an inexpensive, high-
precisioninstrumentfortemperature,humidity,pressure,
flow and level etc.. The AR-B3001 is constructed with a
12-bit (plus polarity bit) dual-slop integrating A/D
converter. It can be operated with 16 single-ended or 8
differential analog inputs. The analog input range of AR-
B3001 is -5V to +5V.
A complete software utility containing demo programs,
Assembly, Basica, and C drivers are furnished with the
board to minimize user's effort on application software
development. All the driver routines are provided with
source programs and can be modified to suit your
applications.
Block diagram of AR-B3001 is shown in figure 1-1.
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY
2
Figure 1-1 AR-B3001 Functional Block Diagram
1.2 FEATURES
Inexpensive, half-size analog input board for IBM
PC/XT/AT and their compatibles.
16 single-ended or 8 differential inputs.
Maximum throughput 30 Hz.
Resolution : 12-bit and a sign bit.
+5V to -5V input range.
Assembly, C, and Basica drivers included.
Easy to use.
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY 3
1.3 ORDERING INFORMATION
Followings list and describe part number of the AR-
B3001 board and its accessories.
Part Number Description
AR-B3001 16 channel analog input card
with user’s manual
AR-B9006 34-pin screw terminal board for
AR-B3001 with 0.6m flat cable
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY
4
This page is intentionally left blank
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY 5
CHAPTER 2 INSTALLATION
This chapter provides instructions for installing the AR-
B3001 in an IBM PC/XT/AT and compatibles.
2.1 SWITCHE, JUMPER AND CONNECTOR
There is one DIP switch and one jumper on the AR-
B3001. This section describes functional use of the
switch and jumper. It also provides a description of the
input connector. Figure 2-1 shows the location of each
switch, jumper, and connector for AR-B3001. Table 2-1
list the functions of jumper, switch, variable resistors and
connector shown in Figure 2-1.
Legend Description
DIP SW I/O Port Base Address
JP1 Differential/Single-Ended Selection
JP7 Reserved
VR1 Fine Adjustment of Full-Scale
VR2 Rugged Adjustment of Full-Scale
VR3 Reserved
VR4 Offset Adjustment
VR5 Common Mode Rejection Ratio Adjustment
J2 Input Connector
Table 2-1
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY
6
Figure 2-1 Board Layout of AR-B3001
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY 7
2.1.1 Base Address Settings
There is one DIP switch located on the AR-B3001 card.
It is used to select the base port address of the AR-
B3001. The operation of AR-B3001 is controlled through
the I/O ports. Four consecutive I/O ports are used by AR-
B3001. The base address of these I/O ports is selected
by using base address switch DIP SW. The AR-B3001 is
factory-configured for a base address of 3e0 Hex. If this
base address is already occupied, you will need to
change the base address switch setting. It is essential
that each peripheral device, such as an AR-B3001, be
assigned a unique base address within the range of 200
to 3fc Hex and that the address is on a 4-byte boundary.
Figure 2-2 shows the base address switch.
ON
12345678
DIP SW
A2 A3 A4 A5 A6 A7 A8 A9
Figure 2-2. Base Address Switch
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY
8
Use the following table to select an AR-B3001 base port
address.
DIP SW ADDRESS ADDRESS VALUE
LINE Hex. Dec.
Switch 1 A2 4 4
Switch 2 A3 8 8
Switch 3 A4 10 16
Switch 4 A5 20 32
Switch 5 A6 40 64
Switch 6 A7 80 128
Switch 7 A8 100 256
Switch 8 A9 200 512
Address = 200*A9 + 100*A8 + 80*A7 + 40*A6 + 20*A5
+ 10*A4 + 8*A3 + 4*A2 (Hex)
-or-
Address = 512*A9 + 256*A8 + 128*A7 + 64*A6 + 32*A5
+ 16*A4 + 8*A3 + 4*A2 (Dec)
A9....A2 = 0 If switch is ON.
A9....A2 = 1 If switch is OFF.
Note: Setting the switch to the "ON" position indicates a
logical "0" and setting the switch to the "OFF"
position indicates a logical "1".
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY 9
Use the following table as an aid for selecting an
unoccupied address.
HEX RANGE DEVICE
00-FF Reserved For System
170-178 Fixed Disk 1
1F0-1F8 Fixed Disk 0
201 Game Port
208-20A EMS Register 0
218-21A EMS Register 1
278-27F Parallel Printer Port 3 (LTP3)
2E8-2EF Serial Port 4 (COM4)
2F8-2FF Serial Port 2 (COM2)
300-31F Prototype Card/Streaming Type Adapter
378-37F Parallel Printer Port 2 (LTP 2)
380-38F SDLC, Bisynchronous 2
3A0-3AF Bisynchronous 1
3B0-3BF Monochrome Display and Parallel Printer
Port 1 (LPT1)
3C0-3CF EGA/VGA Adapter
3D0-3DF Color/Graphics Monitor Adapter
3E8-3EF Serial Port 3 (COM3)
3F0-3F7 Diskette Controller
3F8 3FF
S i l P t 1 (COM1)
Table 2-2. IBM PC I/O Address Map
All manuals and user guides at all-guides.com
ACROSSER TECHNOLOGY
10
2.1.2 Channel Configuration Jumper
The JP1 is used to select whether 16 single-ended or 8
differential analog input channels are to be used. To
select eight differential input channels, move the jumpers
to the right side. Likewise, to select 16 single-ended
analog input channels, move the jumpers to the left side
as shows in Figure 2-3.
JP1
Differential
JP1
1
Single-ended
(Factory preset)
1

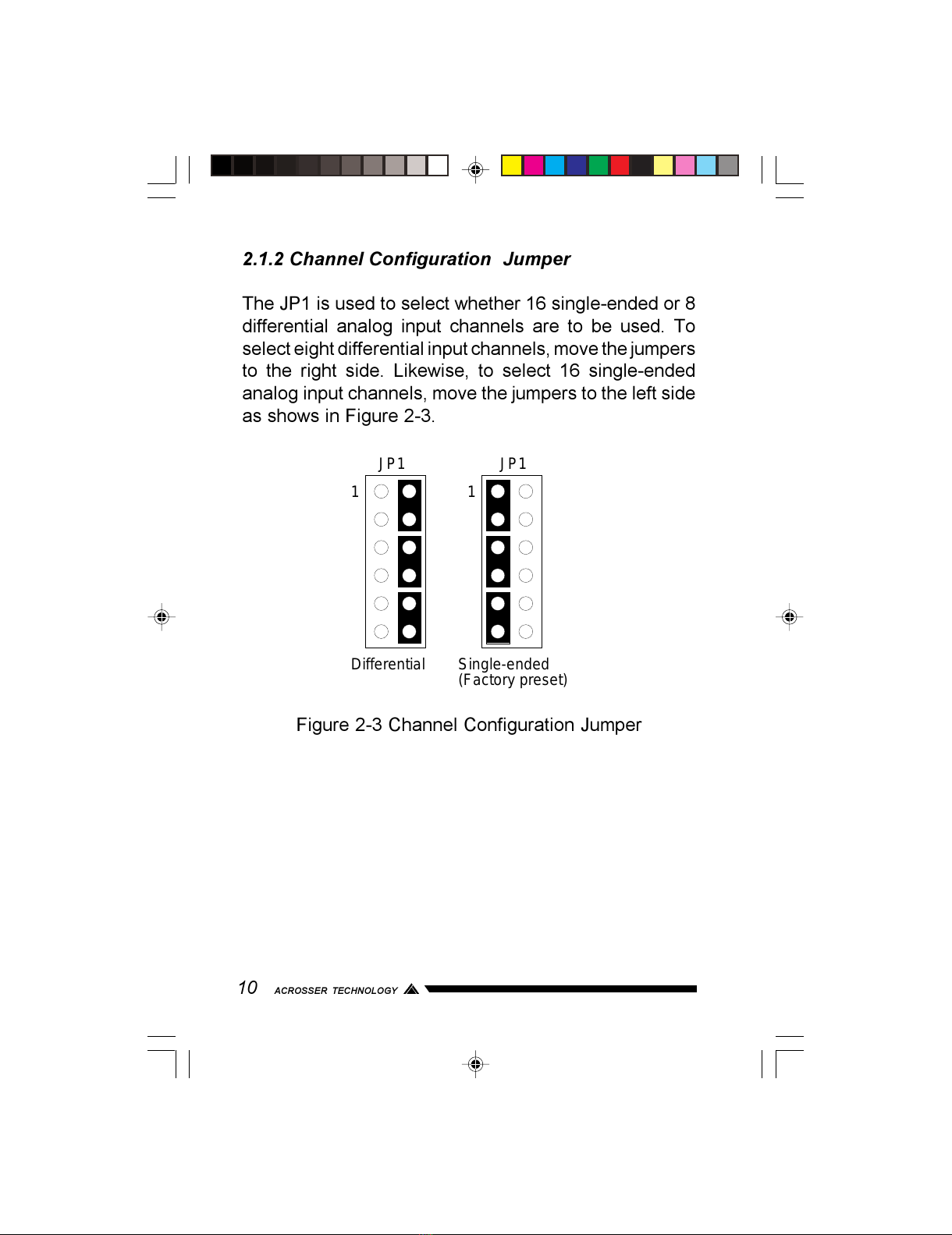

Figure 2-3 Channel Configuration Jumper
All manuals and user guides at all-guides.com
