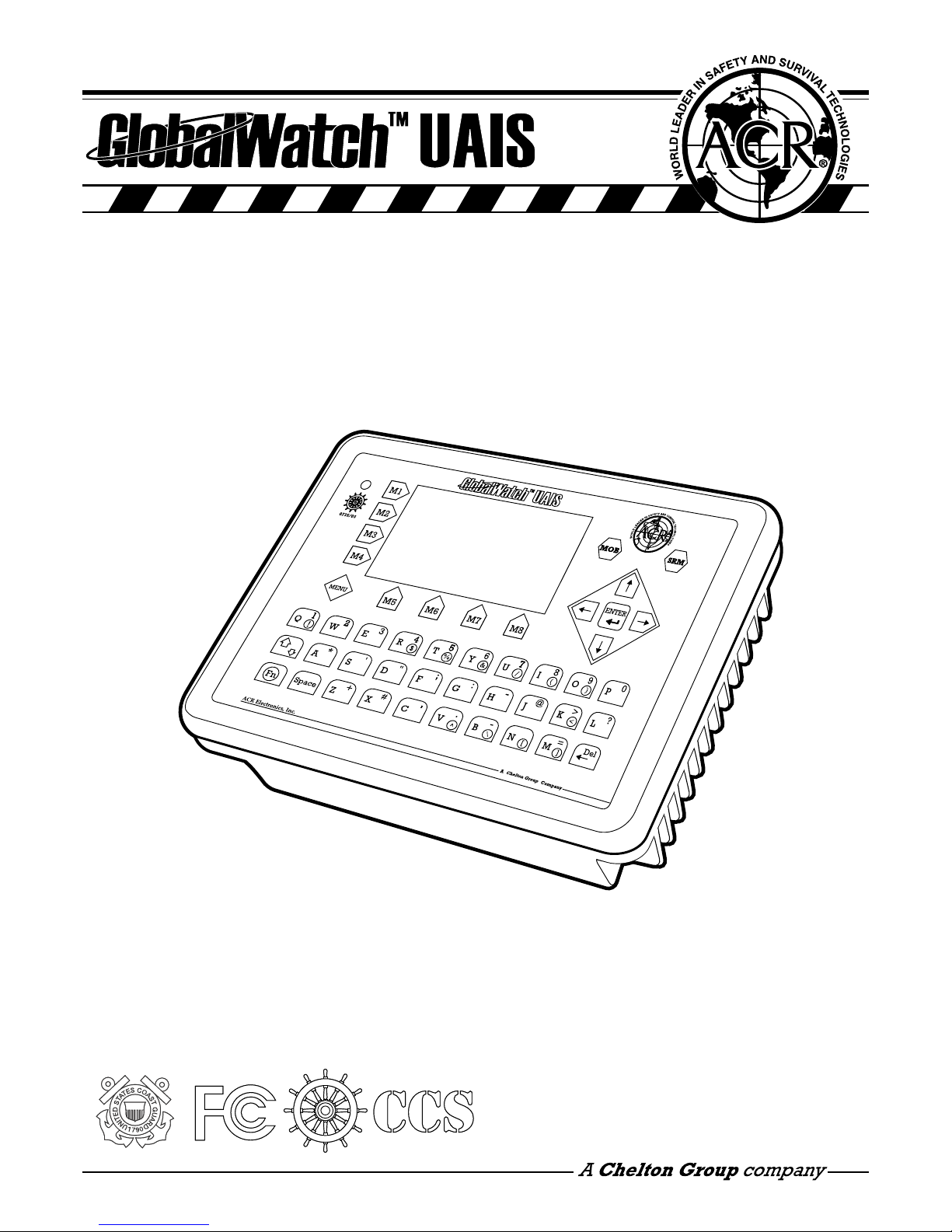

ACR Electronics GLOBALWATCH UAIS - QUICK User manual
4XLFN8VHU0DQXDO
9HUVLRQ
31<5HY$
GlobalWatchTM UAIS Quick User Manual I
Version 1.0
Please read this first!
Warning:
Although ACR strives for accuracy in all its publications; this material may contain errors or
omissions, and is subject to change without prior notice. ACR shall not be made liable for any
specific, indirect, incidental or consequential damages as a result of its use. ACR components may
only be used in safety of life devices or systems, with the express written approval of ACR, as the
failure of such components could cause the failure of the ACR device or system. If these fail, it is
reasonable to assume that the safety of the user or other persons may be endangered.
Y1-03-0176A
GlobalWatchTM UAIS Quick User Manual II
Version 1.0
1GLOBALWATCHTM UAIS Components and Interfaces........................................................................ 1
2GLOBALWATCHTM UAIS User Interface ............................................................................................... 2
3Navigation Screen................................................................................................................................... 3
4Inputing Voyage Related Data – (User Password Protected)............................................................. 4
5Setting Ship Related Data – (User Password Protected).................................................................... 6
6Configuring the GlobalWatchTM UAIS – (User Password Protected)................................................. 8
7Changing the Service Password – (Service Password Protected) .................................................. 11
8Changing the MMSI / IMO Numbers .................................................................................................... 13
9Writing an Addressed Safety Related Message to an individual Vessel ....................................... 15
10 Writing a Broadcast Safety Related Message to all Vessels........................................................... 17
11 Safety Functions – MOB and SRM Buttons ....................................................................................... 19
12 Display Settings .................................................................................................................................... 22
13 Contact and Support Information........................................................................................................ 23
GlobalWatchTM UAIS Short Operation Manual
Index Page Number
Y1-03-0176A
GlobalWatchTM UAIS Quick User Manual III
Version 1.0
History of Changes
Date
Version
Status
Comments
Responsible
2002-12-04 1.0 Released Latest release amendments A. Lesch
2003-06-30 1.0.1 Released Corrections B. Werner
2004-04-14 1.0.1 Changes upon Customer Requests S. Reinisch
Y1-03-0176A
GlobalWatchTM Quick User Manual 1
Version 1.0
1 GLOBALWATCH
TM
UAIS Components and Interfaces
Y1-03-0176A
GlobalWatchTM Quick User Manual 2
Version 1.0
2 GLOBALWATCH
TM
UAIS User Interface
Display
Soft Keys [M1] – [M8] Safety Keys
Curso
r
Cross
Keyboard
Enter Key
Navigation Screen
Header (max. 3 lines)
_
____________________________
_
Navigation Screen or
MENU Structure
(Content 13 lines)
Y1-03-0176A
GlobalWatchTM Quick User Manual 3
Version 1.0
3 Navigation Screen
Latitude &
Longitude
Own speed over Ground
Own course over Ground
UTC Time
GPS Solution
Received Vessels
(
Vessel Listin
g)
>Indicates further Vessels in Listing
LAT:N 1^27.845'ExtSOG:34.6kn 11/26/2002
LON:E 0^21.289'IntCOG:173.0^ 10:52:26
IntGPS: 3D ExtHDT:222^ Reg6 A/
001/021..ShipName....RNG.BRG..SOG..COG..
1>DOREEN-----------> N/A 120 22.2 301.5
2>FINE EAGLE------->0.00 N/A 13.1 359.9
3>SYLVAEPSILON----->0.10 23 32.1 203.2
4>ESSOTOKYO-------->0.43 99 10.0 120.3
5>OLYMPIAHIGHWAY FE>0.59 342 21.2 50.0
6>SANEI------------>0.80 272 32.1 270.1
7>KATOO------------>1.00 321 21.2 200.8
8>OLYMPIA PALACE--->1.34 277 [BASESTAT]
9>MINILOG---------->1.96 201 21.7 102.2
10>ALIBRAHIMYA----->2.66 340 22.1 30.3
11>TITANIC--------->2.75 121 N/A N/A
12>BWRTZ123-------->3.36 66 24.1 2.9>
Y1-03-0176A
GlobalWatchTM Quick User Manual 4
Version 1.0
Note:
The User Password is set to “NAUT” – please reconfigure it immediately after Transponder initial operation
Select “Voyage Settings” from the Main Menu with the cursor button [Up] & [Down] or press Nr. 3 on the
keyboard
The Password Query Field appears. Input User Password and press [Enter].
4 Inputing Voyage Related Data – (User Password
Protected)
N 1^20' E 0^13' |1> N/A|2>0.00|3>0.10nm
|----------------------------------
| Menu
-----| |
| +- 1. Messages
View | +- 2. AIS Status
| +- 3. Voyage Settings
-----| +- 4. Ship Settings
| +- 5. Transponder Configuration
Msg. | +- 6. Service Configuration
| +- 7. Display Settings
-----|
|
Displ|
----------------------------------------
NUM|Select->| | |<-Back
N 1^31' E 0^24' |1>0.01|2>1.30|3>1.80nm
----------------------------------------
++++++++++++++++++++++++++++++++++++++++
User password protected!
Please enter user password:
++++++++++++++++++++++++++++++++++++++++
----------------------------------------
| Enter | | | Exit
Y1-03-0176A
GlobalWatchTM Quick User Manual 5
Version 1.0
Scroll the Voyage Data Fields with [Enter] and input own vessel data. Select a default Cargo Type and
NavStat Setting with the cursor buttons [Left] & [Right].
Save the new settings by pressing [Save], and return to the Main Menu Screen by pressing [Exit]. Press
[Back] to return to the Main Menu without saving any changes.
N 1^18' E 0^12' |1>0.01|2>1.30|3>1.80nm
*********** Voyage Settings ************
Cargo :<N/A or harmless>
Draught :24.8m
PoB :1
Dest. :CASABLANCA
ETA :10/13 12:31
NavStat.:Engaged in fishing
----------------------------------------
| Save | | | Back
Y1-03-0176A
GlobalWatchTM Quick User Manual 6
Version 1.0
Select “Ship Settings” with cursor button [Up] & [Down] or press Nr. 4 on the keyboard.
Note: The User Password is set to “NAUT” – please reconfigure it immediately after Transponder initial
operation
Input User Password and press [Enter].
5 Setting Ship Related Data – (User Password Protected)
N 1^23' E 0^16' |1>0.01|2>1.30|3>1.80nm
|----------------------------------
| Menu
-----| |
| +- 1. Messages
View | +- 2. AIS Status
| +- 3. Voyage Settings
-----| +- 4. Ship Settings
| +- 5. Transponder Configuration
Msg. | +- 6. Service Configuration
| +- 7. Display Settings
-----|
|
Displ|
----------------------------------------
NUM| Select->| | |<-Back
N 1^23' E 0^16' |1>0.01|2>1.30|3>1.80nm
----------------------------------------
++++++++++++++++++++++++++++++++++++++++
User password protected!
Please enter user password:
++++++++++++++++++++++++++++++++++++++++
----------------------------------------
| Enter | | | Exit
Y1-03-0176A
