Acclaim Lighting Terra Linear User manual

www.acclaimlighting.com

User guide

Terra Linear™

www.acclaimlighting.com

CONTENTS

INTRODUCTION ....................................... 2

Welcome 2

Safety, maintenance and cleaning 2

Supplied items 3

Required accessories 3

Optional accessories 4

INSTALLATION.......................................... 5

Mounting 5

Surface preparation and drainage 6

Mounting height 6

In-ground installation 7

Power 11

Interconnecting 12

Termination 12

Linking to an XTR Driver 13

Optional AJBOX1 conduit connections 14

Flexible power options 15

Run lengths - ﬁxture maximum 16

Run lengths - overall maximum 16

Important cabling considerations 17

Control 18

DMX control considerations 19

Tips for achieving successful DMX control 20

Innovations to enable long runs 21

Optional wireless control 21

OPERATION ............................................22

Addressing ﬁxtures 22

DMX cell addressing 23

Setting the cell mode (personality) 24

Testing emitter output 25

FURTHER INFORMATION............................26

Troubleshooting 26

Speciﬁcations 27

Dimensions 28

Limited product warranty 33

2www.acclaimlighting.com

INTRODUCTION

WELCOME

Welcome to the Terra Linear™ range from Acclaim Lighting. These tough, drive-over ready

ﬁxtures designed for all-weather in-ground applications. Available in 1 foot and 4 foot

lengths, these aluminum-bodied IP68 ﬁxtures are particularly suited to recessed façade

lighting applications. A wide range of emitter, beam angle and power options make it

straightforward to match each unit to the speciﬁc requirements of your installation.

Using uniﬁed power and DMX control links, Terra Linear ﬁxtures can be rapidly daisy-chained

in long runs. All standard mains voltages are directly supported or, to achieve impressive

single runs up to 700 linear feet (213m), Terra Linear can be driven by Acclaim Lighting’s XTR

Driver.

Control is achieved using the industry standard DMX-512A format, with RDM for

conﬁguration. DALI and 0-10V control inputs can also be used when an XTR Driver or

optional converters are employed.

SAFETY

•When ﬁxtures are mounted oﬀ-ground, ensure they are securely ﬁtted to an appropriate

mounting surface.

•Ensure that the power input is supplied from an environmentally protected location, is

correctly fused and has a valid protective earth that is tied to true earth.

WARNING - HIGH VOLTAGE

This device can use high voltages (up to 400VDC) which could

cause severe personal injury or death if misused:

• Always isolate power before connecting or disconnecting links.

•Installation to be carried out by certied electricians only.

•Use only approved cables and connectors.

•Check all connections are correctly made before energizing.

HIGH VOLTAGE

MAINTENANCE

CAUTION: Always isolate mains power before starting maintenance operations.

•Ensure that all mounting (and device) screws/bolts are fully tight and free of corrosion.

•Ensure there is no deformation to the housing, lenses or ﬁxing points.

•Check that all power supply cables are free from physical damage or material fatigue.

•Use only genuine spare parts supplied by Acclaim Lighting.

CLEANING

•Use a moist, lint-free cloth along with warm water when cleaning each ﬁxture.

•Never use alcohol or solvents.

SAFETY, MAINTENANCE AND CLEANING

www.acclaimlighting.com

SUPPLIED ITEMS

REQUIRED ACCESSORIES

Terra Linear 1’ or 4’

Feed cables

(incl terminator end cap)

10’ (3m) [TLAFC10]

50’ (15m) [TLAFC50]

In-ground sleeve plus

removable pour cover

1’ [TLAIGS1]

4’ [TLAIGS4]

continued

For dimensions of all items,

please see page 28.

4www.acclaimlighting.com

OPTIONAL ACCESSORIES

IP66 junction box

(incl. outlet cable gland)

[AJBOX1]

Link cables

1’ (30cm) [TLALC1]

5’ (1.5m) [TLALC5]

10’ (3m) [TLALC10]

XTR Driver adapter cable

(allows a Terra Linear link

cable to be connected to an

XTR Driver output)

[TLAXTRC1]

Terminator (end cap)

[TLAEC]

www.acclaimlighting.com

INSTALLATION

MOUNTING

For each Terra Linear ﬁxture, an in-ground aluminum sleeve of the same length is required

(see page 3 for part codes and page 28 for dimensions). Sleeves feature a removable

2” rubber knockout at each end as well as an aluminum pour cover along the upper

surface, which fully protects the internal chamber while surface work is in progress.

IMPORTANT: To achieve a full 6000 lbs (2,721kg) drive-over rating, the long sides

of each sleeve must be fully supported on 8” (203mm) concrete. Otherwise the

xture must be reduced to a walk-over rating of 2000 lbs (907kg).

Soft ground

base

Finishing

Concrete

TO ACHIEVE A FULL 6000 LBS DRIVE-OVER RATING

SOFT GROUND BASE - 2000 LBS WALK-OVER RATING

Terra Linear placed into sleeve

1.5” Conduit

Finishing

Concrete

Aluminum

retainers

(up to 6)

6www.acclaimlighting.com

SURFACE PREPARATION AND DRAINAGE

Correct surface preparation is essential to ensure that the required walk- or drive-over rating

is achieved (see page 5), as well as suﬃcient drainage to prevent permanent ﬂooding of

the chamber(s).

Each sleeve should be mounted into a level surface that is free draining, such as a permeable

stone/gravel mix. If the base is concrete then suitable drainage holes should be created.

The following minimum drainage rates should be met or exceeded:

Sleeve length Sleeve volume Minimum drainage rate

1ft 0.6 gallons 0.022 gallons per minute

(2.7 liters) (0.1 liters per minute)

4ft 2.4 gallons 0.09 gallons per minute

(10.9 liters) (0.4 liters per minute)

Where drainage rates are insuﬃcient, further measures should be employed, such as a

French drain below the immediate mounting surface of each sleeve.

MOUNTING HEIGHT

IMPORTANT: For walk- and drive-over installations, the long sides of the sleeve

must be fully supported and the sleeve height must be arranged to ensure that its

top edge is exactly level with the nished surface:

Soft ground

Walk-over applications

Concrete

Full drive-over rating

Soil

Stone/

gravel

mix

Sleeve too high

Sleeve too low

Sleeve level with surface

www.acclaimlighting.com

IN-GROUND INSTALLATION

The following section provides a brief overview of the recommended steps required to

successfully install a Terra Linear ﬁxture.

TO INSTALL A TERRA LINEAR FIXTURE

1 Prepare the mounting location(s) - see ”Mounting”on page 5.

2 Remove the pour cover from the sleeve

as well as one or both of the 2”rubber

knockout(s).

3 Lay the sleeve in place and use up

to six retainers (by others) suitable

to the mounting surface to prevent

movement. The retainers should

be aluminum to prevent galvanic

corrosion and 6”(150mm) in length

or longer.

Sleeve

2” knockout

Pour cover

3rd party

retainers

Six mounting slots can

accommodate retainers up to

3/16” (4mm) in diameter

8www.acclaimlighting.com

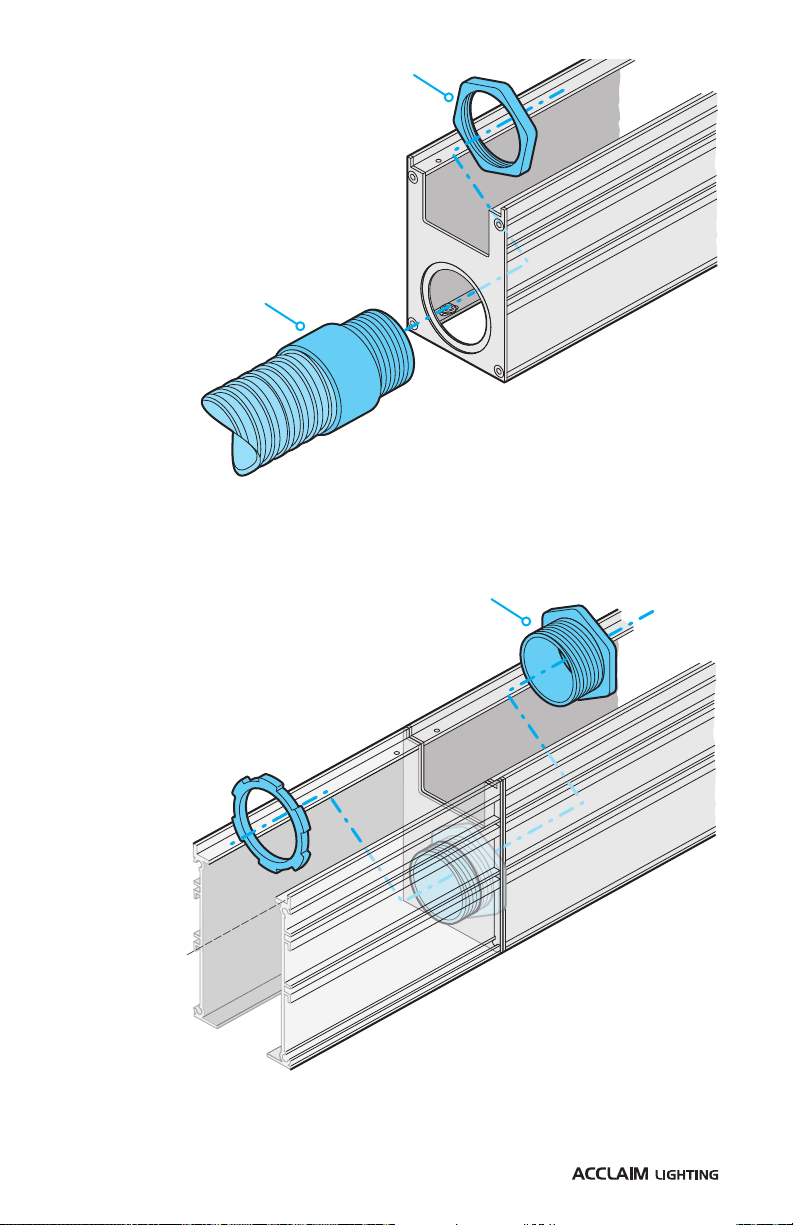

4 Attach a suitable 1.5”conduit

(by others) to the inlet hole

and lock it in place.

Repeat for the outlet hole, if

required.

1.5” conduit

Conduit

lock nut

•Where sleeves are abutted,

use suitable 1.5” conduit

couplers to secure the

joins.

Conduit coupler

(and lock nut)
