The Device
Product Manual 2CQA 100 001 B0001 │2018-09-28 │3
1The Device
The Light Switch is used to switch electrical loads ON and OFF. It can be integrated to the ABB-
free@home™ Smart Home system allowing remote operation, i.e. by mobile devices
(free@home System Access Point required).
A binary input allows the connection of a mechanical switch in order to create a 3-way
installation.
Note: A neutral wire is required.

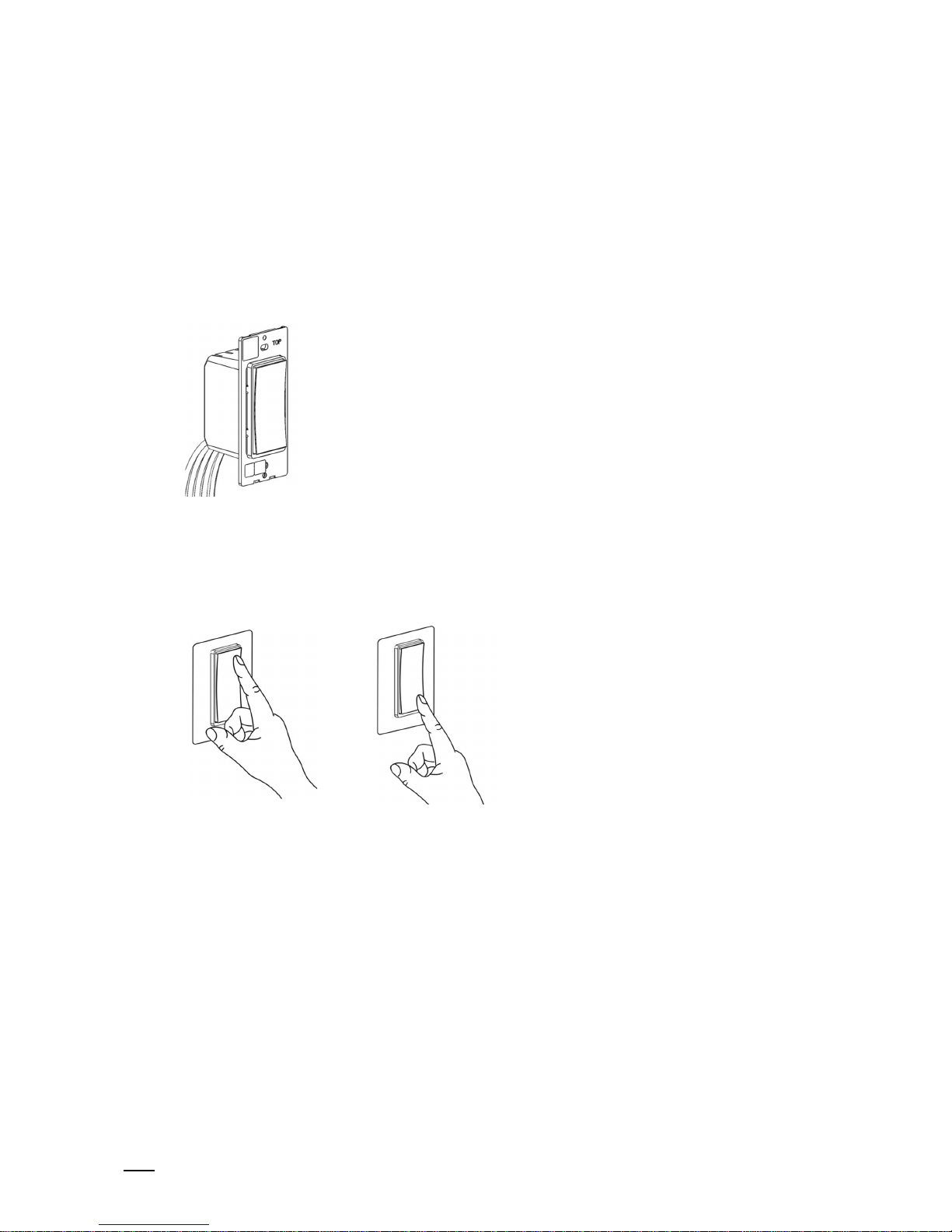

1.1 Basic Operation
To turn ON: Press the top of the rocker switch.
To turn OFF: Press the bottom of the rocker switch.
LED Indicator: The LED is lit when the connected lighting is ON.
1.2 Advanced Operation
The Light Switch can be configured to perform many convenient features for the user.
See Configuring the Light Switch for instructions on the features listed below:
•Lamp Settings
•Rocker Settings
•Motion Detection
•LED Switch-ON Brightness Night
•LED Switch-ON Brightness Day
•LED Orientation Light
•LED Status Indication
Adding the Light Switch
Product Manual 2CQA 100 001 B0001 │2018-09-28 │4
2Adding the Light Switch
This section describes how to add the Light Switch to the system.
STEP 1: Install the Light Switch
Install the device by following the Operating Instructions included in the original packaging.
Note: After installation, the Light Switch will immediately allow the lamp to function. To control
the switch wirelessly, it will need to be added to the free@home network. If the Light Switch has
been assigned to a different SysAP, it will need to be reset. Please see here for instructions.
STEP 2: Open configuration and search for the Light Switch
Ensure that the SysAP is in Access Point mode by pressing the button on the SysAP. The
indicator light will turn solid blue. Connect to the SysAP by selecting it from the list in your
wireless network.
Once connected, open a browser and enter 192.168.2.1 in the address line.
If you have a tablet, use the free@home App.
Note: It is not possible to set up the Light Switch by using a smartphone.
Log in as a user that has configuration rights.
Adding the Light Switch
Product Manual 2CQA 100 001 B0001 │2018-09-28 │5
Start Go to Settings > free@home radio > Search for wireless devices
The SysAP will now search for the Light Switch.
Note: The Light Switch can only be found if the search starts within 30 minutes after the Light
Switch was connected to power. If 30 minutes has elapsed, the user must turn the power OFF
and back ON again to restart the 30 minutes.
The Light Switch will be found automatically and will be inserted into the configuration software.
Please wait until the Light Switch configuration is read. This may take up to 10 minutes.
STEP 3: Add the Light to the floor plan
A. Go To “Devices”.
B. Click on “Light” (or whatever new element was wired to the Light Switch).
C. Drag the light bulb symbol (or other element) into the floor plan.
D. Choose the device from the list.
Note: The device can be identified by its serial number or 3-digit code.
E. A new symbol will appear in the floor plan corresponding to the element that was placed into
the floor plan, (the Socket Outlet is pictured below).
Adding the Light Switch
Product Manual 2CQA 100 001 B0001 │2018-09-28 │6
Step 4: Add the Rocker Switch to the floor plan
A. Click on “Sensors”.
B. Drag the “Rocker” element into the floor plan. A new symbol will appear in the floor plan
corresponding to the Rocker.
Step 5: Connect the Light Switch to the Light
A. Click on Rocker in the floor plan. Select “Rocker” from the drop-down menu that pops up.
B. In the menu on the right-hand side of the screen, click on the button that says “Rocker”.
C. Click on the Light (or other element) in the floor plan. This creates a link between the two
devices. (A link between a Rocker and Socket Outlet is shown below).
Configuring the Light Switch
Product Manual 2CQA 100 001 B0001 │2018-09-28 │7
3Configuring the Light Switch
STEP 1: Lamp Settings
Click on the lightbulb symbol to show the lamp settings.
Define a name for this lamp.
3.1 Light Switch Settings
Setting Description Options Image
Autonomous
switch off time
duration [s]
This setting is only
used in combination
with a motion detector.
Light Switch will
automatically switch
OFF after time has
elapsed.
30 to 1800
Behavior on
malfunction Defines the reaction in
case of power failure. This setting is locked
at “No reaction”
STEP 2: Rocker Settings
After clicking on the rocker symbol, select “Rocker”.
“Binary Input” is only used when the Binary Input is connected, (i.e. in a 3-way installation).
Configuring the Light Switch
Product Manual 2CQA 100 001 B0001 │2018-09-28 │8
3.2 LED Settings
Setting Description Options Image
LED switch-on
brightness night [%] User can adjust
brightness of LED n/a
LED switch-on
brightness day [%] User can adjust
brightness of LED n/a
LED mode Defines the reaction
of the LED on the
rocker.
•“Orientation light”:
LED is always ON to
find Light Switch at
night
•“Status indication”:
LED shows status of
light, i.e. LED is ON
when switch is ON,
and OFF when switch
is OFF
Technical Data
Product Manual 2CQA 100 001 B0001 │2018-09-28 │9
4 Technical Data
4.1 Technical Data
Description Value
Operating Voltage 120 V AC, 60 Hz
Operating Voltage Range 103 VAC to 121 VAC
Connection L-wire and N-wire Required
Binary Input Voltage 120 VAC Nominal
Maximum Power Consumption < 1 W
Standby*Power Consumption < 300 mW
Transmission Protocol free@home, 2.400 - 2.483 GHz, meshed
Transmission Power < 15 dBm
Protection Type IP 20
Ambient Temperature Range 23° F to 113° F (-5° C to 45° C)
Storage Temperature Range -40° F to 140° F (-40° C to 60° C)
*If output is OFF and no active wireless communication
4.2 Load Table
Load Type Value
Incandescent or Halogen Lamp 15 A (1800 W)
Magnetic Low-Voltage Transformer (MLV) 8 A (960 W)
Electronic Low-Voltage Transformer (ELV) 15 A (1800 W)
Fan, Maximum 1 Fan Allowed 400 W
Fluorescent Lamps, without Compensation or Ballast 12 A (1440 W)
LED Lamps, Maximum 20 Lamps Allowed 180 W
Resetting the Device
Product Manual 2CQA 100 001 B0001 │2018-09-28 │10
5Resetting the Device
Reset the Light Switch if it was previously assigned to a different System Access Point (SysAP).
The reset will remove any previous connection and enable the device to connect to a new
SysAP.
Reset procedure:
A) Press and hold the bottom of the rocker for at least 20 seconds.
B) The bottom LED light will start flashing after 10 seconds.
C) After another 5 seconds, the LED will start flashing rapidly. After another 5 seconds, the LED
light will turn off.
D) Release the bottom of the rocker within the next 10 seconds.
E) Then press the bottom of therocker. The lower LED light will stay on. Press the bottom of the
rocker again. The previous actions must be completed within 5 seconds.
F) The device will now return to factory settings and restart.
