AAXA Technologies S1 User manual

aaxa

TECHNOLOGIES

User Guide

Caution!

WARNING: Please use this product as instructed. Misuse may cause

injury or death.

DO NOT use while driving

DO NOT expose to water or wet

surfaces. Electric shock may occur.

DO NOT expose the projected LED

image to your eyes or the eyes of

others

DO NOT block or restrict airow

from ventilation holes as this may

cause the projector to overheat

Keep the projector, battery, or

charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery

with sharp objects

• Do not heat the product or expose it to

high temperature.

• Do not wet it or place it in any liquid

Caution for Headphone Use

• Prolonged use at high volume may impair

your hearing.

• High volume during walking or driving may

cause distractions and result in injury or death

Table of Contents

Chapter 1: S1 at a Glance

S1 Introduction

Keypad

What’s in the Box

Chapter 2: Getting Started

Powering On / Off

Focus Adjustment / Throw Ratio

Connecting a Nintendo Switch

Chapter 3: Projector Settings

Brightness Settings

Advanced Settings

Picture Settings

Sound Settings

Time Settings

Advanced Settings

Keystone Adjustment

Chapter 4: Technical Details

Troubleshooting

Specications

Notes

S1 at a Glance

Chapter 1

Charging Port

Main Unit (Left Side)

Focus Adjustment

Headphone Out

Switch Dock

Keypad

HD Pico at a Glance

Chapter 1

Main Unit (Right Side)

Power Button

Hard Reset

Keypad

The keypad is used to navigate through the onboard menu system,

adjust the volume and adjust keystone.

Brightness Settings Advanced Settings

Decrease Volume Increase Volume

Keystone adjustment

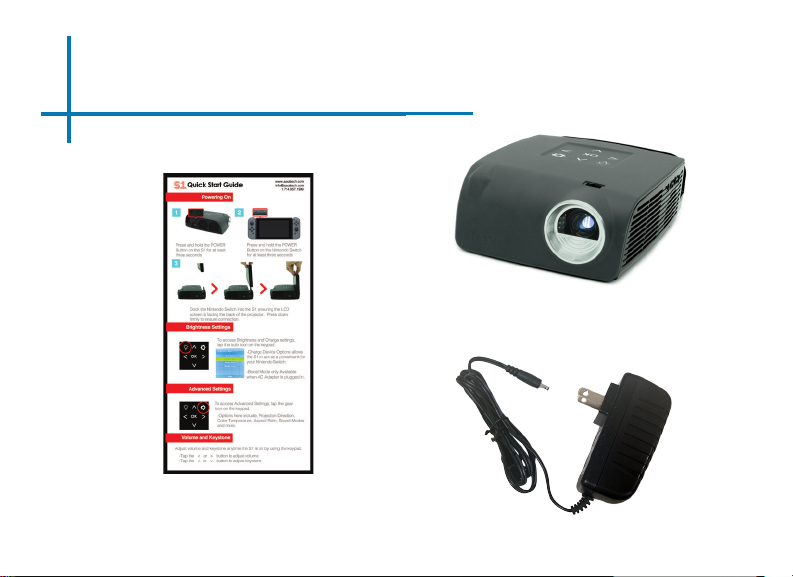

What’s in the Box

Power Adapter

S1 Pico Projector

Quickstart Guide

Getting Started

1. To power-on a fully charged S1, hold down the power button for approximately ve

seconds until the projector turns on.

Powering ON the projector

Chapter 2

Powering OFF the projector

1. Press the power button once, then again to conrm.

2. After a few seconds, the unit should turn off fully.

1. To charge your S1, use the power adapter supplied in the box. The LED indicator

on the left side of the unit will light up red to show the projector is receiving power.

Once the projector is fully charged, the LED indicator will turn green.

Charging the projector

NOTE: The S1’s battery does not charge when it is in operation.

Focus Adjusment / Throw Distance

DIAGONAL SCREEN SIZE

16:9 Aspect Ratio

Throw Distance

Units: Inches

105

118

Diagonal Size

Units: Inches

• Spin the focus wheel left or right until the image becomes

clear.

Focus Adjustment

Throw Distance Chart

Throw Ratio 1.50

Projection Angle: 100% Offset

*minimum throw distance: 10 inches

Connecting to a Nintendo Switch

Power on the S1 by holding the power button down for at least three

seconds

Step 1:

Step 2:

Step 3:

Dock the Nintendo Switch into the S1. Ensure the LCD screen of the

Nintendo Switch is facing the back of the projector. Press down rmly to

ensure connection.

Power on the Nintendo Switch by holding the power button down for at

least three seconds
