EP-CHUPSMTVAUPS

Quick start guide UP2Chassis - EP-CHUPSMTVAUPS

Parts List

•Top cover with Logo Plate 1pc

•Middle Case 1pc

•Bottom Base 1pc

•Vesa Mount Plate 1pc

•Hex Standoff 4pcs

•Screw 10pcs

Not included with the kit, you may need to prepare:

•UP squared board.

•Small screwdriver.

As always, go check out up-community.org

for support and more information about your UP board

EP-CHUPSMTVAUPS

Assembly step

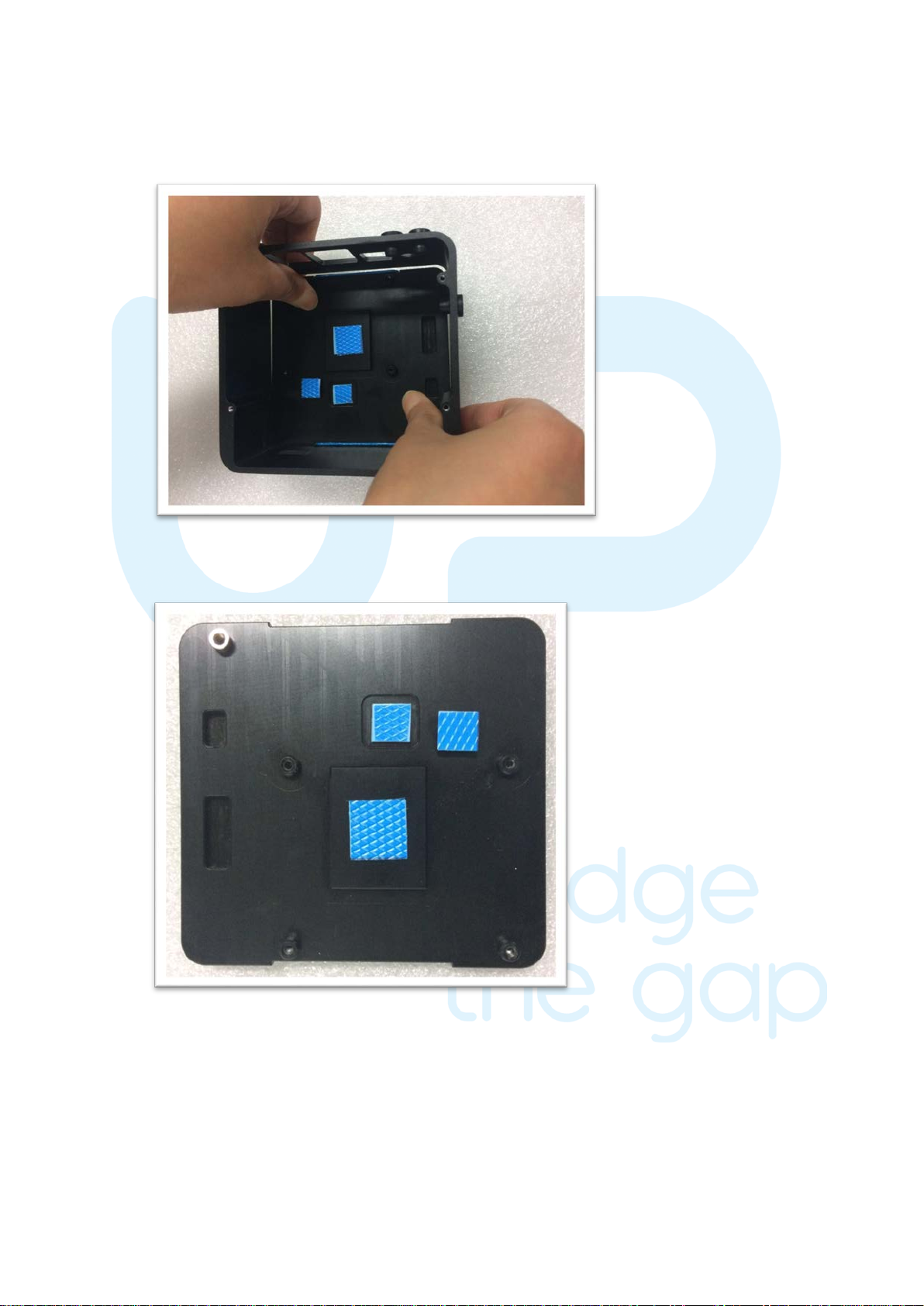

1. Depart the top cover and middle case in the diagonal direction.

2. Put the top cover on the operation desk

EP-CHUPSMTVAUPS

3. Peel of the blue protection film of thermal pad

4. Remove the 4 screws to release the heatsink from the UP2 board

EP-CHUPSMTVAUPS

5. Carefully pull the cooler from the board

6. Start to screw 4 Hex Stand-offs on the PCB.

EP-CHUPSMTVAUPS

7. Fasten the PCB with top cover by the hex standoffs through the threads nut on the top

co ver.

8. Place the board into the middle case, check well with the 4 sides exactly that match the

IO sides.

EP-CHUPSMTVAUPS

9. Fasten the bottom plate with PCB by screws x 4pcs

10. Fasten the bottom plate with top cover by screws x 4pcs

EP-CHUPSMTVAUPS

11. Fasten the Vesa Mount with pre-assembled case by screws x 2pcs

Exploded view including all components
