A.O. Smith ST 1500 User manual

INSTALLATION INSTRUCTIONS

AND USERS MANUAL

HOT WATER STORAGE TANKS

MODEL: ST 1500-3000

FOREWORD

Before attempting to install this water heater please read the installation instructions.

An authorized installer must install the heater and commission it according to the local

valid requirements.

A.O. SMITH CANNOT ACCEPT ANY RESPONSIBILITY FOR GUARANTEE,

SERVICE AND/OR PRODUCT LIABILITY IN THE EVENT OF UNAUTHORIZED

CHANGES, PRODUCT MODIFICATIONS OR REPAIRS.

CONTENTS

1. GENERAL

1.1 Description of the heater 3

1.2 Controls 3

1.3 Dimensions 3

1.4 Technical data 5

2. FOR THE INSTALLER

2.1 Installation 5

2.2 Water connections 6

2.3 Commissioning 7

2.3.1 Filling the heater 7

2.3.2 Heater start-up 7

2.4 Shutting down 7

2.5 Maintenance 7

2.5.1 Anode 7

2.5.2 Descaling 7

2.6 Spare parts 8

3. FOR THE END - USER

3.1 Filling the heater 8

3.2 Start-up of the water heater 8

3.3 Shutting down 8

3.4 Maintenance 8

4. WARRANTY

4.1 Warranty in general 9

4.2. Warranty of the tank 9

4.3 Conditions for installation and use 9

4.4 Exclusions. 10

4.5 Scope of the warranty 10

4.6 Claims 10

4.7 No other obligations for A.O. Smith

than those stated in this manual 10

1. GENERAL

1.1 Description of the heater

Construction of the heater is in accordance with the European standard for water heaters

or sanitary use. The heaters are suitable for use with a working pressure of up to 7 bar.

The cylindrical tank is made from sheet steel. For protection against corrosion, the inside

of the tank is glass-lined. The tank is also fitted with magnesium anodes for extra

protection against corrosion. A thick, replaceable insulation jacket minimizes heat loss.

1.2 Controls.

ST models are supplied without controls.

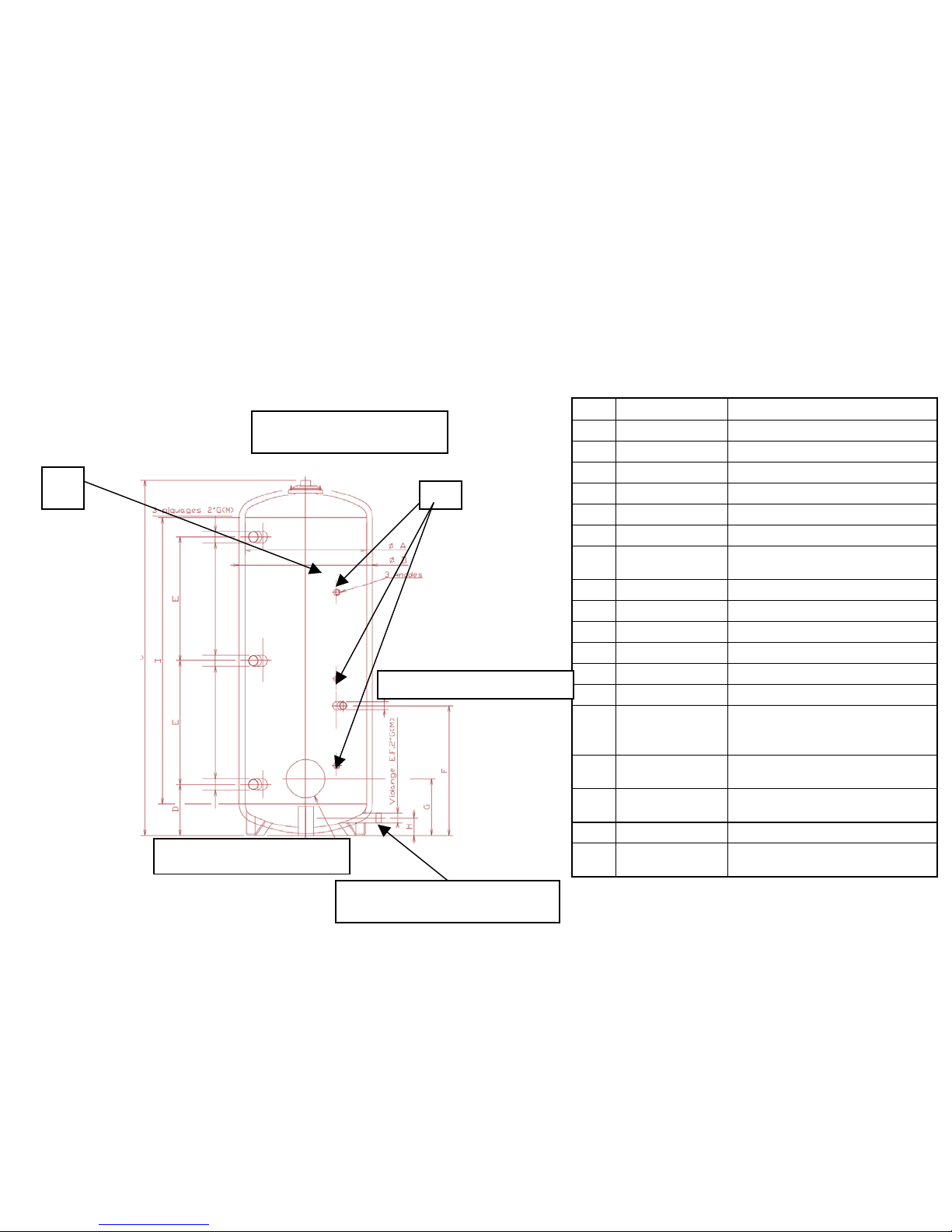

1.3 Dimensions

ST 1500/2000 ST 2500/3000

Connection sizes

1 Inlet 2" 2"

2 Outlet 2" 2"

5 Anode 3/4 3/4

Recirculation

connection 1¼" 1¼"

8 T&P connection 3/4 3/4

A Tank diameter 1100 1400

B Overall diameter 1200 1500

C Height 1930/2118 1990/2118

D Height alt inlet 400 480

Distance

between 2 “

connections 550/644 500/565

Height

circulation conn. 710 690

height clean out

opening 450 530

H Height inlet 135 183

Clean out

diameter 110 110

Clean out flange

1 Cold water inlet/drain 2”

6 Recirculation 1¼

”

2 Hot water outlet 2”

1.4 Technical specifications

ST 1500/2000 ST 2500/3000

1 Storage capacity ltr 1500/2000 2500/3000

2 Tank heat loss kWh/24h 8.5 10.1

3 Maximum working pressure bar 7 7

4 Test pressure tank bar 12 12

5 Maximum allowed tank temperature °C 95 95

6 Weight empty kg 374/506 637/739

2. FOR THE INSTALLER

2.1 Installation

A qualified, competent installer must install the hot water storage tanks in accordance

with local valid regulations and codes.

Location needs to be chosen to prevent damage in case of tank leakage (e.g. place tank in

a drain pan or near a floor drain of sufficient capacity). For mounting of the jacket see

separate attached Kit installation sheet.

2.2 Water connections

The water heater is suitable for connection to vented, un-vented and pumped pressurized

systems. In each case appropriate valves and fittings should be used to ensure the system

complies with the governing codes and appropriate building requirements. The maximum

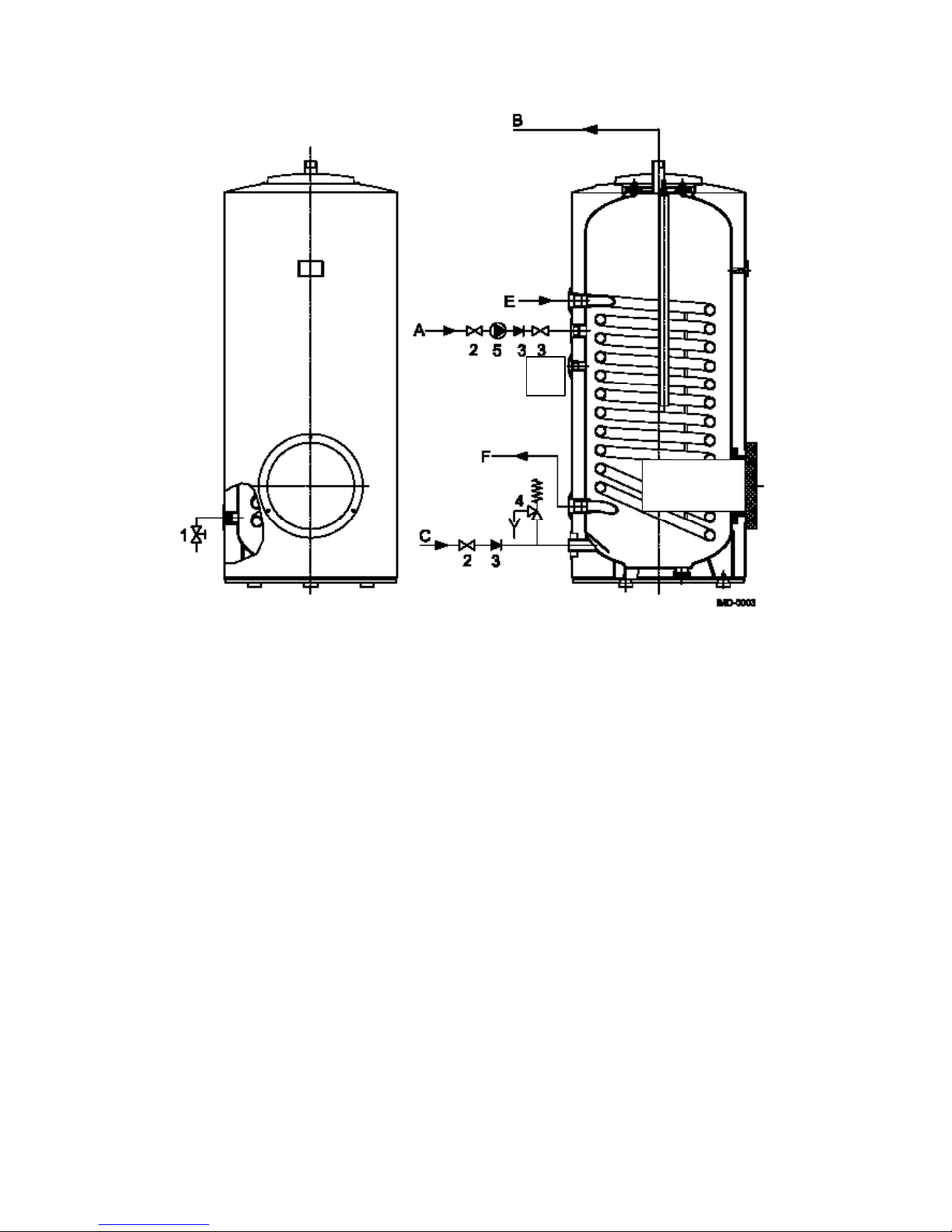

working pressure is 7 bars. A typical installation diagram for an un-vented installation is

as follows:

Back-up

element

1 = drain (on small tanks only)

2 = valve

3 = check valve

4 = pressure relive valve

5 = circulation pump sanitary water

6 = temperature sensor for boiler three way valve

A = circulation line

B = warm water

C = cold water

E = boiler water hot

F = boiler water return

Optional backup elements are available for field installation up to 6 kW input. Models with fixed internal heat exchanger

are also available.

2.3 Commissioning

2.3.1 Filling the tank

1. Check if any installed drain valve is closed.

2. Open the cold-water supply valve to the heater

3. Open all hot-water outlets in order to bleed all air from the system. The heater is

filled when cold water runs out of all outlets.

4. Close all hot water taps

2.3.2 Start up

Check if the heater is filled with water and that the primary system is ready. Open water

supply and return valves.

2.4 Shutting down

For longer periods:

1. Close the cold-water tap.

1. If there is any risk of frost damage, drain the tank completely.

2.5 Maintenance

The heater must be checked and cleaned regularly (at least once a year) by an accredited

installer, so that correct operation is guaranteed.

2.5.1 Anodes

The life of the anode is determined by the quality and quantity of the water flowing

through the heater. Therefore, we recommend the anodes to be checked regularly –

preferably simultaneously with an internal inspection of the glass-lined tank. In order to

determine the frequency of replacement of the anode, the waterside of the boiler must be

checked three months after installation. The anodes must be replaced, if more than 60%

has dissolved at any point on their length.

Procedure:

1. Close the cold-water inlet tap.

2. Relieve pressure from the heater completely by opening a hot water tap.

3. Remove the insulation package.

4. Unscrew and inspect the anode. Replace when used for more than 60 %.

5. Replace the anode. Attention: the anode must be in contact with the metal tank. If

the tank and the anode are electrically isolated, the anode cannot function. This

could have a negative effect on the life of the tank.

6. Assemble everything in reverse order.

7. Fill the heater as described in par. 2.2.1.

2.5.2 Descaling

Calcium precipitation depends on the water properties and the hot water demand. In

addition, calcium precipitation in the tanks increases at high water temperatures. A clean

out opening is located at the front for inspecting and descaling the tank. The clean out

opening can be reached via the cover plate on the outer jacket of the tank. Empty the tank

before opening the clean out opening. Descaling must be carried out with suitable

descaling agents, which can be ordered form A.O. Smith distributors.

To ensure that the clean out cover is watertight, the flange gasket should be replaced after

every inspection.

2.6 Spare parts

It is important to mention the tank type, model and full serial number when

ordering spare parts. The spare parts can be determined on the basis of these

numbers.

3. FOR THE END USER.

Warning

An accredited installer must install the tank and perform start up of the system.

3.1 Filling the tank

1. Check if drain valve is closed (if mounted).

2. Open the cold-water tap to the heater and all hot-water outlets in order to bleed all air

from the system. The heater is filled when cold water runs out of all outlets.

3. Close all taps at the hot-water outlet points. The tank is now under (water mains)

pressure. At this pressure the pressure relief valve must not release any water.

3.2 Start up of the system.

1. Check if the heater is filled with water and that the primary system is ready.

2. Set the controls on the primary circuit t of the boiler to the required sanitary water

temperature.

3. Open boiler supply and return valves (if installed)

3.3 Shutting down

For longer periods

1. Close the cold-water tap.

2. If there is any risk of frost damage, drain the tank completely.

3.4 Maintenance

The pressure relieve valve must be tested regularly by opening test lever for some

seconds. The water must run out in a full jet. Close lever again, making sure it sets

properly and the valve is not leaking. Check if the drainpipe is open. It is recommended

to arrange for a maintenance contract with the installer.

4. WARRANTY

4.1 Warranty in general

If within one year of the original installation date of the tank supplied by A.O. Smith any

part or component other than the tank shall prove upon examination by A.O. Smith, and

in the exclusive opinion of the latter, to be defective in material and/or

workmanship, A.O. Smith will exchange or repair such part or component.

4.2 Warranty of the tank

If within 5 years of the original installation date of the tank supplied by A.O. Smith, the

tank shall prove upon examination by A.O. Smith, and in the exclusive opinion of the

latter, to be leaking due to rust or corrosion from the waterside, A.O. Smith will supply a

complete new tank of equivalent size and quality on ex factory basis. On the replacement

tank a warranty will be granted sufficient to cover the not expired portion of the original

5 year warranty of the originally installed water heater.

WARNING: the warranty period will be reduced to 1 year from the original installation

date, if unfiltered or water softened to less than 70 ppm flows through or remains in the

tank.

4.3 Conditions for installation and use

The warranty ensuing from sections 4.1 and 4.2 will only be valid, if the following

conditions have been met:

a. The tank is installed in accordance with A.O. Smith’s installation instructions for

that specific model, as well as the local installation and building regulations, and

all relevant rules and regulations imposed by the authorities.

b. The tank remains installed in the original installation location.

c. Exclusively potable water, free to circulate at all times, is used (for heating salty

or corrosive water a separately installed heat exchanger is mandatory).

d. The tank is free of damaging scale deposits, due to periodic maintenance;

e. The water pressure and/or water temperature does not exceed the maximum

values stated on the water heater’s type plate and /or in this manual.

f. The tank is located in a non-corrosive atmosphere or area.

g. The tank is fitted with an expansion tank or inlet unit that is approved by the

relevant authorities, that is of sufficient capacity, not exceeding the working

pressure rating as indicated on the tank; the tank is possibly also fitted with a

temperature and pressure relief valve that is approved by the relevant authorities,

and that has been fitted in accordance with A.O. Smith’s installation instructions

for that specific water heater model, and furthermore, the local installation and

building regulations, and all relevant rules and regulations imposed by the

authorities.

h. The anodes have been inspected and renewed when worn for 60% or more.

4.4 Exclusions

The warranty ensuing from sections 4.1 and 4.2 will be null and void:

a. If the tank has been damaged by external causes.

b. In case of misuse, neglect (including frost damage), incorrect or improper use of

the tank, or if attempts have been made to repair leaks;

c. In the case of ingress of contaminants or other particles into the tank.

d. If the water conductivity is less than 150 µS/cm and/or the degree of water

hardness is less than 6 °DH/75 ppm.

e. If unfiltered, recycled water flows through the tank, or is stored in the tank.

4.5 Scope of the warranty

A.O. Smith’s obligations ensuing from this warranty are limited to the free delivery ex

Veldhoven store of the parts or the tanks respectively. A.O. Smith is not liable for

carriage, labor, installation and other costs relating to the replacement.

4.6 Claims

Any claim under this warranty must be filed with the dealer who originally sold the tank,

or with any other dealer or supplier of A.O. Smith’s products. The examination of the

tank pursuant to sections 4.1 and 4.2 will be carried out at A.O. Smith discretion.

4.7 No other obligations for A.O. Smith than those stated in this manual

With respect to the tank, respectively the tanks (or parts or components thereof) supplied

as a replacement, A.O. Smith will grant no other warranty or guarantee than the warranty

detailed above. A.O. Smith will not be liable by virtue of this warranty or otherwise for

damage to any persons or property, caused by parts or components, respectively the steel,

glass-lined tank supplied by them.

This warranty applies to the following models:

ST 1500-3000

ST 1500-3000 series

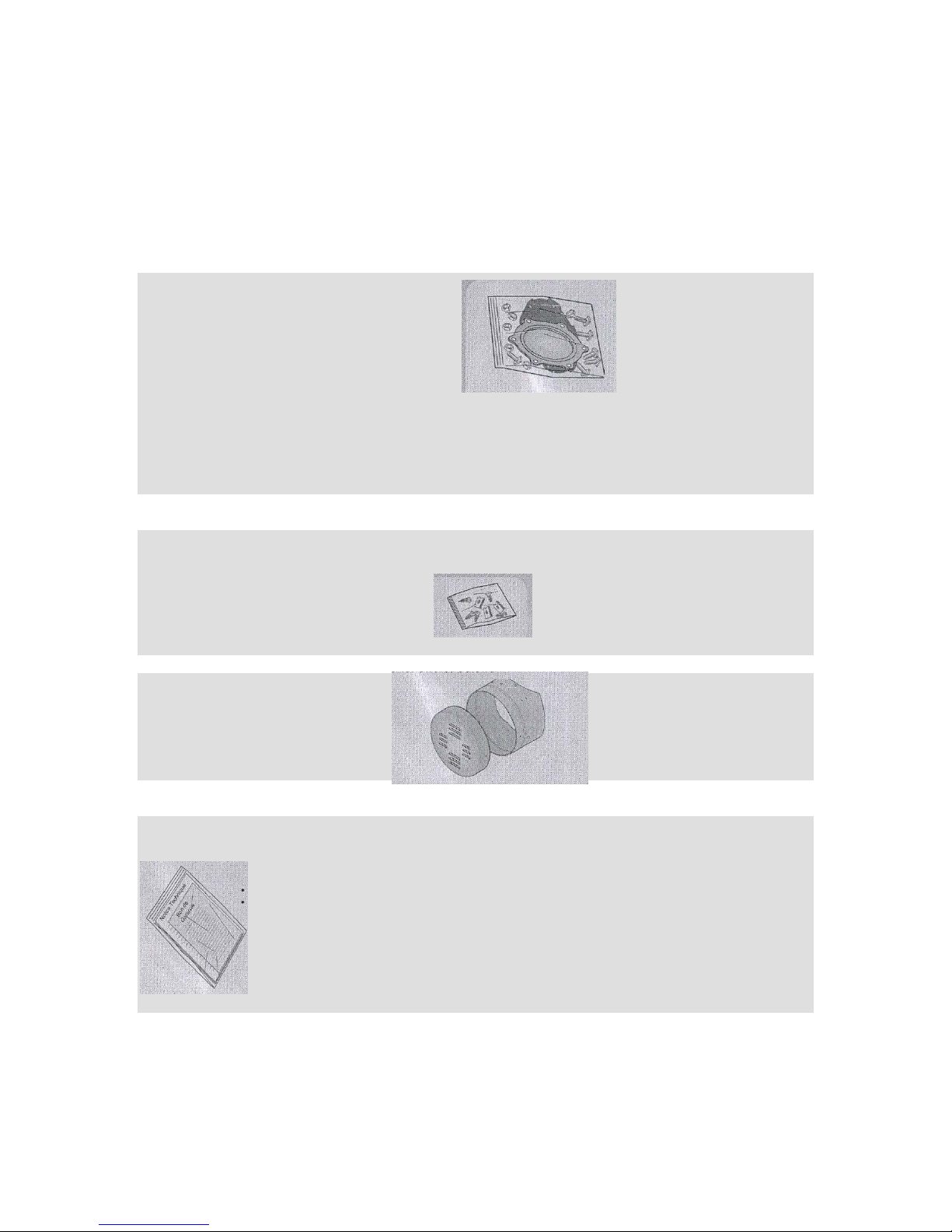

Kit installation instructions

1 – Contents of flange kit

Bag A

Flange plate

Designation Quantity

Bolts 6

Gasket 1

Flange plate 1

Bag D 1

Bag D

Flange collar and cover fixation screws and brackets

Designation Quantite

Brackets 3

Parker screws 5

Flange collar and cover

Installation manuals

This manual suits for next models

Table of contents

Other A.O. Smith Water Heater manuals

A.O. Smith

A.O. Smith ADM - 115 Supplement

A.O. Smith

A.O. Smith BTH 120 Building instructions

A.O. Smith

A.O. Smith TWI 35-130 User manual

A.O. Smith

A.O. Smith On Demand 305 Series 100 Guide

A.O. Smith

A.O. Smith DURA-Power DRE-52 User manual

A.O. Smith

A.O. Smith CAHP-MC-38 Manual

A.O. Smith

A.O. Smith DELC-30 Product information sheet

A.O. Smith

A.O. Smith 120-Gallon User manual

A.O. Smith

A.O. Smith Master-Fit Gas Tank Type Water Heaters User manual

A.O. Smith

A.O. Smith EES - 30 Troubleshooting guide

A.O. Smith

A.O. Smith 970 Series User manual

A.O. Smith

A.O. Smith HSE-VAS025 User manual

A.O. Smith

A.O. Smith 104 Series User manual

A.O. Smith

A.O. Smith ACVT-50 100 User manual

A.O. Smith

A.O. Smith XVRL-40 Product information sheet

A.O. Smith

A.O. Smith CAHP-120C Series User manual

A.O. Smith

A.O. Smith Residential Gas Water Heaters User manual

A.O. Smith

A.O. Smith 12 40GPC T 100 How to use

A.O. Smith

A.O. Smith G6-PVT4050NV Product information sheet

A.O. Smith

A.O. Smith Dura-Power DSE-5 User manual

A.O. Smith

A.O. Smith FPST How to use

A.O. Smith

A.O. Smith GCV Series How to use

A.O. Smith

A.O. Smith DURA-Power DVE-120 User manual

A.O. Smith

A.O. Smith ProMax GCV-30 User manual

Popular Water Heater manuals by other brands

Kenmore

Kenmore 153.582400 Use & care guide

Applimo

Applimo Edel AIR Installation and operating instructions

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Operating and installation instructions

clage

clage E-Mini Series Operating and installation instructions

Toyotomi

Toyotomi Oil Miser OM-180 installation manual

Bradford White

Bradford White EF Series Service manual

Eccotemp

Eccotemp 40-H Use & care manual

Dimplex

Dimplex ECSd125-580 Installation and user instructions

Dux

Dux 32FCR6N installation manual

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Operation and maintenance instructions

Noritz

Noritz N-132M Owner's guide and installation manual

TESY

TESY GCV7/4S 10047 Instructions for use and maintenance

Koryo

Koryo KWHZF15Y user manual

Pentair

Pentair PSC-14-4-02 Installation and operation manual

GE 40M06AAG Energy guide

Thermor

Thermor AEROMAX SPLIT 2 Instructions for use

American Hometec

American Hometec AHQ-B03X Installation and operation manual

PVI

PVI MAXIM Specifications
