1 Technical specifications

1.1 Floor load

1.2 Water composition

1.3 Working clearance

1.4 Packaging

1.5 Disposal

Allow for the water heater's weight and the maximum floor load; refer to the table

(1.6 "General specifications").

The water heater is intended for heating drinking water. The drinking water must

comply with the regulations governing drinking water for human consumption. The

table gives an overview of the specifications.

Water specifications

Water composition

Hardness

(alkaline earth ions)

> 1,00 mmol/l:

German hardness > 5,6 °dH

French hardness > 10,0 °fH

English hardness > 7,0 °eH

> 100 mg/l CaCO3

Conductivity

> 125 μS/cm

Acidity (pH value)

7,0 < pH value < 9,5

Note

If the water specifications deviate from those stated in the table, then the tank

protection cannot be guaranteed (4 "Warranty").

For access to the water heater, it is recommended that the following clearances are

observed:

around the anode connection: 100 cm.

around the water heater: 50 cm.

top of the water heater: 50 cm

The packaging prevents damage to the appliance during transport.

The packaging material chosen is environmentally friendly, recyclable

and relatively easy to dispose of in an environmentally aware way.

Old end-of-life appliances contain materials that need to be recycled. When disposing

of old devices that have reached the end of their service life, you

should take account of local legislation relating to waste disposal.

You must therefore never dispose of your old appliance together

with regular waste, but should and it into a municipal waste

collection depot for electrical and electronic equipment. Ask your

dealer/installation engineer for advice if necessary. The old

appliance must be stored out of reach of children.

Installation, Service and User Manual

1.6 General specifications General specifications

Unit

ITE 400

ITE 500

ITE 600

ITE 750

ITE 1000

Contents

litres

389

478

652

734

1024

Empty weight

131

179

229

237

314

Max. floor load

520

657

881

971

1338

Energy Efficiency Class (Energy Label)

Heat Loss

100

104

126

146

Max. operating pressure tank

kPa (bar)

1000 (10)

Max. operating pressure heat exchanger

kPa (bar)

1600 (16)

Max. water temperature tank

ºC

Max. water temperature heat exchanger

ºC

110

Anodes

Capacity heat exchanger

Primary flow 80/60ºC

l/h

2236

2924

3096

3440

3741

Pressure loss

mbar

244

489

104

128

259

Heat exchange surface

1.64

2.13

2.39

2.66

2.89

1.7 Dimensions Dimensions

Unit

ITE 400

ITE 500

ITE 600

ITE 750

ITE 1000

Total height

1710

2045

1840

2035

2005

Diameter (without insulation)

600

750

900

Diameter (with insulation)

740

760

910

930

1080

Height heat exchanger outlet

260

310

350

Height heat exchanger inlet

775

915

910

970

945

Height cold water inlet

Height warm water outlet

1655

1995

1805

2000

1965

Height inspec. opening/elec. element

330

420

450

Height inspec. opening/elec. element

900

1030

1070

1120

1090

Height recirculation connection

1100

1290

1240

1300

1400

Height immersion well/temp. sensor

500

655

705

Height T&P connection

1365

1700

1480

1675

1605

Height temp. sensor top tank

1365

1700

1480

1675

1605

Connection cold water inlet

R 1½"

Connection warm water outlet

R 1½"

Connection heat exchanger outlet

Rp 1"

Rp 1¼"

Connection heat exchanger inlet

Rp 1"

Rp 1¼"

Connection circulation

Rp ¾"

Diameter inspec. opening/elec. element

115

180

Connection T&P

1"-11.5 NPT

Connection immersion well/temp. sensor

Rp ¾"

Connection temp. sensor top tank

Rp ¾"

Connection anode

Rp 1¼"

0312735_ITE_400-1000_EN_V1.0, 2017-09-25

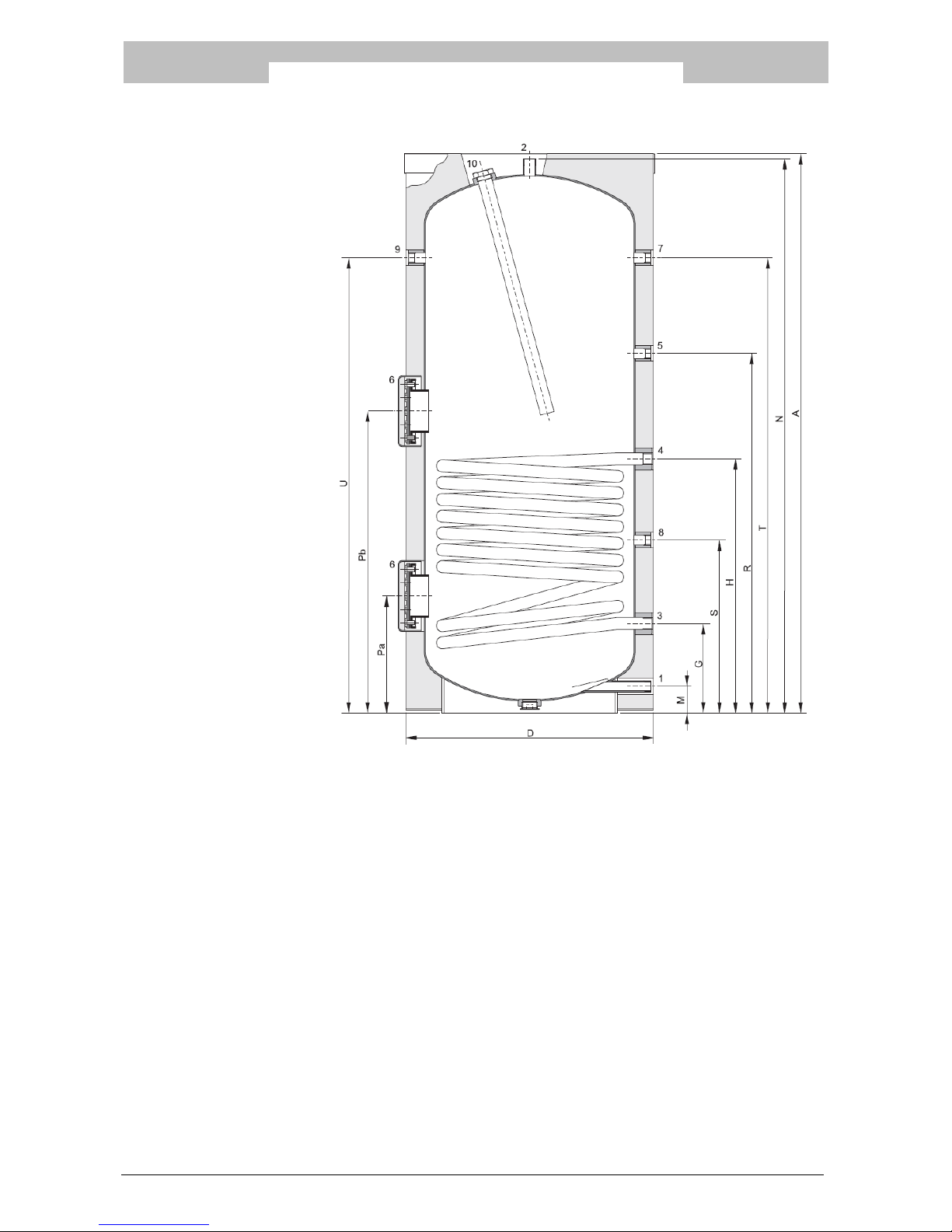

Front sectional view of the appliance

IMD-1299 R0

Installation, Service and User Manual
