3One data 3010 User manual

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Model3010

10/100M

Ethernet

SFP

Media

Converter

(SM

MM)

ntroduction

The high performance Fiber Link Ethernet Extenders provide up to

120KM of Ethernet extension over single-mode fiber. The Model

3010 is ideal for campus networks, connecting remote LANs, and

facilitating the optical last-mile connection to the metropolitan-area

network (MAN) and beyond.

It provide s a cost effective plug-and-play solution for long-range

10Base-T or 100Base-TX Ethernet extensions and added benefit of

10/100 auto-negotiation, making it the perfect choice when planning

future upgrades of 10Base-T networks. Ethernet Fiber converters

are ultra-miniature in size and feature a shielded RJ45 Ethernet jack,

SFP style fiber-optic connections. Built-in auto-sensing capabilities

enable full or half-duplex Ethernet operation with no configuration

required!

Packing

ist

Model 3010 is shipped with following items.

1. Model3010 ×1

2. 5VDC power adapter ×1(Media converter/5VDC)

3. User manual ×1

eatures:

1. Accord to IEEE802. 1 10Base-T

IEEE802.3 u 100Base-TX,

IEEE802.3 100Base-FX

2. MDI/MDI-X auto negotiation, 10M/100M auto negotiation

3. Supports full /half duplex, Point-to-point transparent transfer

4. Power External 5VDC input

5. Plug-and-play, easy to installation

6. Can insert to 2U 19", 14 slots Rack (power external)

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

inout

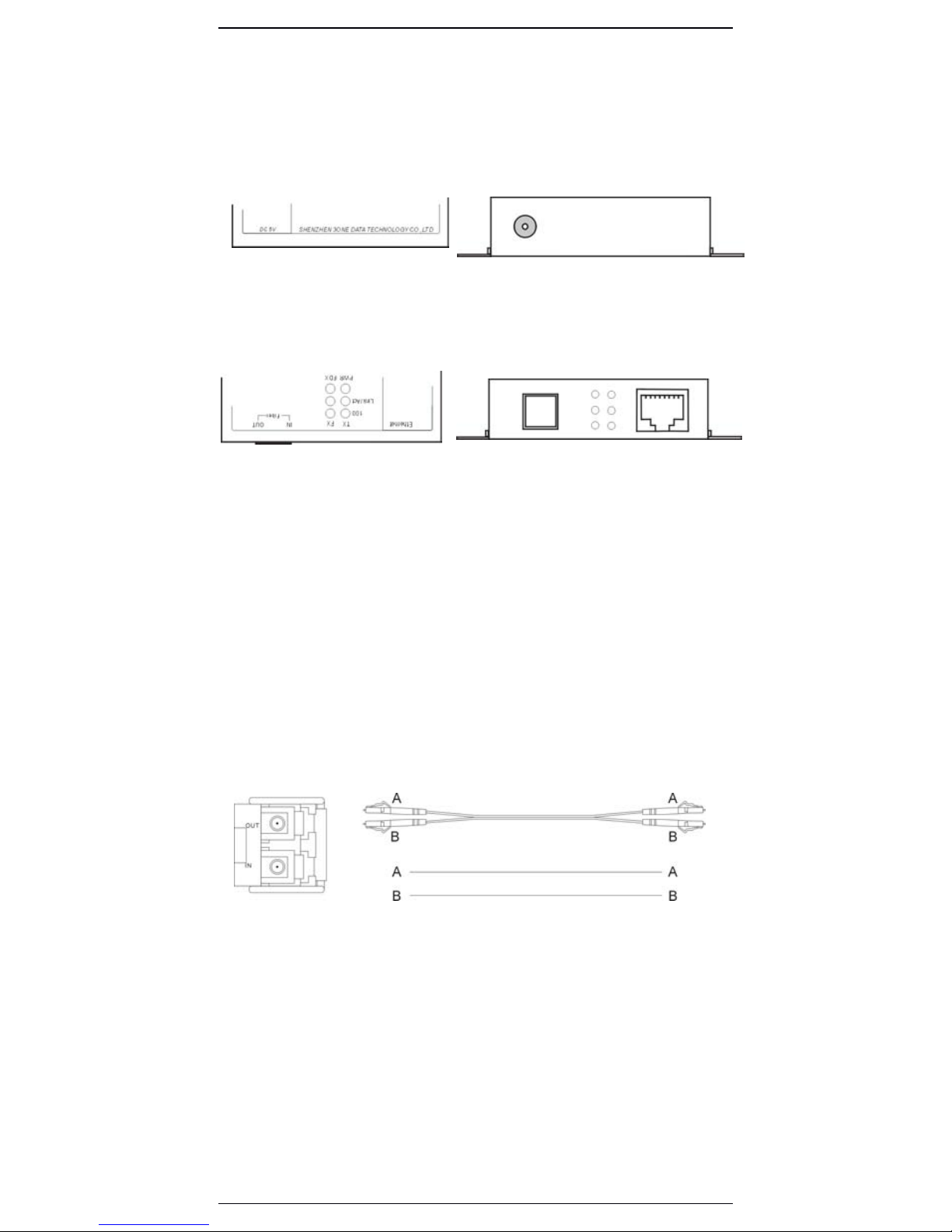

Configuration:

Power

Model3010 adopt the power supply input is 5VDC external.

Ethernet(RJ45),Optical

fiber

interface

Optical

fiber

interface:

Optic fib er interface need use in pairs, OUT port is fiber send side

connect another long-range light of interface fiber receive end IN;

IN port is fiber receive side

connect long-range same fiber send

side :

Optic fib er s spent both ends mark the label (the following picture

show: A-A, B-B, can also mark another: A1-A2, B1-B2), in order to

use.

Ethernet

interface:

Ethernet( RJ45 ) interface supports MDI/MDI-X auto negotiation,

can use straight- through cable connect PC or server, use across-

over connect cable Switch or HUB.

MDI: PIN 1, 2, 3, 6 connects opposite.

MID-X: 1 → 3

2 → 6

3 → 1

6 → 2

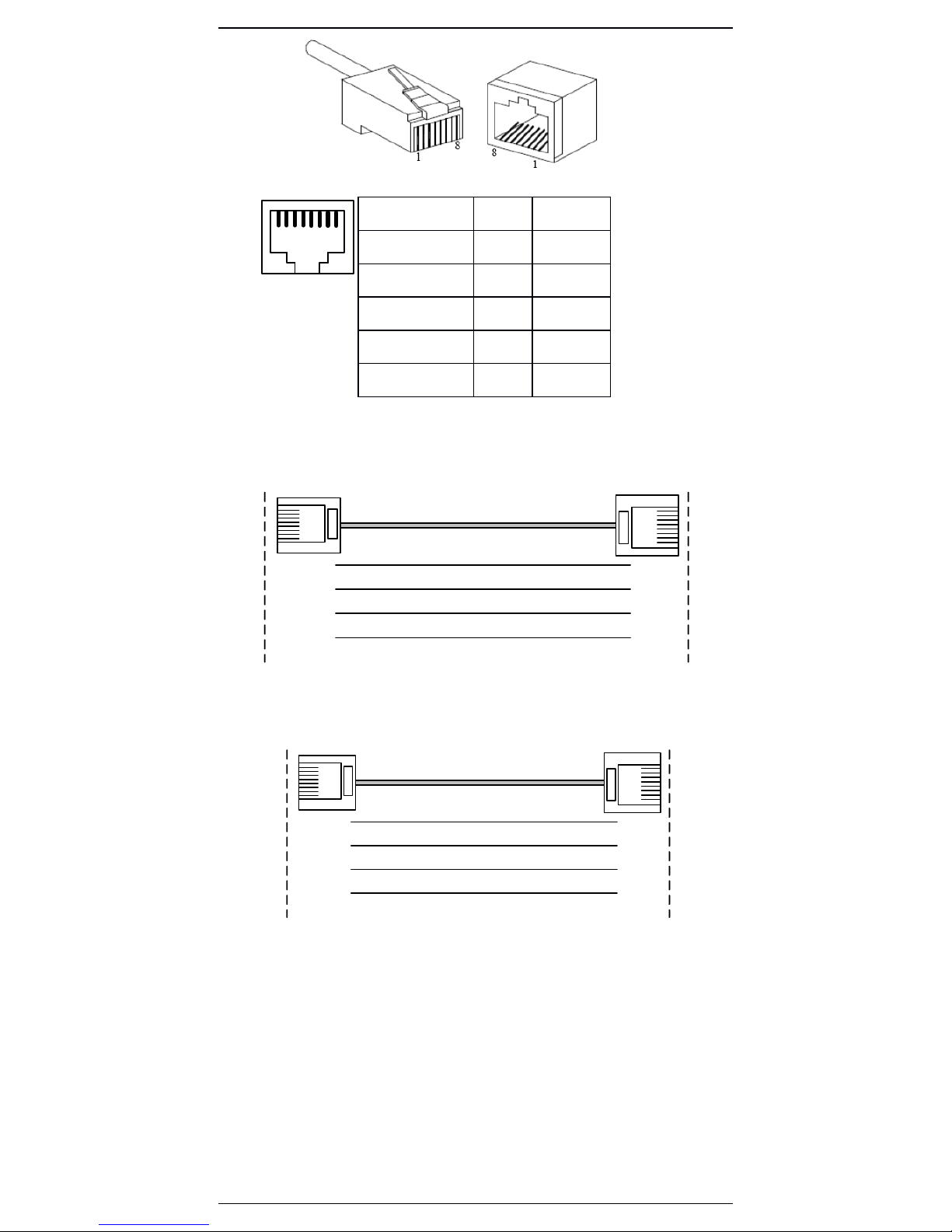

MDI/MDI-X 10Base-T/100Base-TX P IN define as follow:

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Note

：

“TX ±” Transfer data ±

，

“RX ±” Receive data ±

，

“—” None 。

MDI:

MDI-X:

MDI

MDI-X

TX+

RX+

TX-

RX-

RX+

TX+

RX-

TX-

4、5、7、8

—

(

- )

(

- )

(

- )

(

- )

1 8

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

LED

indications:

Specifications:

Standards : comply with IEEE802. 1 10Base-T

IEEE802.3 u

100Base-TX, IEEE802.3 100Base-FX

RJ45 port rate: 10/100Mbps auto negotiation

Optic port rate: 100Mbps

Transfer distance: RJ45port: 100m

Fiber optic:20,40,60,80,120km(SM),

2, 5 km(MM) optional

RJ45 port cable: UTP 5E

Fiber connector: 2 ×LC

Fiber optic cables: Single Mode:8.3/125,8.7/125,9/125 or 10/125

Muti-Mode:50/125,62.5/125 um

Wavelength:850nm,1310nm,1550nm

Power supply: External 5VDC input

Dimensions: 94.0mm ×71.0mm ×26.0mm

Installation: support DIN-Rail installation

Operating temp:-10 °

to 65 ° C

Storage temperature: -20 to 70 ° C

Operating humidity : 5% to 95% (no condensation)

LED

Color

Description

100

Green

ON: 100Mbps

OFF:10M bps

ink

Green

Blinking when fiber is

transmitting data

FDX

Green

Blinking when has data

conflict

100

Green

ON: 100Mbps

OFF:10M bps

ink

Green

Blinking when fiber is

receiving data

PWR

Green

ON: power is ON

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Warranty: 5 years

Approvals: FCC,CE, RoHS approvals

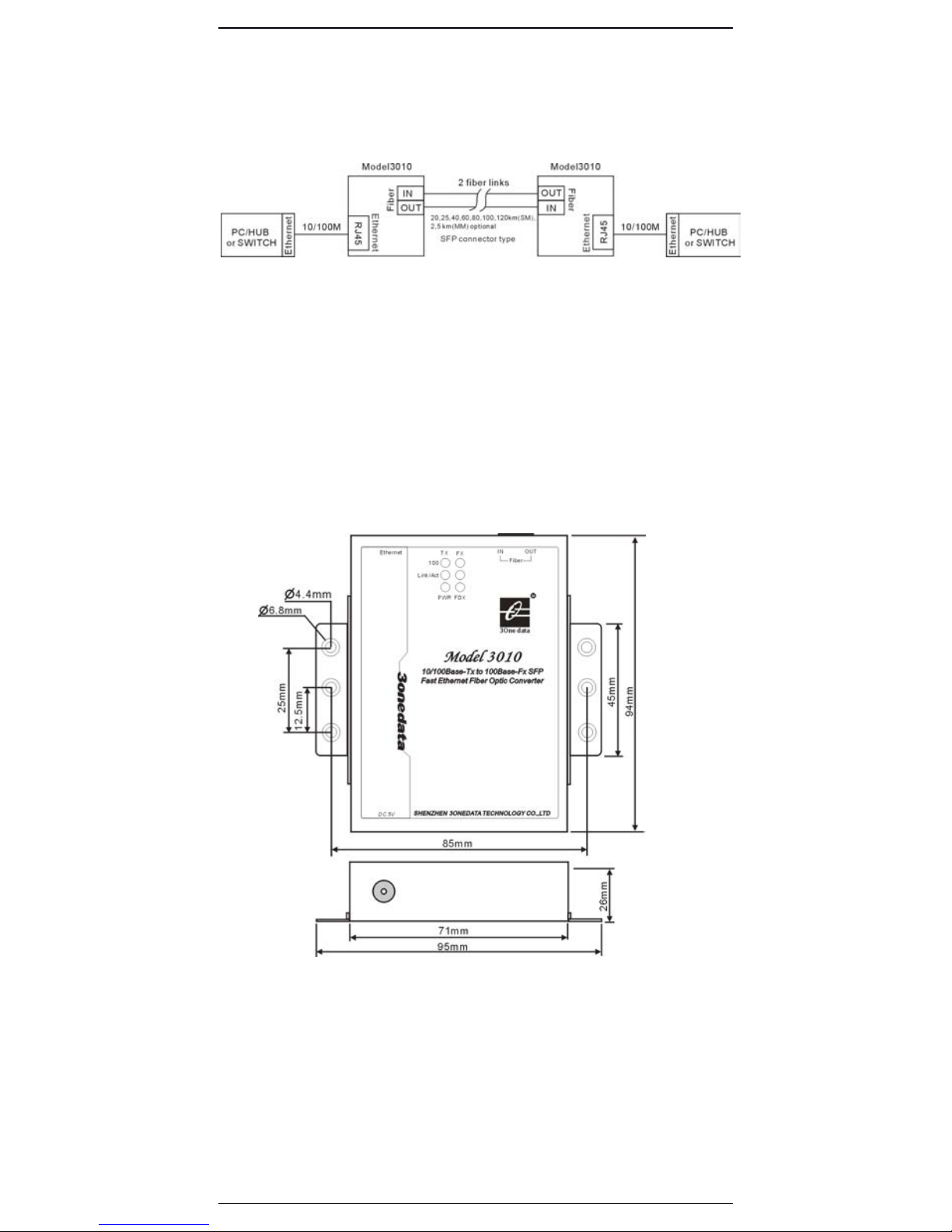

Applications

Extending

10/100M

Ethernet

data

distance

Installation

Model3010 provides DIN-rail and wall mounting two types of

installation.

Wall

mounting

installation

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

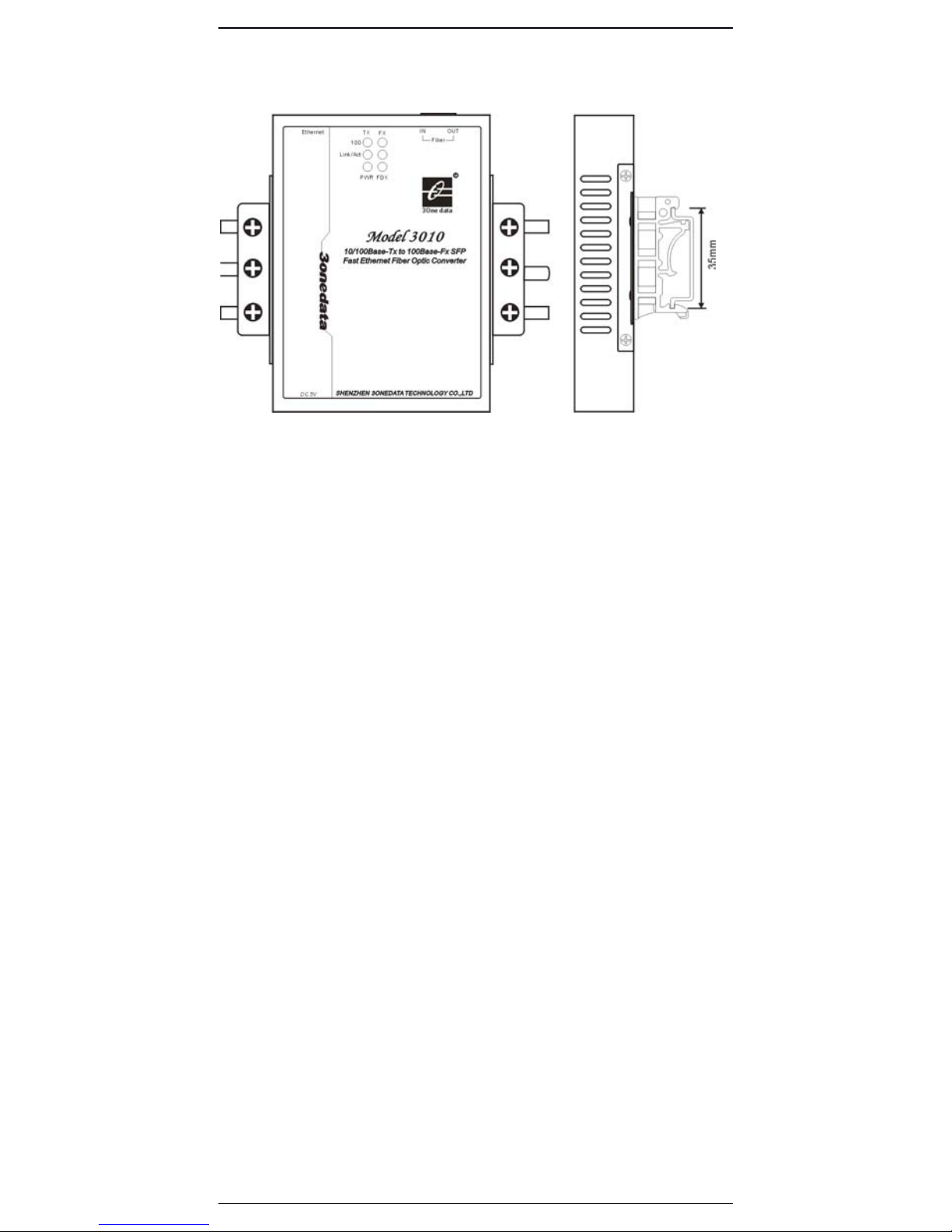

DIN-Rail

Installation

Troubleshooting

instructions:

1. Make sure the power is connected and turned on.

2. Make sure the converter Ethernet and fiber optic cables are

connected properly.

3. Check the connections according to the connection diagram.

4. Check the LED Indication status and identify possible problems

from the Indication LED table above.

Note:

1. M ed ia C o n v e r t e r is a s e n s i t i v e e l e c t r on i c i t e m , p l e a s e d o

h a n d l e w i t h e x t r a c a r e o n d e l i v e r y , s h i ft i n g a n d h u m i d i t y .

2. T h is u n i t w i l l b e w a rr a n t y f o r 5 y e a r s .

3. W h ene v e r t he r e is a p r ob l e m r e g a r d i n g t h e q u a l i t y i ss u e w i t h i n

t h e w a rr a n t y pe r i o d , w e w i l l t a k e t h e r e s p on s i b i l i t y t o r e p a i r w i t h

f r e e .

4. A ft e r t h e w a rr an t y p e r i o d , w e w i l l c h a r g e a c c o r d i ng l y

d e pend i n g o n t h e f a u l t o r d a m a g e .

5. W h ene v e r t h e r e is a f au l t , y o u c a n c o n t a c t o u r t e c h n i c a l

s u p p o r t a f t e r y o u i d e n t i f y t h e p r o b l e m a n d t h e a l a r m .

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Common

Problems

PWR

power

supply

indicator

lamp

not

lighting

Cause:

1. Power supply not properly connected

2. Protector tube damaged

3. P ower input tie-line in reverse connection

4. Internal power supply circuit with failure

Solution

1. Check power switch and jack

2. Replace protector tube

3. Correct power supply line connection

4. Returned to the manufacturer for repair.

Port

Link/Act

indicator

lamp

not

lighting

Cause:

Optic fiber port link is fault.

Solution:

1. Check fiber optic is link or not.

2. Check fiber optic loss is high.

3. Clean the connector of optic interface.

4. Insert the well connector in place.

5. Returned to the manufacturer for repair.

Port

Link/Act

indicator

lamp

not

lighting

Cause:

Ethernet port link is fault.

Solution:

1. Check Ethernet(RJ45) line is link or not.

2. Check Ethernet(RJ45) port is loose.

3. Check the rate of selected media converter

4. Check the rate of Network.

5. Returned to the manufacturer for repair.

Network

packet

loss

Solution:

1. Check Ethernet rate or full/half duplex is matched or not.

2. Ethernet(RJ45) port is loose contact, or optic port is loose

contact and soiled .

3. Ethernet cable not comply with Ethernet standard.

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Certifications:

Shenzhen

3onedata

Technology

Co.,Ltd

Tel: +86-755-26702688 Fax: +86-755-26703485

www.3onedata.com
