Download the Eko app from the Apple App
Store or Google Play Store.
Turn on Bluetooth on your phone or tablet, launch
the app, and turn on the CORE Stethoscope.
In the Box
•Eko CORE Digital Attachment and 3M™
Littmann Cardiology IV™ Stethoscope
•Additional set of 3M Littmann Snap Tight
Soft-Sealing Eartips (small)
•Nonchill Bell Sleeve
•USB Charging Cable
•Quick Start Guide
3M™Littmann®
CORE Digital Stethoscope
Quick Start Guide
1 2
a
Eartips
Insert eartips in a forward direction.
Volume
Use the (+) and (-) buttons to adjust volume.
There are 7 volume steps.
Turn On and Off
When the CORE stethoscope is off, it functions
as an unamplified stethoscope.
To turn the CORE stethoscope on, press the
power toggle in. The light will begin flashing.
You will now hear amplified and filtered sound in
the eartips.
3 4
aTelemedicine and AI Features
Eko offers telemedicine and AI features that require
a software subscription (where available, sold
separately).
You can setup a subscription online at ekohealth.com
Active Noise Cancelling
The CORE stethoscope includes active noise
cancelling to remove ambient noise from the
surrounding environment. Active noise cancelling
can be turned off or on through the Eko App.
3 4
a
Notifications
Recording
When connected to the Eko app, press
the (o) button to begin recording.
CORE
Stethoscope is
on & seeking
device
(yellow)
(green)
(yellow)
(blue)
CORE
Stethoscope is
on & connected
CORE
Stethoscope is
off & charging
CORE
Stethoscope is
fully charged
CORE
Stethoscope is
low on battery
CORE
Stethoscope is
recording
5 6

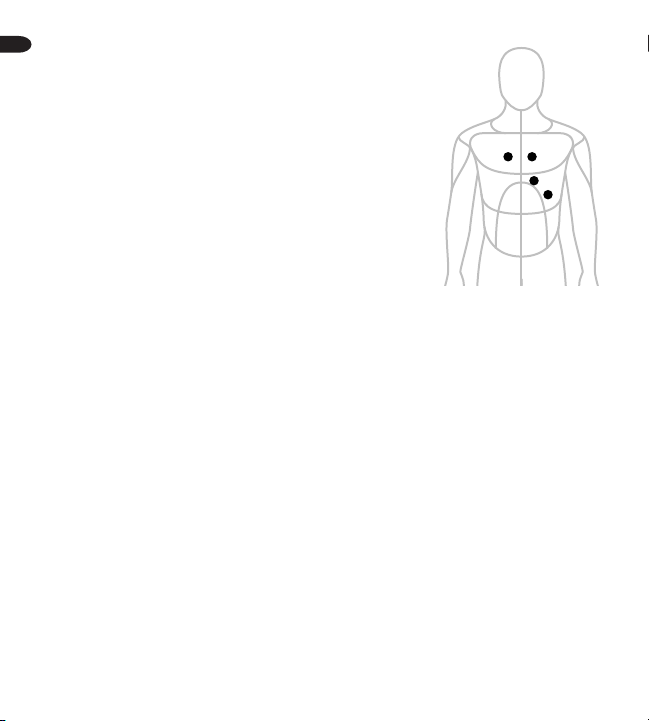

aPlacement
The CORE Stethoscope is designed
to be used in all traditional
auscultation positions for the heart,
lungs, bowels, and arteries.
Charging
Connect the micro USB cable to
the CORE Stethoscope and use a
UL-certified or CE-marked USB wall
charger. The CORE Stethoscope will
take about 2 hours to fully charge.
The light will turn green when it is
fully charged.
5 6
a
User Manual
Review the user manual before using your Littmann
CORE Stethoscope. To view the manual visit:
ekohealth.com/getstarted
Littmann.com/COREmanual
Service and Support
In the USA, please visit littmann.com/service or call
1-800-228-3957. If you are outside of the USA,
please visit littmann.com for the contact information
of your local 3M office.
