2N 914401E User manual
The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of telecommunications
equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways, private
branch exchanges (PBX), and door and lift communicators. 2N TELEKOMUNIKACE a.s. has
been ranked among the Czech top companies for years and represented a symbol of
stability and prosperity on the telecommunications market for almost two decades. At
present, we export our products into over 120 countries worldwide and have exclusive
distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands protected
by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On
www.faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...“.
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product
®SIP Audio Converter
complies with all basic requirements and other relevant provisions of the 1999/5/EC
directive. For the full wording of the Declaration of Conformity see the CD-ROM (if
enclosed) or our website at www.2n.cz.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by this
standard and guarantee a high quality, technical level and professional aspect of all our
products.
Content
Content
1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1ComponentsandAssociatedProducts ...............................6
1.2TermsandSymbols ..............................................13
2. Description and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.1BeforeYouStart .................................................15
2.2MechanicalInstallation ............................................16
2.3ElectricInstallation ...............................................17
2.4ProductDescription ..............................................22
3. Function and Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.1Configuration ...................................................25
3.2DefaultReset ...................................................28
3.3BasicFunctions .................................................30
3.4Downloads .....................................................34
4. Technical Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
5. Supplementary Information . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.1Troubleshooting .................................................38
5.2Directives,LawsandRegulations ...................................39
5.3GeneralInstructionsandCautions ...................................41
42N TELEKOMUNIKACE a.s., www.2n.cz
®
1. Product Overview
In this section, we introduce the product, outline its2N SIP
®ConverterAudio
application options and highlight the advantages following from its use. The section
also includes safety precautions.
Here is what you can find in this section:
1.1 Components and Associated Products
1.2 Terms and Symbols
Basic Properties
2N SIP
®ConverterAudio is a versatile sound transmission system for IP networks.
It is designed as a universal VoIP telephone with an audio output/input, button and
switched circuit connection option. It finds a variety of applications – in schools,
hospitals, office buildings, hotels, production halls, shopping centres, bus terminals,
airports and so on. You can monitor the events in the area2N SIP
®ConverterAudio
using an integrated streaming server.
2N SIP
®ConverterAudio is a stand-alone SIP-based sound decoder and converter
with an amplifier. communicates with the other audio2N SIP
®Audio Converter
system components via the SIP Proxy or directly via a specified address.
Press the attached button to set up a call to up to three predefined numbers or
addresses, with calls being transferred automatically at no answer. Configure the
button function using an integrated calendar to make sure that the called subscriber is
always accessed.
You can make use of a lot of convenient VoIP services thanks to the integrated SIP
such as call forwarding at no answer (to another worksite, recording machine or mobile
phone) and call transfer (from the secretary to the required person, e.g.).
2N SIP
®ConverterAudio is equipped with a switch for you to control the electric
door lock from any telephone (by tone-entering the password).
You can manage your unit via a configuration web2N SIP
®ConverterAudio
52N TELEKOMUNIKACE a.s., www.2n.cz
®
interface, by pushing the unit buttons or with a remote controller.
Advantages of Use
Operable in the Ethernet network
Ethernet-based power supply – PoE
SIP
Integrated administration web server
1 programmable button
Streamed audio support
Integrated calendar with programmable DAY/NIGHT/WEEKEND modes
Applicable as standard VoIP telephone/communicator
DTMF detection according to RFC2833, in-band and SIP-INFO
Basic Features
10/100Base-TX LAN interface
12 V DC / 1,8 A or PoE 802.3af supply
Integrated 30 W amplifier
Line/headset output
Colour LED operational status signalling
Universal galvanically isolated output
Universal galvanically isolated digital input
Two volume control buttons
Infrared remote control
62N TELEKOMUNIKACE a.s., www.2n.cz
®
1.1 Components and Associated Products
Basic Unit
Part No. 914401E
2N SIP Converter
®Audio
IP audio decoder
18 W amplifier
PoE/12V
10/100Base Ethernet
terminals for connecting loudspeakers
4-16 Ohm
support for SIP protocol
Part No. 914490E
set with2N SIP Converter
®Audio
speaker and mic
72N TELEKOMUNIKACE a.s., www.2n.cz
®
Power Supply
Part. No. 91378100
PoE injector - without cable
Part. No. 91378100E
PoE injector - with EU cable
Part. No. 91378100US
PoE injector - with US cable
For power supply of intercom
via ethernet cable when PoE
switch is not available.
Part No. 91341481E
Stabilised 12 V / 2 A power
supply needs to be used
when no PoE is available.
Part No. 932928
For external power
supply of the lock
with 12V AC voltage.
Internal Units
82N TELEKOMUNIKACE a.s., www.2n.cz
®
Part No. 91378365
2N Indoor Touch
® -
black
The elegant internal touch
panel, 2N Indoor Touch
®
, is suitable for all 2N®
intercoms. OnHelios IP
the panel’s display not only
can you find out who is at
the door, but also start a
conversation with the
visitor, open the lock or
turn on the light in the
entrance hall.
Part No. 91378365WH
-2N Indoor Touch
®
white
The elegant internal touch
panel, 2N Indoor Touch
®
, is suitable for all 2N®
intercoms. OnHelios IP
the panel’s display not only
can you find out who is at
the door, but also start a
conversation with the
visitor, open the lock or
turn on the light in the
entrance hall.
Part No. 91378366
-2N Indoor Touch
®
black
WiFi
The elegant internal touch
panel, 2N Indoor Touch
®
, is suitable for all 2N®
. OnHelios IP intercoms
the panel’s display not only
can you find out who is at
the door, but also start a
conversation with the
visitor, open the lock or
turn on the light in the
entrance hall.
Part No. 91378367
-2N Indoor Touch
®
black
WiFi + NFC
The elegant internal touch
panel, 2N Indoor Touch
®
, is suitable for all 2N®
. OnHelios IP intercoms
the panel’s display not only
can you find out who is at
the door, but also start a
conversation with the
visitor, open the lock or
turn on the light in the
entrance hall.
Part No. 91378368
-2N Indoor Touch
®
black
NFC
The elegant internal touch
panel, 2N Indoor Touch
®
, is suitable for all 2N®
intercoms. OnHelios IP
the panel’s display not only
can you find out who is at
the door, but also start a
conversation with the
visitor, open the lock or
turn on the light in the
entrance hall.
92N TELEKOMUNIKACE a.s., www.2n.cz
®
VoIP Telephones
91378357Part No.
Grandstream GXV3240 VoIP video
telephone
GXV3240 is the successor to the popular
GXV3140 model, which allows comfortable
video calls in the IP network. Touchscreen
and keyboard control.
91378358Part No.
Grandstream GXV3275 VoIP telephone
GXV3275 is the successor to the
popular GXV3175 model, which allows
comfortable video calls in the IP
network. Touchscreen control.
Electric Locks
932071EPart No.
BEFO 11211
12V/230mA DC
low consumption
932081EPart No.
BEFO 11221 with
momentum pin
12V/230mA DC
low consumption
For opening of the lock a
short electrical impuls is
sufficient, which unlocks the
lock. Lock is then open until
someone closes the door.
932091EPart No.
BEFO 11211MB with
mechanical blocking
12V/230mA DC
low consumption
Enables mechanically close or
open the lock. When opened,
the lock is open all the time.
When closed, it behaves as
standart electrical lock.
Tip
FAQ: Electric locks - Difference between locks in 2N Helios IP accesories®
102N TELEKOMUNIKACE a.s., www.2n.cz
®

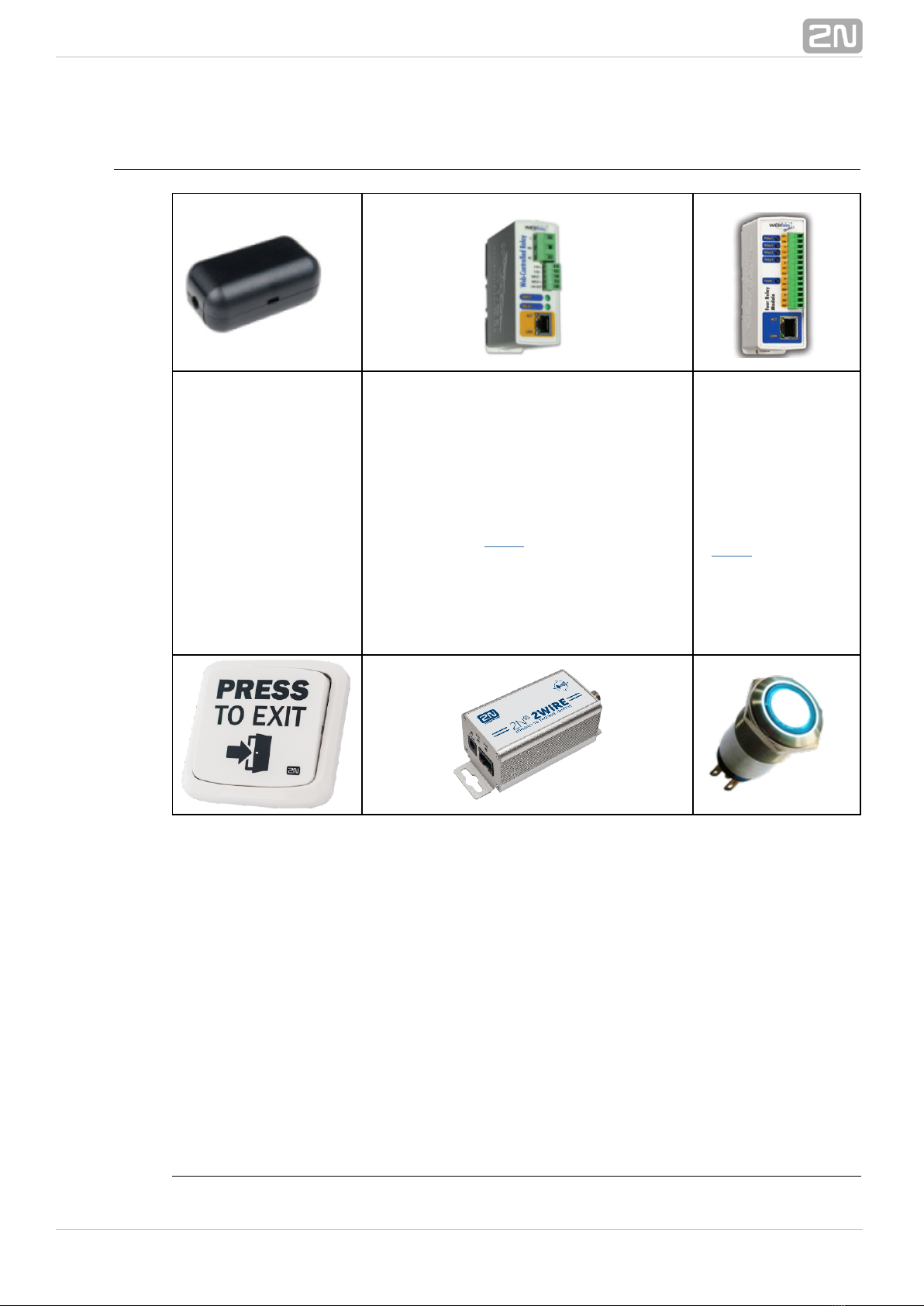

Accessories
Part No. 9159010
Security Relay
A handy add-on that
significantly enhances
door entry security as
it prevents tampering
with the intercom and
forced opening of the
lock. To be installed
between intercom and
lock, powered by the
intercom.
Part No. 9137410E
External IP Relay - 1 output
Standalone IP device which can be
controlled by HTTP commands sent by
Helios IP intercom, which can thus
control devices on unlimited distance.
Part
No. 9137411E
External IP Relay -
4 outputs, PoE
Standalone IP
device which can
be controlled by
HTTP commands
sent by Helios IP
intercom, which
can thus control
devices on
unlimited distance.
