ZyXEL Communications EX3301-TO User manual

Step 1 Hardware Connections

Step 2 WiFi Connection

EX3301-TO

Dual-Band Wireless AX1800 Gigabit Ethernet IAD

If you need any assistance please call us on

0333 0155156 or email [email protected]

www.digitalhomeuk.com

Package Contents

Device Power Cable Ethernet Cable Phone Cable Quick Start Guide Declaration of Conformity

Safety Warnings

Quick Start Guide

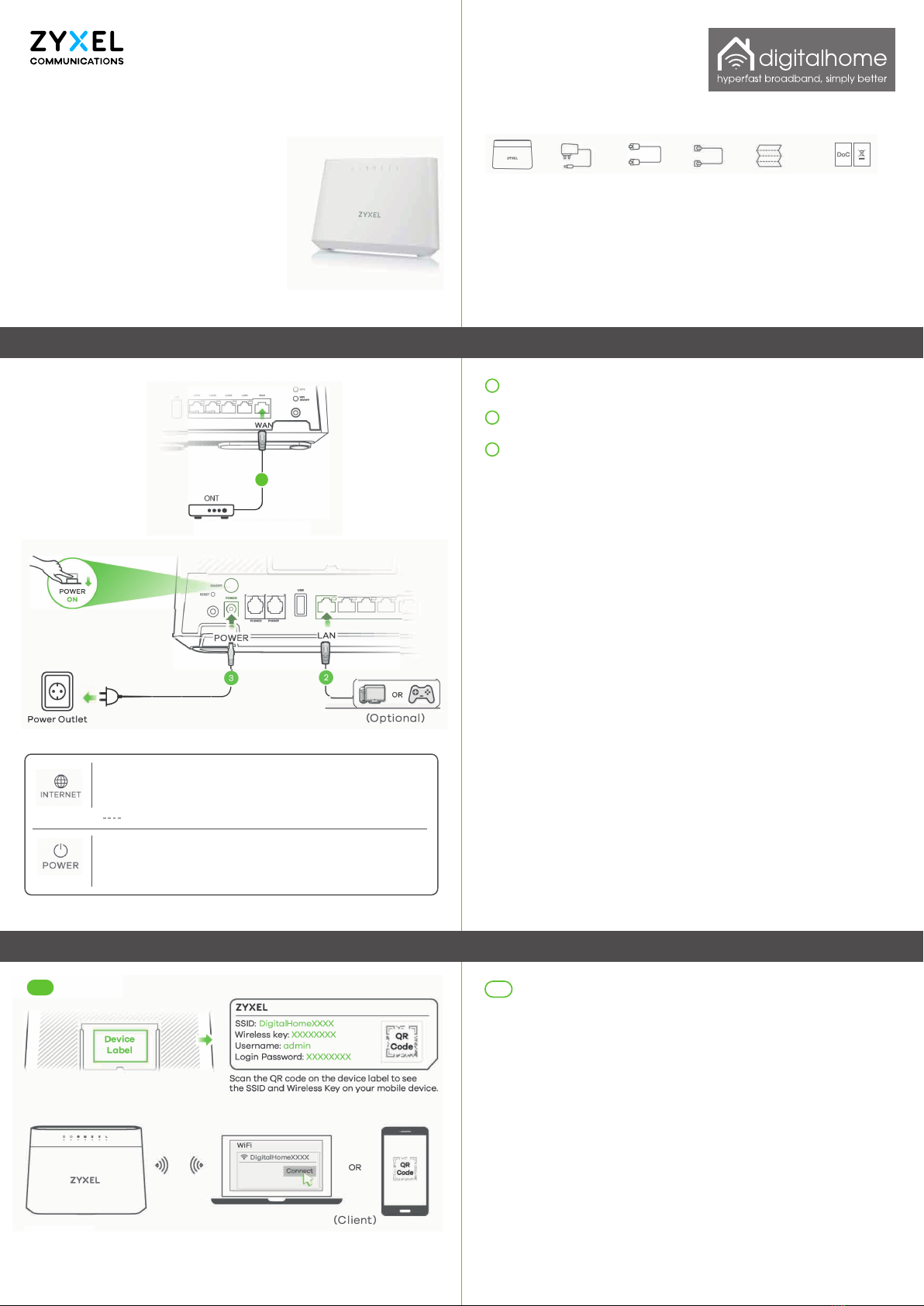

Use the yellow Ethernet cable supplied (CAT-5e, gigabit capable) to

connect the WAN port to Optical Network Termination (ONT) point.

Optional - connect a computer to the LAN port using an appropriate

(CSAT-5e) Ethernet cable, not supplied.

Connect the power cable to the Zyxel Device and press the power

button. Please wait 2 minutes for configuration to complete.

Use the SSID and Wireless key on the device label to connect

wirelessly to the Zyxel Device.

On your smartphone or notebook, ind this SSID. Enter the

Wireless key to connect.

4-a

On - Internet is ready.

Blinking - Transmitting/receiving Internet data.

On - Temporary whilst attempting to get an IP address,

persistent if failed.

Off - Internet is not ready.

Green

Red

On - Power is on.

Blinking - Starting up.

On - Malfunctioning.

Blinking - Upgrading rmware.

Using SSID

4-a

1 / 2

2 / 2

Using WPS

4-b

Blinking - The Zyxel Device is connecting to 2.4 GHz WiFi via WPS.

On - 2.4 GHz WiFi is ready.

Blinking - Transmitting/receiving data.

Blinking -The Zyxel Device is connecting to 5 GHz WiFi via WPS.

On -5 GHz WiFi is ready.

Blinking - Transmitting/receiving

Amber

Green

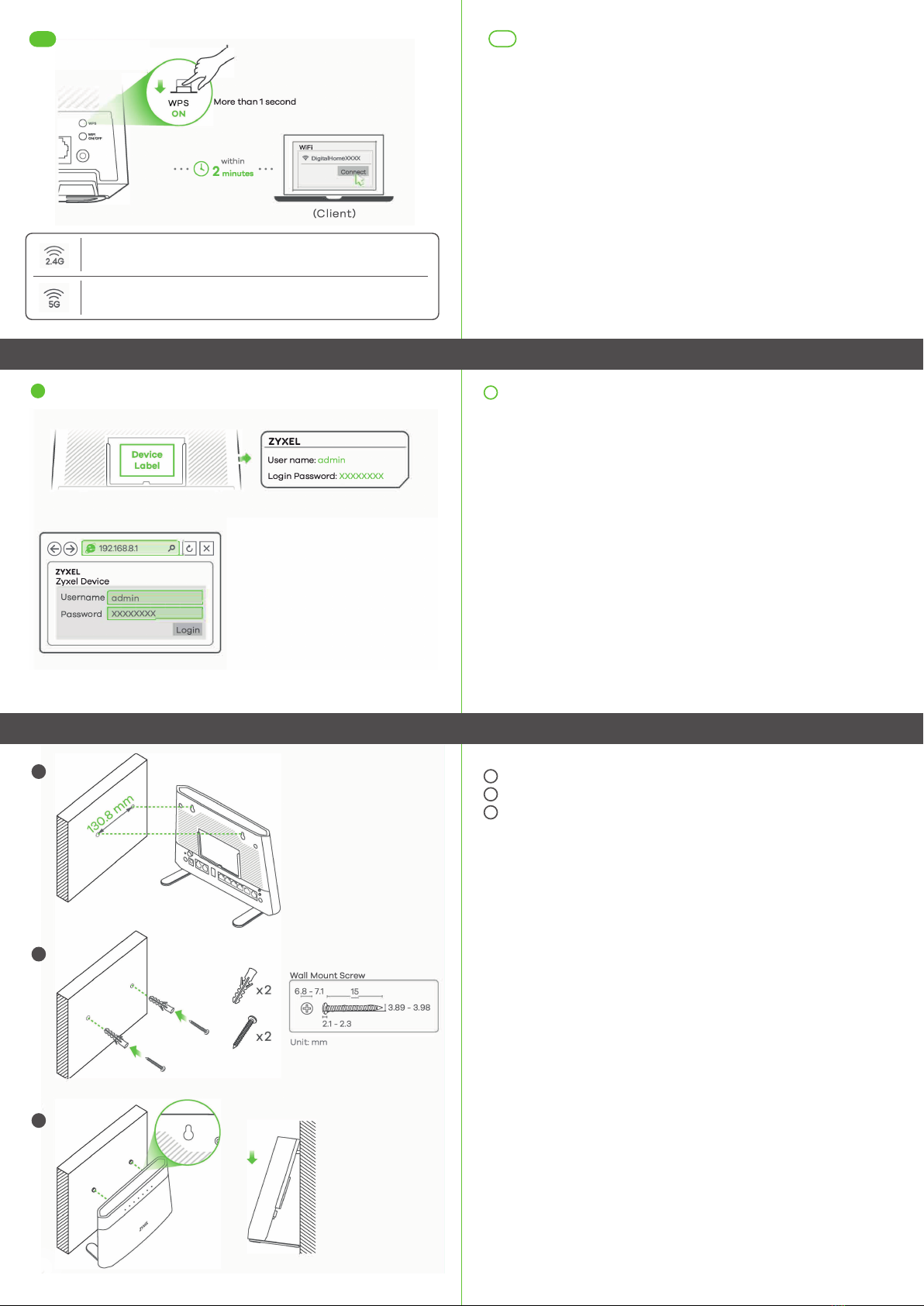

Press the WPS button until the WiFi 2.4G and 5G LEDs light up in

amber.

Press the WPS button on the client. If the WPS method fails, use the

SSID and wireless key to set up a WiFi connection (4-a) .

4-b

Step 3 Admin access

Wall Mounting (Optional)

Open a web browser and go to http://192.168.8.1

Enter the default User name (admin) and admin Login Password

(on the device label), and then click Login. This gives you access to the

menu and conguration options under Home Settings.

Drill two holes on the wall at the distance of 130.8 mm.

Insert screw anchors and screws (not provided) into the holes.

Place the Zyxel Device so the wall mount holes line up with the screws.

Slide the Zyxel Device
