ProCapture-T Installation Guide 1
INSTALLATION GUIDE
ProCapture-T
Version: 1.1
Date: September 2021
ProCapture-T Installation Guide 1

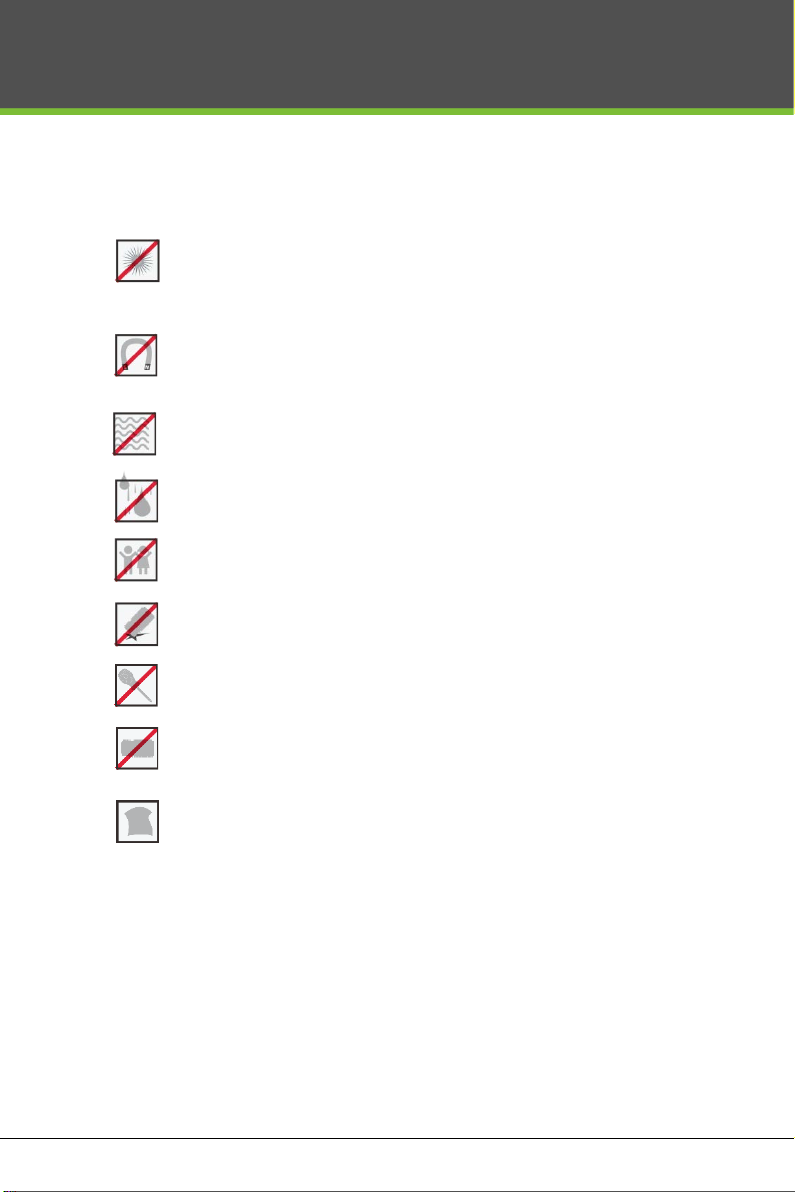

Safety Precautions
Before installation, please read the following safety precautions for user
safety and to prevent product damage.
Do not install the device in a place subject to direct sun light, humidity, dust
or soot.
Do not place a magnet near the product. Magnetic objects such as magnet,
CRT, TV, monitor or speaker may damage the device.
Do not place the device next to heating equipment.
Do not to let liquid like water, drinks or chemicals leak inside the device.
Do not let children touch the device without supervision.
Do not drop or damage the device.
Do not disassemble, repair or alter the device.
Do not use the device for any purpose other than those specified.
Clean the device often to remove dust on it. In cleaning, do not splash water
on the device but wipe it out with smooth cloth or towel.
Contact your supplier in case of a problem!
2 ProCapture-T Installation Guide

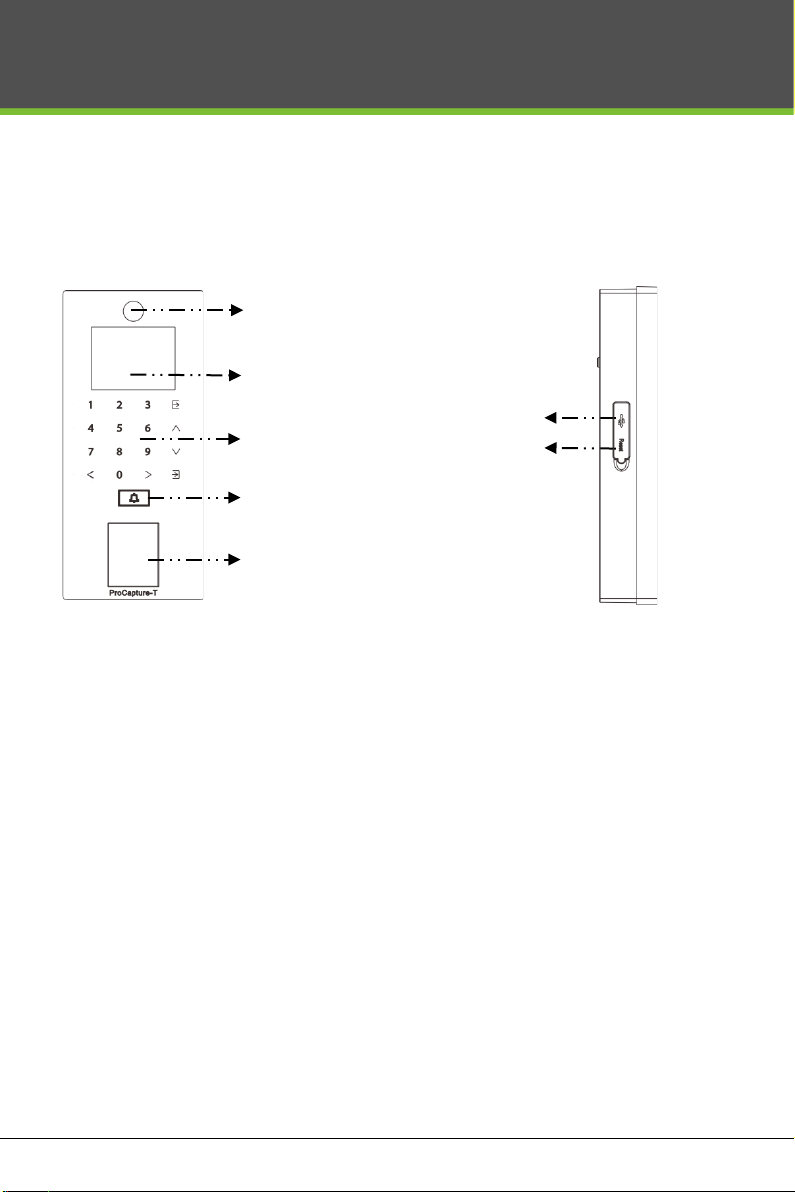

Device Overview
Not all products have fingerprint or card function, the real product
shall prevail.
ProCapture-T
Camera
2.4-Inch Color Screen
Touch Keypad
Doorbell & LED Indicator
Fingerprint Sensor & Card
Reader Area
USB Slot
Reset Button
Front
Left Side
ProCapture-T Installation Guide 3

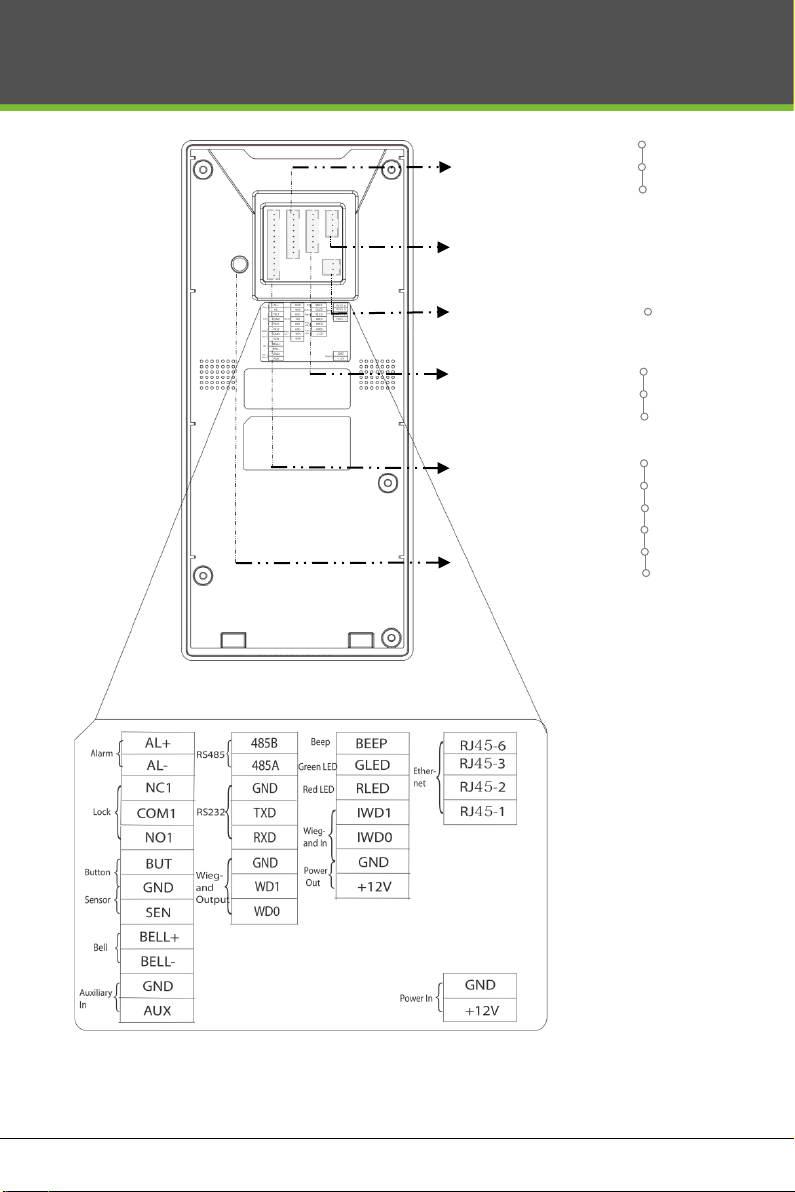

Device Overview
8 Pin Cable Connectors
4 Pin Cable Connectors Ethernet
2 Pin Cable Connectors
7 Pin Cable Connectors
12 Pin Cable Connectors
Tamper Alarm Button
RS485
RS232
Wiegand Out
Beep, LED
Wiegand In
Power Out
Power In
Alarm
Lock
Exit Button
Door Sensor
Doorbell
Auxiliary In
4 ProCapture-T Installation Guide

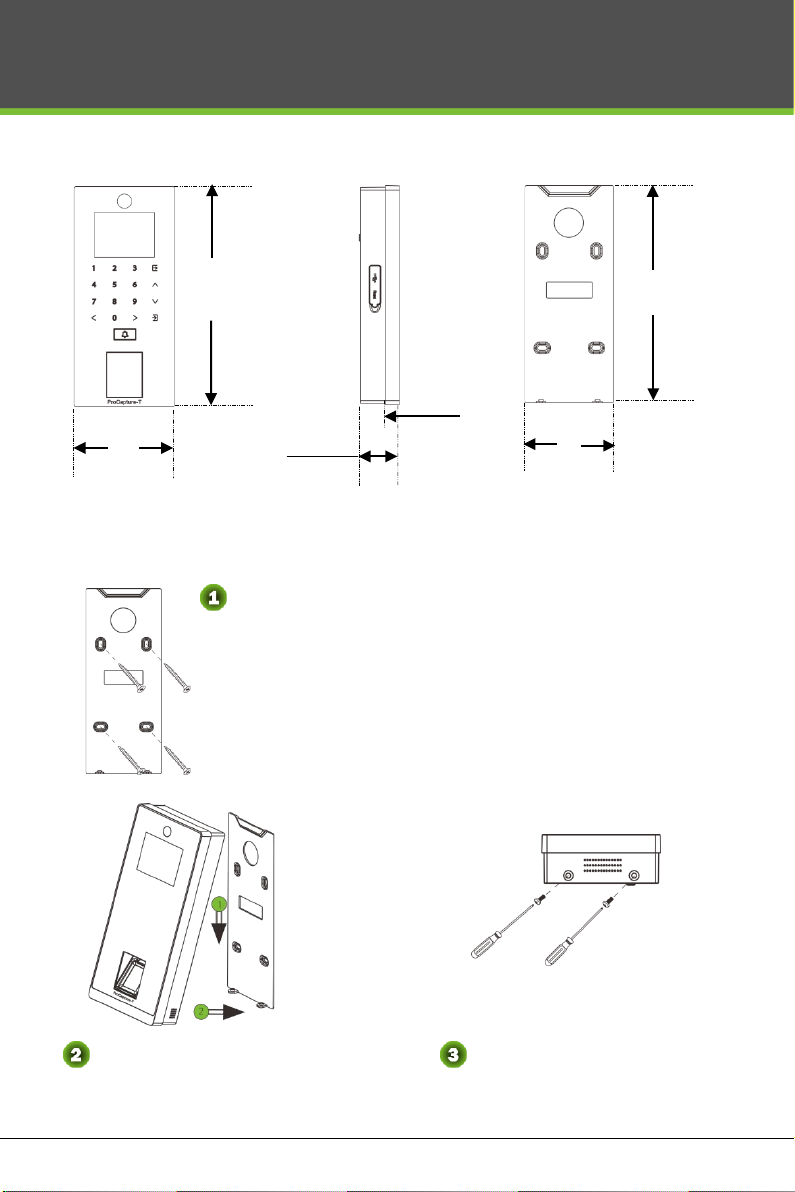

Product Dimensions & Installation
Product Dimensions
Mounting the Device on Wall
7.70 in
(195.5 mm)
3.43 in
(87 mm)
1.38 in
(35mm)
7.34 in
(186.5 mm)
3.0 in
(76.1 mm)
Fix the back plate onto the wall using wall mounting screws.
Note: We recommend drilling the mounting plate screws into solid
wood (i.e. stud/beam). If a stud/beam cannot be found, use supplied
drywall plastic anchors.
Insert the device to back plate. Use security screws to fasten the
device to back plate.
0.51 in
(13 mm)
ProCapture-T Installation Guide 5

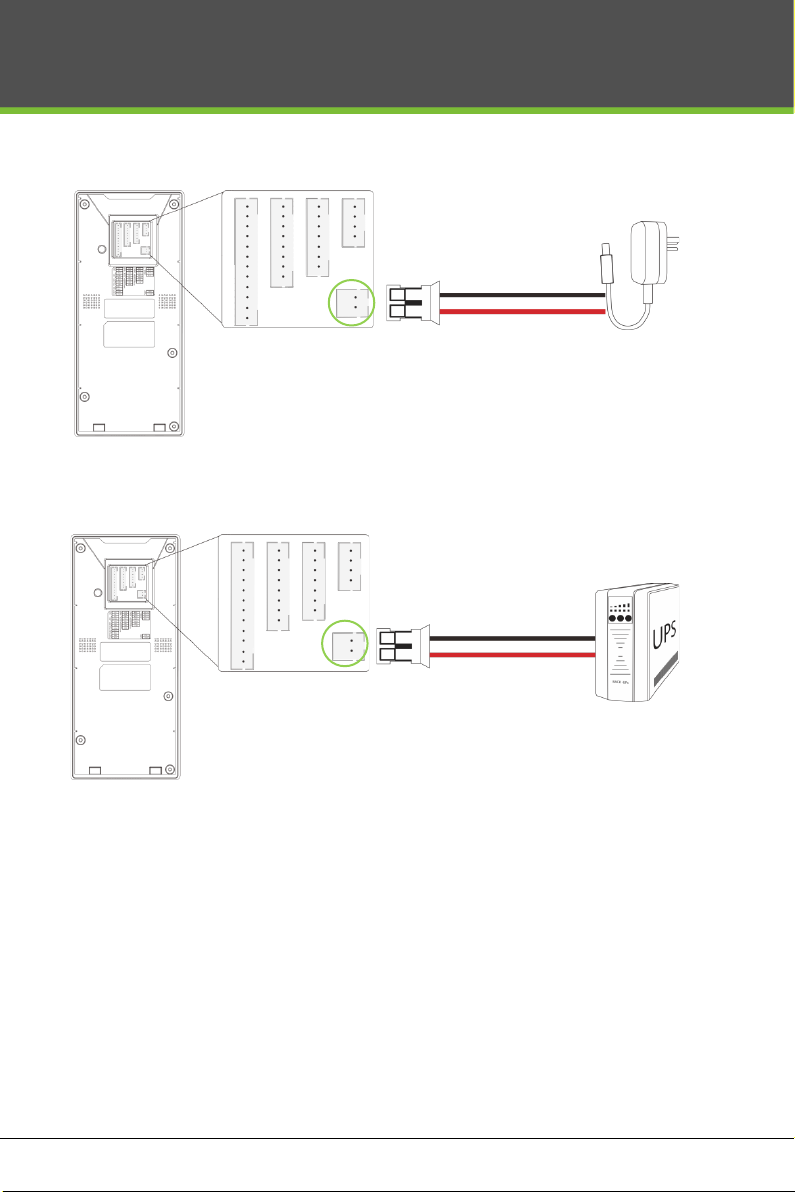

Power Connection
Without UPS
With UPS (Optional)
Recommended Power Supply
GND
+12V
12V DC Adaptor
GND
+12V
12V DC Adaptor
12V±10%, at least 500MA.
To share the power with other devices, use a power supply with higher
current ratings.
6 ProCapture-T Installation Guide

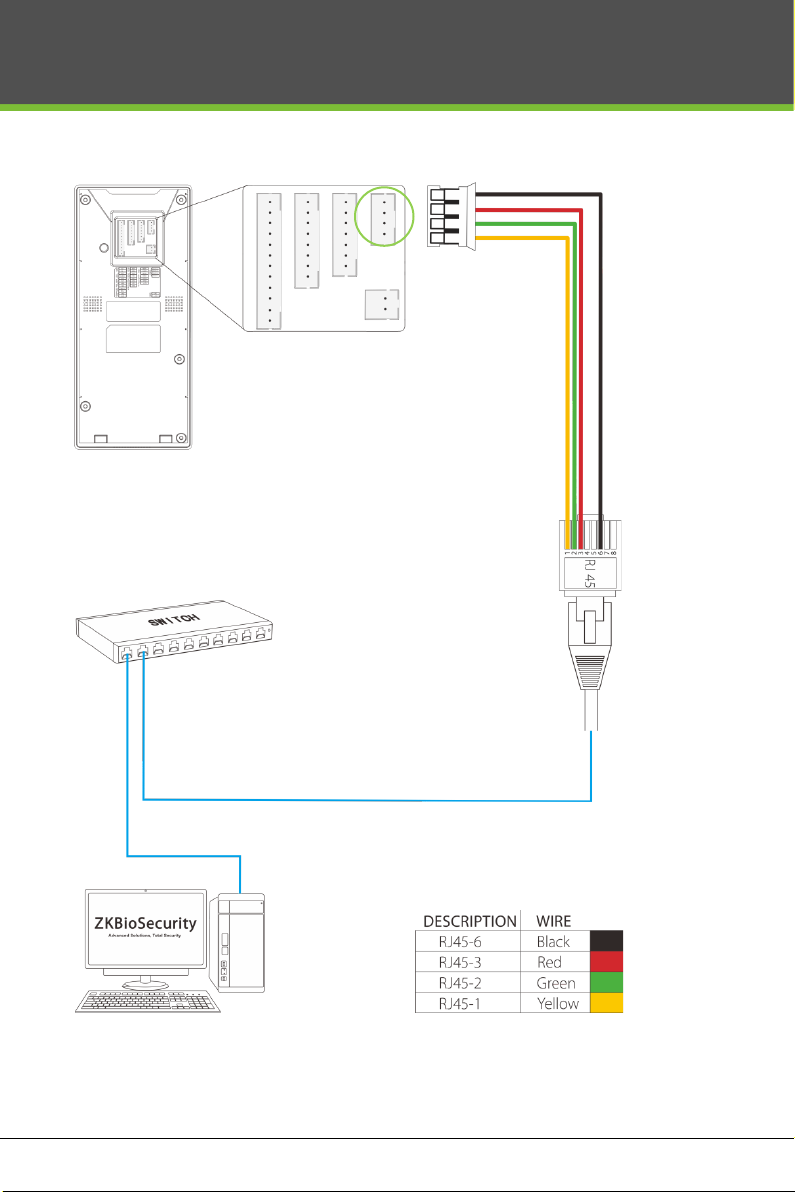

Ethernet Connection
LAN Connection
Network Cable Adaptor
Ethernet Cable
ProCapture-T Installation Guide 7

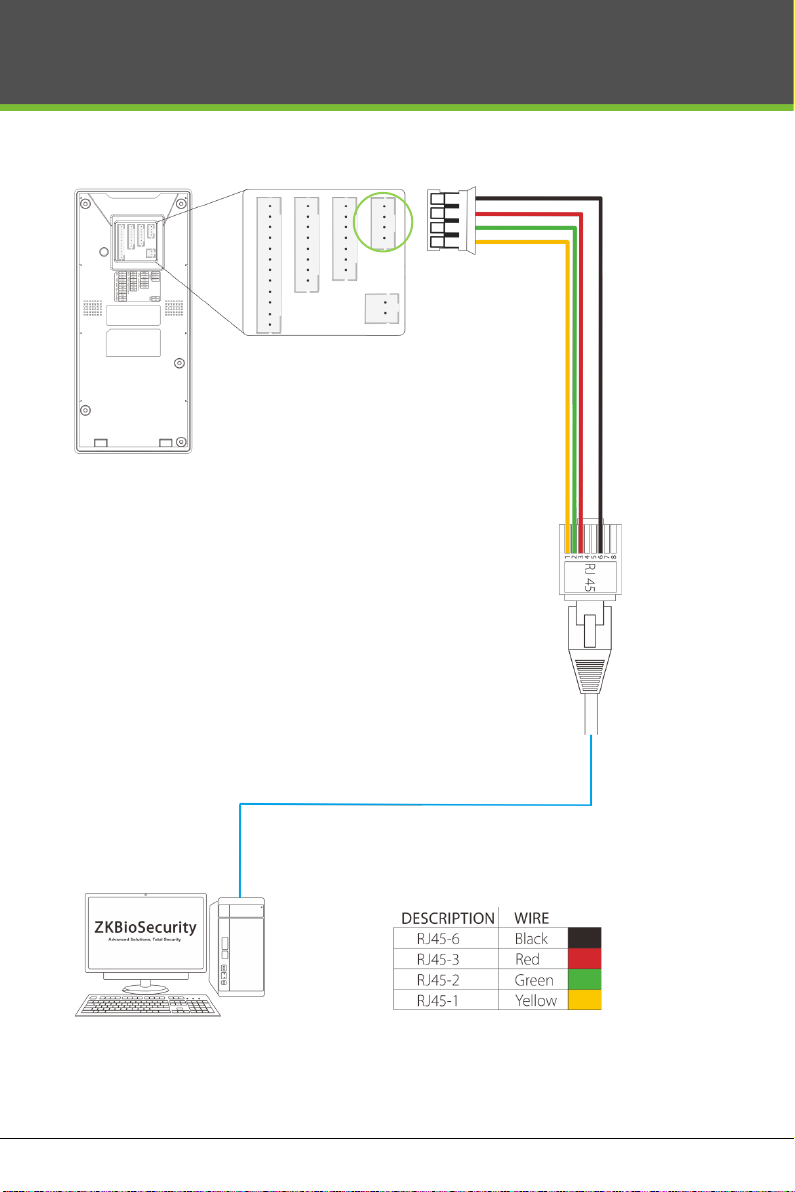

Ethernet Connection
Direct Connection
Network Cable Adaptor
Ethernet Cable
8 ProCapture-T Installation Guide

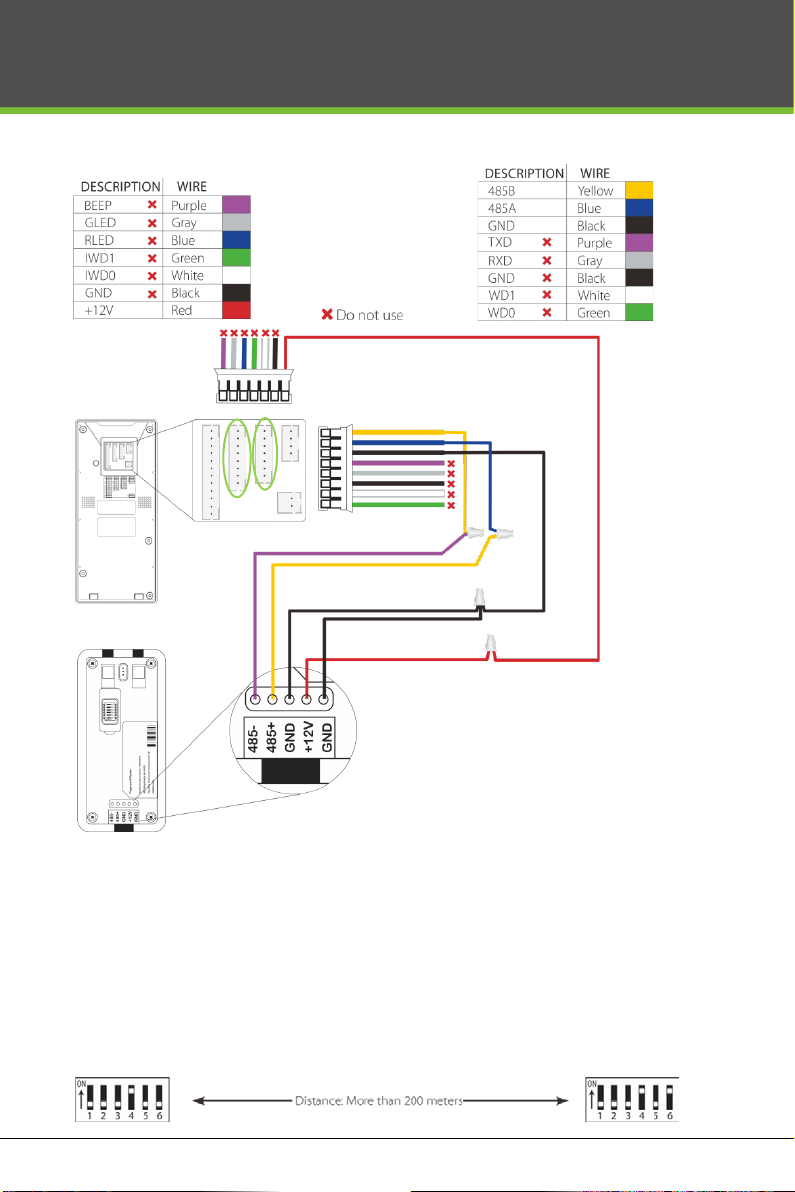

RS485 Connection
RS485 Fingerprint Reader Connection
RS485 Fingerprint Reader
DIP Settings
1. There are six DIP switches on the back of RS485 fingerprint reader,
switches 1-4 are for RS485 address, switch 5 is reserved, switch 6 is for
reducing noise on long RS485 cable.
2. If RS485 fingerprint reader is powered from the terminal, the length of
wire should be less than 100 meters or 330 ft.
3. If the cable length is more than 200 meters or 600 ft., the number 6
switch should be ON as below.
ProCapture-T Installation Guide 9

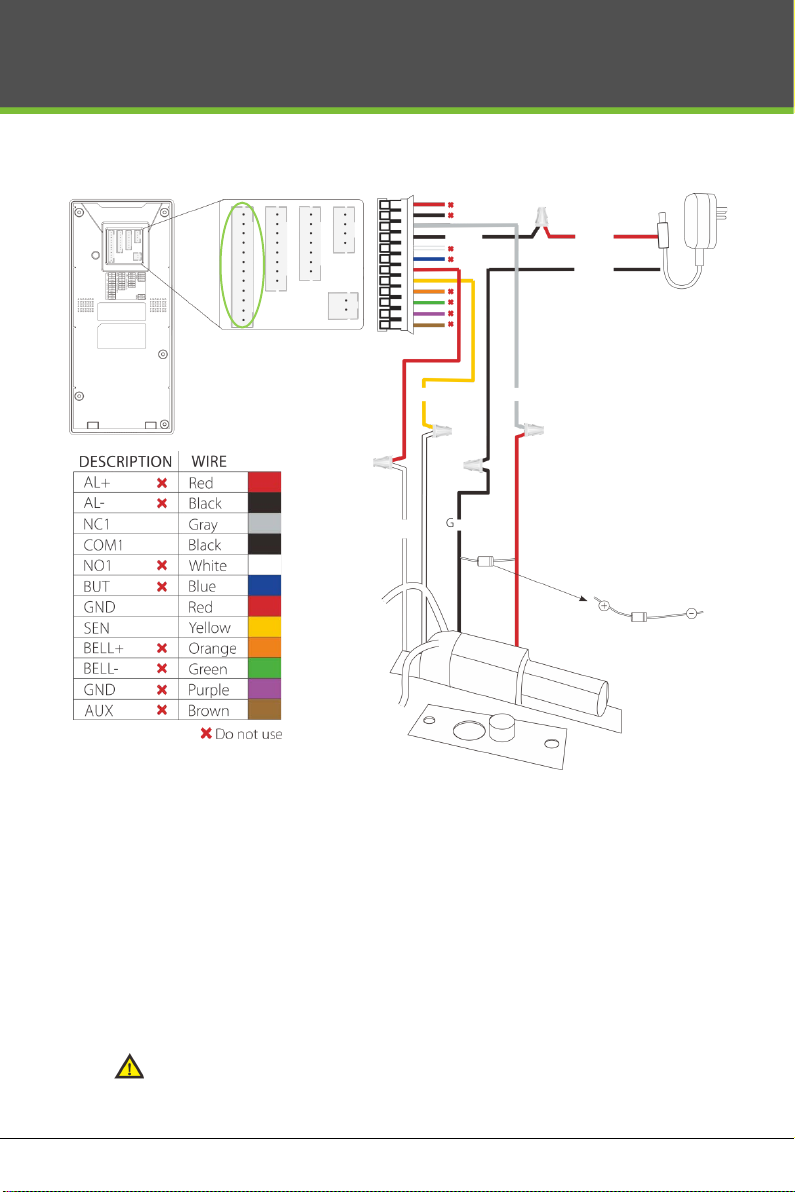

Lock Relay Connection
Device Not Sharing Power with the Lock
COM1 +12V
GND
GND
Sensor NC1
FR107
Diode
12V DC Adaptor
Normally Closed Lock
Notes:
1. The system supports NO LOCK and NC LOCK. For example the NO
LOCK (normally opened at power on) is connected with 'NO1' and
'COM1' terminals, and the NC LOCK (normally closed at power on) is
connected with 'NC1'and 'COM1' terminals.
2. When electrical lock is connected to the Access Control System, you
must parallel one FR107 diode (equipped in the package) to prevent
the self-inductance EMF from affecting the system.
Do not reverse the polarities.
GND
