Safety information
Before the installation and use of the appliance, carefully read the supplied
instructions. The manufacturer is not responsible for any injuries or damages
that are the result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe way and
understand the hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door when it is open.
•Children shall not carry out cleaning and user maintenance of the
appliance without supervision.
General Safety
•This appliance is intended to be used in household and similar
applications such as:
–farm houses; staff kitchen areas in shops, offices and other working
environments;
–by clients in hotels, motels, bed & breakfast and other residential type
environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum) must be between
0.5 (0.05) / 8 (0.8) bar (MPa)
•Obey the maximum number of 13 place settings.
2
•If the supply cord is damaged, it must be replaced by the manufacturer, its
Authorised Service Centre or similarly qualified persons in order to avoid a
hazard.
•Put knives and cutlery with sharp points in the cutlery basket with the
points down or in a horizontal position.
•Do not keep the appliance door open without supervision to prevent to fall
on it.
•Before any maintenance operation, deactivate the appliance and
disconnect the mains plug from the socket.
•Do not use high pressure water sprays and/or steam to clean the
appliance.
•The ventilation openings in the base (if applicable) must not be obstructed
by a carpet.
•The appliance is to be connected to the water mains using the new
supplied hose-sets. Old hose sets must not be reused.
Safety instructions
Installation
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the
temperature is less than 0 °C.
• Follow the installation instruction supplied with the
appliance.
• Make sure that the appliance is installed below and
adjacent to safe structures.
Electrical connection
Warning! Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical information on the
rating plate agrees with the power supply. If not,
contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension
cables.
• Make sure not to cause damage to the mains plug
and to the mains cable. Should the mains cable
need to be replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains socket only at
the end of the installation. Make sure that there is
access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
• This appliance complies with the E.E.C. Directives.
• Only for UK and Ireland. The appliance has a 13
amp mains plug. If it is necessary to change the
fuse in the mains plug, use fuse: 13 amp ASTA (BS
1362).
Water connection
• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for
a long time, where repair work has been carried out
or new devices fitted (water meters, etc.), let the
water flow until it is clean and clear.
• Ensure that there are no visible water leaks during
and after the first use of the appliance.
• The water inlet hose has a safety valve and a
sheath with an inner mains cable.

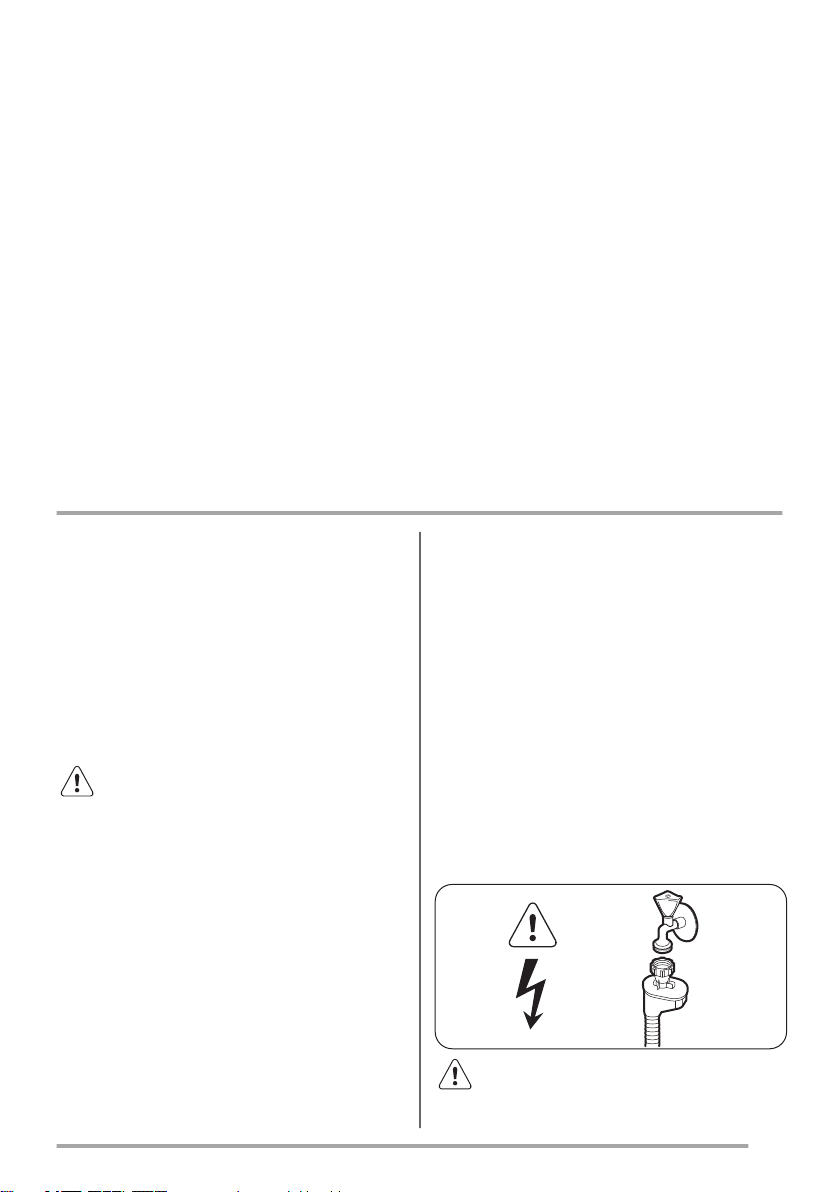

Warning! Dangerous voltage.
3
• If the water inlet hose is damaged, immediately
close the water tap and disconnect the mains plug
from the mains socket. Contact the Authorised
Service Centre to replace the water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the
safety instructions on the detergent packaging.
• Do not drink and play with the water in the
appliance.
• Do not remove the dishes from the appliance until
the programme is completed. There can be
detergent on the dishes.
• The appliance can release hot steam if you open the
door while a programme operates.
• Do not put flammable products or items that are wet
with flammable products in, near or on the
appliance.
Service
• Contact the Authorised Service Centre to repair the
appliance. We recommend only the use of original
spare parts.
• When you contact the Authorised Service Centre,
ensure that you have the following information that
is available on the rating plate.
Model :
PNC :
Serial Number :
Disposal
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets
to get closed in the appliance.
Control panel

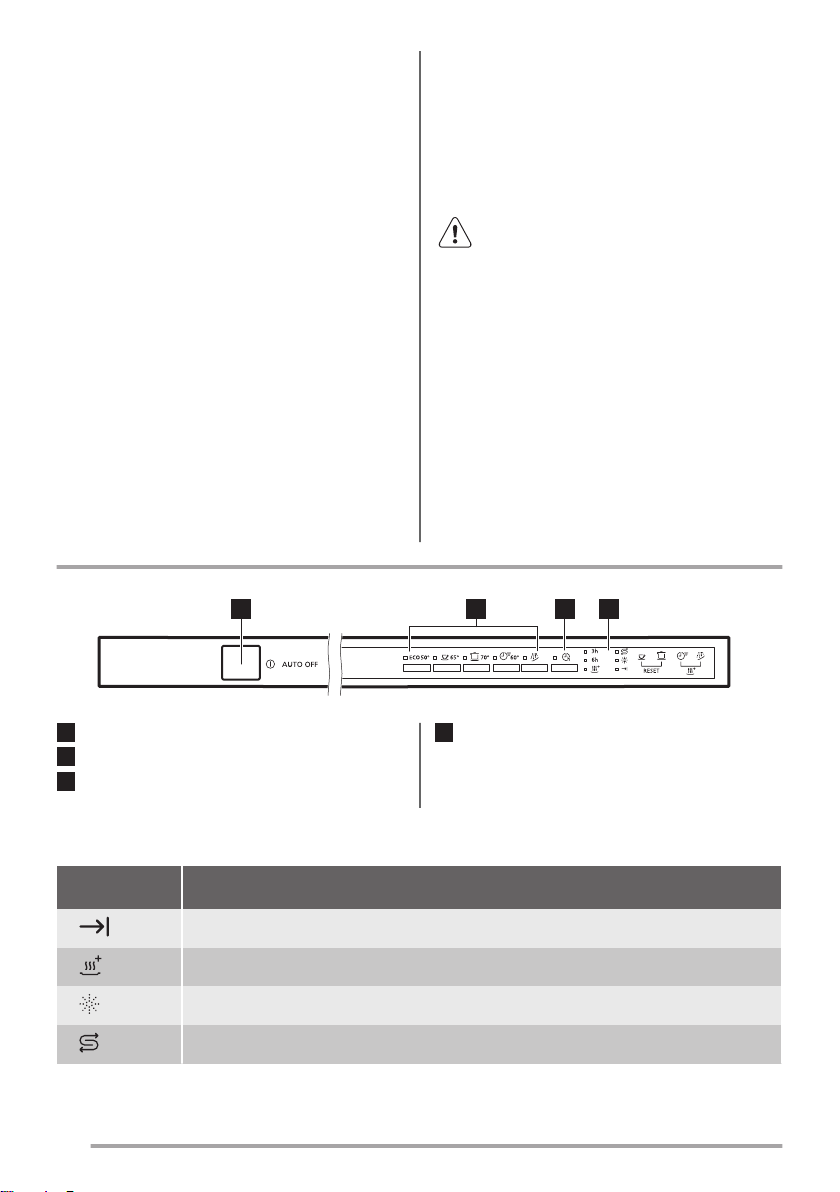

1234
1On/off button
2Programme buttons
3Delay button
4Indicators
Indicators
Indicator Description
End indicator.
XtraDry indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
4
Programmes
Programme Degree of soil
Type of load
Programme phases Options
1) • Normal soil
• Crockery and cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
• XtraDry
2) • Heavy soil
• Crockery, cutlery,
pots and pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
• XtraDry
• Normal soil
• Crockery and cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
• XtraDry
3) • Fresh soil
• Crockery and cutlery
• Wash 60 °C
• Rinses
• XtraDry
4) • All • Prewash
1) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with nor-
mal soil. (This is the standard programme for test institutes).
2) This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the tempera-
ture stays at 70 °C for at least 10 minutes.
3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4) With this programme you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form in the
appliance. Do not use detergent with this programme.
Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
10.2 0.932 225
12.5 - 14.5 1.4 - 1.8 169 - 179
14 1.6 160
10 0.9 30
4 0.1 14
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes
can change the values.
Information for test institutes
For all the necessary information for test performance,
send an email to:
Write down the product number (PNC) that is on the
rating plate.
5
Settings
Programme selection mode and user mode
When the appliance is in programme selection mode it
is possible to set a programme and to enter the user
mode.
In user mode, the following settings can be
changed:
• The level of the water softener according to the
water hardness.
• The activation or the deactivation of the acoustic
signal for end of programme.
• The activation or deactivation of the rinse aid empty
notification.
• The level of rinse aid according to the required
dosage.
These settings will be saved until you change them
again.
Programme selection mode
The appliance is in programme selection mode when only the indicator of the programme is on.
When the appliance is in programme selection mode, it is possible to set a programme and to enter the user mode.
If the control panel does not show this condition, do the Reset function.
Reset function

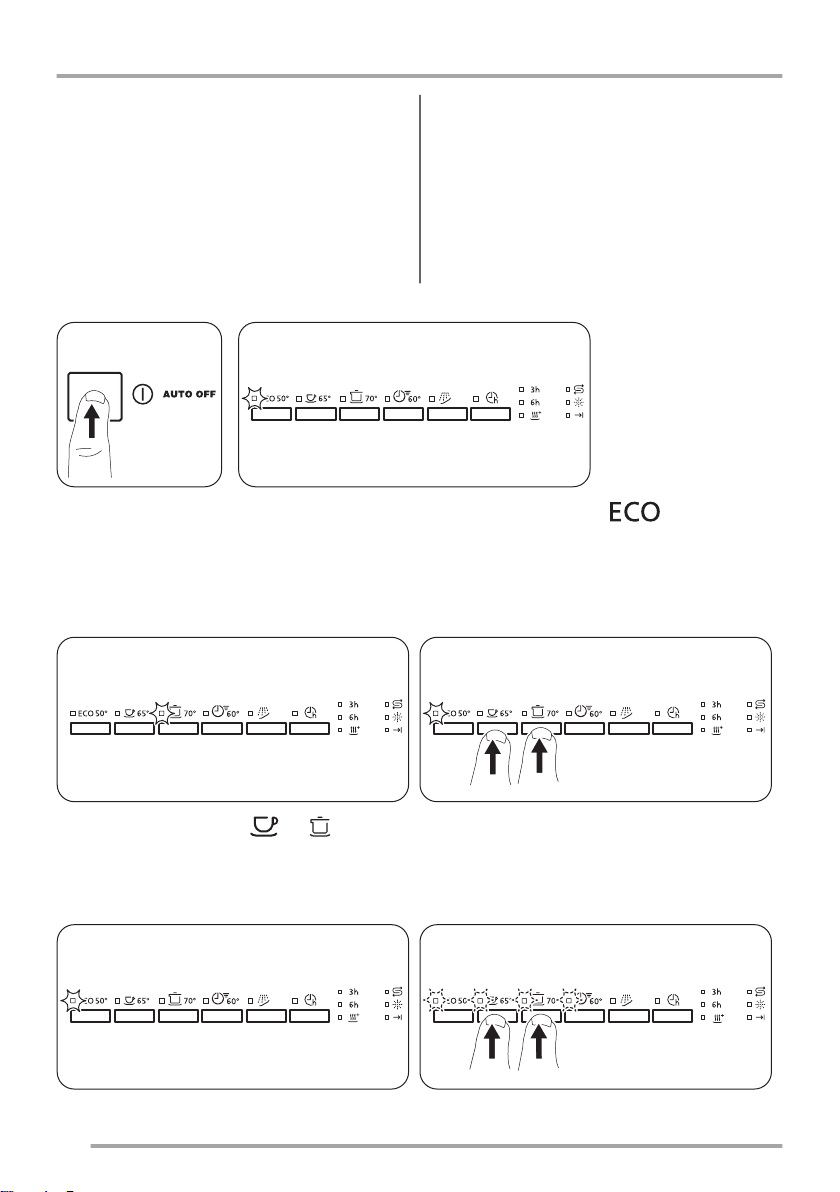

Press and hold simultaneously and until the appliance is in programme selection mode.
With this function you can cancel the running programme or the delay start.
User mode
6

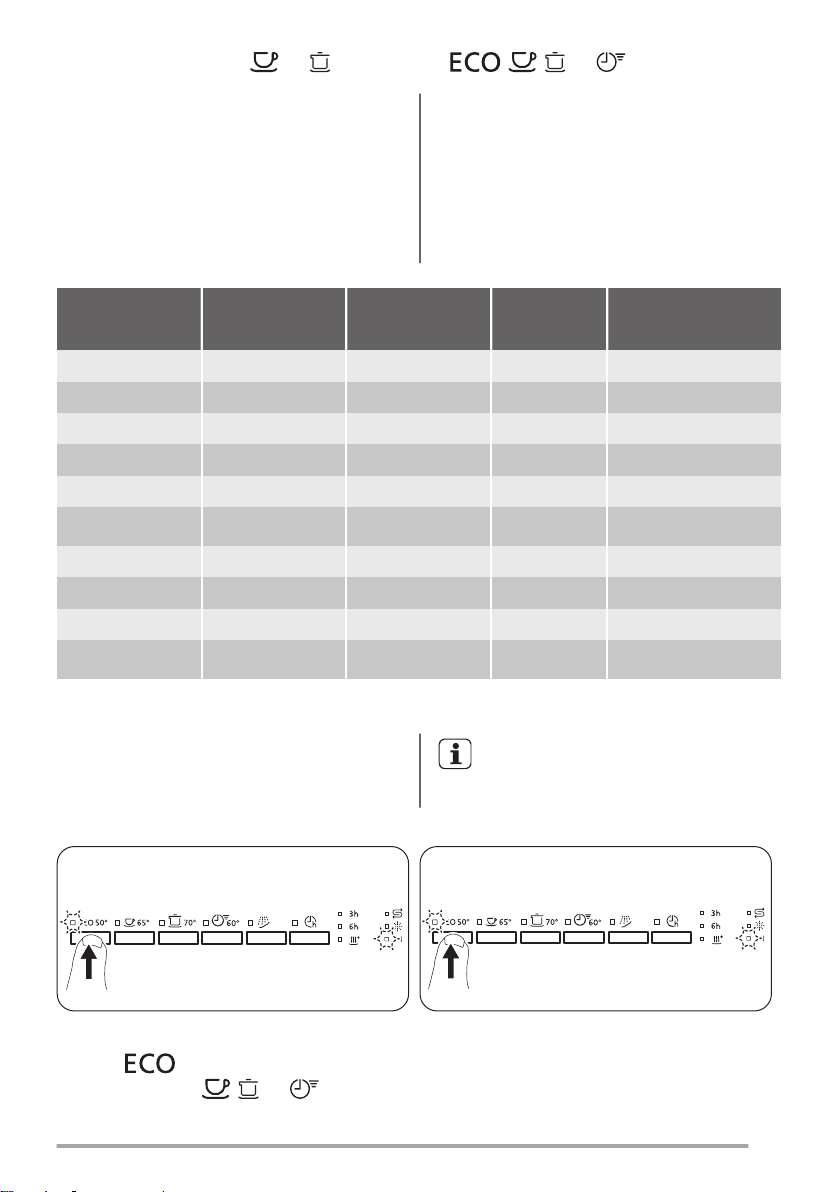

Press and hold simultaneously and until the indicators , , and start to flash.
The water softener
The water softener removes minerals from the water
supply, which would have a detrimental effect on the
washing results and on the appliance.
The higher the content of these minerals, the harder
your water is. Water hardness is measured in equivalent
scales.
The water softener should be adjusted according to the
hardness of the water in your area. Your local water
authority can advise you on the hardness of the water in
your area. It is important to set the right level of the
water softener to assure good washing results.
Water hardness
German degrees
(°dH)
French degrees
(°fH)
mmol/l Clarke de-
grees
Water softener level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent or multi-tabs
(with or without salt), set the proper water hardness
level to keep the salt refill indicator active.
Multi-tabs containing salt are not
effective enough to soften hard water.
Adjusting the water softener

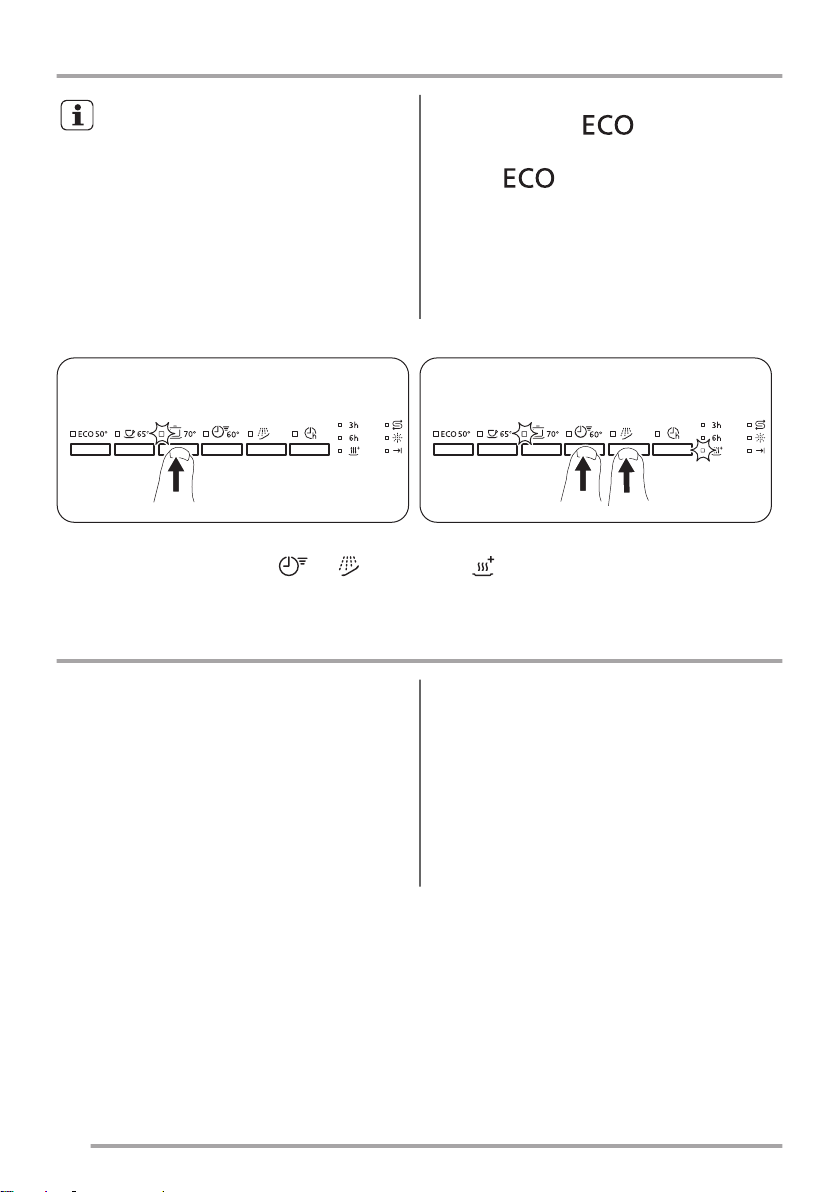

5x
6x
While the appliance is in user mode:
1. Press .
• The indicators , and go off.
7
• The indicator continues to flash.
• The indicator starts to flash. The number of flashes indicates the level (E.g. 5 flashes + pause + 5
flashes = level 5).
2. Press to change the setting. Each time you press the button, the level number increases. After level 10
you will start again from level 1.
3. Press the on/off button to confirm the setting.
The rinse aid dispenser
The rinse aid helps to dry the dishes without streaks
and stains.
The rinse aid is automatically released during the hot
rinse phase.
You can set the released quantity of rinse aid between
level 1 (minimum quantity) and level 6 (maximum
quantity). Level 0 will deactivate the rinse aid dispenser
and no rinse aid will be released.
Factory setting: level 4.
Adjusting the rinse aid level
4x
5x
You can set the released quantity of rinse aid between level 1 (minimum quantity) and level 6 (maximum quantity).
Level 0 will deactivated and no rinse aid will be released.
Factory setting: level 4.
While the appliance is in user mode:
1. Press .
• The indicators , and go off.
• The indicator continues to flash.
• The indicator starts to flash. The number of flashes indicates the current setting (e.g. 4 flashes + pause
+ 4 flashes = level 4)
2. Press to change the setting.
3. Press the on/off button to confirm the setting.
The rinse aid empty notification
The rinse aid helps to dry the dishes without streaks
and stains.
The rinse aid is automatically released during the hot
rinse phase.
When rinse aid chamber is empty, the rinse aid indicator
is turned on notifying to refill rinse aid. If you are using
multi-tabs containing rinse aid and you are satisfied with
the drying result, you can deactivate the notification for
refilling rinse aid. However, we recommend that you
always use rinse aid for best drying performance.
If you use standard detergent or multi-tablets without
rinse aid, activate the notification to keep the rinse aid
refill indicator active.
8
Deactivating the rinse aid empty notification
While the appliance is in user mode:
1. Press .
• The indicators , and go off.
• The indicator continues to flash.
• The indicator indicates the current setting: the indicator on = Rinse aid empty notification activated
(factory setting).
2. Press to change the setting. The indicator off = Rinse aid empty notification deactivated.
3. Press the on/off button to confirm the setting.
Acoustic signals
Acoustic signals sound when a malfunction of the
appliance occurs. It is not possible to deactivate these
acoustic signals.
There is also an acoustic signal that sounds when the
programme is completed. By default this acoustic signal
is deactivated but it is possible to activate it.
Activating the acoustic signal for the end of programme
By default this acoustic signal is deactivated but it is possible to activate it.
While the appliance is in user mode:
1. Press .
• The indicators , and go off.
• The indicator continues to flash.
• The indicator indicates the current setting: the indicator off = Acoustic signal off.
2. Press to change the setting. The indicator on = Acoustic signal on.
3. Press the on/off button to confirm the setting.
9
Options
Desired options must be activated every
time before you start a programme.
It is not possible to activate or deactivate
options while a programme is running.
XtraDry
Activate this option when you want to boost the drying
performance. With use of this option, the duration of
some programmes, water consumption and the last
rinse temperature can be affected.
The XtraDry option is a permanent option for all
programmes other than and need not to be
selected at every cycle.
Every time is activated, XtraDry option is off
and needs to be chosen manually. In other
programmes, the setting of XtraDry is permanent and it
is automatically used in next cycles. This configuration
can be changed at any time.
Option XtraDry
1. Set the programme.
2. Press and hold simultaneously and until the indicator comes on.
If the option is not applicable to the programme, the related indicator does not come on or it flashes quickly for a few
seconds and then goes off.
Before first use
1. Make sure that the current level of the water
softener agrees with the hardness of the water
supply. If not, adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing
residuals that can still be inside the appliance. Do
not use detergent and do not load the baskets.
When you start a programme, the appliance can take up
to 5 minutes to recharge the resin in the water softener.
It seems that the appliance is not working. The washing
phase starts only after this procedure is completed. The
procedure will be repeated periodically.
10
Table of contents
Languages:
Other ZANKER Dishwasher manuals
ZANKER
ZANKER KDV10030FA User manual
ZANKER
ZANKER KDT10001FB User manual
ZANKER
ZANKER ZKS 5684 User manual
ZANKER
ZANKER ZKS 5453 IE User manual
ZANKER
ZANKER ZKV1530 User manual
ZANKER
ZANKER ZKS 5650 IL User manual
ZANKER
ZANKER ZKS5642 User manual
ZANKER
ZANKER ZKI1415 User manual
ZANKER
ZANKER KDI10000XB User manual
ZANKER
ZANKER ZKS 5630 User manual
ZANKER
ZANKER KDT10001FB User manual
ZANKER
ZANKER ZKVS 1530 User manual
ZANKER
ZANKER ZKI1410 User manual
ZANKER
ZANKER ZKS 5619 SX User manual
ZANKER
ZANKER KDT10053FK User manual
ZANKER
ZANKER KDT11002FK User manual
ZANKER
ZANKER ZKS 5628 IE User manual
ZANKER
ZANKER ZKS 5653 User manual
ZANKER
ZANKER KDT 10032FK User manual
ZANKER
ZANKER ZKS5453IE User manual
