World Market Gustav 608162 User manual
THANK YOU FOR PURCHASING OUR QUALITY PRODUCT. IF YOU HAVE ANY
QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE,
PLEASE CONTACT YOUR NEAREST WORLD MARKET STORE, OR CALL OUR
TOLL FREE NUMBER 877-967-5362 FOR ASSISTANCE.
Gustav Sliding Door Bookcase
Assembly Instructions
SKU - 608162
NOT FOR COMMERCIAL USE.
Page 1
R
Page 2
F: Leg - 4 pcs
A: Top Frame - 1 pc B: Bottom Frame - 1 pc
E: Shelf - 3 pcs
G-2: Right Side Frame - 1 pc
G-1: Left Side Frame - 1 pc
D: Bottom Back Frame - 1 pc
C: Top Back Frame - 1 pc
H: Back Panel - 2 pcs
I: Vertical Rail - 1 pc J-1: Left Door - 1 pc J-2: Right Door - 1 pc
Part List
LABEL DESCRIPTION Q.TY
Anti Tip-kit
Page 3
15
52
10
10
10
Connecting Screw M7 x 50 mm
Cam lock Ø15 mm
1
Pan Head Screw M3.5 x 15 mm
Shelf Pin Ø6
LABEL DESCRIPTION QTY
1
T-1
T-2 Phillips Screwdriver
(Not Included) 1
Allen Key
4 x 110 x 30 mm
H-1
H-2
H-3
H-4
H-5
H-6
Cam Screw
2
Wood Screw M4 x 30 mm
H-7
Hardware List
Tool List

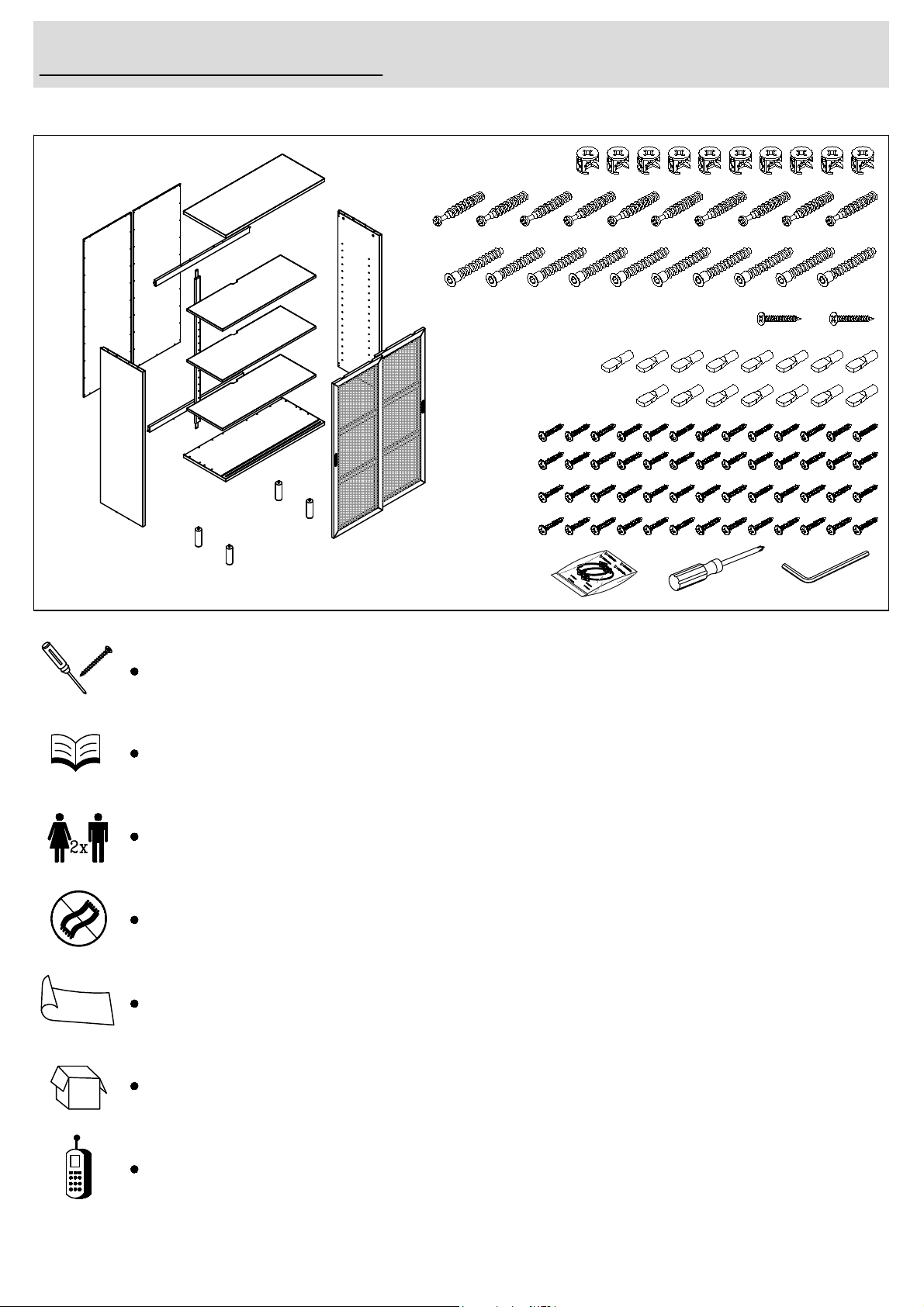

Before Beginning:
Read instructions, cover to cover.
In case of missing parts, please contact your nearest World Market store or
our customer service call center 877-967-5362.
Assemble on a clean non-marring surface (packing foam).
Unpack all hardware bags and components to ensure you have all parts.
Have 2 adults on hand for assembly.
Do not assemble on flooring or carpet.
Save all packaging until finished.
Page 4
Assembly Preparation
Step 1
Page 5
(T-2) Phillips Screwdriver
(H-2) Cam Screw x 10
T-2
H-2
x4
G-1
G-2
A
Step 1.1: Install Cam Screws (H-2) into the pre-drilled holes on Left Side Frame (G-1) and Right Side Frame
(G-2) as shown. Fully tighten using a Phillips screwdriver (T-2) (not included).
Step 1.2: Place Top Frame (A) upside down onto a padded, non-marring surface. Install Cam Screws (H-2) into
the pre-drilled holes on Top Frame (A) as shown. Fully tighten using a Phillips screwdriver (T-2) (not included).
Step 1.1:
Step 1.2:
T-2
H-2
x6
Assembly Steps
Step 2
Page 6
Step 3
(T-1) Allen key
(H-1) Cam Lock x 4
x4
Front
H-1
T-1
D
C
G-2
G-1
Install Cam Locks (H-1) into the corresponding holes in Top Back Rail (C) and Bottom Back Rail (D) as shown.
Position Back Rail assembly to Left Side Frame (G-1) and Right Side Frame (G-2) by inserting dowels and
Cam Screws (H-2) into corresponding holes (Make sure arrows on Cam Locks point to screw upon insertion).
Secure all Cam Locks (H-1) using Allen Key (T-1) until snug.
I
Join Vertical Rail (I) with Top Back Rail (C) and Bottom Back Rail (D) using dowels and corresponding dowel
holes as shown.
D
C
I

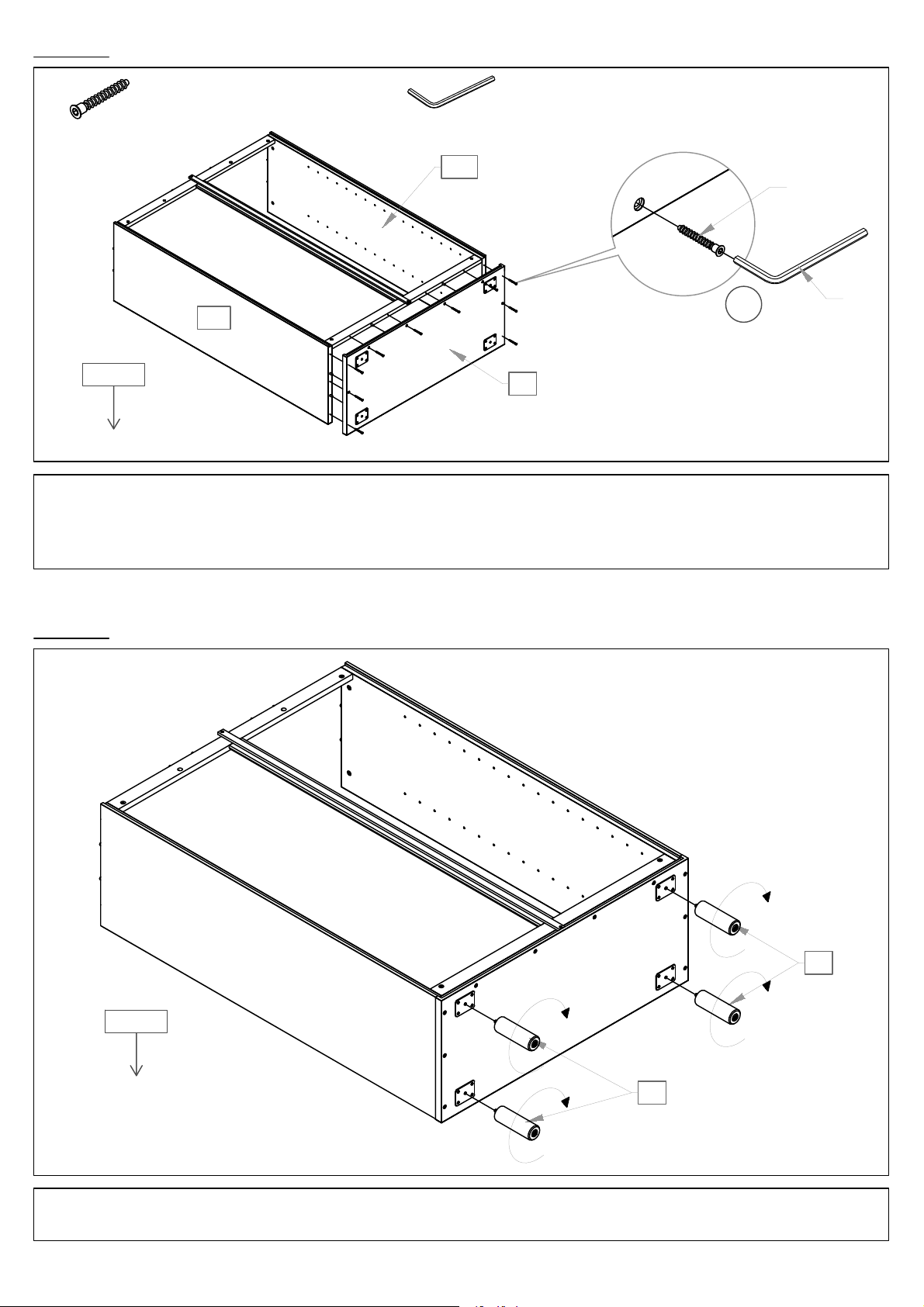

Step 4
Page 7
H-3
x10
(T-1) Allen key
(H-3) Connecting Screw x 10
T-1
Install and secure Left Side Frame (G-1) and Right Side Frame (G-2) to Bottom Frame (B) using Connecting
Screws (H-3). Engage all screws before fully tightening using Allen Key (T-1).
Front B
G-1
G-2
Step 5
F
F
Position and secure Legs (F) to each metal threaded plate at the corners of Bottom Frame (B) as shown.
Secure each leg by threading the stud clockwise until it is snug against the metal plate.
Front
Step 6
Page 8
(T-1) Allen key
(H-1) Cam Lock x 6
T-1
H-1
x4
T-1
H-1
x2
A
Install Cam Locks (H-1) into the corresponding holes on Left Side Frame (G-1), Right Side Frame (G-2) and
Top back Rail (C) as shown, making sure that the Cam Screws (H-2) installed on Top Frame (A) fit up inside of
Left Side Frame (G-1), Right Side Frame (G-2) and Top back Rail (C). Tighten all Cam Locks (H-1) using Allen
Key (T-1) until they are snug.
Front
Step 7
(H-4) Wood Screw x 2
(T-2) Phillips Screwdriver T-2
H-4
x2
Secure the Vertical Rail (I) using Wood Screws (H-4) and a Phillips Screwdriver (T-2) (not included).
Step 8
Page 9
(H-6) Pan Head Screw x 52
(T-2) Phillips Screwdriver
x52
H
Front
Attach Back Panels (H) to the back of the storage assembly as shown. Secure the panels using Pan Head
Screws (H-6). Tighten but do not over-tighten the screws using a Phillips Screwdriver (T-2).
T-2
H-6
H
Step 9
H-5
x15
(H-5) Shelf Pin x 15
E
Using a second person, carefully turn the assembled unit upright. Insert Shelf Pins (H-5) into the desired hole
locations on Left Side Frame (G-1), Right Side Frames (G-2) and Vertical Rail (I). Turn Shelves (E) diagonally
and carefully insert into position as shown, making sure they rest evenly on each Shelf Pin (H-5).
Page 10
Step 10
J-2
J-1
Front
x8
Step 10.2a
x8
x8
Step 10.2b
Step 10.1
Front
Step 10.1: Insert the bottom wheel of the Right Sliding Door (J-2) into the outer groove located on the front edge
of the Bottom Frame (B).
Step 10.2a: Push and lock the button located above the latch at the top of the Right Sliding Door (J-2) in place.
Step 10.2b: Position the Right Sliding Door (J-2) into the top track and release the latch button to the outside
track.
Repeat the same step to install the Left Sliding Door (J-1).
