Ubiquiti UniFi AP PRO User manual
Enterprise WiFi System
1
Introduction
Introduction
Thank you for purchasing the Ubiquiti UniFi Enterprise WiFi
System. The UniFi Enterprise WiFi System includes the UniFi
Controller software that allows you to manage your wireless
network using your Web browser.
This Quick Start Guide is for use with the UniFi AP-Pro.
The UniFi Enterprise WiFi System also includes the necessary
hardware for mounting the unit on a wall or a ceiling. The UniFi
AP-Pro can be powered by a 48V, 802.3af compliant switch.

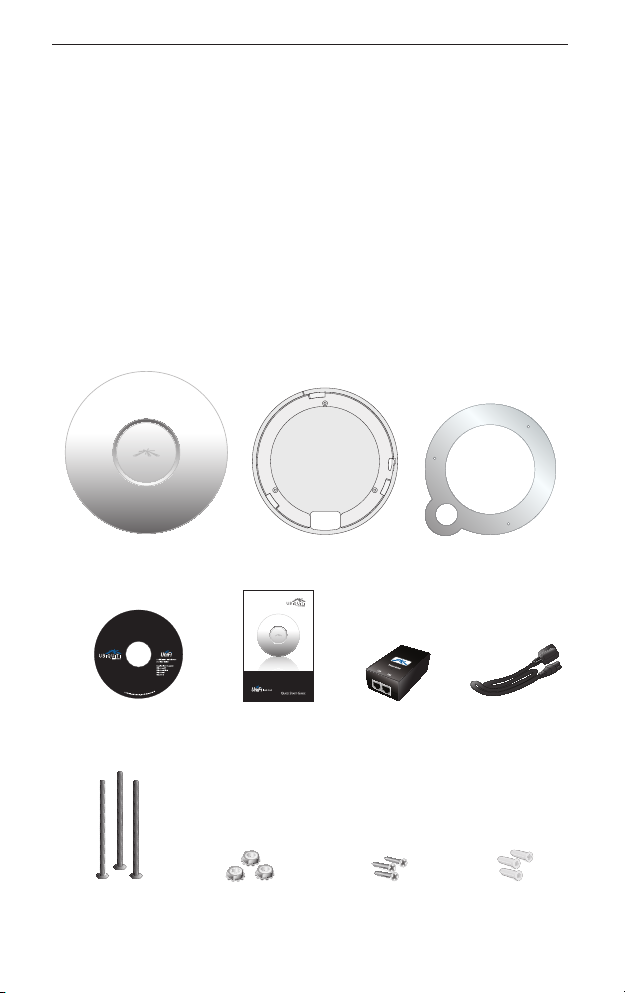

Package Contents
UniFi AP-Pro Mounting Bracket Ceiling Backing Plate
Enterprise WiFi System
UniFi Controller
CD with User Guide
Quick Start
Guide
PoE GigE Adapter
(48V, 0.5A Gigabit)
Power Cord
M3x50 Flat Head
Screws
(Qty. 3)
M3 Keps Nuts with
Tooth Washers
(Qty. 3)
M2.9x20 Screws
(Qty. 3)
M3x20 Screw
Anchors
(Qty. 3)
2
UniFi™AP Pro
System Requirements
• Microsoft Windows XP, Windows Vista, Windows 7, or Mac OS X
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft
Internet Explorer 8 (or above)
Network Topology Requirements
• A DHCP-enabled network (for the AP to obtain an IP address as
well as for the wireless clients after deployment)
• A management station computer running the UniFi Controller
software, located either onsite and connected to the same
Layer-2 network, or off-site in a cloud or NOC
or
Router
Off-Site
Cloud/NOC
On-Site
Management Station
UAP/UAP-LR UAP-Pro

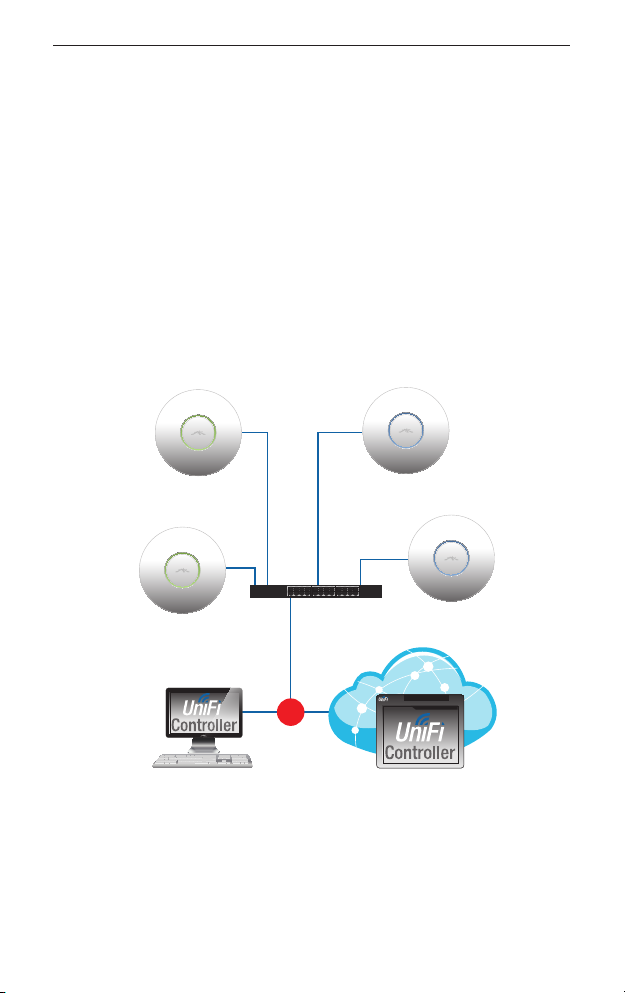

Sample Network Diagram
All UniFi APs support off-site management controllers. See the
User Guide on the CD for setup details.
3
Network Topology Requirements
Hardware Overview

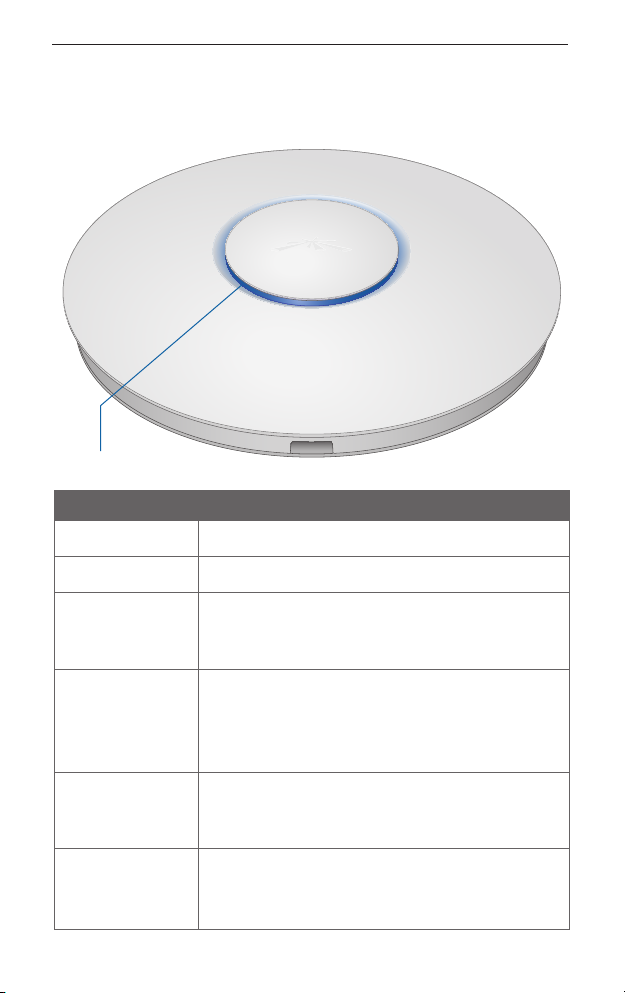

LED
LED Color Status
Flashing White Initializing.
Steady White Factory default, waiting to be integrated.
Alternating
White/Blue
Device is busy; do not touch or unplug it.
This usually indicates that a process such as a
firmware upgrade is taking place.
Quickly Flashing
Blue
This is used to locate an AP.
When you click Locate in the UniFi Controller
software, the AP will flash. It will also display
the location of the AP on the map.
Steady Blue Indicates the device has been successfully
integrated into a network and is working
properly.
Steady Blue
with occasional
flashing
Indicates the device is in an isolated state (all
WLANs are brought down until an uplink is
found).
Status LED
4
UniFi™AP Pro
Ports
Main Ethernet Port
(10/100/1000 Mbps)
Secondary Ethernet Port
(10/100/1000 Mbps)
Reset Button
Main/48V The Main/48V Ethernet Port is used to connect the
power and should be connected to the LAN and DHCP server.
Power can be provided by a 48V 802.3af compliant switch or by
the included PoE adapter.
Secondary The Secondary Ethernet Port is used for bridging.
Reset The Reset button serves two functions:
• Restart It will restart the device when you press and release it
quickly.
• Restore Factory Defaults When you press and hold it for more
then 5 seconds, it will restore the device to the factory default
settings.
5
Network Topology Requirements
Hardware Installation
The UniFi AP-Pro can be mounted to the wall or ceiling. Perform
the steps for the appropriate installation:
Wall Mount

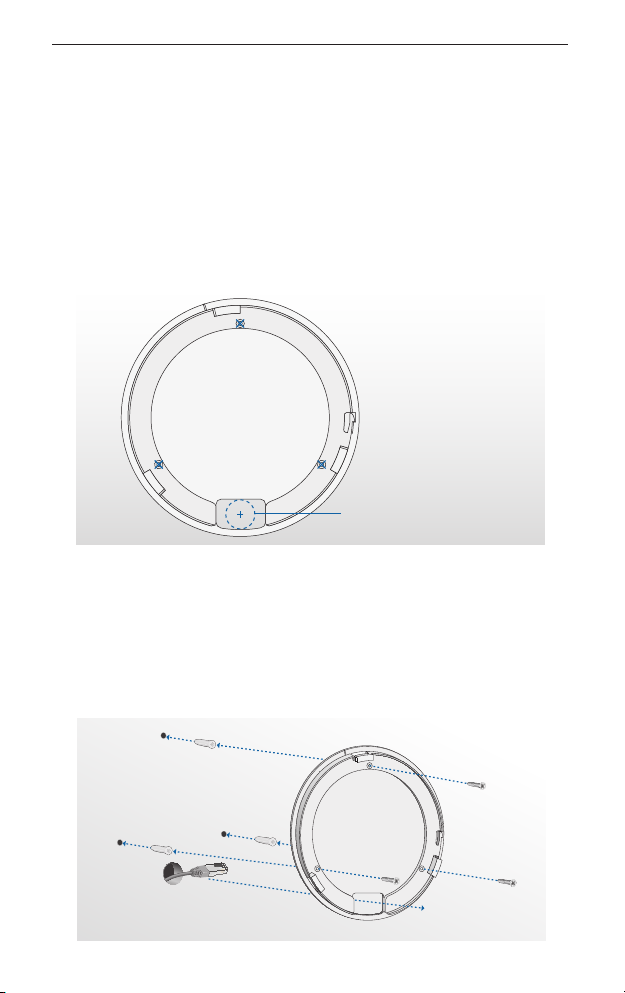

1. Position the Mounting Bracket at the desired location on the
wall with the cable feed slot pointed towards the floor.
2. Use a pencil to mark the three holes on the wall. Use a 6 mm
drill bit to drill the holes in the wall.
Top
Optional 25 mm Hole for Ethernet
Cable Feed through Wall
3. (Optional) If your Ethernet cable feeds through the wall, cut or
drill a circle that is approximately 25 mm in size and lines up
with the cable feed slot.
4. Insert the M3x20 Screw Anchors into the 6 mm holes. Secure the
Mounting Bracket to the wall by inserting the M2.9x20 Screws
into the anchors.
6
UniFi™AP Pro
5. Connect the Ethernet cable to the Main Ethernet Port on the
UniFi AP-Pro.
6. Align the notch on the UniFi AP-Pro with the notch on the
Mounting Bracket.
7
Network Topology Requirements
7. Turn the UniFi AP-Pro clockwise until it locks into place.
Ceiling Mount

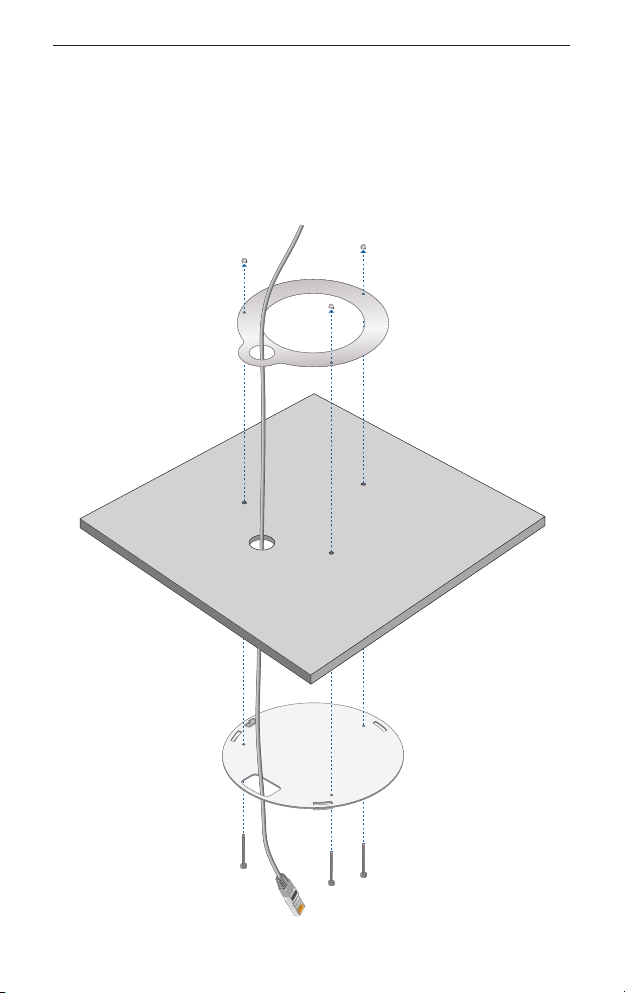

1. Remove the ceiling tile.
2. Place the Mounting Bracket in the center of the ceiling tile.
Mark the three mounting screw holes and 25 mm hole for the
Ethernet cable.
25 mm Hole for Ethernet Cable Feed
8
UniFi™AP Pro
3. Use a 3 mm drill bit to drill the screw holes and cut or drill the
25 mm hole for the Ethernet cable feed.
4. Secure the Mounting Bracket to the ceiling tile using the Ceiling
Backing Plate, M3x50 Flathead Screws and M3 Keps Nuts with
Tooth Washers.
5. Feed the Ethernet cable through the 25 mm hole.
