Triarch Indoor Lighting 31759 User manual

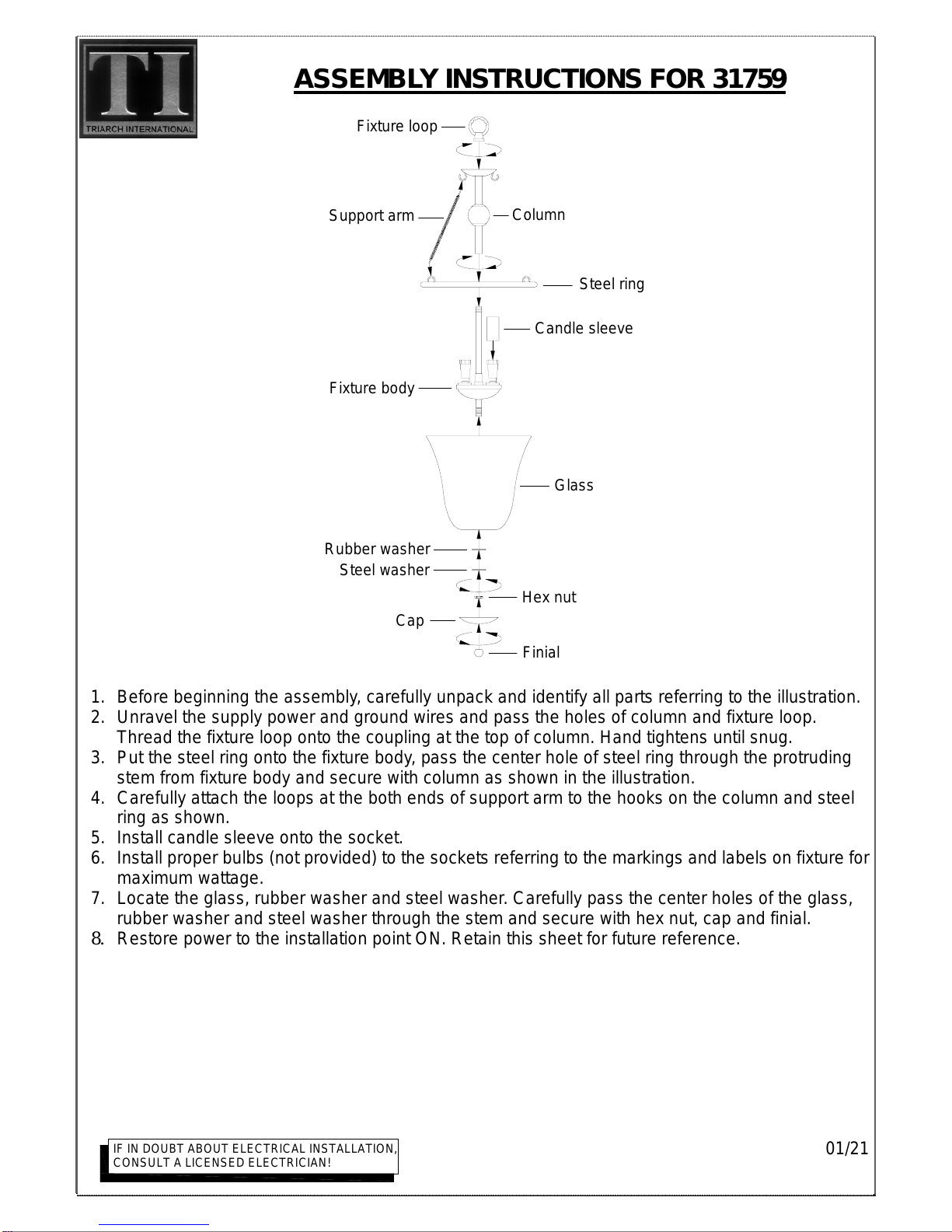

ASSEMBLY INSTRUCTIONS FOR 31759

1. Before beginning the assembly, carefully unpack and identify all parts referring to the illustration.

2. Unravel the supply power and ground wires and pass the holes of column and fixture loop.

Thread the fixture loop onto the coupling at the top of column. Hand tightens until snug.

3. Put the steel ring onto the fixture body, pass the center hole of steel ring through the protruding

stem from fixture body and secure with column as shown in the illustration.

4. Carefully attach the loops at the both ends of support arm to the hooks on the column and steel

ring as shown.

5. Install candle sleeve onto the socket.

6. Install proper bulbs (not provided) to the sockets referring to the markings and labels on fixture for

maximum wattage.

7. Locate the glass, rubber washer and steel washer. Carefully pass the center holes of the glass,

rubber washer and steel washer through the stem and secure with hex nut, cap and finial.

8. Restore power to the installation point ON. Retain this sheet for future reference.

01/21

IF IN DOUBT ABOUT ELECTRICAL INSTALLATION,

CONSULT A LICENSED ELECTRICIAN!

Candle sleeve

Support arm

Glass

Cap

Finial

Rubber washer

Steel washer

Fixture body

Steel ring

Column

Fixture loop

Hex nut
