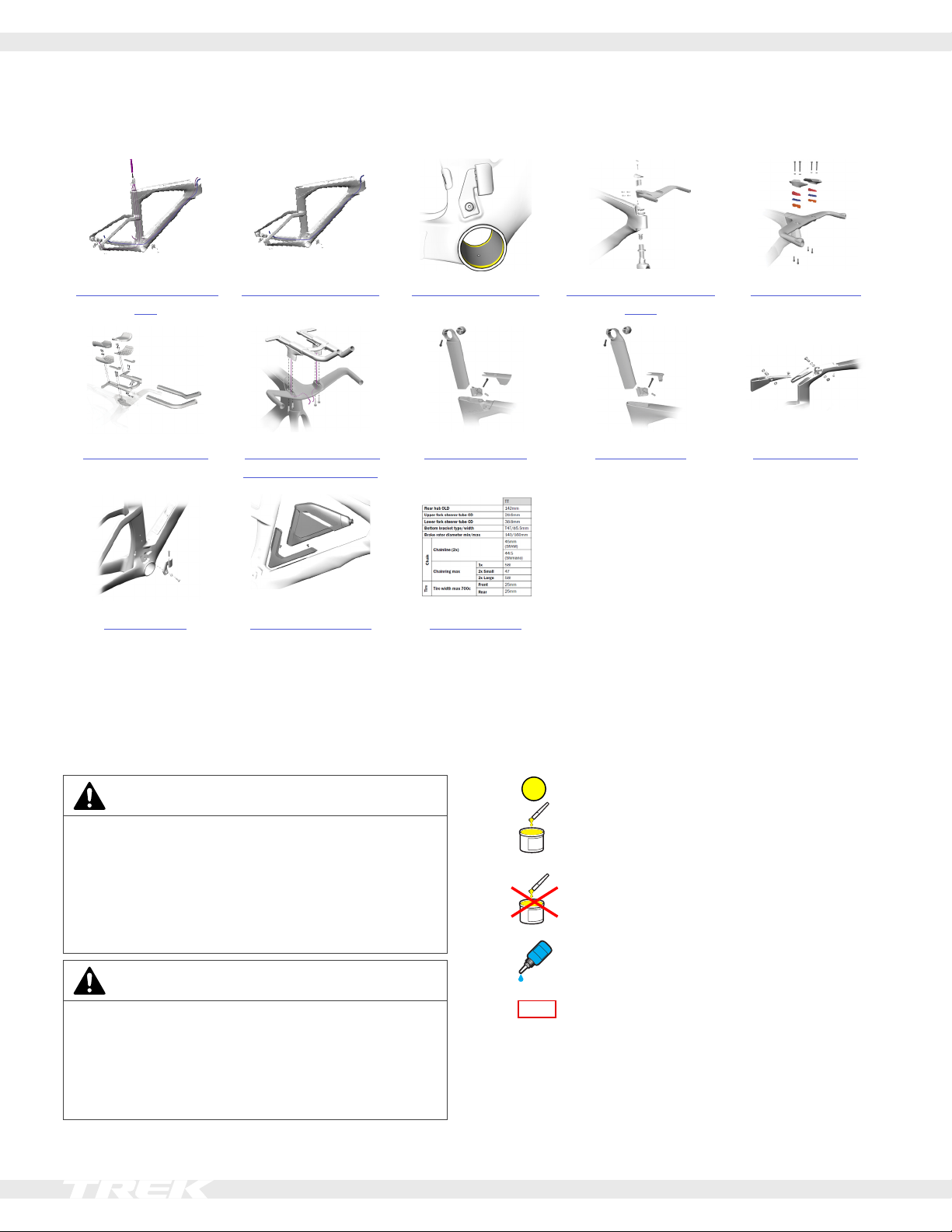

2022 Speed Concept SLR/TT
1
Safety
WARNING
Properly tighten hardware
Always tighten hardware to the specied torque.
Over-tightening hardware could deform or break the
hardware or components. Under-tightening hardware
could cause hardware or components to become loose.
Either situation could damage the bicycle and result in
injury to the rider.
WARNING
Reapply threadlocker
All reused-fasteners with pre-applied threadlocker must
be cleaned with isopropyl alcohol and have new thread-
locker applied before re-assembly. If threadlocker is not
applied, the fasteners may loosen which could damage
the bicycle and result in injury to the rider.
Legend
Apply grease
Do not apply grease
Apply threadlocker
Nm Torque
Zip tie
Contents
Brake/shift routing —
Di2
Brake routing — eTap T47 bottom bracket Headset and basebar/
stem
Cockpit — towers
Cockpit — aerobars Cockpit — install the
towers and aerobars
Seatpost — SLR Seatpost — TT IsoSpeed — SLR
Chainkeeper Accessories — SLR Specications
Copyright 2021 Trek Bicycle Corporation All Rights Reserved
2022 Speed Concept SLR/TT
2
About this manual
Rider must be measured before assembling this bicycle
This bicycle features a custom t and parts specic to the rider’s proportions. Before purchasing this bicycle, you must have
been t using the online Speed Concept Fit Finder.
Order of assembly
This manual follows an order of assembly starting with a bare frame (e.g., you route the rear brake hose before attaching the
bottom bracket). Certain build portions may have been completed already—skip to the section you need.
Scope of this manual
This manual does not contain detailed instructions for components not produced by Trek, such as shift levers and brake
calipers. Refer to the original manufacturer for more information.
Experienced bicycle mechanics required
These instructions are written for an experienced bicycle mechanic. The high-tech design of this bicycle requires precision and
the proper tools. If you are doing your own maintenance, consult your dealer for any issues.
SLR TT
2022 Speed Concept SLR/TT
3

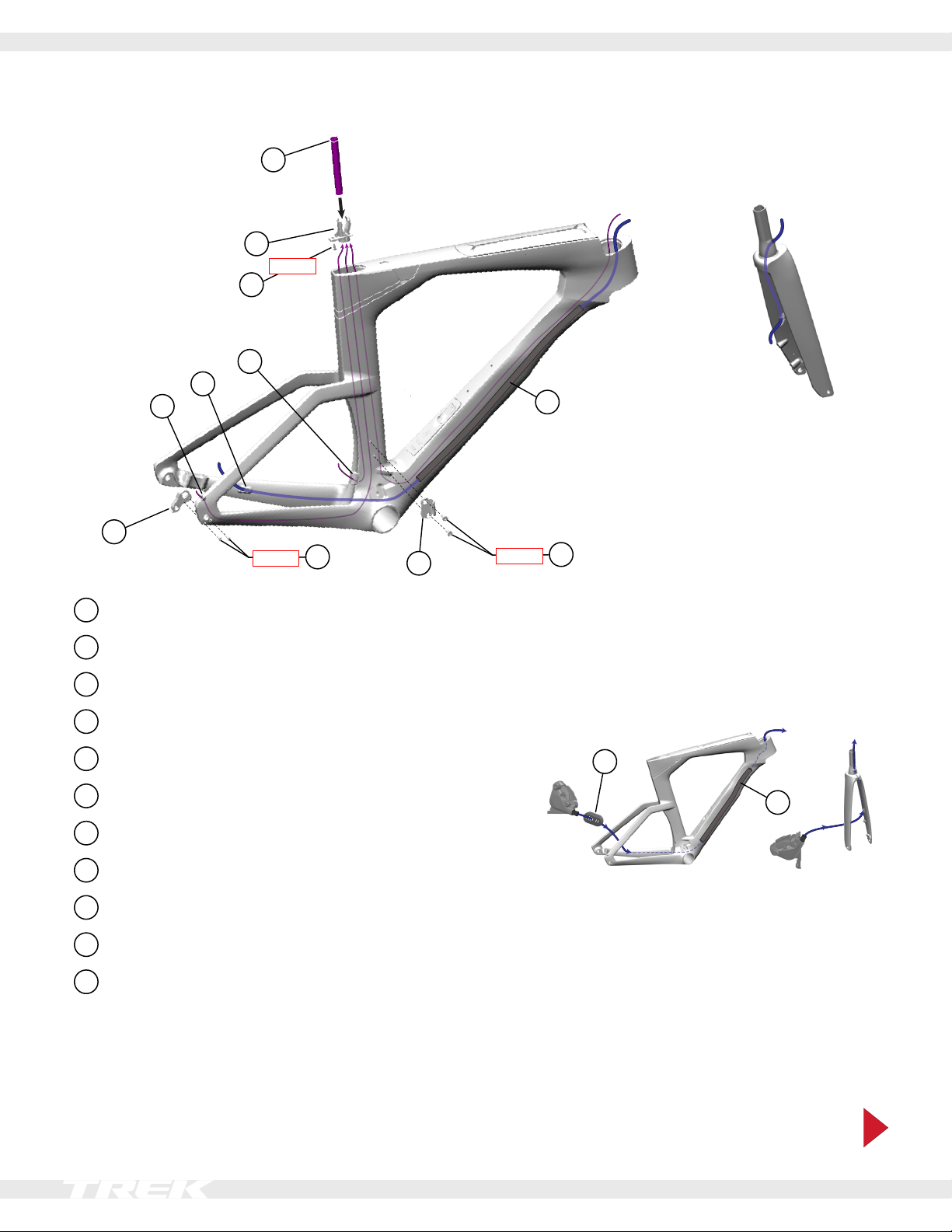

Brake/shi routing — Di2
1
0.7Nm 2
3
4
5.2Nm 5
6
7
9
10
11
4-6Nm
8
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
3 Rear brake grommet — W330578
4 Front shift wire grommet — W326042
5 Front derailleur bolts — W5263897
6Front derailleur washer — W5257283
7Rear Di2 shift wire grommet — 317292
8 Foam housing sleeve (60cm) — W528082
9 Battery mount — 5255420
10 Battery o-ring — 5255421
11 Battery mounting screw — 5255425

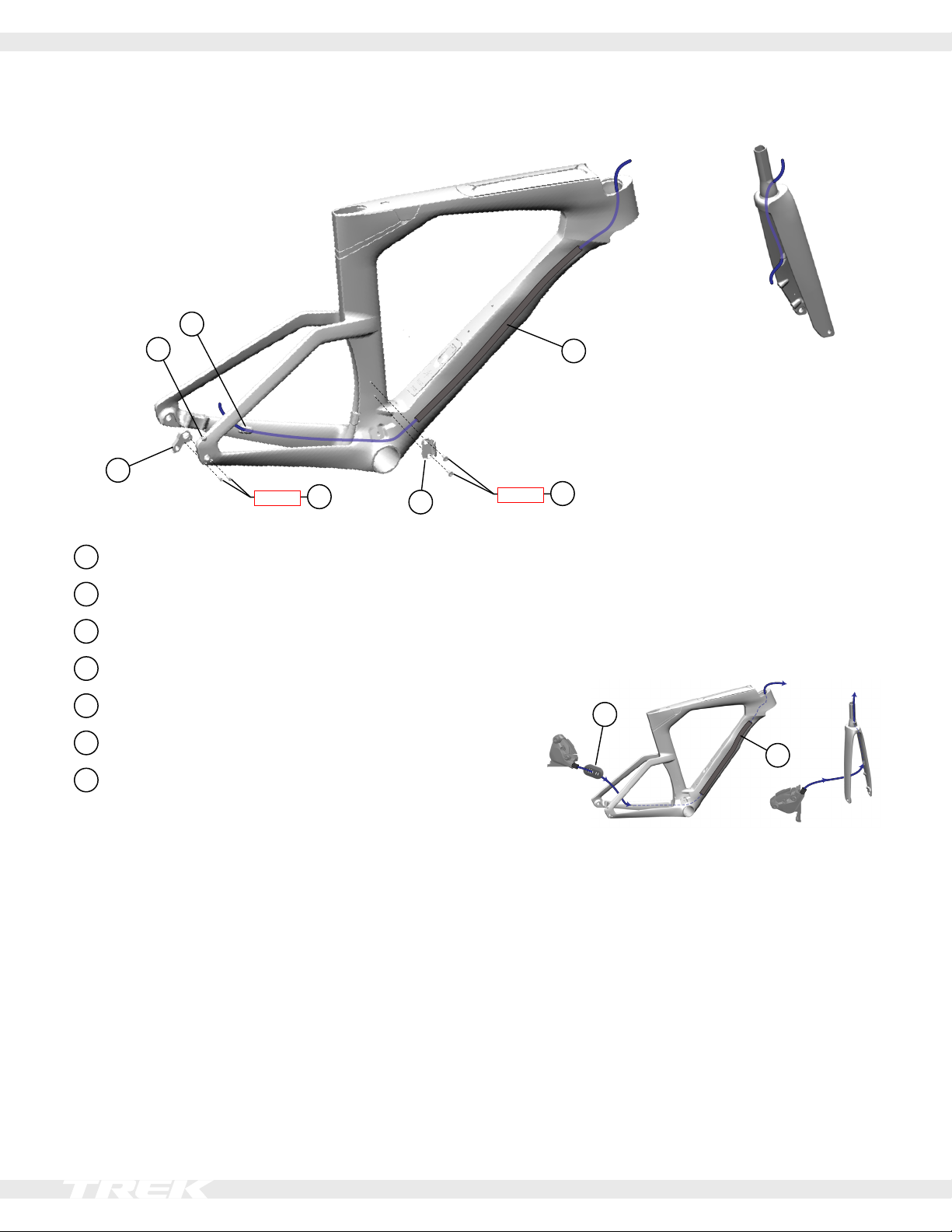

Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet
(3) and foam sleeve (8). Route both brake hoses as
shown below.
8
3
3. Loosely attach the calipers to the chainstay and fork
(this keeps the hoses from sliding out).
2022 Speed Concept SLR/TT
4
Brake/shi routing — Di2 (continued)
Route the shift wires
1. Route and connect the three wires to the battery as
shown below.
TIP: Tape the wire sticking out of the head tube to the
outside of the frame.
4
7
9
2. Insert the battery mount assembly into the seatpost
and install the mounting screw (11).
11
4-6Nm
3. Insert the seatpost into the seatmast.
4. Attach the derailleurs to the frame. Connect the shift
wires to the derailleurs.

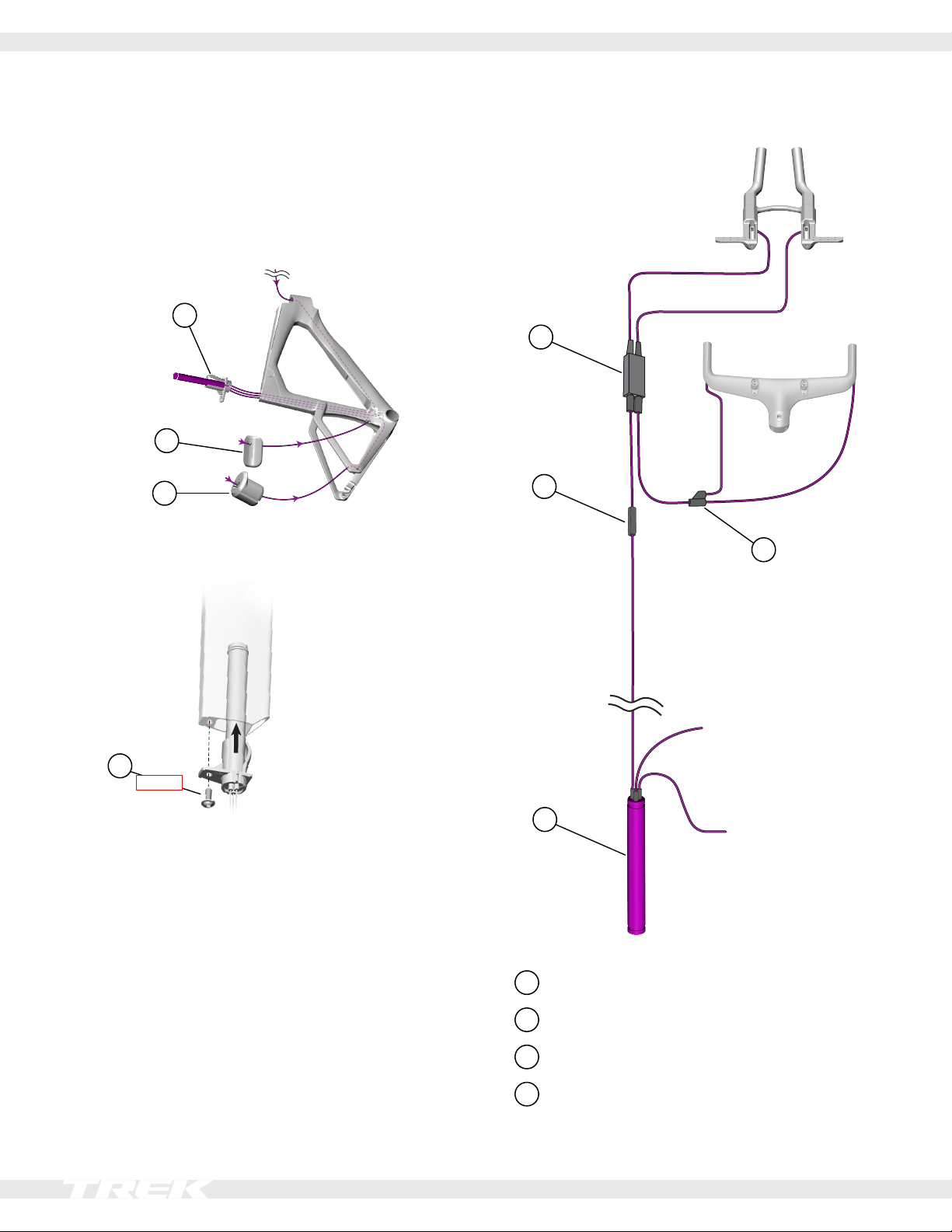

Di2 wiring overview
Front derailleur
Rear derailleur
12
13
14
15
12 Junction B — SM-JC41
13 Conversion adaptor — EW-AD305
14 Y-split — EW-JC130
15 Battery — 5273659
2022 Speed Concept SLR/TT
5
Brake routing — eTap
1
0.7Nm 2
3
5.2Nm 4
5
67
1 Rear derailleur hanger — W524188
2 Rear derailleur hanger bolts — W524884
3 Rear brake grommet — W330578
4 Front derailleur bolts — W5263897
5Front derailleur washer — W5257283
6Rear grommet plug — 547906
7Foam housing sleeve (60cm) — W528082
Route the brake hoses
1. Connect the calipers to the brake hoses.
2. Route the rear brake hose through the grommet
(3) and foam sleeve (7). Route both brake hoses as
shown below.
7
3
3. Loosely attach the calipers to the chainstay and fork
(this keeps the hoses from sliding out).
2022 Speed Concept SLR/TT
6

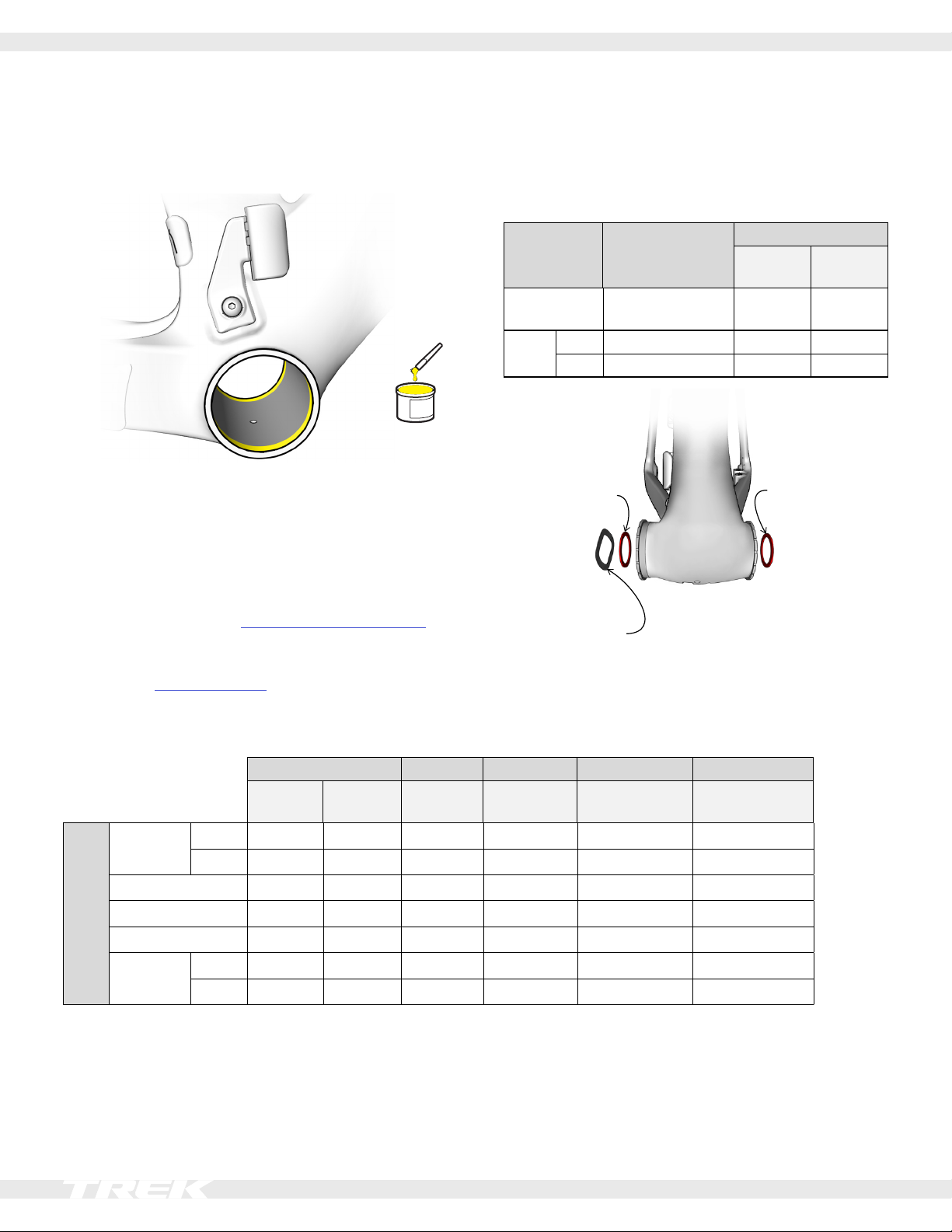

T47 bottom bracket
Install the bottom bracket
1. Apply grease to the threads on both sides of the
frame.
2. Using your hands, thread the bottom bracket onto
the frame.
NOTICE: Do not start tightening the bottom bracket
with a tool. Dirt and other contaminants can
damage the threading.
3. Use the proper tool to torque both sides to
specication (see the Tool and spline compatibility
table below).
4. If necessary, add spacers before installing the cranks
(see the Spacers required table at the top right).
Spacers required
The table below contains bottom bracket/crank
combinations that require spacers. Your bicycle may have
other combinations that do not require spacers.
Crank Bottom bracket
Spacers required
Drive
side
Non-drive
side
Shimano CeramicSpeed
24mm 0.5mm 0.5mm
SRAM DUB SRAM DUB 2-3mm —
GXP Wheels MFG 1.0mm —
non-driveside
washer
driveside
washer
SRAM GXP cranks
only
Tool and spline compatibility
Tool Praxis Unior Park Tool Wheels Mfg CeramicSpeed
Model
Part number
TP-2400
594148
TP-3028
594147
1671.T47
1043614
BBT-47
568922
BBTOOL-48-44
589307 —
Bottom bracket
manufacturer
Praxis 24mm X X
30mm X X
Wheels MFG X
SRAM DUB X X
Chris King X X
Ceramic-
Speed
24mm X X X
GXP X
2022 Speed Concept SLR/TT
7

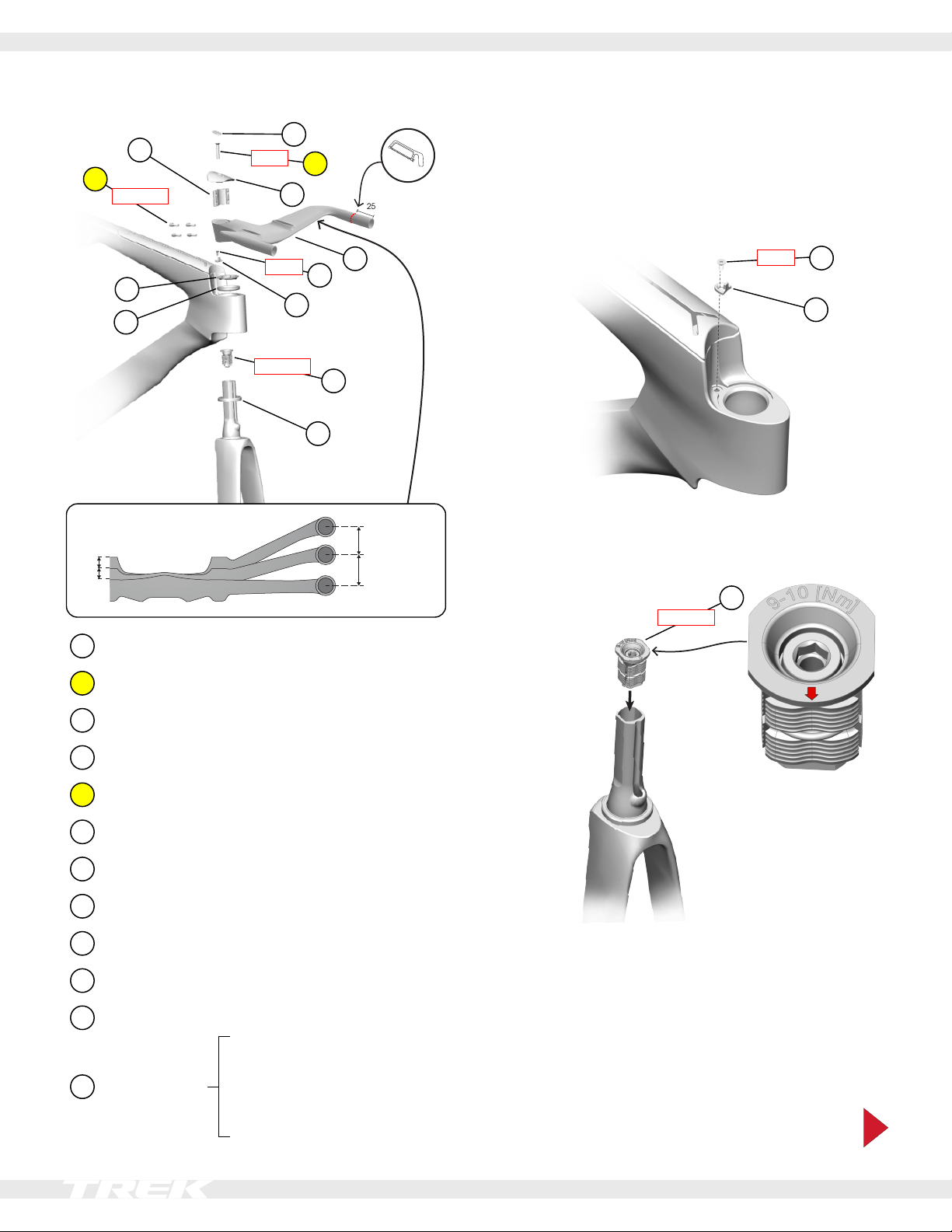

Headset and basebar/stem
25mm
15mm
35mm
35mm
15mm
Low
High
Middle
4Nm
3
1
2
4
5
5.2Nm
12
2Nm 6
7
8
9
11
10
9-10Nm
1 Bar cap plug — W5258507
2Top cap bolt — 5269811
3 Top cap — W5258506
4 Faceplate — W5258528
5Stem bolts (M5x18mm) — 582092
6Steer stop bolt (M4x9mm) — 546731
7 Steer stop — W5259927
8Split ring — 563834
9Upper headset bearing — 513538
10 Lower headset bearing — 540243
11 Expander plug kit — W5257464
12 Basebar/stem
Low (SLR) — W5266954
Middle (SLR) — W5266955
High (SLR) — W5266956
Low (TT) — W5268037
Install the headset and basebar/stem
1. Clean the steerer tube using 50/50 isopropyl
alcohol/water mix.
2. Install the steer stop.
6
7
2Nm
3. Install the compression plug with the arrow facing
forward.
9-10Nm
11
2022 Speed Concept SLR/TT
8

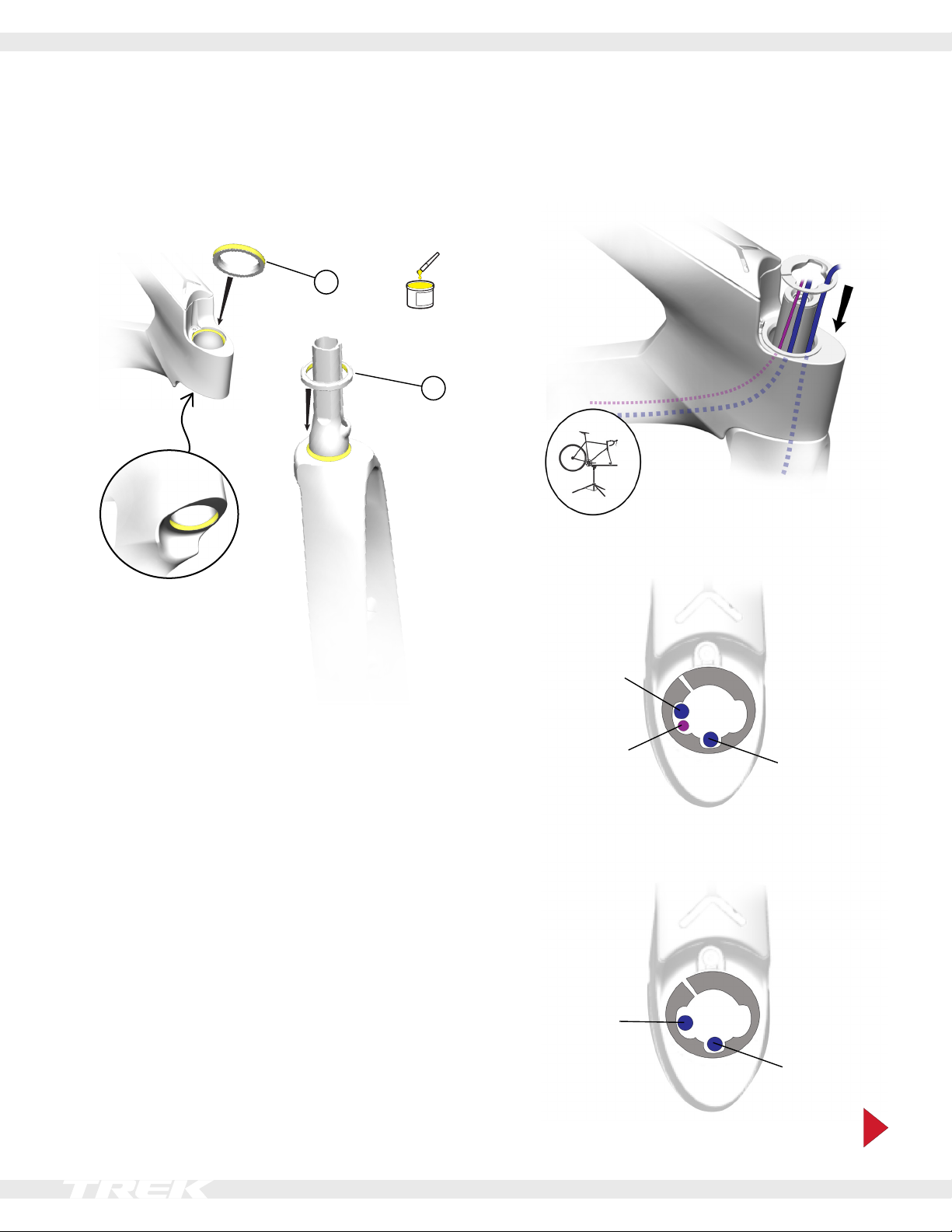

4. Grease both bearings (9, 10), the fork crown race,
and both head tube bearing bores (upper and lower).
Place the lower bearing (10) on the fork crown race
and the upper bearing (9) in the top of the head tube.
9
10
5. Insert the fork into the head tube. Route the
split ring (8) down the brake hoses and wire (if Di2).
eTap
Di2
Front
brake
Rear
brake
Di2
wire
Rear
brake
TIP! Use a sprint stand to make
things easier.
Di2 example
Front
brake
Headset and basebar/stem (continued)

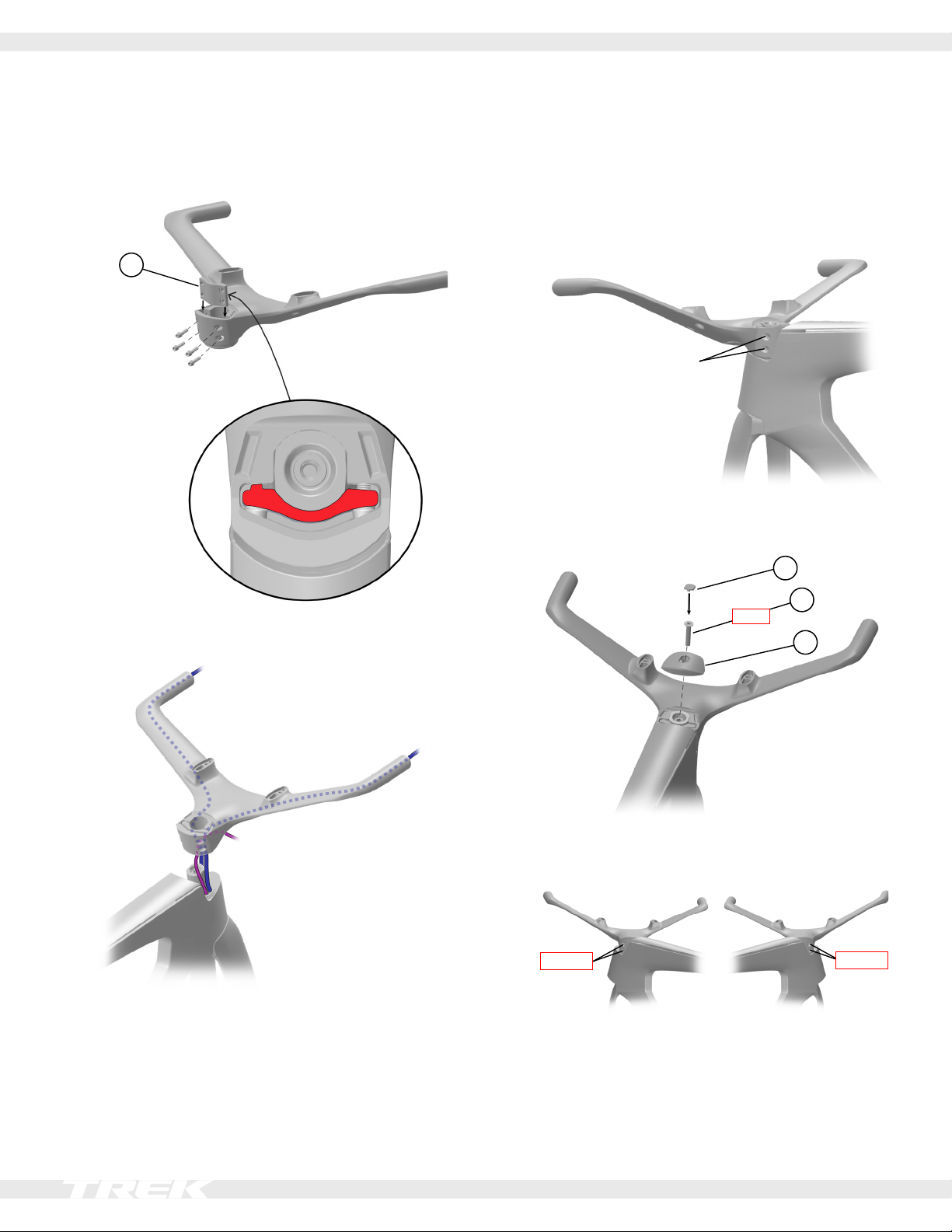

2022 Speed Concept SLR/TT
9
6. Attach the faceplate (4) to the basebar/stem. Loosely
tighten the stem bolts.
4
Loosely
tighten
7. Slide the basebar/stem onto the steerer tube. Route
both hoses as shown below.
Di2 example
8. Tighten the non-driveside stems bolts until the
faceplate has a close t with the steerer tube.
NOTICE: Do not fully torque these bolts — this will
prevent the top cap from obtaining the proper
preload.
Tighten to prevent
movement
9. Install the top cap (3), top cap bolt (2), and bar cap
plug (1).
1
4Nm
3
2
10. Tighten the non-driveside stem bolts to 5.2Nm.
Tighten the driveside stem bolts to 5.2Nm.
1
2
5.2Nm 5.2Nm
Headset and basebar/stem (continued)
