– 1 –

Model Name Using Similar Mechanism NEW

CD CD Mechanism Type KSM-213CCM

Section Optical Pick-up Name KSS-213C

TC Model Name Using Similar Mechanism CFD-ZW150/ZW160

Section Tape Transport MechanismType MF-ZW150

SERVICE MANUAL

US Model

Canadian Model

CFD-C1000

CD RADIO CASSETTE-CORDER

MICROFILM

SPECIFICATIONS

– Continued on next page –

AUDIO POWER SPECIFICATIONS (US Model)

POWER OUTPUTAND TOTAL

HARMONIC DISTORTION

With 6-ohm loads, both channel driven

from 75 - 15,000 Hz; rated 10 W per

channel-minimum RMS power, with no more

than 1% total harmonic distortion in AC

operation.

Other Specifications

CD player section

System

Compact disc digital audio system

Laser diode properties

Material: GaAlAs

Wave length: 780 nm

Emission duration: Continuous

Laser output: Less than 44.6 µW

(This output is the value measured at a distance of

about 200 mm from the objective lens surface on

the optical pick-up block with 7 mm aperture.)

Spindle speed

200 r/min (rpm) to 500 r/min (rpm) (CLV)

Number of channels

Frequency response

20 - 20,000 Hz +1/–2 dB

Wow and flutter

Below measurable limit

Radio section

Frequency range

FM: 87.6 - 108 MHz

AM: 530 - 1,710 kHz

Antenna

FM: Telescopic antenna

AM: Loop antenna

Cassette-corder section

Recording system

4-track 2 channel stereo

Fast winding time

Approx. 120 s (sec.) with Sony cassette C-60

Frequency response

TYPE I (normal): 100 - 10,000 Hz

Ver 1.2 2000. 10

All manuals and user guides at all-guides.com

all-guides.com

– 6 –

SECTION 2

DISASSEMBLY

• The equipment can be removed using the following procedure.

Note : Follow the disassembly procedure in the numerical order given.

2-1.‘‘TOP ASSY,CABINET’’,‘‘CHANGER ASSY, CD’’

Set “Top Assy, Cabinet”,

“Changer Assy, CD”Mechanism Deck Block Optical Pick-up

CD Lamp Board

and Disc Board

and Dis

Board

Rear Assy, Cabinet

Base, Changer Main Board LCD Board

Power Board

6BTP 3x14

1BTP 3x14

3BTP 3x14

4BTP 3x8

9BTP 3x10

0BTP 3x8

7BTP 3x8

5KTP 3x8

8KTP 3x8

qf CN701

qd CN702

qg CN706

qh CN707 qj KTP 3x8

ql changer assy, C

w; top assy, cabinet

qk KTP 3x

2BTP 3x8

1CN308

2CN314

5rear assy, cabine

3CN313

2-2. REAR ASSY, CABINET

Ver 1.1 2000. 06

All manuals and user guides at all-guides.com

–7 –

2-3. POWER BOARD

2-4. MECHANISM DECK BLOCK

5screw BTP 3x10

6screws BTP 3x10

7screw BTP 3x10

9mechanism deck block

1CN305

2CN301

4CN302

3CN303 8claws

MAIN board

1screws BTP 3x10

2washers

4CN306

5CN307

3screws BTP 3x

6POWER board

Ver 1.1 2000. 06

All manuals and user guides at all-guides.com

– 8 –

2-5. MAIN BOARD

2-6. LCD BOARD

MAIN board

claws

screws BTP 3x8

LCD boar

screws BTP 3x8

All manuals and user guides at all-guides.com

– 9 –

2-7. CD LAMP BOARD AND DISC BOARD AND DISPLAY BOARD

2-8. BASE, CHANGER

screws BTP 3x8

DISC board

cover, disc board

screws BTP 3x8

screw

CD LAMP board

holder, CD lamp

!º

screws BTP 3x8

!¡

DISPLAY boar

screw P 2.6x8

screw P 2.6x

base, changer

guide, rail

CN6

All manuals and user guides at all-guides.com

– 11 –

2There are two types of “gear, tray” available: screw fastening type and rubber fit type.

For the rubber fit type of “gear, tray” , fit the rubber in the boss on the “gear, tray” .

Do not allow the rubber to project. Take care not to damage the claw.

1Pass a pin of 1.5 mm diameter through the holes in the “gear , tray ” and the “gear, tray rock”

and align these holes with the hole in the “base, changer”.

OK NG

gear

gear, tray

rubber

gear, tray rock

gear (C), relay

claw

base, changer

• NOTE FOR INSTALLATION OF THE “BASE, CHANGER”

It is important for the CD changer mechanism to ensure a proper

alignment between the “gear, tray” and the “gear, tray rock”.

Ver 1.1 2000. 06

All manuals and user guides at all-guides.com

all-guides.com

– 10 –

2-9. OPTICAL PICK-UP

screws tapping, (M2.6x20)

screws tapping, (M2.6x20

)

!¡

optical pick-up

connector

screws PTPWH 3x8

screws

plate, fiber

mechanism assy, CD

Take off the spring.

All manuals and user guides at all-guides.com

CFD-C1000

– 17 – – 18 –

5-3. BLOCK DIAGRAM — CD SECTION —

38 33 35

• Signal path

• R-ch : same as L-ch.

: CD

PD1 RF AMP

FE AMP

PD2

LD DRIVE

Q701 LASER

DIODE

CONTROL SERIAL/

PARALLEL

CONVERTER

DECODER

RF O

FOK

C. OUT

SENS1

SENS2

IIL

TTL

DATA

XLT

CLK

XRST

TTL

IIL

TRACKING

PHASE FOCUS

PHASE

COMMAND

6 16 7

574

21 8 9 62

TAO

FEO

SLO

RF AMP, SERVO CONTROL

IC701 DIGITAL SIGNAL PROCESSOR

IC702

VREF

TRACKING

COIL

DRIVE

FOCUS

COIL

DRIVE

SLED

MOTOR

DRIVE

SPINDLE

MOTOR

DRIVE

31 TRAY

MOTOR

DRIVE

MOTOR

DRIVE

CN702

CNP707

CN701

TRACKING

COIL

FOCUS

COIL

OPTICAL PICK-UP

BLOCK

(KSS-213C)

M702

(SLED)

M703

(TRAY)

S04

(MOVE)

S01

(CD UP/DOWN)

S02

(OPEN/CLOSE)

OPEN CLOSE

S03

(DISC COUNTER)

M701

(SPINDLE)

FOK

CNIN

SEIN

DATO

XLTO

CLKO

XRST

MDP

SPOA

SENS

SQSO

SQCK

SCOR

DATA

XLAT

CLOK

SYSM

XTAI

XTAO

SERVO

AUT

SEQ.

EFM DEMODULATOR

SERIAL

INTERFACE

D/A

INTERFACE

SUB CODE

PROCESSOR

CPU INTERFACE

DIGITAL

CLV

S701

(LIMIT)

70•71

XTL1

16.9344MHz

DIGITAL

FILTER

D/A

CONVERTER

AOUT1

LOUT1

AOUT2

LOUT2

CD L-CH

R-CH

1MAIN

SECTION

PWM

AMP

PWM

AMP

TRAY+

TRAY–

TT+

TT– DATAI

CLOCK

XRST

STB

CN5 CN707

CN6 CN706

X801

4.19MHz

X802

32.768kHz

SENS2

CD MUTE

XLAT

CLOK

DATA

LED1

LED2

LED3

LCD

BACK LIGHT

SQCK

SQSO

SCOR

CD LED

POWER SW

OUT

TAPE LED

RADIO LED

STB OUT

DATA OUT

CLOK

SENS

TURN TABLE SW

DISC ON SW IN

UP SW IN

DOWN SW IN

OPEN SW IN

CLOSE SW IN

KEY1

KEY2

KEY3

KEY4

REM

TXE

EXTAL1

XTAL1

SFC

LAMP

+9.5V

43278

432

LAMP POWER

CONTROL

Q809,810

+5V +7.5V

+5V REG

Q703

LED

DRIVE

Q803-805,809

KEY

MATRIX

S801-824

OSC

CONTROL

Q801,802

LED

DRIVE

Q806-808

KEY

MATRIX

S826-830

TURN TABLE

LAMP

LP804

RM801

CN803A

CN803B

CN805

CN804 CN804

CN805

LP804

CN806

TRAVERSE

TRAY

SYSTEM CONTROL

IC801 (1/2)

IC705

MOTOR CONTROL

IC704

FOCUS/TRACKING COIL DRIVE,

MOTOR DRIVE

IC703

M704

TABLE

ROTATE

MAIN BOARD (1/2)

CD LAMP BOARD

DISC BOARD

REMOCON BOARD

MOTOR

BOARD

CD MOTOR

BOARD

DISPLAY

BOARD

SWITCH (D)

BOARD

DOWN UP

All manuals and user guides at all-guides.com

– 19 – – 20 –

5-4. BLOCK DIAGRAM — MAIN SECTION —

CFD-C1000

32 14

L301

CN502

CN303

CN301

HP301

PLAYBACK HEAD

(DECK-A)

HRP301

RECORD/PLAYBACK

HEAD

(DECK-B)

HE301

ERASE HEAD

(DECK-B)

MAIN BOARD (2/2)

LAMP BOARD

LCD BOARD

MD BOARD

POWER BOARD HEADPHONE BOARD

AC BOARD

L-CH

ANT1

FM TELESCOPIC

ANTENNA

R-CH

AM IFT

AM OSC

CF3

JK302

PHONES

JK301

SPEAKER IMP.6Ω

REC/PB SW

Q102,103

REC/PB SW

Q302

REC MUTE

Q125

REC SW

Q314

MOTOR

CONTROL

Q309,310

ALC

R-CH

A-L

TR-C CD-L TU-LTR-B

BIAS

NOR A/B

B-L

12 10 27 28

83 82

CD ON

SWITCH

Q312

RF IF AMP

Q1 FM POWER

CONTROL

Q14

DECK A/B

CONTROL

Q305,306

DECK A/B

SELECTOR

Q313

2 8

9 10

TONE

SYSTEM

MUTE POWER

SW OUT

1AC CHK

MOTOR

CONT

OUT

99TC A

100TC B

SEG26

SEG11

SEG10

SEG0

COM3

COM0

23LED VDD

SCL

SDA

MEGA BASS

REC

RADIO LED

CD LED

BEAT CONT

84 TUNER MUTE

38 RESET

15 CE OUT

17 DATA OUT

14 CLOCK

16 DO IN

1 8

FM DET

AM DET

MPX MUTE

10 11 12 20 64

21 AM

MIX

AM RF

AMP

OSC

16 18 19 20

24 2

FM IN

PD1

A IN

AOUT

AM IN

IF IN

AM/FM

FM ST

SD/IN

X IN

X OUT

15 12 8 9 10 11

CLK

RESET

IC802

S301

RESET

Q123

R-CH

1SEG26

SEG11

SEG10

SEG0

COM3

COM0

+9.5V

+10V

S1 (MOTOR)

S2 (PLAY)

S3 (PLAY)

S4 (REC)

S5 (MOTOR)

LCD BACK LIGHT

LP801-803

DECK-A

CN305CN305

CN801

CN802

CN314CN314

M301

(CAPSTAN/REEL)

DECK-B

LIQUID

CRYSTAL

DISPLAY

PANEL

LCD801

LED POWER

CONTROL

Q811,812

R-CH

ERROR

DET

Q322,323

+7.5V REG

Q326

+10V REG

Q325

+5V REG

IC306

+15V

-15V

SP901

SPEAKER (L-CH)

SP902

SPEAKER (R-CH)

POWER

MUTE

Q381

MUTE

–

CN308

CN307

CN308

CN306

FM TUNER UNIT

FE1

JK303

EXT

ANT

7.2MHz

PLL

IC3

AC IN

PT1

POWER

TRANSFORMER

F301

F302

F303

RECT

D327

RECT

D330

POWER

MUTE

Q321

LINE AMP

IC30375

OUTR

OUTL

REC SW

Q308

TAPE REC/PB PRE AMP

IC301

ELECTRONIC VOLUME

IC304

CN313 CN313

HP5V

M9V

+10V

+7.5V

+5V

+10V

MUTE

Q380

+5V REG

IC309

MUTE

Q382

VOLTAGE

CHECK

Q328

+9V REG

Q380

SYSTEM CONTROL

IC801(2/2)

REC/PB

Q303,304

Q316

BEAT CUT CD L-CH

CD SECTION

CF1 CF2

CF4

+10V

+7.5V

+FM

FM+BFM IF

IF AMP,DET,MPX

IC2

OSC AM MIX AM IF

L OUT

R OUT

AM ANT

TC2

L4,TC2

SFR301

TAPE SPEED

11 2

MUTE

POWER AMP

IC305

HEADPHONE AMP

IC308

Q301

• Signal path

• R-ch : same as L-ch.

: FM

: CD

: AM

: PB

: REC

RADIO ON

SWITCH

Q311

MEGA BASS

Q121

SDA SCL

L IN L OUT

TRACKING

FREQUENCY

CONVERAGE

AM IF

All manuals and user guides at all-guides.com

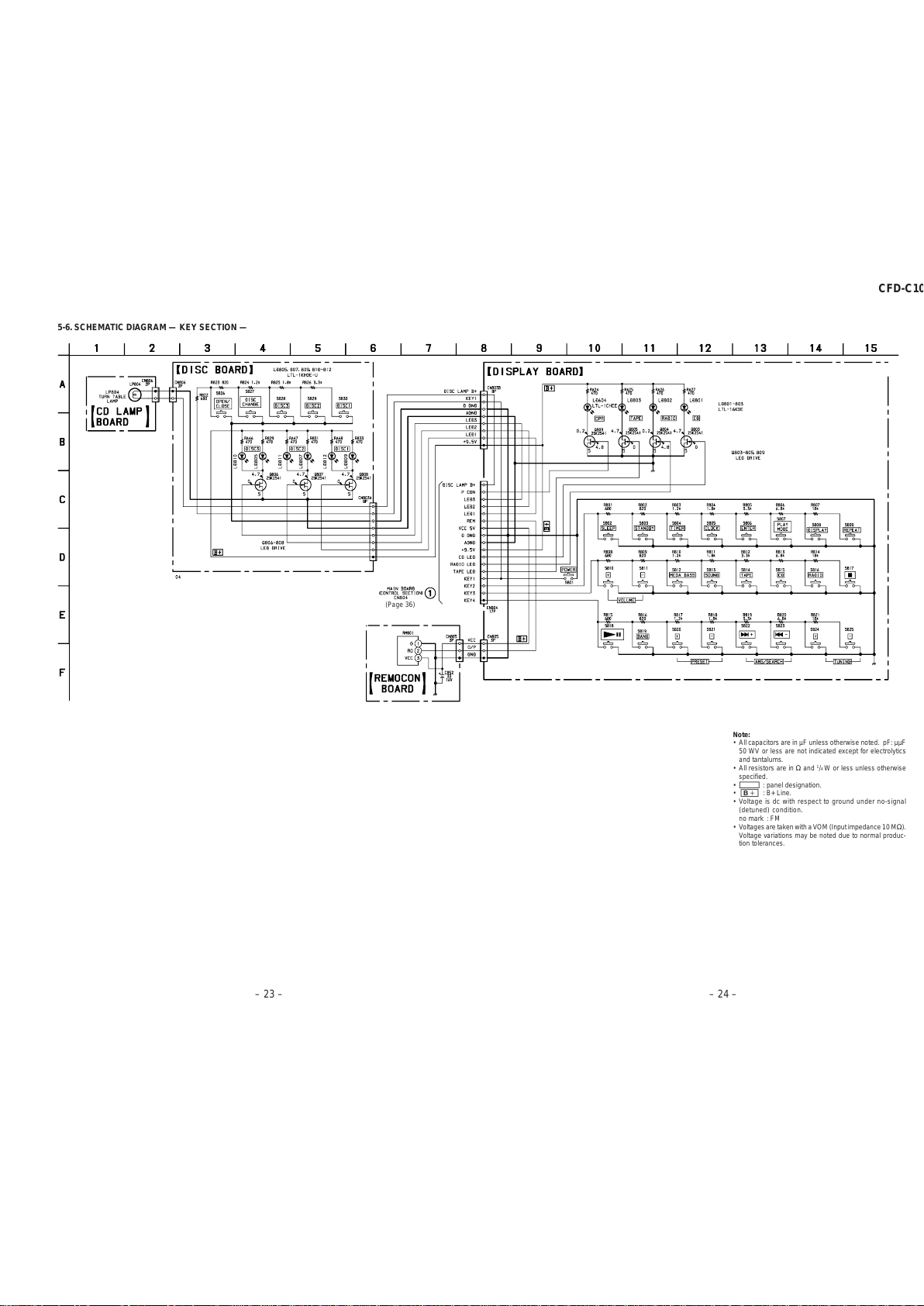

5-6. SCHEMATIC DIAGRAM — KEY SECTION —

– 23 – – 24 –

CFD-C1000

Note:

• All capacitors are in µF unless otherwise noted. pF: µµF

50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in Ωand 1/4W or less unless otherwise

specified.

•C: panel designation.

•U: B+ Line.

• Voltage is dc with respect to ground under no-signal

(detuned) condition.

no mark : FM

• Voltages are takenwithaVOM(Input impedance 10MΩ).

Voltage variations may be noted due to normal produc-

tion tolerances.

115

(Page 36)

All manuals and user guides at all-guides.com

Other manuals for CFD-C1000 - Boombox With Cd

Table of contents

Other Sony CD Player manuals

Sony

Sony CDP-CX57 - 50 Disc Cd Changer User manual

Sony

Sony CFD-F10 - Cd Radio Cassette-corder User manual

Sony

Sony D-E400 User manual

Sony

Sony CDP-670 - Compact Disc Player User manual

Sony

Sony 2-581-922-11 User manual

Sony

Sony CD Walkman D-NF430 User manual

Sony

Sony CDP-C460Z User manual

Sony

Sony CDX-GT300 User manual

Sony

Sony CD Walkman D-E660 User manual

Sony

Sony D-EJ360 - PSYC CD Walkman User manual

Sony

Sony CDX-71RF - Compact Disc Changer System User manual

Sony

Sony CDX-747X - Compact Disc Changer System User manual

Sony

Sony CDX-M600 - Fm/am Compact Disc Player User manual

Sony

Sony CDP-CE335 - Compact Disc Changer User manual

Sony

Sony CDX-C4840R User manual

Sony

Sony CDP-XE570 User manual

Sony

Sony CDP-CX235 - Mega Changer User manual

Sony

Sony CDX-805 User manual

Sony

Sony SCD-777ES - Es Super Audio Cd Player User manual

Sony

Sony CDX-C8850R User manual

Sony

Sony Walkman D-FJ211 User manual

Sony

Sony CD Walkman D-EJ2000 User manual

Sony

Sony CDX-L300 Installation/Connection Product guide

Sony

Sony CDP-311 - Compact Disc Player User manual

Popular CD Player manuals by other brands

RCA

RCA RP-7923 instruction manual

Pioneer

Pioneer DEH-P3550MP XM Operation manual

Philips

Philips AZ1207 owner's manual

Philips

Philips CD582 user manual

Philips

Philips AZ 6821 operating manual

Lasonic

Lasonic MSU-2020 user manual

THOMSON

THOMSON RCD150 user manual

Denon

Denon DCD-1420 Service manual

Panasonic

Panasonic SJ-MR100 operating instructions

Onkyo

Onkyo DX-7210 instruction manual

Denon

Denon DVM-4800 Service manual

JBL

JBL MR-32 Operation manual

RCA

RCA RCD152 Specifications

Technics

Technics SL-PS770A Service manual

Clarion

Clarion compact disc owner's manual

Philips

Philips Expanium AZ 1538 user manual

Rotel

Rotel RCD 975 owner's manual

Pioneer

Pioneer CLD-D790 Service manual
