Soler & Palau SIDEWALL SWF-100 Assembly instructions

SIDEWALL (SWF)

CENTRIFUGAL SIDEWALL FANS

VENTILADORES CENRIFUGOS DE MONTAJE EN PAREDES

VENTILATEUR DE PAROI CENTRIFUGE EN LIGNE

Models SWF-100, 100X, 150, 150X, 200

INSTALLATION AND WIRING INSTRUCTIONS

INSTRUCCIONES DE MONTAJE

INSTRUCTIONS DE MONTAGE ET DE CÂBLAGE

(English / Español / Français)

READ AND SAVE THESE INSTRUCTIONS

LEER Y GUARDAR ESTAS INSTRUCCIONES

LIRE ET CONSERVER CES INSTRUCTIONS

ULS

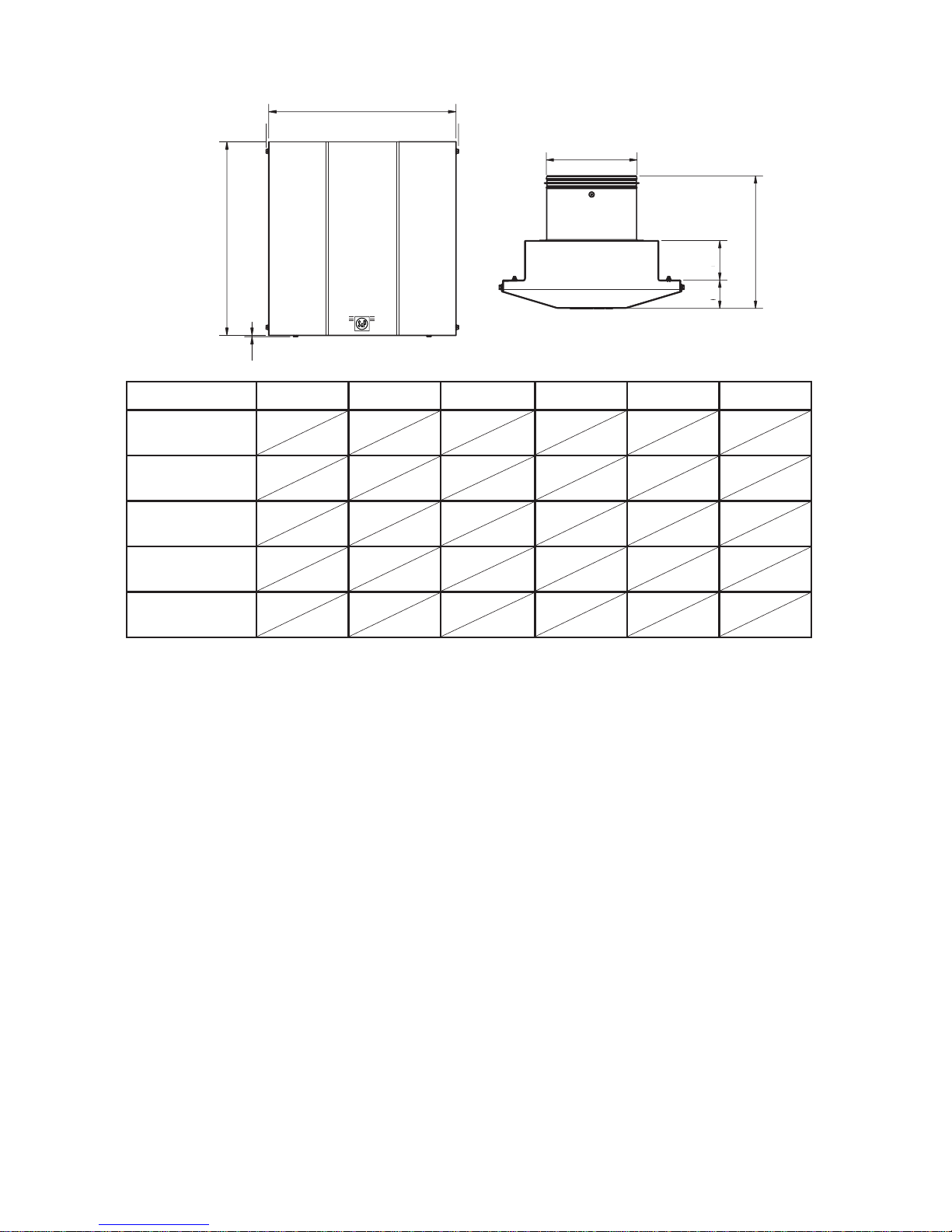

Dimensional Data

WARNING

Soler and Palau designs the highest quality products available in the industry and meets stringent manufac-

turing requirements. These units are not designed however to be utilized as the primary devices used in a

life support ventilation systems where failure could result in loss or injury, the user should provide adequate

backup ventilation, supplementary natural ventilation, failure alarm system, or acknowledge willingness to ac-

cept the risk of such loss or injury

ADVERTENCIA

Soler y Palau diseña productos de la más alta calidad en la industria, los cuales han sido fabricados siguiendo

las más rigurosas normas de producción. Sin embargo, estas unidades no son diseñadas para ser utilizadas

como dispositivos primarios que se emplean en un sistema de ventilación vital donde una falla podría tener

como resultado perdidas o lesiones. El usuario debe también adoptar un sistema de ventilación de reserva;

ventilación natural de suplemento o un sistema de alarma de fallas, o reconocer que está dispuesto a asimilar

el riesgo de tales pérdidas o lesiones

AVERTISSEMENT

Soler and Palau conçoit les produits de la plus haute qualité disponibles dans l’industrie et rencontre les

exigences de fabrication rigoureuses. Toutefois, ces unités ne sont pas conçues pour être utilisées comme

dispositifs principaux dans les systèmes de ventilation critiques pour préserver la vie et dont la défaillance

pourrait entraîner une perte ou un préjudice ; l’usager doit assurer une ventilation de secours adéquate, une

ventilation naturelle supplémentaire, un système d’alarme de protection contre les pannes, ou signifier sa

disposition d’accepter le risque de telle perte ou de tel préjudice.

Model A B C C1 C2 D

SWF-100 13 ¼

337

13 ¼

337

228

2 7/16

100

SWF-100x 13 ¼

337

13 ¼

337

228

2 7/16

100

SWF-150 15 ½

394

13 ¼

337

10 3/16

256

2 7/16

150

SWF-150x 15 ½

394

16 1/16

408

254

3 3/16

2 7/16

150

SWF-200 15 ½

394

16 1/16

408

11 7/16

290

3 3/8

2 7/16

200

2 mm

ENGLISH

Fan Installation

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY, OBSERVE THE

FOLLOWING:

(a) Use this unit only in the manner intended by the manufacturer. If you have any questions contact the

manufacturer.

(b) Before servicing or cleaning the unit, switch the power off at the service panel and lock the service

disconnecting means to prevent power from being switched on accidentally. When the service

disconnecting means cannot be locked; securely fasten a prominent warning device such as a tag to

the service panel.

applicable codes & standards including related construction.

(d) When cutting or drilling into wall or roof, do not damage electrical wiring and other hidden utilities.

(e) CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive

Materials And Vapors.

(f) DO NOT USE with heated air in excess 140˚F (60˚C).

Select Fan Location

When selecting a location to install the SWF fan that has been chosen, take into consideration the applica-

tion of the product, the locations of fresh air intakes, and sound generated by the SWF unit.

The fan should be located a minimum of 6 feet horizontally and 8 feet vertically from any fresh air intakes

for HVAC systems, heat recovery systems, etc. to prevent exhaust air streams from being re-introduced

into the occupied space. Doors or windows that are frequently opened during pleasant seasons may also be

considered fresh air intakes so keep this in mind when selecting the location of the SWF.

Mark and Introduce Required Holes

Once the location on the exterior wall where the fan is to be mounted has been selected, mark all screw

and hole locations utilizing the included template. Cut the holes through the wall for the duct connection

and for the electrical conduit. Measure the thickness of the wall and the length of the duct connection that

is supplied on the SWF fan. Cut a length of duct so that once connected to the fan, will extend 2” through

the wall.

If mounting the fan on a masonry wall, drill four holes and insert wall anchors. If mounting to wooden

structure, you will utilize wood screws to secure the SWF to the wall.

If the fan is to be mounted on a wall surface which is not flush such as lapped siding, a mounting plate to

provide for a flush fit needs to be made.

Mount the Fan

Insert electrical supply through the wall. Attach the duct extension to the SWF making sure that the

connection is secure. Apply a generous amount of exterior silicone caulk to backplate of the fan to ensure

an airtight/waterproof connection between the fan and the wall surface. If a mounting frame is used in

conjunction with lapped siding, be certain to apply a generous amount of caulk between the frame and the

wall as well as the fan backplate and the frame. Mount the fan to the wall.

Note: Be certain to make an airtight seal around all interior wall penetrations before attaching

duct work.

Electrical Connection

All SWF series fans operate from a standard 120V 60Hz A.C electrical supply. All wiring must be carried out

in accordance with National Electrical Code, and all applicable state and local buildings codes.

WIRING INSTRUCTIONS

WARNING! Make sure that power supply is disconnected and locked to prevent accidental acti-

vation.

1. Remove the screws securing the terminal box cover plate located on the fan motor mounting bracket.

All fan motor and capacitor connections are pre-wired to the electrical terminal strip. A 3/8” romex type

cable restraint connector will be needed to secure the wiring through the knockout provided on the side of

the terminal box.

2. Bring incoming electrical service through the romex connector and the fan electrical service opening.

Using a small regular screwdriver, tighten the neutral (white) wire of the incoming 115V power supply un-

der the open terminal strip port opposing the motor Blue wire. Tighten the line (black) wire of the incom-

ing supply under the open terminal opposing the motor Black wire. Now, secure the source ground to the

open terminal strip opposing the Green/Yellow Wire.

3. Secure the romex connector. Secure the incoming supply with the romex connector. Replace the fan

terminal box cover.

4. Apply a generous bead of silicone caulk around the electrical provision hole in the backplate of the fan

to provide for a secure seal.

MAINTENANCE INSTRUCTIONS

1. Since fan bearings are sealed and provided with an internal lubricating material, no additional lubrication is

necessary.

2. It is recommended that the cover is screen is checked on a regular basis to check for any obstructions

and the cover is removed and the motor and wheel are inspected and cleaned as necessary.

No other maintenance is necessary.

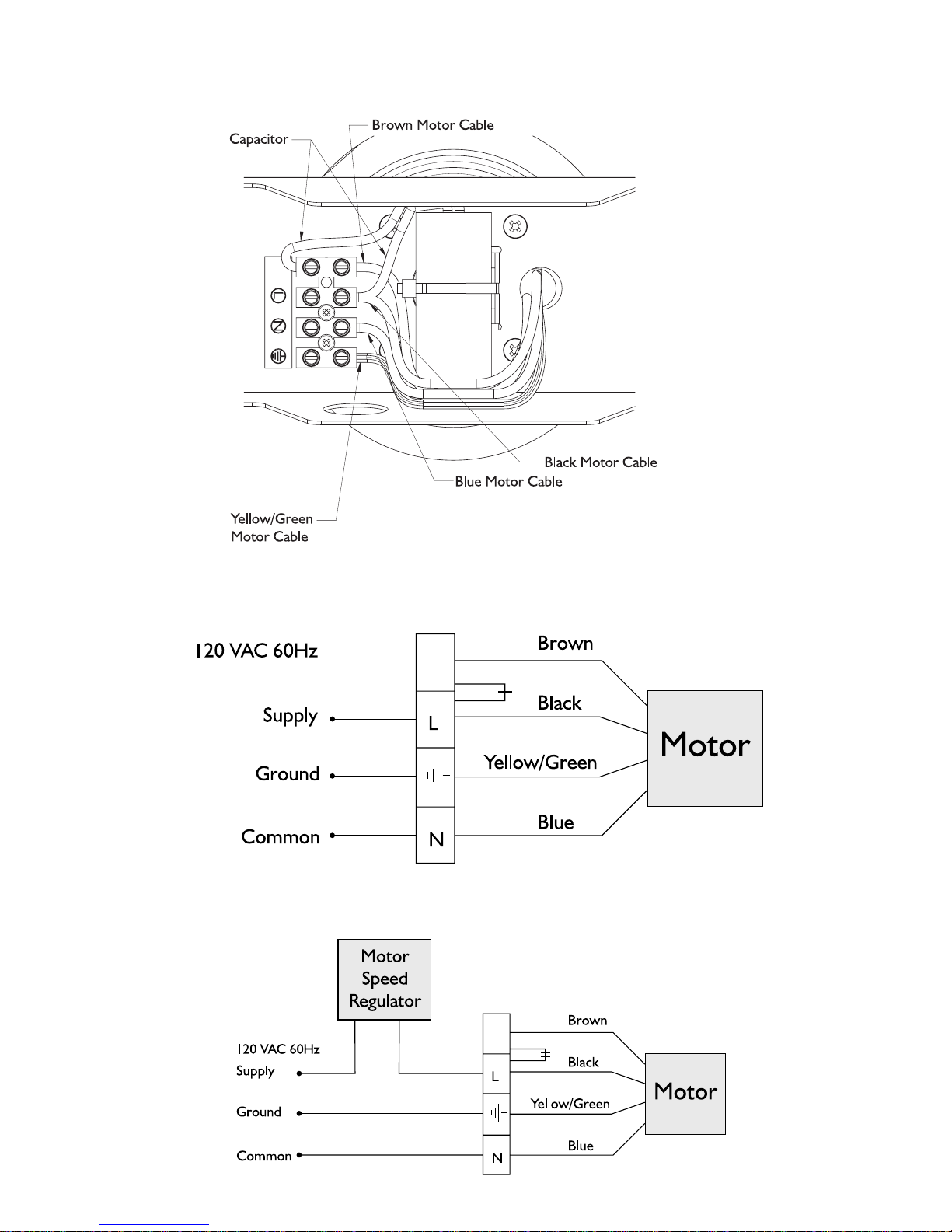

WIRING DIAGRAMS

Motor with speed controller

Motor without speed controller

FIVE (5) YEAR WARRANTY

Soler & Palau warrants that the SWF - SIDEWALL series exhaust fan will be free from defective materials and

workmanship for the period of (5) years from the date of original purchase. In the event that we and any part

defective the product will be repaired or, in the Company’s discretion, replaced without charge provided that

the product has been installed in accordance with the enclosed instructions and all applicable EPA Standards

and state and local building codes.

IF CLAIMING UNDER WARRANTY

Please return the complete product, freight paid, to your local authorized distributor. All returns must be

accompanied by a valid Bill Of Sale. All returns must be clearly marked “Warranty Claim,” with an accompanying

description stating the nature of the fault.

THE FOLLOWING WARRANTIES DO NO APPLY

Damages from shipping, either concealed or visible. Claim must be filed with the carrier. Damages resulting

from improper wiring or installation

Damages caused by acts of nature, or resulting from improper consumer procedures such as: Improper

Maintenance; Misuse; Negligence; Alteration; Abuse; Abnormal Use; or Accident or Incorrect Electrical

Voltage and Current.

Removal or alteration to the Soler & Palau data plate label.

WARRANTY VALIDATION

The end user must keep a copy of the Bill of Sale to verify purchase date.

THEABOVEFIVE(5)YEARWARRANTYISEXPRESSLYINLIEUOFALLOTHERWARRANTIES,EXPRESSED,

WRITTEN OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

USE. IN NO EVENT SHALL SOLER & PALAU BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL, OR

INCIDENTAL DAMAGES, INCLUDING LOSS OF PROPERTY, REVENUES, LOST PROFITS, and COSTS

OF REMOVAL, INSTALLATION OR REINSTALLATION.
