SERRA Soldadura TP-10 User manual
PROGRAMMING TERMINAL
TP-10
Version 1.x - 2007
(TP-10-B)
This User Manual is property of SERRA SOLDADURA, S.A.
SERRA SOLDADURA, S.A. reserves its right to modify, without prior notice,
the characteristics of the TP-10 Programming Terminal, with regards to the
description in this Manual.
Barcelona, March 2007
TERMINAL PROG. TP-10 : User manual
•••
TERMINAL PROG. TP-10 : User manual
SERRA Soldadura, S.A. i
1.
INTRODUCTION 1
2.
TECHNICAL DATA 3
2.1 Dimensions 3
2.2 Ambient working conditions 4
2.3 Weight 4
2.4 Electrical characteristics 4
2.5 Keyboard 4
2.6 SERRA References and Codes 4
3.
GENERAL DESCRIPTION 5
3.1 General 5
3.2 Wall mounting 5
3.3 Saving parameters on the TP-10 6
3.4 V24 connector signals 6
4.
PROGRAMMING 7
4.1 Display 7
4.2 Keyboard 7
4.3 Utilities Menu 8
4.4 Automatic cursor positioning (ACP) 9
5.
Messages 10
5.1 Introduction 10
5.2 Operation of the TP-10 in message mode 10
5.3 TP-10 Initialisation Stages 10
5.4 TP-10 Editor 11
5.5 PLC Display messages on the TP-10 11
5.6 PLC Receive key presses from the TP-10 12
6.
Updating the firmware 13
TERMINAL PROG. TP-10 : User manual
SERRA Soldadura, S.A.ii
•••
TP-10 PROG. TERMINAL: User manual
SERRA Soldadura, S.A. 1
1. INTRODUCTION
Industrial machine programming is currently done in a variety of ways. Portable
programming units are an important aspect of this area precisely because of their
portable nature.
The TP-10 programming terminal is ergonomic, robust, reliable and simple to operate.
It has been designed to be able to handle the working conditions commonly found in
industrial environments and is quick and easy to operate and can communicate with all
SERRA controllers from the 7000 series onwards, it allows you to modify and view
data and will report any errors which arise.

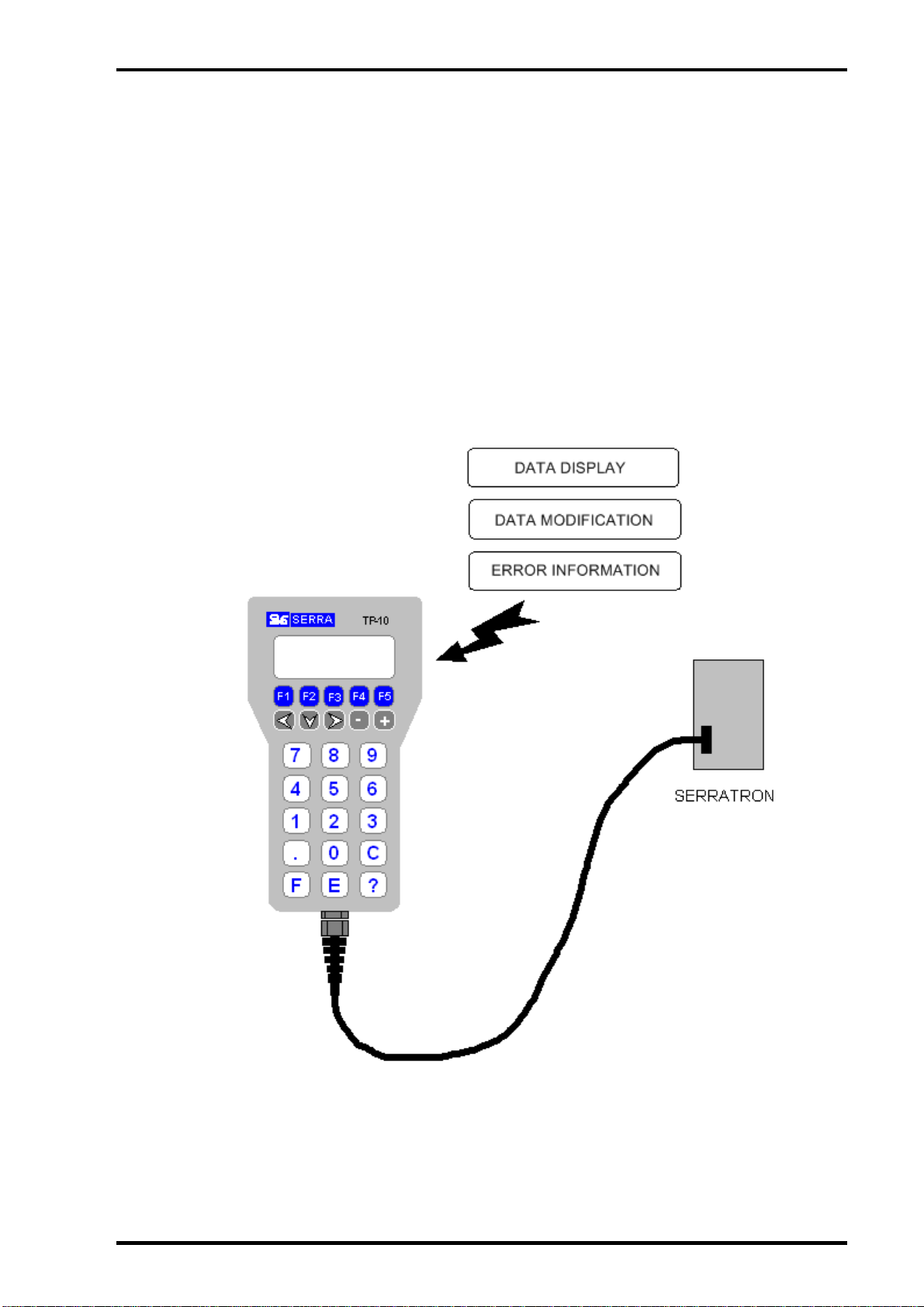

Figure 1-1 Human/Machine communication with the TP-10
TP-10 PROG. TERMINAL: User manual
2 SERRA Soldadura, S.A.
Its light weight and ergonomic dimensions make the TP-10 a fully-portable unit. If the
terminal needs to be located close to the controller on a permanent basis, the
accessory called TP-10 Wall Mount allows it to be mounted next to the machine.
The electronics are shielded from electromagnetic interference and the TP-10
Programming Terminal complies with all requirements imposed by the European
Directives referring to electromagnetic compatibility and also conforms to the EN
50081-2 generic Emission standards and EN 50082-2 generic Immunity standards
which both apply to industrial environments.
Note: The hardware of the TP-10 has been redesigned, although the external housing
remains the same. To show that the new hardware version has been installed,
the text TP-10-B will be displayed when the unit is turned on. If we want to
update the firmware of the TP-10, we need to select the appropriate file for the
hardware..
TP-10 PROG. TERMINAL: User manual
SERRA Soldadura, S.A. 3
2. TECHNICAL DATA
2.1 Dimensions
The dimensions of the TP-10 Programming Terminal are shown below:

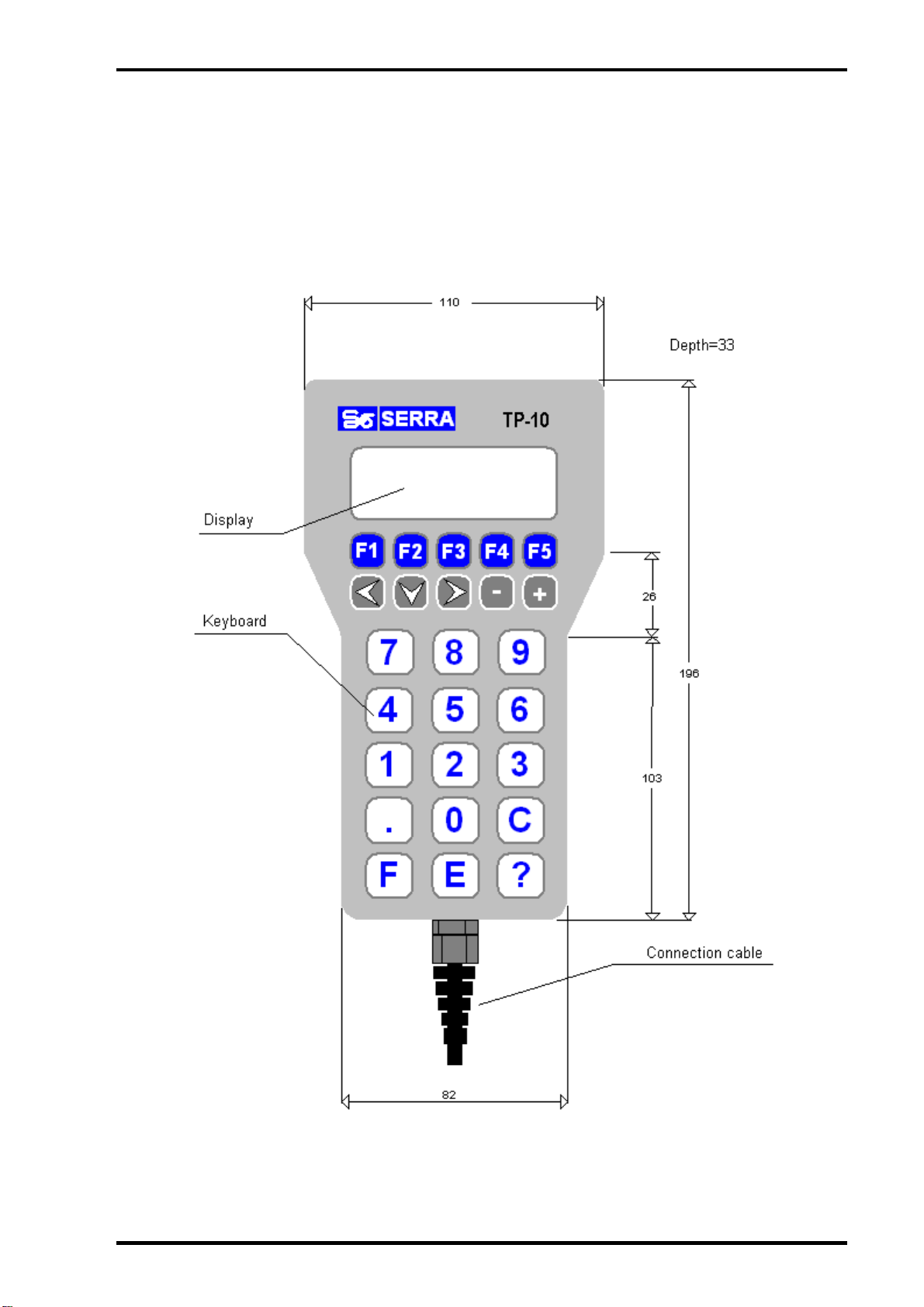

Figure 2-1. TP-10 dimensions in mm
TP-10 PROG. TERMINAL: User manual
4 SERRA Soldadura, S.A.
2.2 Ambient working conditions
•Minimum temperature: -5ºC
•Maximum temperature: 60ºC
•Maximum humidity: 90% (without condensation)
•Maximum altitude: 1000 m. At higher altitudes, lower temperature and humidity values
apply.
2.3 Weight
•TP-10: .................................................................................400 g
•TP-10 Wall Mount: .............................................................100 g
2.4 Electrical characteristics
•Power supply:......................................................................24 V DC +25% -60%
•Consumption:......................................................................6 VA
2.5 Keyboard
•Type:...................................................................................Membrane
2.6 SERRA References and Codes
•TP-10 Programming Terminal:............................................92000035
•TP-10 Wall Mount: ..............................................................39927550
TP-10 PROG. TERMINAL: User manual
SERRA Soldadura, S.A. 5
3. GENERAL DESCRIPTION
3.1 General
The TP-10 Portable Programming terminal includes an alphanumeric display which
displays information on 4 lines of 20 characters each. It also has a keyboard which is
used to enter data.
Communication with the controller is handled by an RS-232 serial channel. The serial
and 24 V DC power supply cables between the terminal and the controller run through
a cable sleeve.
The control data can be saved on the TP-10 Terminal. This data can also be dumped
to any other controller of the same series.
For the terminal to be able to function correctly with any SERRA controller from the
7000 series onwards, the control data will need to be input via programming, as is
shown below.
Terminal functions also include a key press sound and dimming of the display
illumination after a certain amount of time.
3.2 Wall mounting
When the TP-10 terminal needs to be attached to the side of a machine or a cabinet,
we can use the TP-10 Wall Mount accessory:
Figure 3-1. Wall Mount for the TP-10
TP-10 PROG. TERMINAL: User manual
6 SERRA Soldadura, S.A.
3 x M4 holes will need to be drilled in the side of the machine or the cabinet to attach
the wall mount. Their positions are shown in the figure above.
Once the wall mount has been attached, the programming unit can be mounted on it. If
the user prefers to hold it when programming, it can easily be extracted by pushing it
upwards. Once the task has been performed, it can then be replaced by inserting into
the top of the mount and pushing down gently.
3.3 Saving parameters on the TP-10
The TP-10 programming terminal has an internal memory which is able to store
welding and control parameters which can then be transferred to another controller
requiring the same or similar parameters, this saves time as the parameters do not
need to be reprogrammed into the second controller.
The data is stored permanently in FLASH memory.
See the instruction manual for each specific controller for the precise method for using
this function.
Versions fitted with the new hardware (TP-10) are able to save Serratrón 100
parameters.
3.4 V24 connector signals
The signals which are present at the Sub-D connector correspond to an RS-232
communications channel. Two other cables also run between the unit and the welding
controller and these provide the 24 V DC power supply which is required by the
programming terminal. The jumpers on the V24 connector are used to make it
compatible with welding controllers of different series:
Figure 3-2. 24V Connector
