SELT Venetian Blind C50 Slim Operator's manual

1. Sun protection screen Venetian Blind

1.1. Venetian Blind C50 Slim

TECHNICAL AND OPERATIONAL DOCUMENTATION

INSTALLATION AND OPERATING MANUAL

AND INSTRUCTIONS FOR SAFE USE

1.1

DT-E

DTE

DT-E

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 2 / 25

PRODUCT NAME:

SUN PROTECTION SCREEN

VENETIAN BLIND C50 Slim

PRODUCT MANUFACTURER’S MARKING:

Manufacturer’s name:

SELT Sp. z o. o.

Manufacturer’s head office:

45- 449 Opole, ul. Wschodnia 23A

POLAND

Plant address:

Façade and External Textile Roller Blind Department

45- 449 Opole, ul. Wschodnia 23A

POLAND

Contact details:

Tel: +48 77 553 21 00 (secretariat)

Fax: +48 77 553 22 00

Website

www.selt.com

E-mail:

[email protected]

PRODUCT SAFETY MARKING:

Product conforms to CE safety requirements (in case of electric drive).

This Technical and Operational Documentation:

Is valid from: 01 April 2017

Is valid for product versions designated above

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 3 / 25

TABLE OF CONTENTS

1. Introduction ............................................................................................................................................... 4

1.1. Product safety tips................................................................................................................................. 4

1.2. Notes on symbols and marks................................................................................................................. 4

1.3. Definitions ............................................................................................................................................. 5

1.4. Subject, designation and contents of the documentation .................................................................... 5

2. Product technical information ................................................................................................................... 6

2.1. Technical parameters: ........................................................................................................................... 6

2.2. Product characteristics .......................................................................................................................... 7

3. Product transport and storage................................................................................................................... 8

3.1. Completeness and qualitative state of delivery .................................................................................... 8

3.2. General conditions of product trnaport and storage ............................................................................ 8

3.3. Descriptions that have to be put obligatory on the product packaging................................................ 8

4. Product installation.................................................................................................................................... 9

4.1. Requirements for safe installation at heights ....................................................................................... 9

4.2. Preparation to installation..................................................................................................................... 9

4.3. General guidelines for installation....................................................................................................... 10

4.4. Installation tools .................................................................................................................................. 10

4.5. Installation........................................................................................................................................... 10

4.5.1. C50 Slim installation –free-hanging system ................................................................................... 10

4.5.2. C50 Slim installation –cable guides ................................................................................................ 12

4.5.3. C50 Slim installation –manual drive ............................................................................................... 15

4.6. Electric drive ........................................................................................................................................ 15

4.6.1. Connection to power supply ........................................................................................................... 15

4.6.2. Start-up and adjustment ................................................................................................................. 15

5. System operation and product safety...................................................................................................... 17

5.1. General safety requirements............................................................................................................... 17

5.2. Safety requirements connected with particular conditions and places of product use...................... 17

5.3. Operation safety.................................................................................................................................. 18

5.4. Supervision of safe product use .......................................................................................................... 19

6. System use and maintenance .................................................................................................................. 19

6.1. Using the product in accordance with its intended use ...................................................................... 19

6.2. Instructions for non-professionals....................................................................................................... 19

6.3. Technical inspection, maintenance and repairs .................................................................................. 19

7. General warranty conditions ................................................................................................................... 21

7.1. Exclusions for warranty ....................................................................................................................... 21

8. Complaints / technical faults ................................................................................................................... 22

8.1. Complaints........................................................................................................................................... 22

8.2. Technical faults.................................................................................................................................... 22

9. Product disassembly / utilisation / disposal ............................................................................................ 23

10. Marking and labelling the product with the CE mark .............................................................................. 24

10.1. Product compliance with the CE standard .......................................................................................... 24

10.2. Information accompanying the CE marking ........................................................................................ 24

11. Information on safety elements installation............................................................................................ 25

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 4 / 25

1. INTRODUCTION

1.1. PRODUCT SAFETY TIPS

The product was manufactured in accordance with the latest know-how in the area of constructing and manufacturing and

is delivered in condition allowing for its safe use.

Safe construction of the product is achieved by:

No.

Subject

European legal basis

Polish legal basis

Internal blinds. Performance

requirements including

safety

EN 13120:2009+A1:2014

PN-EN 13120+A1:2014-04

Essential requirements for

machines

Directive 2006/42/EC of the

European Parliament and the Council

Resolution of the Minister of Economy of

21 October 2008

DZ.U. [Journal of Laws] 2008 no. 199,

item 1228 as amended DZ.U. [Journal of

Laws] 2011.124

General product safety

Directive 2001/95/EC of the

European Parliament and the Council

DZ. U [Journal of Laws] of 12 December

2003, no. 229, item 2275 as ammended

Linked documents: Declaration of conformity and manual of installation and use of motors and control.

1.2. NOTES ON SYMBOLS AND MARKS

The below symbols (icons) denote particularly important information concerning threats and safety.

Icon

Icon meaning

Information

INFORMATION

Prior to using the product, its operating manual should be read.

Following the operating manual guarantees:

- failure-free use of the product,

- warranty coverage against product defects.

Keep the operating manual for safety of people.

INFORMATION

No harmful or dangerous consequences for people or facilities.

ATTENTION!

A situation likely to cause product damage or other damage.

No threat for people.

WARNING!

Threat of danger

DANGER!

This symbol denotes all information concerning danger, failure to observe

which brings about threat to human life and health. Risk: threat of serious injury

or death. Dangerous operation which may cause injuries or product damage.

WARNING!

Threat to human life or health due to electric shock.

ENVIRONMENT

Marking on electric or electronic equipment subject to collection in designated

places.

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 5 / 25

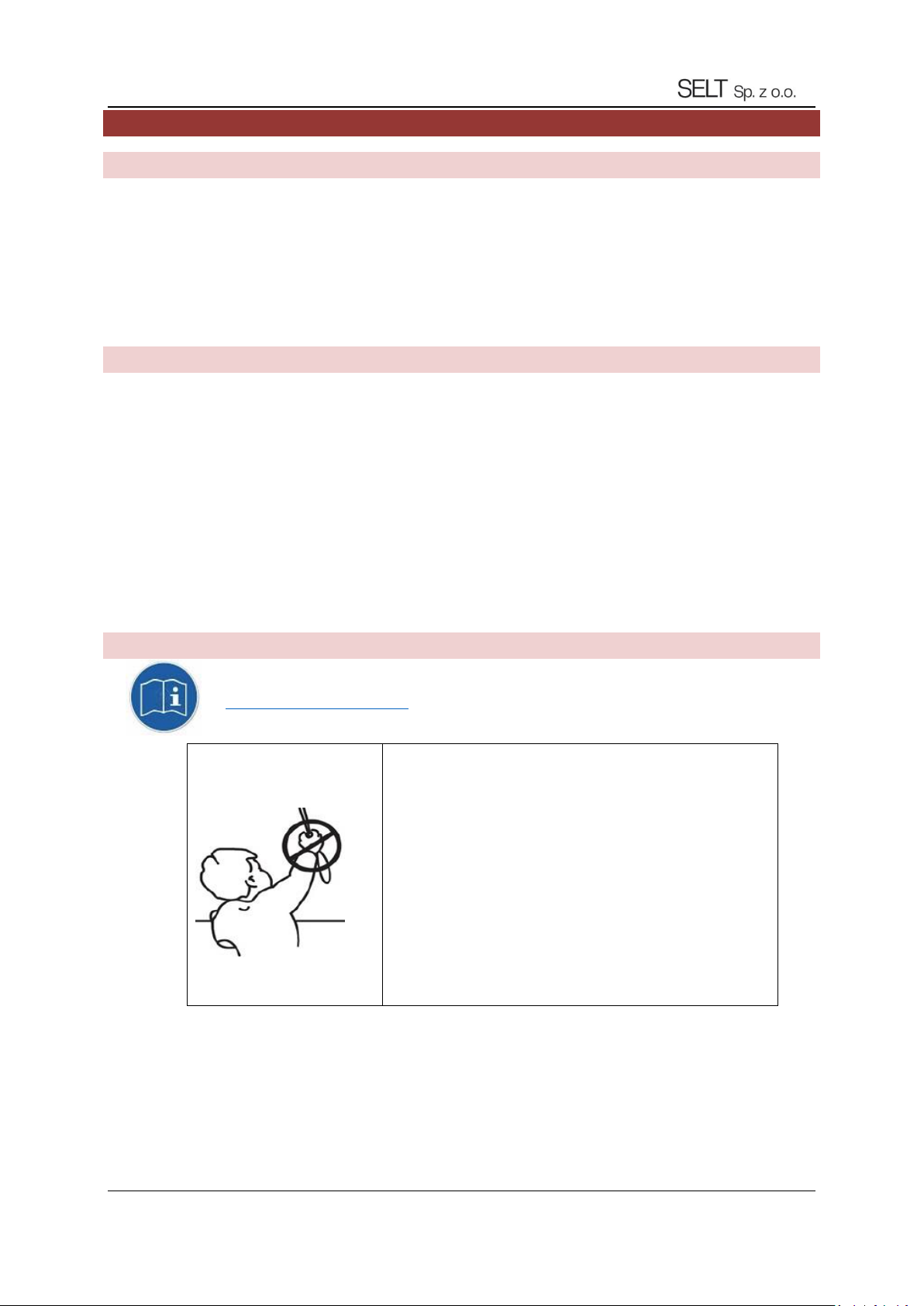

WARNING

Threat of strangulation.

1.3. DEFINITIONS

The following terms and definitions used within this documentation shall mean:

Product: Venetian Blind C50 Slim

VENETIAN BLIND: Internal sun protection system, installed inside the building, over or inside the window opening building

in which lifting and dropping of the aluminum slats is made by the operating mechanism (manual –twine drive or electric

with drive connected to the steering system).

SLATS: Part of the product, made of aluminum stripes, that is moved by a steering mechanism, that ensures the product

fulfills its function.

1.4. SUBJECT, DESIGNATION AND CONTENTS OF THE DOCUMENTATION

Products manufactured by SELT Sp. z o. o. are the subject of this documentation.

Operating manual and instructions for safe use along with the manual for the engine, switches

and control shall be submitted to the end user.

IMPORTANT INFORMATION REGARDING SAFETY

WARNING –FOLLOWING THE MANUAL IS ESSENTIAL FOR SAFETY OF PEOPLE

KEEP THIS MANUAL

The documentation is valid jointly with the information concerning a specific product, which is

available on the website www.selt.com

The documentation includes:

important recommendations concerning product installation, use and maintenance,

important recommendations concerning product transport and storage,

tips following which will assure long-time and fault-free use of the product.

SELT Sp. z o. o. shall not bear responsibility for damage resulting from failure to follow recommendations included in the

documentation.

In order to further improve the product, SELT Sp. z o. o. reserves the right to introduce changes which, while maintaining

the essential technical parameters, shall be deemed purposeful for improving product operation quality and safety of use.

SELT Sp. z o. o. with a head office in Opole shall hold the copyrights to this documentation. The documentation cannot be

used without permission, either partially or as a whole, for any concurrent business activity nor can it be made available to

third parties.

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 6 / 25

2. PRODUCT TECHNICAL INFORMATION

Product technical specification is available at www.selt.com after log in.

2.1. TECHNICAL PARAMETERS :

Dimensions:

Width

Height

Thickness

Electric drive

4000 mm

3500 mm

Manual drive (up to 8m2)

4000 mm / 2200 mm

2200 mm / 3500 mm

Slat

49 mm

4,5 mm

0,21 mm

Available with cable guide or as free-hanging system

Manual drive

Ladder

Available colours: white, grey, black

Cord

Available colours: white, grey, black

Electrical drive motor of the following parameters:

- supply voltage

230V/50Hz

- power

90 to 115 W (depending on the motor type and blind size)

- current consumption

0,4 to 0,5 A (depending on the motor type and blind size)

- protection level

IP 44, IP 54 (depending on the motor type)

- time of continuous work

4 to 6 mins (depending on the motor type)

- torque

6 Nm (depending on blind size)

- rotation speed

24 or 26 rpm (depending on the motor type)

- work temperature

-20 to 70°C (depending on the motor type)

Installation:

Application

Internal

Installation place

To the wall or ceiling

Detailed data concerning individual motor parameters is available from manufacturer’s websites as well as on:

www.selt.com → PRODUCTS → AUTOMATION

Connection to electrical installation:

Electrical cable min. 0,5m long

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 7 / 25

2.2. PRODUCT CHARACTERISTICS

Types of products:

Installed in the inside of the building, operated by a electromechanical drive connected with the operating

system,

The products are characterised by the following qualities:

they are designed for installation in the window area,

they limit the sun light coming into the room,

they provide disperse of light in the room,

they prevent rooms from overheating, thus contributing to the improvement of thermal comfort in rooms,

they help to limit the costs of air conditioning in the rooms,

they limit the noise transmission to the inside of a building,

they do not emit any toxic substances during their work,

emission of noise through a product with electronic drive (connected with work of mechanical parts caused by

electric drive during its work) is not said regarded to be a significant danger and it is a way matter of comfort,

the motors have the security level IP44 (or IP54) which means that they are prevented from touching elements

movable and under voltage with tools and wires of >1mm diameter and that they are protected from splashes of

water from any direction,

the construction of the product and driver allows to stop the slats safely at any height within the up-down work

area and stay there suspended.

lifting and dropping of the aluminum slats is made by the operating mechanism (manual –twine drive or electric

with drive connected to the steering system),

casings for the movable parts were designed and performed in a manner assuring safety for operators as long as

they are used properly.

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 8 / 25

3. PRODUCT TRANSPORT AND STORAGE

3.1. COMPLETENESS AND QUA LITATIVE STATE OF DELIVERY

Selt Sp. z o. o. makes every effort to ensure that the goods are produced in accordance with the order. To check the

completeness of the product is purchaser’s duty and it should be conducted at the time of delivery. Any discrepancies of

the product with the order should be reported immediately to the driver/warehouseman/installers and noted in the proof

of delivery at the risk of losing warranty. Checking the quality of the apparent defects should be done by the purchaser at

the time of delivery. As apparent defects are considered mechanical damages, scratches, cracks, etc. Any discrepancies in

quantity or possible replacements of parts being the evident result of Selt Sp. z o. o. fault, the company agrees to

supplement or replace in the shortest possible time.

3.2. GENERAL CONDITIONS OF PRODUCT TRNAPORT AND STO RAGE

List:

The product is factory-packed in a cardboard box to prevent its damage during storage, transport and during its

transportation to the place of final assembly,

For the transport purposes, the products should be set in accordance with the arrows on the packaging,

Do not store the products in a number of layers greater than 2 due to the possibility of crushing the package

which in turn can lead to permanent damage of the product,

Products placed on the means of transport must be secured against movement and damage during transport (e.g.

spacers, safety belts, etc.),

During transportation the products must be protected from the rain or snow,

Storage places should be dry, airy and protected from the harmful effects of weather conditions (sun,

rain, etc.),

Where the weight of the product exceeds 25kg and its transportation to the place of final assembly

must be carried out by at least two persons.

3.3. DESCRIPTIONS THAT HAVE TO BE PUT OBLIGAT ORY ON THE PRODUCT P ACKAGING

Before the installation and use of the product its Technical and operation documentation, available at

http://www.selt.com/doc-en, should be read carefully.

On Venetian Blind C50 Slim packaging the below warning is included.

WARNING

- Young children can be strangled by loops in pull cords, chains,

tapes and inner cords that operate the product.

- To avoid strangulation and entanglement, keep cords out of the

reach of young children. Cords may become wrapped around a

child’s neck.

- Move beds, cots and furniture away from window covering

cords.

Do not tie cords together. Make sure cords do not twist and

create a loop.

Moreover, packaging with safety devices (for SLIM cord installation) are marked with the following note:

Y o u n g c h i l d r e n c a n b e s t r a n g l e d w h e n t h e s a f e t y d e v i c e i s n o t i n s t a l l e d a n d a d j u s t e d .

R e a d c a r e f u l l y t h e i n s t r u c t i o n s a n d i n s t a l l a c c o r d i n g l y .

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 9 / 25

4. PRODUCT INSTALLATION

The following part covers general requirements of the product installation.

Proper installation is necessary for efficient operation of the product. SELT Sp. z o. o. recommends to use services of skilled

installation crews what guarantees the Purchaser proper installation.

General requirements for safe installation

it is necessary to follow general rules of construction art,

it is necessary to follow health and safety regulations, especially concerning work with electricity and at heights,

the product must be mounted in mechanical way (foams, glues and similar products are not allowed as fastening

materials),

the product should be mounted to permanent elements of the building (walls, lintels, steel structures, aluminum

structures, window frames),

the base where wall-ceiling brackets are mounted should be durable construction (concrete, brick, etc.),

it is not allowed to mount the product on building structures that does not provide sufficient load-bearing

capacity,

product should be installed on even and dry wall surfaces that at the same time ensure proper strength and are

completed according to general rules of building art,

in case of constructions made of metal, in which components are welded together according to art of joining

metal parts, installation is made to the structures of sufficient wall thickness,

before starting the installation remove all unnecessary elements from the installation area,

before starting the installation all mechanisms redundant for the drive operation should be immobilized,

added cord safety elements have to be installed and adjusted according to the included „Information on safety

elements installation”.

4.1. REQUIREMENTS FOR SAFE I NSTALLATION AT HEIGHTS

Installation of the product, due to requirement of performing work at heights, is particularly dangerous

because it poses a high risk of danger to human health and safety and in particular fall from height.

The purchaser is obliged to conduct the installation of the product according to health and safety regulations applicable in a

given country. The responsibility of the purchaser is to develop a plan for health and safety protection during installation.

Purchaser should determine specific requirements of health and safety when working at height, and especially to ensure:

direct supervision of work execution by the designated person (e.g. the foreman),

adequate safeguards measures, in particular protective equipment against falls from height,

detailed instruction of employees performing work at heights,

necessity to use ladders with appropriate quality and safety certificates, scaffoldings, safety buckles, platforms

with adequate strength for anticipated load.

Work at heights that requires using personal protective equipment against falls from height, must be performed by at least

2 people.

4.2. PREPARATION TO INSTALLATION

unpack product and check if it contains all necessary elements for installation,

before starting the installation check the dimensions of window opening with specifications on the packaging,

make sure that the base where product will be mounted provides sufficient bearing capacity for safe installation

and operation of the product.

Attention! Pins, screws or bolts to secure the product to the structure depend on the type of substrate,

and therefore are not included with the product and its purchase has to be done by the buyer or

installer.

DT-E 1.1: SUN PROTECTION SCREEN –VENETIAN BLINDS C50 Slim

Issue 2 / April 2017 / EN page 10 / 25

4.3. GENERAL GUIDELINES FOR INSTALLATION

mounting of the brackets and covers should be done with appropriate bolts and pins (they are not included with

the product),

in case of reinforced concrete lintel or solid bricks, dowels should be used for mounting. Make sure their size is

correctly selected for bearing capacity,

depending of the type of the wall structure appropriate mounting system should be selected,

longitudinal axis of the product head rail should be leveled, otherwise the product will not roll correctly

the product should be protected against any stains made by e.g. silicon, mortar or mounting foam, which may

cause its malfunction,

using any chemical substances containing bituminous substances or any other substances making reactions with

the product is forbidden.

Improper installation may cause hazardous situation for the user.

4.4. INSTALLATION TOOLS

List:

drills for metal and concrete,

hummer drill,

ladder/scaffolding,

screwdriver,

hammer,

tape measure,

pencil/pen,

spirit level,

Allen wrenches,

cutter.

4.5. INSTALLATION

Installation and operating manual and instructions for safe use is available after log in on www.selt.com.

Internal mechanisms in the head rail can move during incorrect transport of the product (in vertical

position). Therefore one should check the placement if mechanisms in the head rail before commencing

the installation.

4.5.1. C50 SLIM INSTALLATIO N –FREE-HANGING SYSTEM

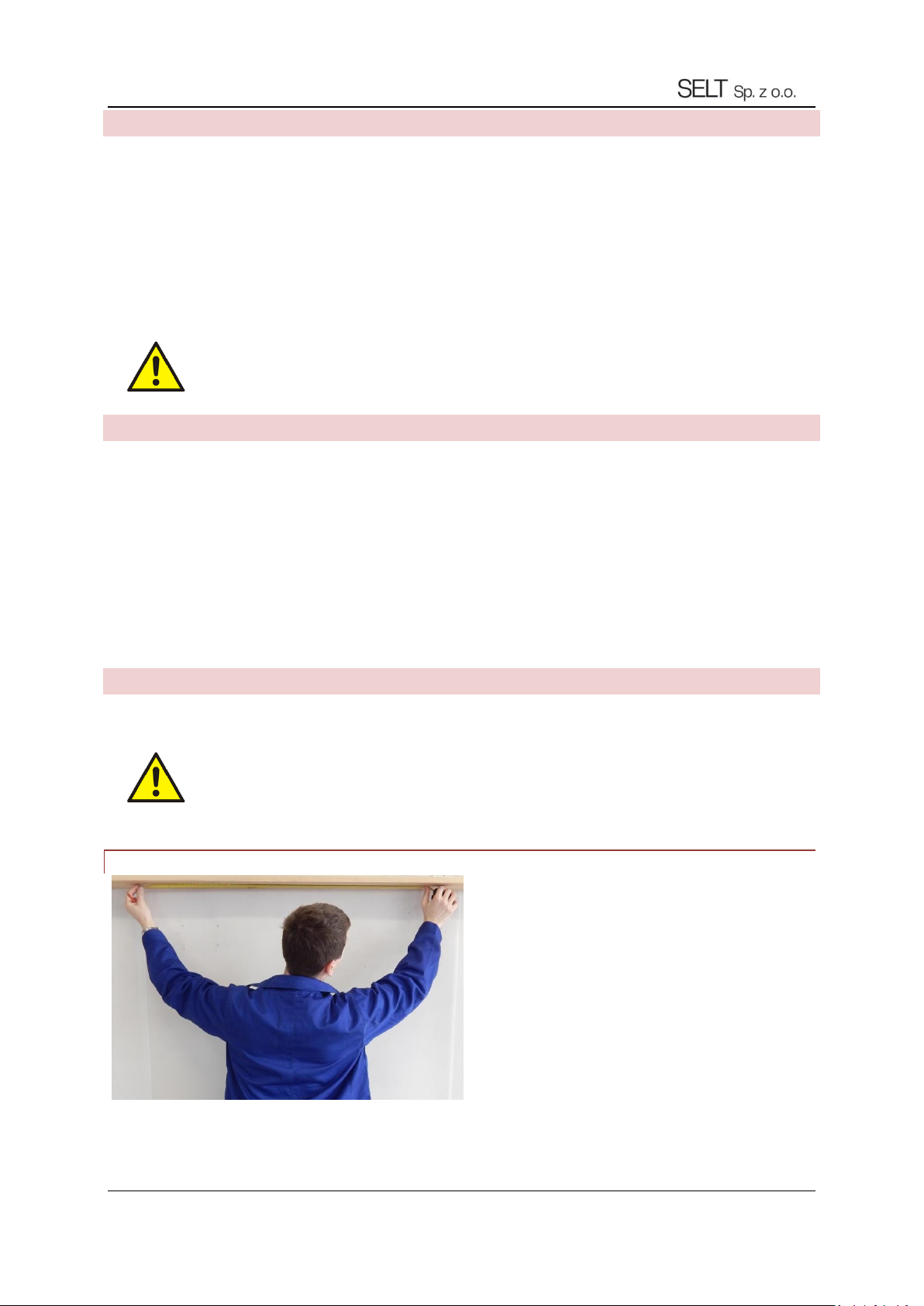

1. Measure and mark installation spots for wall-

ceiling brackets. Pay attention to elements

which can collide with rolling down venetian

blind (e.g. handles in niche installation). Img. 1

and 2

Img. 1

Table of contents

Other SELT Window Blind manuals

SELT

SELT Venetian Blind C80 Operator's manual

SELT

SELT Venetian Blind Z90 Operator's manual

SELT

SELT Pergola SB400 User manual

SELT

SELT Venetian Blind Z90 User manual

SELT

SELT 11.11.1 DT-E Operator's manual

Popular Window Blind manuals by other brands

Jysk

Jysk ROGEN manual

SOMFY

SOMFY 1241752 instructions

Rollos

Rollos S-Nanorollo V2 Assembly and operating instruction

Teptron

Teptron Move user manual

Renson

Renson Outdoor Loggia Manual Installation

Project Source

Project Source CDLF2342W quick start guide

Domondo

Domondo PureNight Mounting guide

rollease acmeda

rollease acmeda Easy Spring Air Assembly and installation manual

IKEA

IKEA KADRILJ manual

Hallis Hudson

Hallis Hudson Rolls Super glide instructions

Benthin

Benthin P1614 quick start guide

MV LINE

MV LINE CLARA 015 Installing instructions

Current

Current E-WAND Installation manual and user's guide

weinor

weinor VertiTex ZipR Maintenance Instructions and Directions for use for the end user

Roto

Roto ZAR M R4/R7 Mounting instructions

SOMFY

SOMFY Movelite WT Series instructions

Acmeda

Acmeda RF400 Series instructions

Motura

Motura Pli_353/3 manual
