Sauder Craft Pro 421405 User manual

Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.

Prefer the phone? Call 1-800-445-1527.

Share your journey!

sauder.com

Treat yourshelf.

Open Storage Cabinet

Craft Pro Series Collection | Model 421405

NOTE: THIS INSTRUCTION

BOOKLET CONTAINS IMPORTANT

SAFETY INFORMATION.

PLEASE READ AND KEEP FOR

FUTURE REFERENCE.

English pg 1-12

Français pg 13-14

Español pg 15-16

Lot #: 509766

Date Purchased: __________________

11/03/17

Be sure to give us a ring before

making any returns. 1-800-445-1527

Table of Contents Assembly Tools Required

No. 2 Phillips Screwdriver

Tip Shown Actual Size

Skip the power trip.

This time.

5-12

13-14

15-16

17-18

Part Identiﬁcation

Hardware Identiﬁcation

Assembly Steps

Français

Español

Safety

Warranty

Page 2 www.sauder.com 421405

Part Identiﬁcation

åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge

to help distinguish similar parts from each other. Use this part identiﬁcation to help identify similar parts.

Now you know

our ABCs.

A RIGHT END (1)

B LEFT END (1)

C TOP (1)

D UPRIGHT (1)

E LEFT BOTTOM (1)

F RIGHT BOTTOM (1)

G ADJUSTABLE SHELF (6)

H BASE (1)

I UPPER BACK (1)

J LOWER BACK (1)

Page 3www.sauder.com421405

Hardware Identiﬁcation

åScrews are shown actual size. You may receive extra hardware with your unit.

HIDDEN CAM - 17

1CAM SCREW - 17

CAM COVER CARD - 1

WOOD DOWEL - 9

SILVER 1/2" FLAT HEAD SCREW - 26

METAL PIN - 24

SILVER 1/2" PAN HEAD SCREW - 8

METAL BRACKET - 4

Page 4 www.sauder.com 421405

Step 1 Look for this icon. It means a

video assembly tip is available at

www.sauder.com/services/tips

å Assemble your unit on a carpeted ﬂoor or on the empty

carton to avoid scratching your unit or the ﬂoor.

å Push seventeen HIDDEN CAMS (1) into the ENDS (A

and B), UPRIGHT (D), BOTTOMS (E and F).

Arrow

(17 used)

Arrow

The arrow in the HIDDEN

CAM must point toward the

hole in the edge of the board.

Hole

Page 5www.sauder.com421405

Step 2

å Turn seventeen CAM SCREWS (2) into the ENDS (A and B),

TOP (C), UPRIGHT (D), and BASE (H).

(17 used)

Page 6 www.sauder.com 421405

Step 3

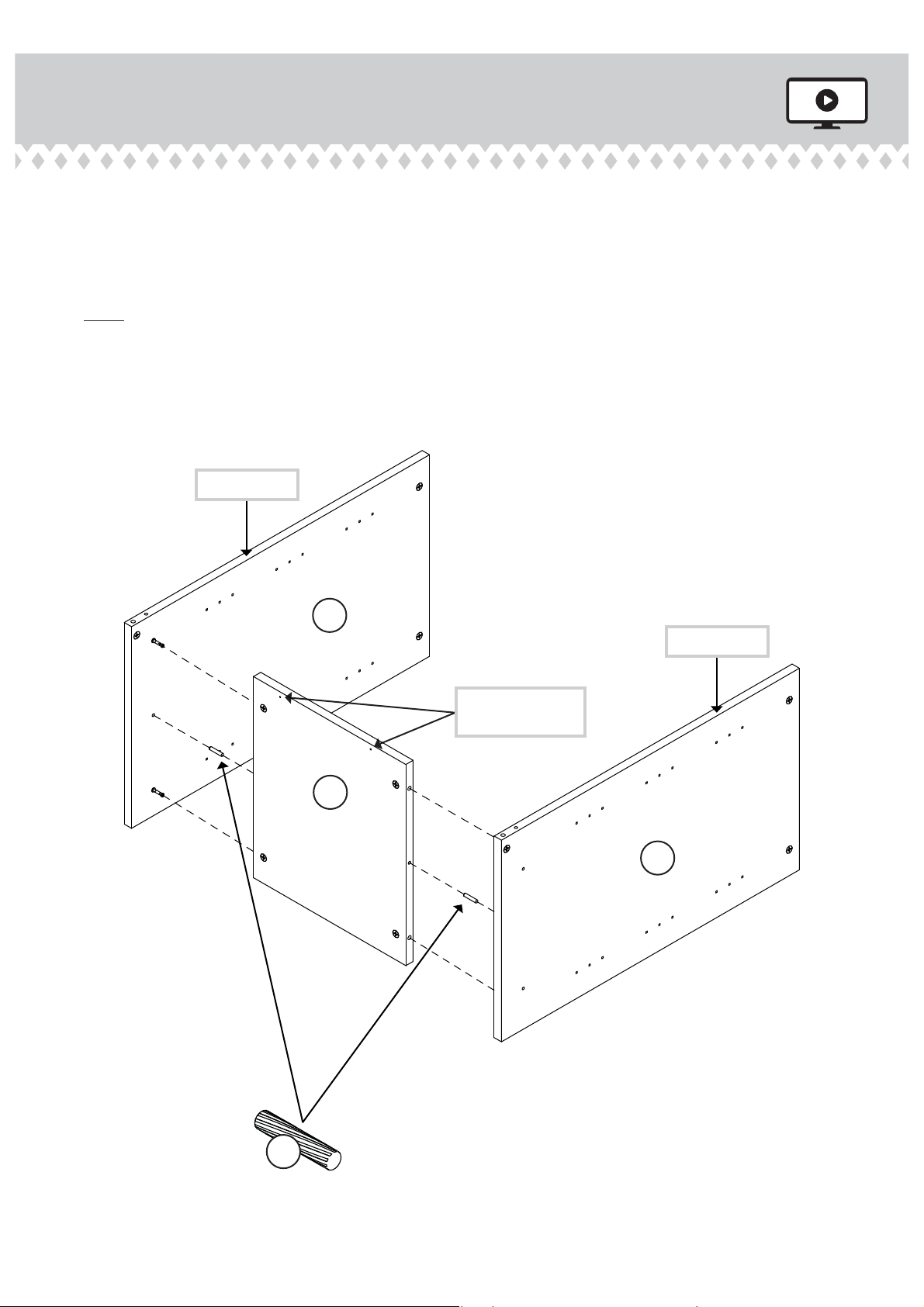

å Insert two WOOD DOWELS (3) into the LEFT END (B) and

UPRIGHT (D).

å Fasten the LEFT END (B) and UPRIGHT (D) to the LEFT

BOTTOM (E). Tighten four HIDDEN CAMS.

å NOTE: Be sure the WOOD DOWELS in the LEFT END and

UPRIGHT insert into the holes in the LEFT BOTTOM.

Finished edge

Surface with

HIDDEN CAMS

These holes must

be facing up.

Page 7www.sauder.com421405

Step 4

Finished edge

Surface with

HIDDEN CAMS

å Fasten the RIGHT BOTTOM (F) to the UPRIGHT (D). Tighten two HIDDEN CAMS.

å Insert one WOOD DOWEL (3) into the RIGHT END (A).

å Fasten the RIGHT END (A) to the RIGHT BOTTOM (F). Tighten two HIDDEN CAMS.

å NOTE: Be sure the WOOD DOWEL in the RIGHT END inserts into the hole in the

RIGHT BOTTOM.

å Fasten four METAL BRACKETS (4) to the BOTTOMS (E and F). Use four SILVER

1/2" PAN HEAD SCREWS (8).

SILVER 1/2" PAN HEAD SCREW

(4 used in this step)

Page 8 www.sauder.com 421405

Slotted hole

Step 5

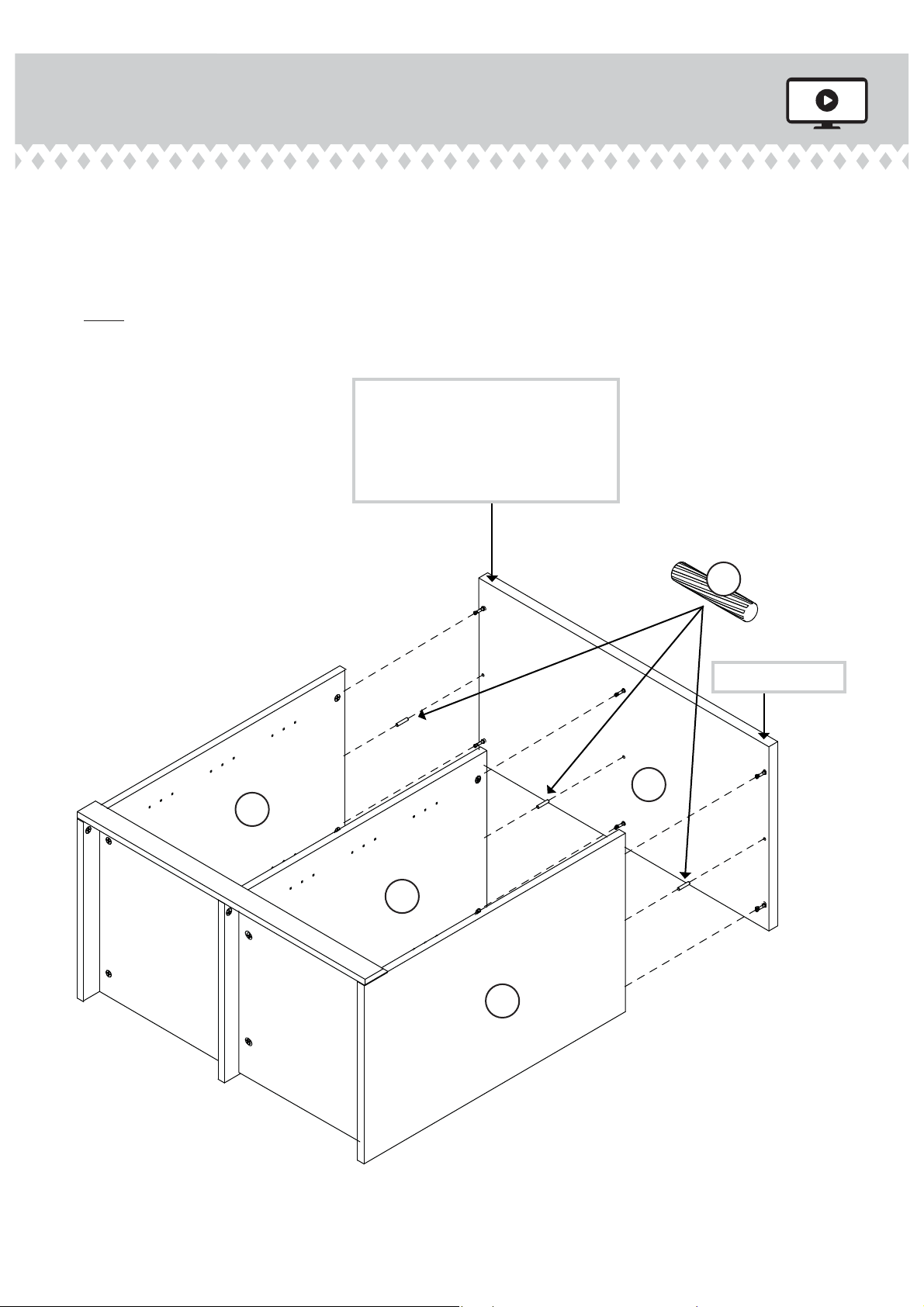

å Insert three WOOD DOWELS (3) into the ENDS (A and B)

and UPRIGHT (D).

å Fasten the BASE (H) to the ENDS (A and B) and

UPRIGHT (D). Tighten three HIDDEN CAMS.

å NOTE: Be sure the WOOD DOWELS in the ENDS and

UPRIGHT insert into the hole in the BASE.

å Fasten the BASE (H) to the BOTTOMS (E and F). Use four

SILVER 1/2" PAN HEAD SCREWS (8).

SILVER 1/2" PAN HEAD SCREW

(4 used in this step)

Flat edge

Page 9www.sauder.com421405

Step 6

å Insert three WOOD DOWELS (3) into the center holes

in the TOP (C).

å Fasten the TOP (C) to the ENDS (A and B) and

UPRIGHT (D). Tighten six HIDDEN CAMS.

å NOTE: Be sure the WOOD DOWELS in the TOP

insert into the hole in the ENDS and UPRIGHT.

Meet Part (C). This component has been

engineered to be lighter, stronger, faster…

well ok. Not technically faster. But

deﬁnitely makes for a sturdier Storage

Cabinet that’s easier to assemble and

friendlier to the environment.

Page 10 www.sauder.com 421405

Edge without holes
