Royal Sovereign Alexis 27 User manual

Alexis 27

OWNER'S MANUAL

Read all instructions carefully before use.

Royal Sovereign International Inc.

www.royalsovereign.com

TABLE OF CONTENTS

TOPIC PAGE

1. Introduction .......................................................................................................3

2. Package Contents .............................................................................................. 3

3. Safety Precautions.............................................................................................. 4

4. Parts.................................................................................................................... 5

5. Features Guide ................................................................................................... 6

6. Operation Instructions ......................................................................................... 9

7. Film Loading and Threading ............................................................................. 10

8. Maintenance .................................................................................................... 12

9. Trouble Shooting Guide .................................................................................... 13

10.Specification .................................................................................................... 14

11.Warranty ........................................................................................................... 15

Alexis 27

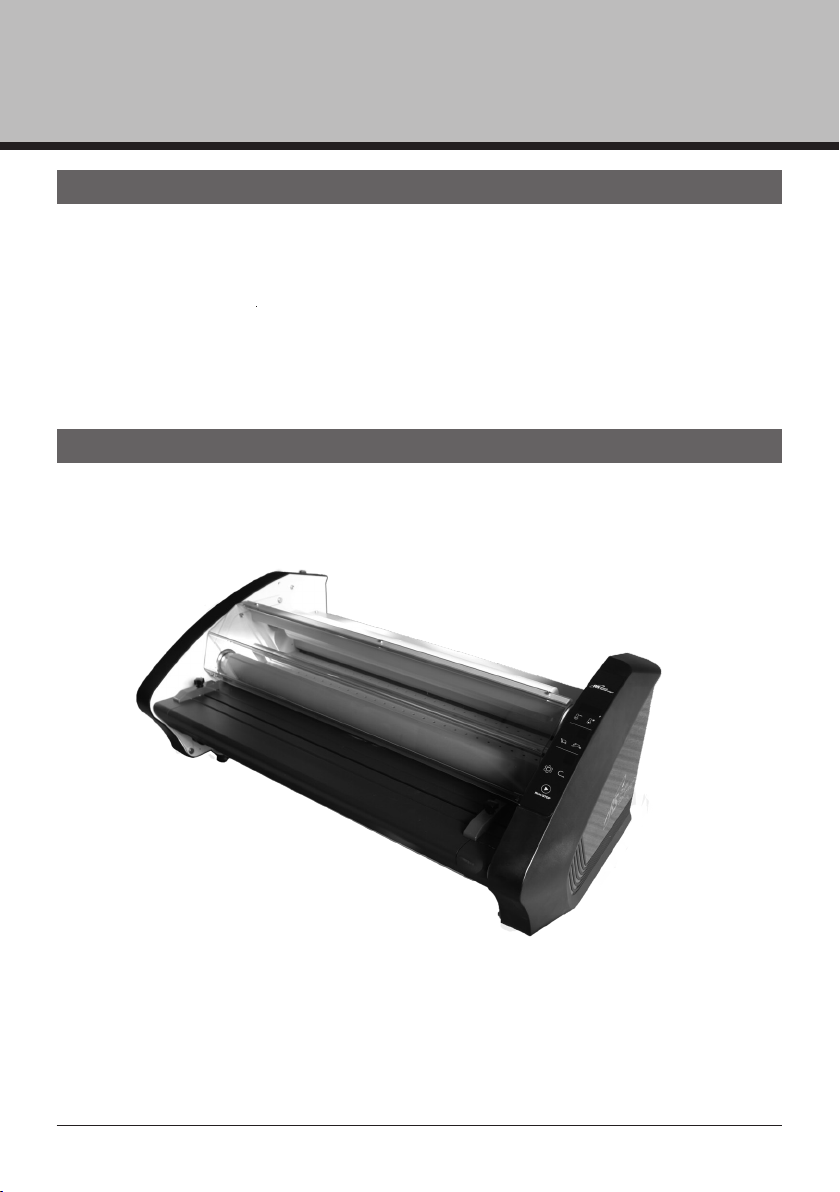

1. INTRODUCTION

2. PACKAGE CONTENTS

Thank you for purchasing RS Alexis 27. It has been designed and manufactured to

provide years of continuous service. For high quality lamination, please read this

instruction manual thoroughly. This manual will provide you with complete operating and

maintenance information

· Owner's Manual

· Wrench

· Dust Cover

· Silicone Elastic

3. SAFETY PRECAUTIONS

Failure to comply with any of the following safety procedures could result

in serious injury. Please read the instructions carefully and keep to future

reference.

1. Only a licensed electrician should install wiring and outlet for the laminator.

2. Ensure the unit is plugged into a properly grounded outlet with the correct voltage.

3. Keep hands and clothing (i.e. Neckties) away from rollers. The rollers have pinch points

that can trap body parts or clothing and cause serious injury.

4. Keep flammable and wet objects away from the machine.

5. Place machine on a level surface.

6. Avoid excessive sunlight, humidity and extreme temperatures.

7. Ensure the unit is turned off, cooled, and unplugged from the outlet prior to moving

and or repairing.

8. Keep out of reach of children.

9. Only Royal Sovereign authorized maintenance and service technicians should make

repairs.

10. Do not attempt to laminate items that exceed total recommended material thickness

for the unit.

11. When cleaning the machine, don't use flammable sprays or materials.

12. Do not touch the rollers when they are hot or place foreign objects inside the machine.

13. Do not cover the surface of the machine until the machine has completely cooled.

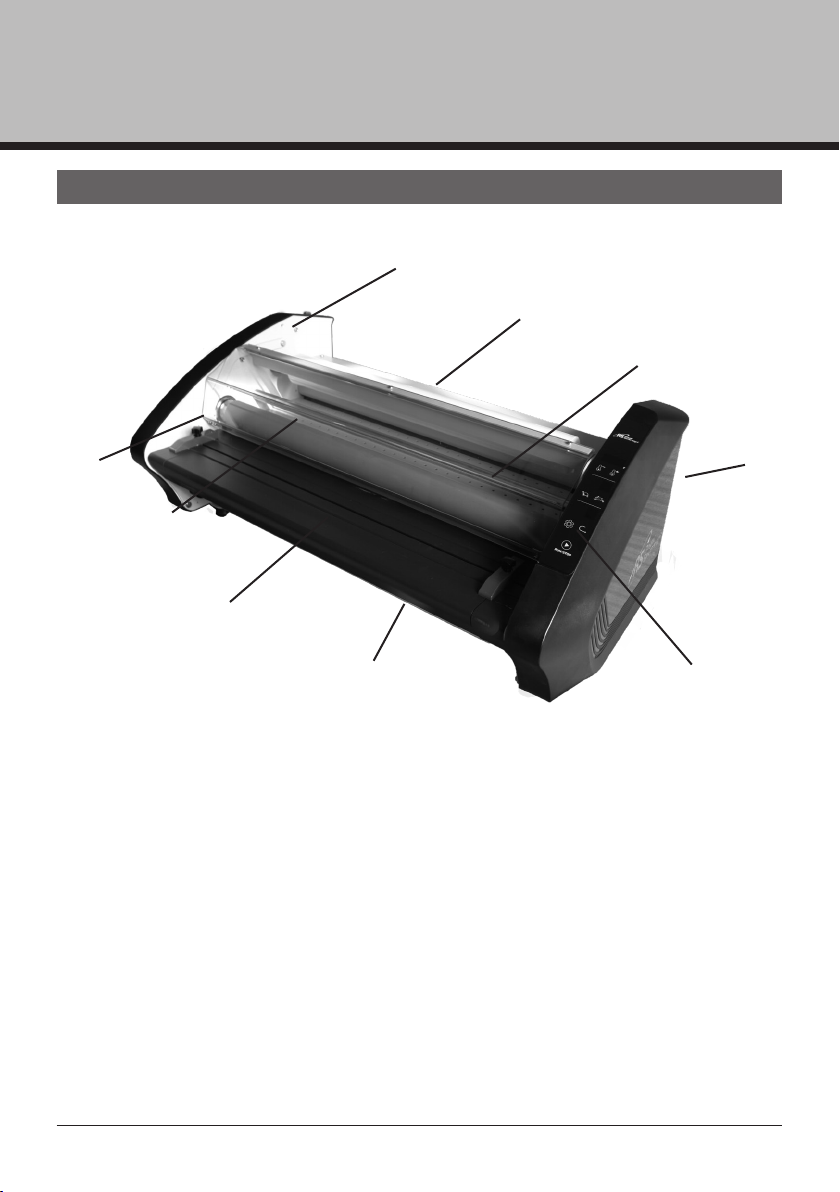

4. PARTS

1.Upper Film 2.Lower Film 3.Idle Bar

4.Hot Rollers 5.Feed Table 6.Paper Guide

7.Control Panel 8.Tension Screw 9.Power Switch

Alexis 27

①

②

③

④

⑤

⑥

⑦

⑧

⑨

5. FEATURES GUIDE

Run and stop the machine.

Reverse the rollers to undo jams

and correct misfed documents .

Mode: change default mode(1~4 settings).

Reduce roller speed(9~1 setting).

Increase roller speed(1~9 setting).

Reduce roller temperature(302~176 F).

Increase roller temperature(176~302 F).

Figure 1

Power Switch (1)- Located on the rear of

the machine. “I” (on) “0” (off). (Fig. 2)

Cross Cutter (2)- Used to cut off the

laminated web. (Fig. 2)

Main Fuse (3)- To cut off the main power

circuit. It can recover by itself.

Feed Guide (4)-The feed guide permits

alignment of the item(s) to be laminated. To

position the adjustable guide, loosen the knob,

slide it tothe desired position and tighten the

knob to secure the feed guide in place. (Fig. 3)

Safety Cover (5)- It prevents entanglement

NOTE: If the safety cover is opened, the power

tothe motor will turn off.

Film Shaft

The film shaft holds the film supply on the

machine. (Fig. 4)

Film Tension Adjustment - Allows the

operator to increase or decrease film web

tension. clockwise to increase tension and

to decrease tension turn the knob counterclockwise.

(Fig. 5)

Figure 2

Figure 3

Figure 4

Figure 5

Alexis 27

①

②

⑤

④

③

1. Turn the laminator ON (I) located on the rear of the machine. (Fig. 2)

2. Choose the appropriate speed (Fig.1)

3. Do not begin laminating until the blinking light is steady (approximately 8 minutes).

4. Position the item to be laminated on the feed table.

,raeppasidoteniltaehroftiaw,nrutotnigeblliwsrellorehT.nottubNURehtsserP.5

feed the item into the machine.

6. When using PET or OPP film laminate, please use a test print first to establish correct

speed and temperature for that product. Keep a distance of 15mm between prints when

running multiple prints through the laminator.

7. Stop the laminator when all of the items have completely exited the rear of the

machine.

8. Please keep the film tension controls as loose as possible but still maintaining proper

film flow over the rollers. Tighten as needed if film has slight wrinkles over the rollers.

9. If you find the temperature level is high while laminating with some films with thin

paper on the high or middle level you can try using a lower temperature level.

Repeat the above steps until all of your lamination is complete. When lamination is

completed and the machine is not in use for an extended period of time, turn the power off.

NOTE: Stand by mode and auto power off mode

- Stand by mode: If no activity is made within 30 minutes after each use the

machine will automatically switch into stand by mode. (In stand-by mode the

temperature will decrease to 80~90℃and the three film thickness setting

indicators will blink).

- Auto power off mode: If the machineisin stand by mode and no activity is

made for 60 minutes the machinewill automaticallypower off.

-If any activity is made whilein stand byor auto power off mode the machine

will return to it’s previous stage.

6. OPERATION INSTRUCTIONS

Figure 6

Emergency Switch (6) - To stop the machine

in a emergency situation. (Fig. 6)

⑥

Figure 8

Figure 9

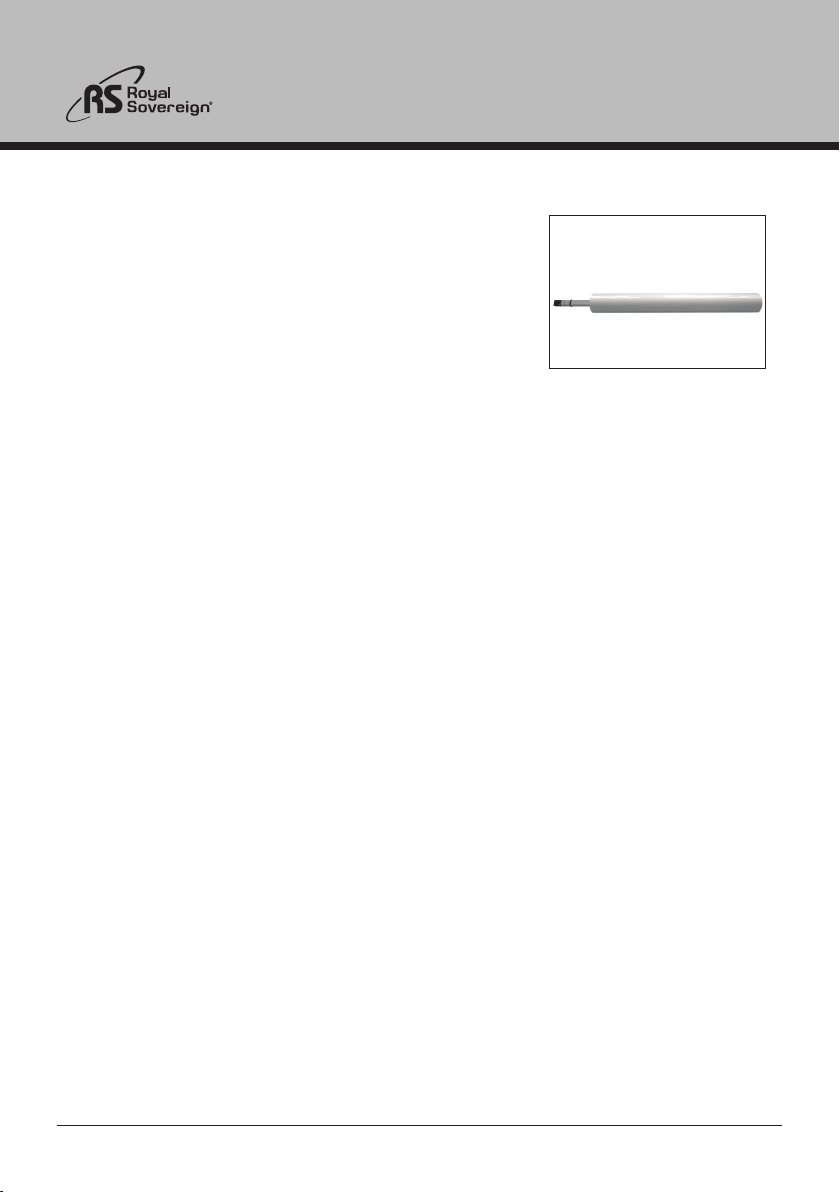

7. FILM LOADING & THREADING

Figure 7

1. Slightly slide the shaft to the right and pull it out

from the machine. (Fig. 8)

2. Set the rubber “O” ring to a suitable location

base on the width of the file, make sure they are

in the same location for both shaft.

Alexis 27

3. Insert shaft into the right end of the film core.

For film with poly-in (adhesive side is inside

the web), make sure the adhesive side is

facing upward. (Fig. 10)

Figure 10

4. Carefully return the film shaft back into place.
