Robe ColorSpot 700E AT User manual
1
Wersion1.5
2
3
Table of contents
1. Safety instructions ......................................................................................................... 3
2.Operating determinations............................................................................................... 4
3. Description of the device............................................................................................... 5
4. Installation....................................................................................................................... 6
4.1 Connection to the mains ............................................................................................ 6
4.2 Fitting the lamp........................................................................................................... 7
4.3 Lamp adjustment ....................................................................................................... 7
4.4 Replacing the colour lters,gobos and the animation wheel ..................................... 8
4.6 DMX-512 connection................................................................................................ 12
4.7 Ethernet connection ................................................................................................. 13
5.ColorSpot 700E AT - DMX Protocol-version 1.2 ......................................................... 15
6. Controller mode ........................................................................................................... 21
6.1 DMX addressing....................................................................................................... 21
6.2 Remotely controllable functions ............................................................................... 21
7.Control menu map......................................................................................................... 23
8. Control menu ............................................................................................................... 27
8.1 Fixture Address ....................................................................................................... 27
8.2 Fixture information ................................................................................................... 27
8.3 Personality ............................................................................................................... 29
8.4 Lamp On/Off ............................................................................................................ 30
8.5 Test sequences........................................................................................................ 30
8.6 Manual mode ........................................................................................................... 30
8.7 Stand-alone setting ................................................................................................. 31
8.8 Reset functions ........................................................................................................ 31
8.9 Special functions ...................................................................................................... 31
9. Power down mode........................................................................................................ 33
10. RDM ............................................................................................................................. 33
11. Error and information messages .............................................................................. 34
12. Technical specications............................................................................................ 36
13. Maintenance and cleaning ........................................................................................ 39
14.Appendix ...................................................................................................................... 41
14.1 Standard effect conguration ................................................................................ 41
14.2 Optional animation wheels ..................................................................................... 42
ColorSpot 700E AT
2
3
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP!
1. Safety instructions
Every person involved with installation and maintenance of this device have to:
- be qualiled
- follow the instructions of this manual
CAUTION!
Be careful with your operations.
With a high voltage you can suffer
a dangerous electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-
sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes
written in this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modication to the device.
Please consider that damages caused by manual modications to the device are not subject to warranty.
Never let the power-cord come into contact with other cables! Handle the power cord and all connections with
the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
Always plug in the power plug least. Make sure that the power-switch is set to off-position before you connect
the device to the mains. The power plug has to be accessable after installing the device.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-
cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-
cord by the plug. Never pull out the plug by tugging the power cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to
earth.
The electric connection, repairs and servicing must be carried out by a qualied employee.
Do not connect this device to a dimmer pack.
Do not switch the xture on and off in short intervals as this would reduce the lamp’s life.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)!
For replacement use lamps and fuses of same type and rating only.
CAUTION ! EYEDAMAGES !
Avoid looking directly into the light source
(meant especially for epileptics) !
4
5
2.Operating determinations
This device is a moving-head for creating decorative effects and was designed for indoor use only.
If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation water might damage your device. Leave the device switched off until
it has reached room temperature.
Never run the device without lamp!
Do not shake the device. Avoid brute force when installing or operating the device.
Never lift the xture by holding it at the projector-head, as the mechanics may be damaged. Always hold the
xture at the transport handles.
When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture
or dust. There should not be any cables lying around. You endanger your own and the safety of others!
The minimum distance between light output and the illuminated surface must be more than 1.5 meters.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the x-
ture.
Always x the xture with an appropriate safety rope. Fix the safety rope at the correct holes only.
Only operate the xture after having checked that the housing is rmly closed and all screws are tightly fas-
tened.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may
explose and emit a high ultraviolet radiation, which may cause burns.
The maximum ambient temperature 40°C must never be exceeded.
CAUTION!
The lens has to be replaced when it is obviously damaged,
so that its function is impaired, e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualied for operating the device. Most damages are the result of unprofessional operation!
CAUTION!
The lamp has to be replaced when it is damaged
or deformed due to the heat!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, burns due to ultraviolet radiation, lamp explosion, crash etc.
4
5
3. Description of the device

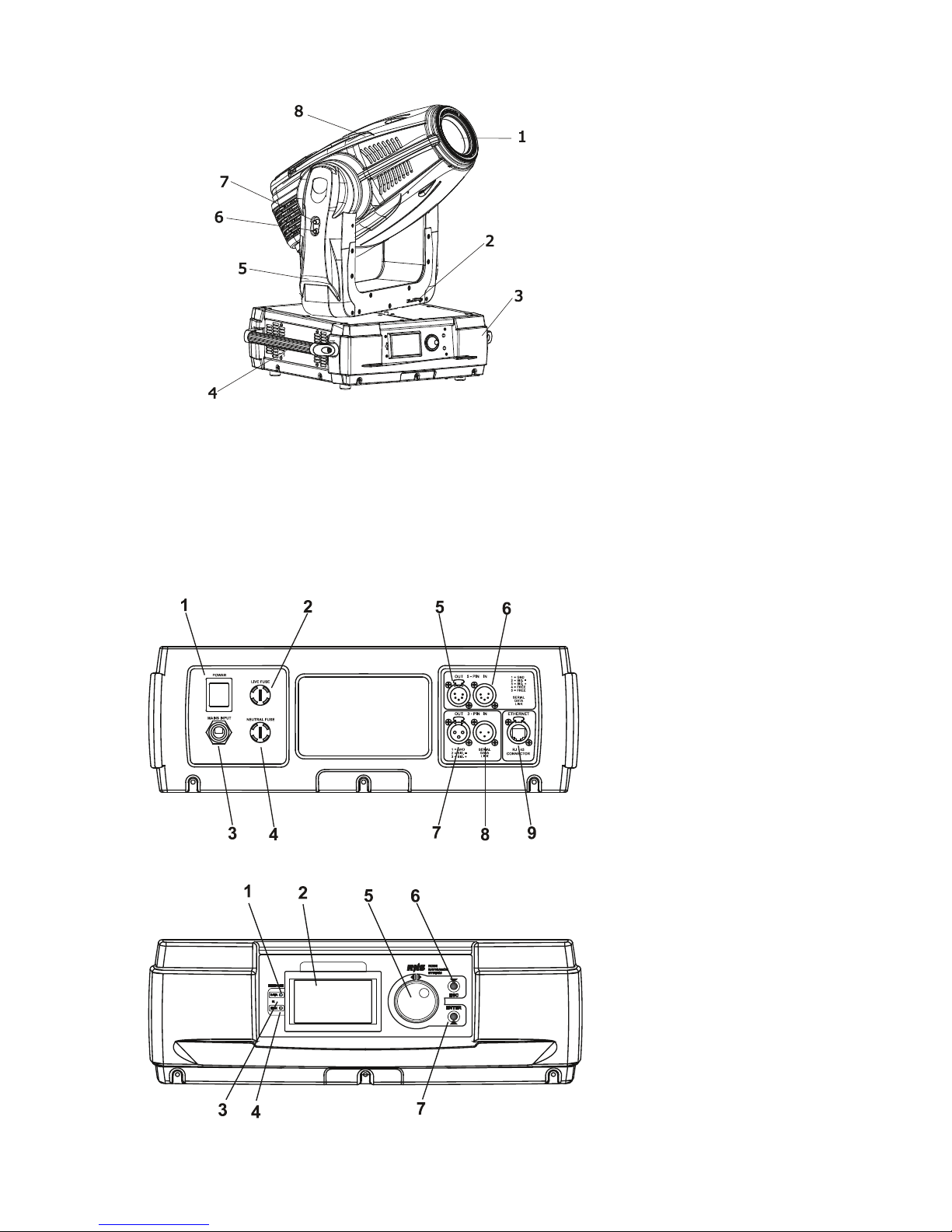

Rear panel of the base:
1 - Power switch
2 - Fuse holder-live
3 - Power cord
4 - Fuse holder-neutral
5 - 5-pin DMX output
6 - 5-pin DMX input
7 - 3-pin DMX output
8 - 3-pin DMX input
9 - RJ 45 connector
Front panel of the base:
1 - Ethernet indicator
2 - Display
3 - Infra-red sensor
4 - Data transfer indicator
5 - RNS control wheel
6 - Escape button
7 - Enter button
The head should be locked for transportation- the tilt lock button (7) is pushed and the pan lock/unlock lever
(2) is in locked position. To unlock the head, press the tilt unlock button (6) and move the pan lock/unlock lever
(2) into unlocked position.
1 - Front lens
2 - Pan lock
3 - Base
4 - Handle
5 - Head yoke
6 - Tilt unlock button (green)
7 - Tilt lock button (red)
8 - Moving head
6
7
4. Installation
4.1 Connection to the mains
For protection from electric shock,the xture must be earthed!
The ColorSpot 700E AT is equipped with auto-switching power supply that automatically adjusts to any 50/60Hz
AC power source from 100-240 Volts.
For use with 100-130 V supplies,the both main 6.3 A fuses has to be exchanged for 10 A fuses which
are enclosed in the packing.
To install the 10 A fuses:
1. Disconect the xture from AC power.
2. Unscrew the "live" fuseholder on the rear panel of the base with a flat-tip screwdriver from the housing
(anticlockwise).
3. Remove the 6.3 A fuse from the fuseholder.
4. Put the 10 A fuse in the fuseholder.
5. Replace the fuseholder in the housing and screw it fully clockwise.
6.Repeat steps 2-5 for "neutral" fuseholder
If you need to t the power cable with a power plug that is suitable for your local AC power outlets,
installl a 3-prong grounding-type plug on the power cable. The earth has to be connected!
If you have any doubts about proper installation, consult a qualied electrician.
The occupation of the connection-cables is as follows:
Cable (EU) Cable (US) Pin International
Brown Black Live L
Light blue White Neutral N
Yellow/Green Green Earth
6
7
4.2 Fitting the lamp
DANGER ! Install the lamps with the device switched off only.
Unplug from mains before !

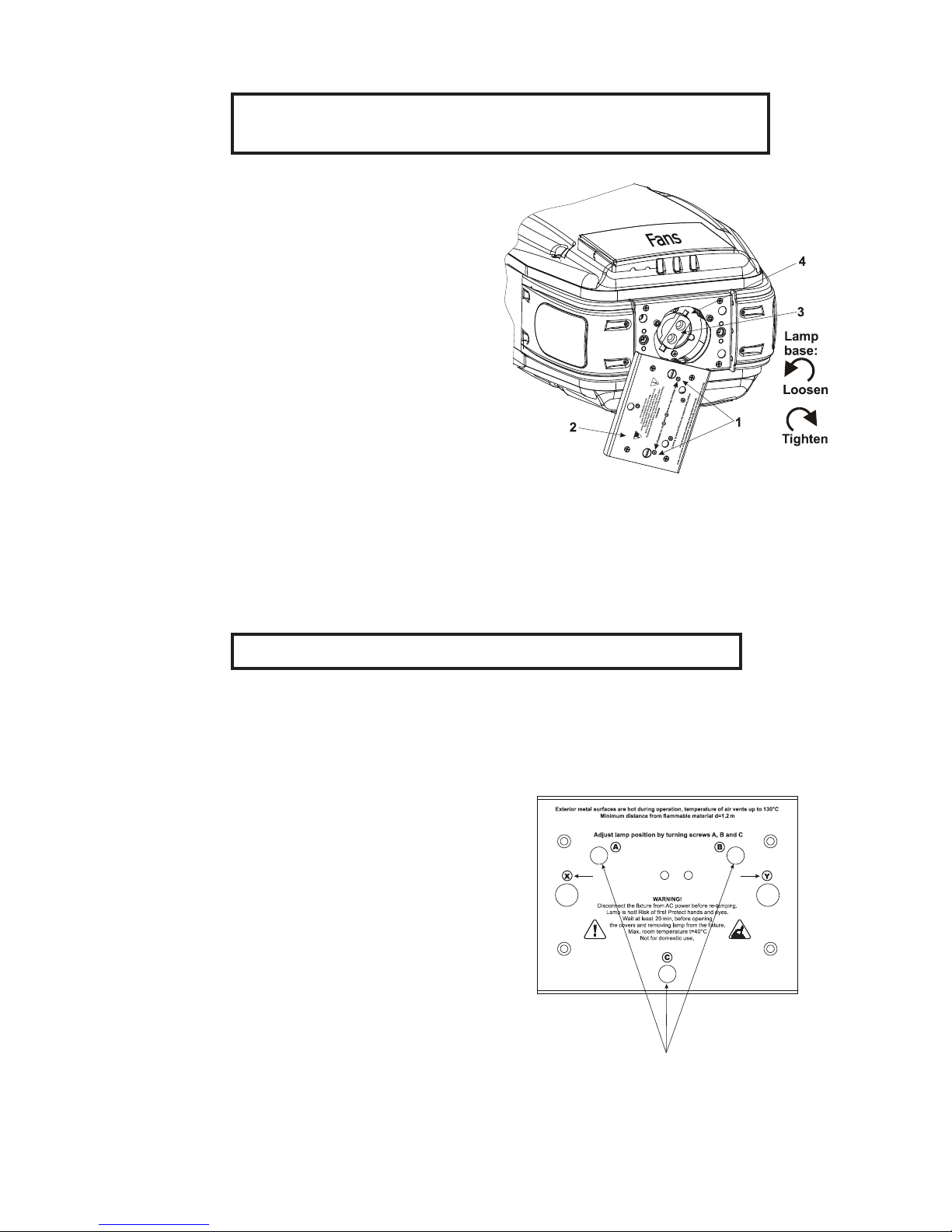

To insert the lamp (MSR GOLD 700 FastFit):
1. Disconnect the xture from power and allow it to cool
at least 15 minutes.
2. Make sure that xture´s head is in the position as
shown on the picture.Loosen the two quarter-turn
fasteners (1) marked “X,Y“ on the lamp cover (2) to
turn the cover down.
3. Holding the lamp by its ceramic base (3), carefully
turn the lamp to the left as shown on the picture in
order to loosen the lamp from the lamp holder (4).
Gently pull the lamp out of the lamp holder
4. Holding the new lamp by its ceramics base, gently
insert the lamp to the lamp socket and turn the base
to the right. Make sure that the lamp is installed tightly
into the lamp socket.
Do not install a lamp with a higher wattage! A lamp like
this generates temperatures the device is not designed
for. Damages caused by non-observance are not subject
to warranty. Please follow the lamp manufacturer‘s
notes! Do not touch the glass bulb bare hand during the
installation!
5. Reinsert the lamp cover (2) and tighten two quarter-turn
fasteners (1) again.
6. Align the new lamp (see instructions below)
7. Reset „Lamp On Time” and „Lamp Strikes” counters
in „Fixture information” menu.
Do not operate this xture with open lamp cover!
4.3 Lamp adjustment
The lamp holder is aligned at the factory.
Due to differences between lamps, ne adjustment may improve light performance:
1. Switch on the xture and after reset turn on the lamp.
2. Cancel all effects, open the shutter and focus the light
on a
at surface (wall) using either DMX controller or function
„Lamp adjustment” in „Special functions menu”.
3. Center the hot-spot (the brightest part of the beam) using
the
3 adjustment screws “A, B, C”. Turn one screw at a time
to drag the hot-spot, diagonally across the projected
image. If you cannot detect a hot -spot, adjust the lamp
until the light is even.
To reduce a hot-spot, pull the lamp in by turning all three
screws „A, B, C” clockwise 1/4-turn at a time until the light
is evenly distributed.
If the light is brighter around the edge than it is in the
center, or if light output is low, the lamp is too far back in
the reector. „Push” the lamp out by turning the screws
“A, B, C” counterclockwise 1/4-turn at a time until the
light is bright and evenly distributed.
1 - Quater-turn fasteners
2 - Lamp cover
3 - Lamp base
4 - Lamp holder
Remove the screws X and Y for re-lamping
3 adjustment scews “A, B, C”
8
9

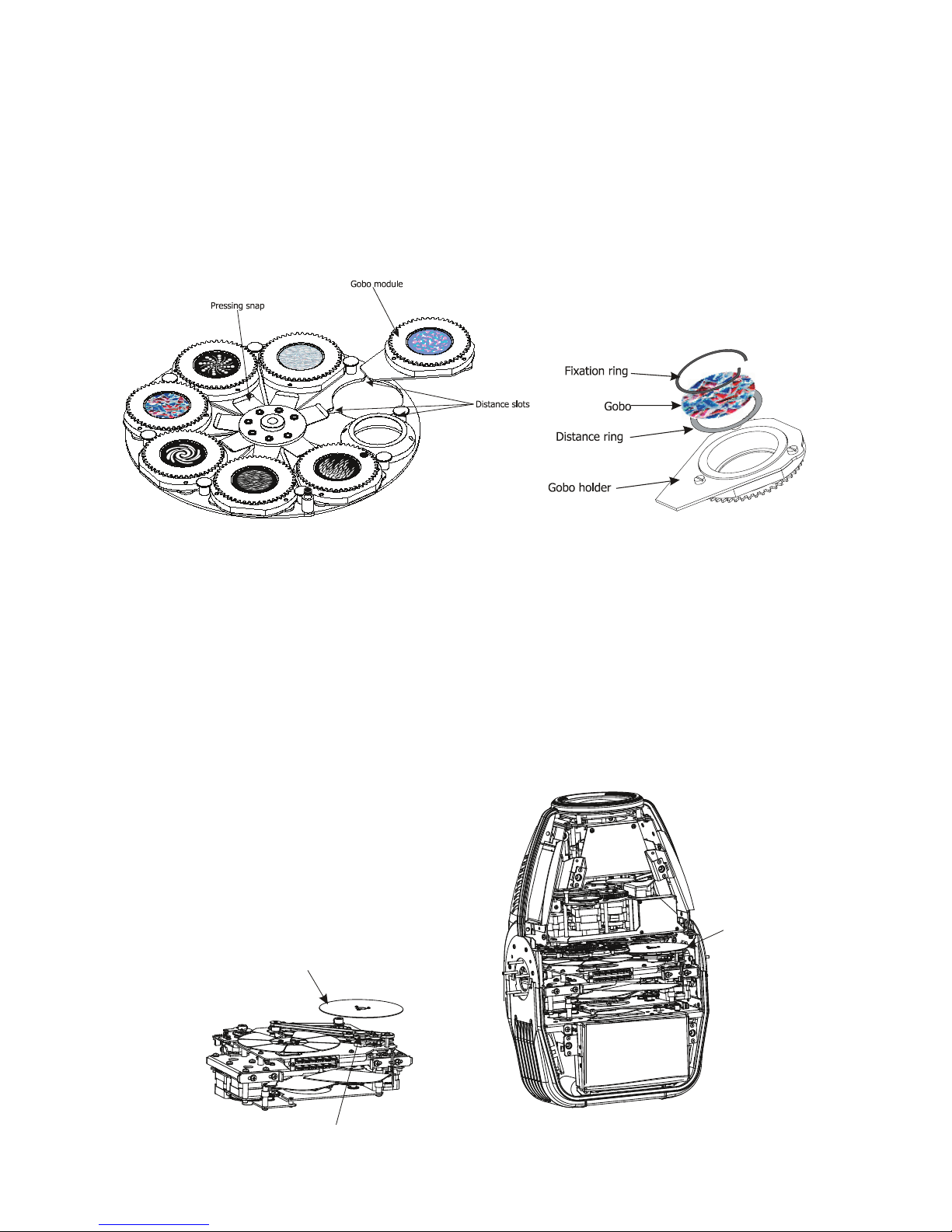

4.4 Replacing the colour lters,gobos and the animation wheel
DANGER!
Install the colour lters,gobos and animation wheel with the device switched off only.
Unplug from mains before!
Colour lters
1. Disconnect the xture from mains and allow it to cool.
2. Remove the bottom plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. Turn the colour wheel to the desired position.The dichroic lters are xed on the colour wheel by the mag-
nets.
4.Break the magnet´s initial hold by skewing the dichroic lter in a direction outlined on the picture below.
Protect
the glass lter with a piece of paper or clout during this action.
5. Insert the new dichroic lter into colour wheel.
6. Replace the bottom cover before applying power.
Static gobos
1. Disconnect the xture from mains and allow it to cool.
2. Remove the top plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. Gently bend out the gobo module to release it from the distance slots
and pull it up from the pressing
snap.
4. Insert the new gobo module back under the pressing snap and push it
to the 3 distance slots.
5. Replace the top cover before applying power.
Centering hole
Dichroic lter
Magnet
8
9
Rotating gobos
1. Disconnect the xture from mains and allow it to cool.
2. Remove the bottom plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. Gently bend out the gobo module to release it from the distance slots
and pull it up from the pressing snap.
4. Remove the spring gobo-lock with an appro
priate tool (e.g. small-bladed screwdriver) and remove it.
Do not touch the surface of the pattern of the glass gobos as the oils from your hands can damage the
pattern.
5. Remove the original gobo and insert the new gobo (black and white glass gobos with glazy side
upwards-it means glazy side towards the lamp). Insert the spring gobo to secure it in the gobo holder.
6. Insert the the gobo module back under the pressing snap and push it
to the 3 distance slots.
5. Replace the bottom cover before applying power.
The animation wheel
The animation wheel is xed on its holder by the magnet and centered by the 3 guide-pins on the animation
wheel.
1. Disconnect the xture from mains and allow it to cool.
2. Remove the bottom plastic cover of the head by loosening the 4 quarter-turn fasteners on the cover.
3. To avoid bending the animation wheel while removing,break the magnet´s initial hold by prying the wheel
off with a small-bladed screwdriver gently inserted betwen the animation wheel and its holder.
4. Place the new animation wheel.Verify that the guide-pins are seated in its holder correctly correctly.
5. Replace the bottom cover before applying power.
Animation wheel
Animation wheel
with 3 guide-pins
Animation wheel holder
with 3 guide-holes
10
11
4.5 Rigging the xture
DANGER TO LIFE!
Please consider the respective national norms during the installation!
The installation must only be carried out by an authorized dealer!
The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for
1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net.
This secondary safety attachment must be constructed in a way that no part of the installation can fall down if
the main attachment fails.
When rigging, derigging or servicing the xture staying in the area below the installation place, on bridges,
under high working places and other endangered areas is forbidden.
The operator has to make sure that safety-relating and machine-technical installations are approved by an expert
before taking into operation for the rst time and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled
person once a year.
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)
calculating working load limits, installation material being used, and periodic safety inspection of all installation
material and the projector. If you lack these qualications, do not attempt the installation yourself, but instead use
a professional structural rigger. Improper installation can result in bodily injury and.or damage to property.
The projector has to be installed out of the reach of people.
If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be used.
The projector must never be xed swinging freely in the room.
Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety
of a possible installation, do NOT install the projector!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector’s
weight.
Danger of re !
When installing the device, make sure there is no highly inammable
material (decoration articles, etc.) in a distance of min. 0.7 m.
CAUTION!
Use 2 appropriate clamps to rig the xture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is xed properly! Ensure that the
structure (truss)to which you are attaching the xtures is secure.
The projector can be placed directly on the stage oor or rigged in any orientation on a truss without altering
its operation characteristics .
For overhead use, always install a safety-rope that can hold at least 10 times the weight of the xture. You must
.
This manual suits for next models
1
Table of contents
Other Robe Lighting Equipment manuals
Robe
Robe Color Spot250AT User manual
Robe
Robe Robin DL4F Wash User manual
Robe
Robe Robin 300 plasma spot User manual
Robe
Robe CitySource 96 User manual
Robe
Robe CLUBSPOT 160 CT User manual
Robe
Robe Robin 600E Beam User manual
Robe
Robe T32 CYC User manual
Robe
Robe ROBIN iPointe65 User manual
Robe
Robe ROBIN LEDBeam 350 RGBA User manual
Robe
Robe ANOLiS ArcSource Submersible II User manual
Robe
Robe Stage Faze 1500AT User manual
Robe
Robe Robin Actor 3 Smart White User manual
Robe
Robe SPOT 250 XT User manual
Robe
Robe Anolis Calumma S MC User manual
Robe
Robe Anolis Ambiane XP56 User manual
Robe
Robe Stage Banner 10 AT Series User manual
Robe
Robe DT Series User manual
Robe
Robe Color Mix 250 AT Series User manual
Robe
Robe Anolis Eminere 1 User manual
Robe
Robe Anolis Divine 160 RGBW/RGBA/PW/TW User manual
Popular Lighting Equipment manuals by other brands
Qazqa
Qazqa Suplux SL 3 Black 103062 instruction manual
Commercial Electric
Commercial Electric 54568141 Use and care guide
CREE LIGHTING
CREE LIGHTING 304 Series installation instructions
Goobay
Goobay 49867 user manual
ECOMAN ITALIA
ECOMAN ITALIA LED T8 instruction manual
Alkalite
Alkalite Krypton KT-81 user manual
