Rinnai Rhfe-431ft User manual

How to

Space

Rinnai

Energysaver

RHFE-431FT

Customer

Page 3

use vour

Heaier

Guarantee

Layout of appliance

Features

Safety -Points

Operation

Adjusting Temperature

Economy Mode

Child-Lock

Humidifier

Clock

ON/OFF Timers

Override

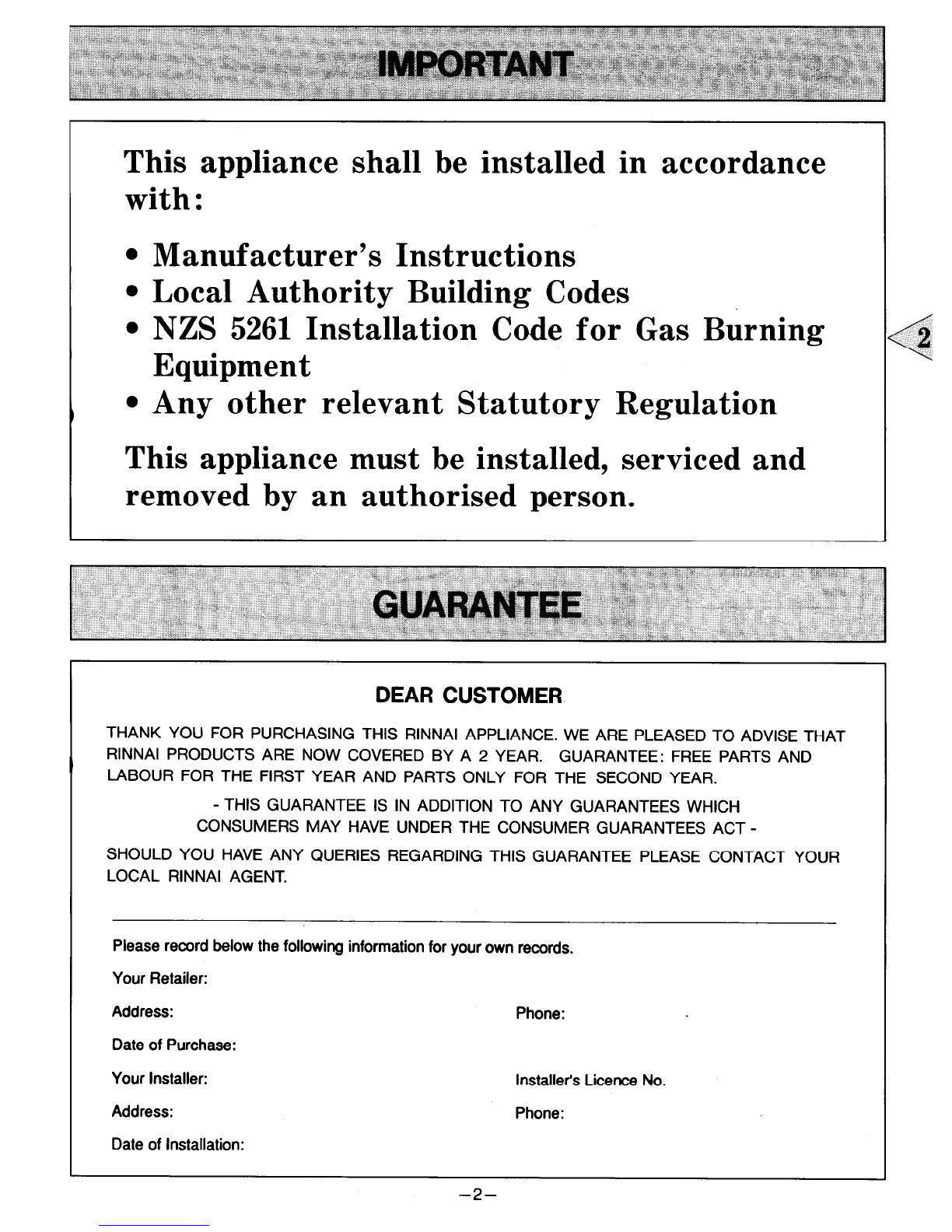

This applianceshall be installed in accordance

with:

l Manufacturer’s Instructions

l Local Authority Building Codes

l NZS 5261 Installation Code for Gas Burning

Equipment

l Any other relevant Statutory Regulation

This appliancemust be installed, servicedand

removed by an authorised person.

DEAR CUSTOMER

THANK YOU FOR PURCHASING THIS RINNAI APPLIANCE. WE ARE PLEASED TO ADVISE THAT

RINNAI PRODUCTS ARE NOW COVERED BY A 2 YEAR. GUARANTEE: FREE PARTS AND

LABOUR FOR THE FIRST YEAR AND PARTS ONLY FOR THE SECOND YEAR.

-THIS GUARANTEE IS IN ADDITION TO ANY GUARANTEES WHICH

CONSUMERS MAY HAVE UNDER THE CONSUMER GUARANTEES ACT -

SHOULD YOU HAVE ANY QUERIES REGARDING THIS GUARANTEE PLEASE CONTACT YOUR

LOCAL RINNAI AGENT.

Please record below the following information for your own records.

Your Retailer:

Address: Phone:

Date of Purchase:

Your Installer: Installer’s Licence No.

Address: Phone:

Date of Installation:

-2-

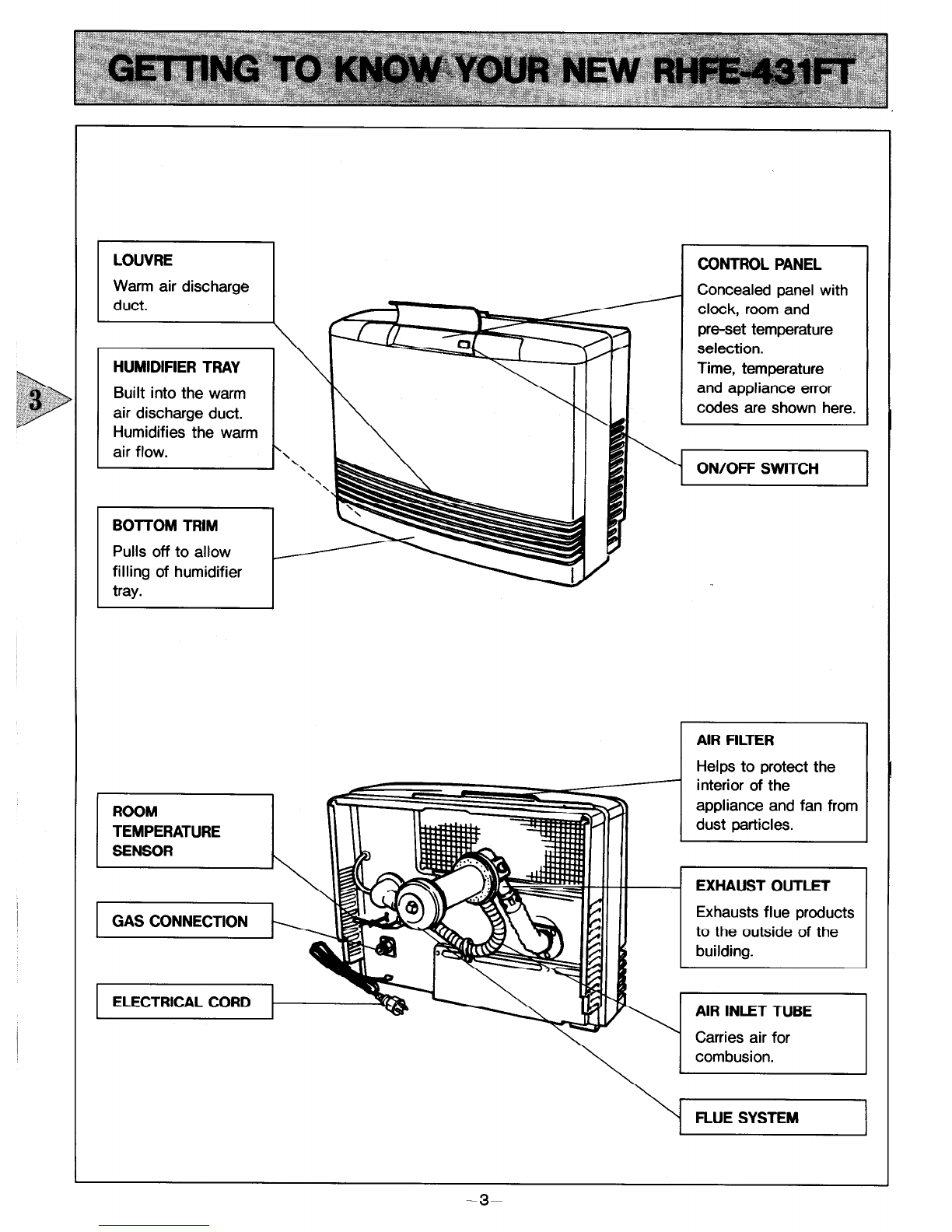

Warm air discharge

duct.

Built into the warm

air discharge duct.

Humidifies the warm

air flow.

CONTROL PANEL

Concealed panel with

clock, room and

pre-set temperature

selection.

Time, temperature

and appliance error

codes are shown here.

ON/OFF SWITCH

AIR FILTER

Helps to protect the

interior of the

appliance and fan from

dust particles.

Exhausts flue products

to the outside of the

-3-

I I i . I ;;[-I

Child Lock Economy Timer 1 Timer 2 Override Set l Room

Clock l

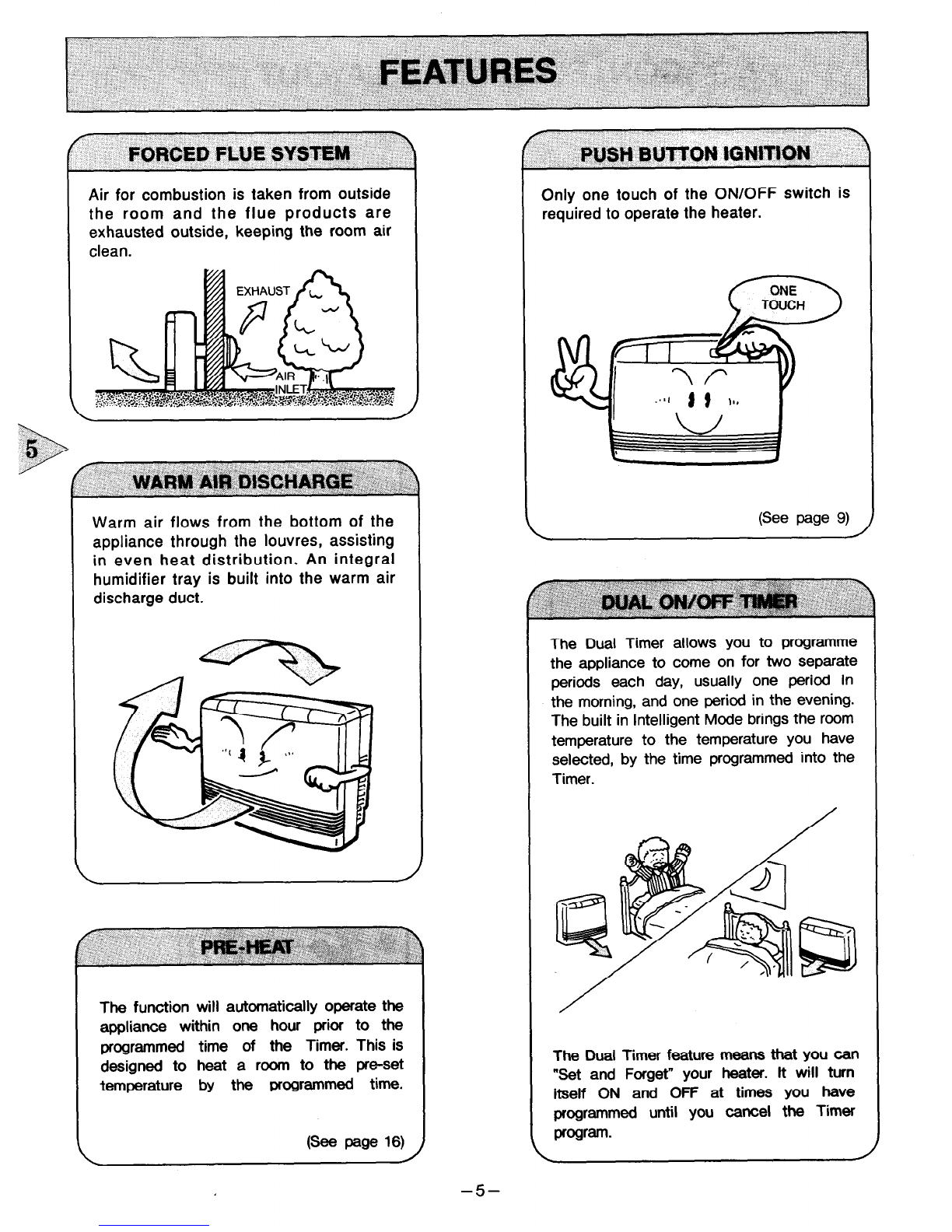

Air for combustion is taken from outside

the room and the flue products are

exhausted outside, keeping the room air

clean.

Warm air flows from the bottom of the

appliance through the louvres, assisting

in even heat distribution. An integral

humidifier tray is built into the warm air

discharge duct.

The function will automatically operate the

appliance within one hour prior to the

programmed time of the Timer. This is

designed to heat a room to the pm-set

temperature by the programmed time.

Only one touch of the ON/OFF switch is

required to operate the heater.

(Seepage9)

The Dual Timer allows you to programme

the appliance to come on for two separate

periods each day, usually one period in

the morning, and one period in the evening.

The built in Intelligent Mode brings the room

temperature to the temperature you have

selected, by the time programmed into the

Timer.

The Dual Timer feature means that you can

“Set and Forget” your heater. It will turn

itself ON and Off at times you have

programmed until you cancel the Timer

progr=n.

-5-

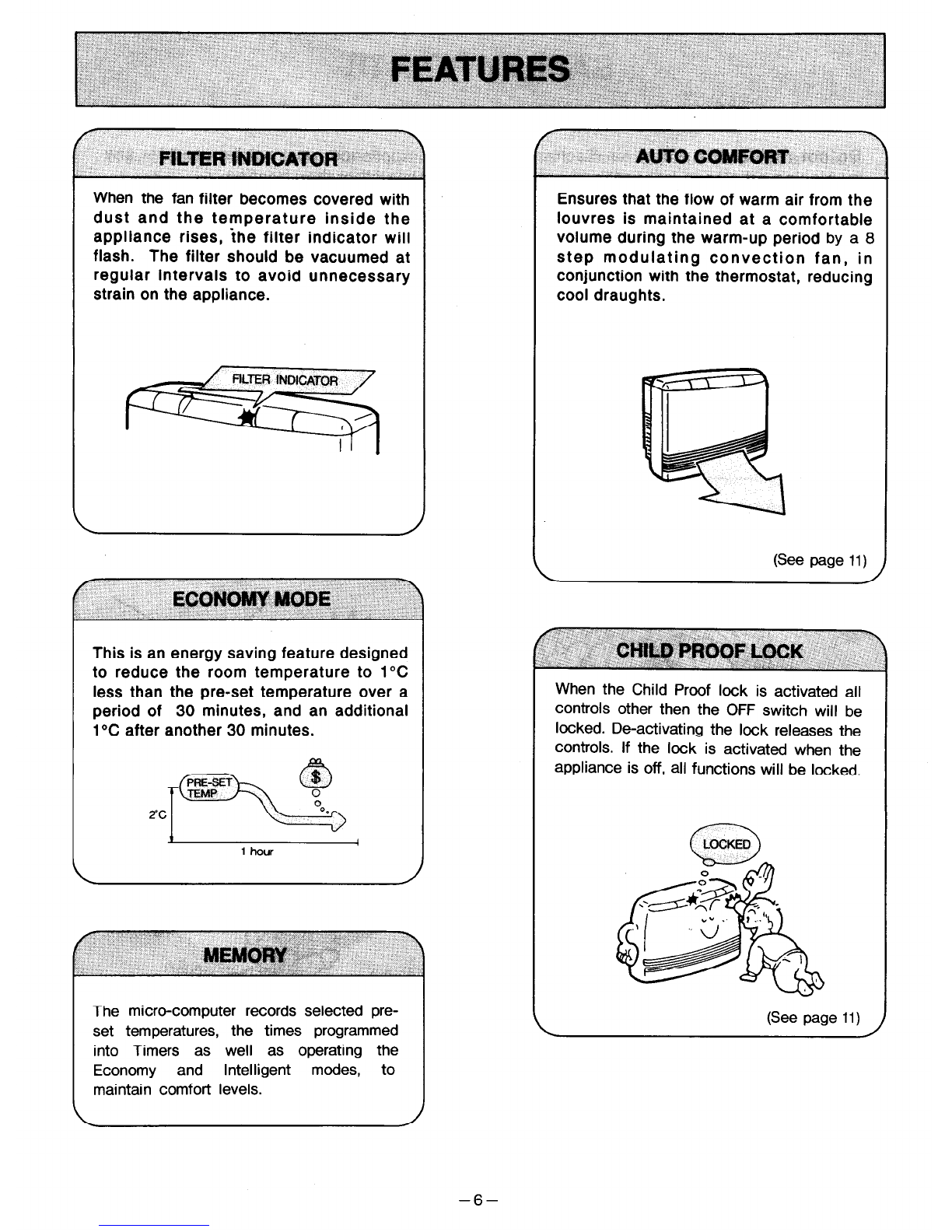

When the fan filter becomes covered witt

dust and the temperature inside the

appliance rises, ihe filter indicator wil

flash. The filter should be vacuumed a’

regular intervals to avoid unnecessaq

strain on the appliance.

This is an energy saving feature designed

to reduce the room temperature to 1°C

less than the pre-set temperature over a

period of 30 minutes, and an additional

1% after another 30 minutes.

1 hour

The micro-computer records selected pre-

set temperatures, the times programmed

into Timers as well as operating the

Economy and Intelligent modes, to

maintain comfort levels.

Ensures that the flow of warm air from the

louvres is maintained at a comfortable

volume during the warm-up period by a 8

step modulating convection fan, in

conjunction with the thermostat, reducing

cool draughts.

(See page 11)

When the Child Proof lock is activated all

controls other then the OFF switch will be

locked. De-activating the lock releases the

controls. If the lock is activated when the

appliance is off, all functions will be locked.

(See page 11)

-6-

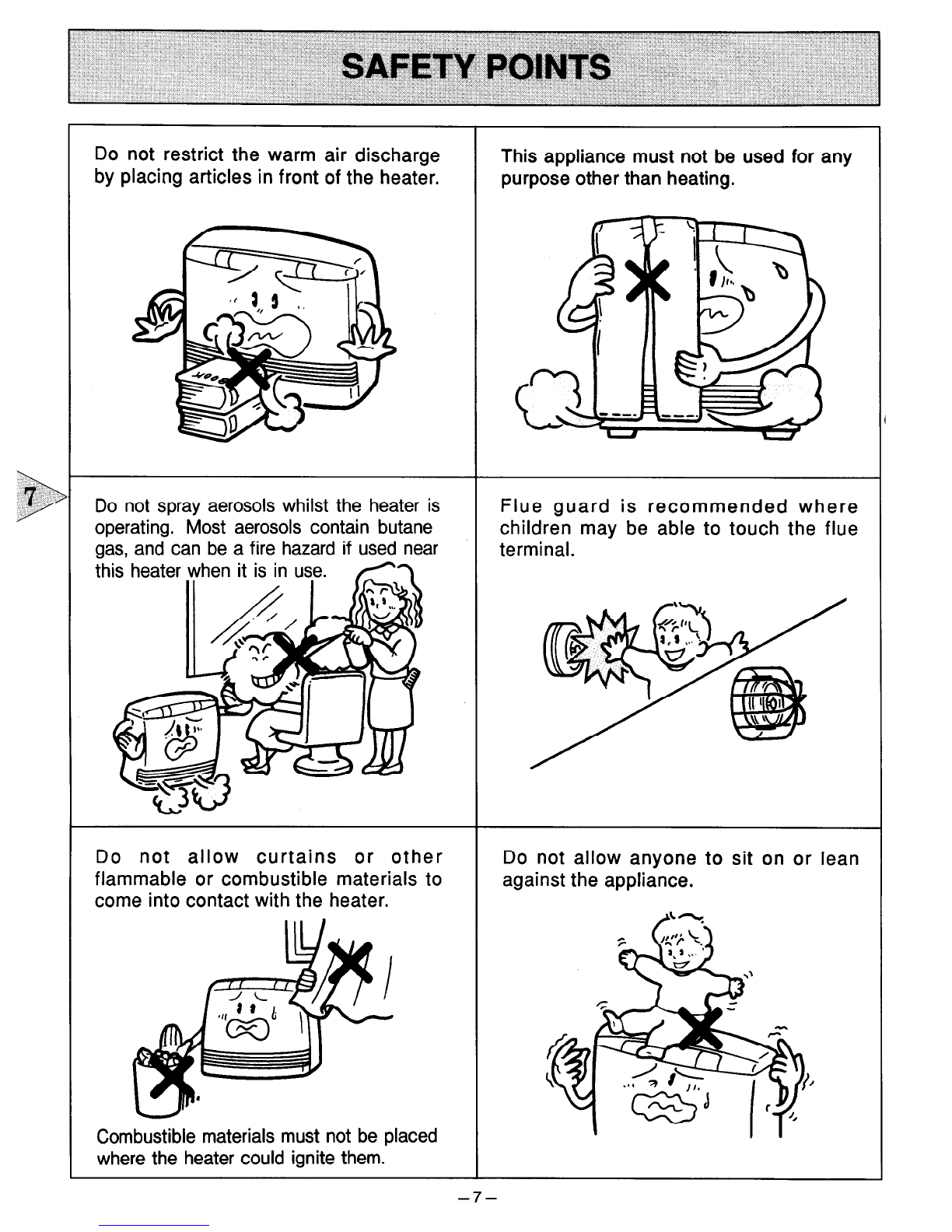

IO not restrict the warm air discharge This appliance must not be used for any

)y placing articles in front of the heater. purpose other than heating.

IO not spray aerosols whilst the heater is Flue guard is recommended where

operating. Most aerosols contain butane children may be able to touch the flue

Jas,and can be a fire hazard if used near terminal.

30 not allow curtains or other

‘lammable or combustible materials to

:ome into contact with the heater.

Do not allow anyone to sit on or lean

against the appliance.

Combustible materials must not be placed

where the heater could ignite them.

-7-

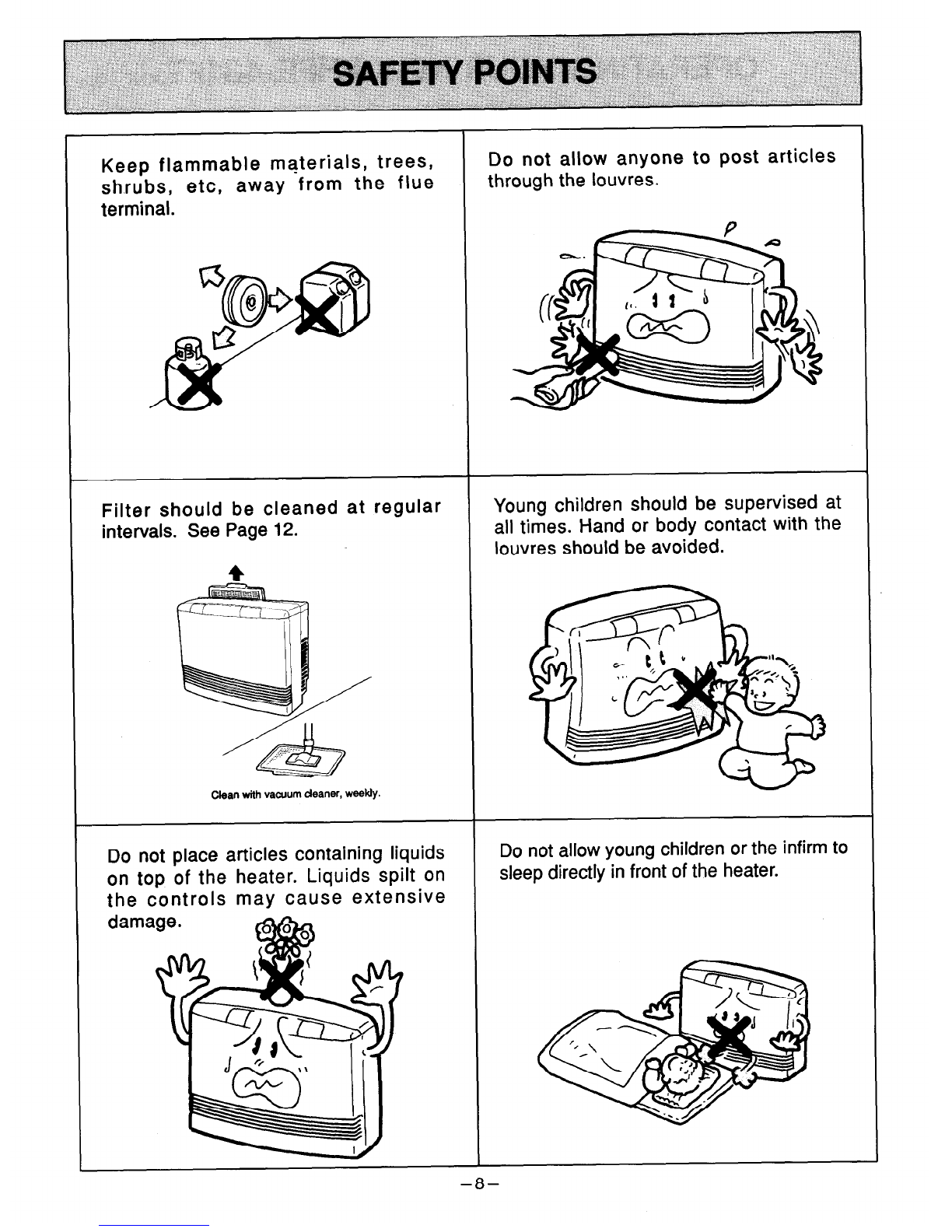

Keep flammable materials, trees,

shrubs, etc, away from the flue through the louvres.

terminal.

Filter should be cleaned at regular Young children should be supervrse

intervals. See Page 12. all times. l-land or body contact with the

louvres should be avoided.

Clean with vacuum Cleaner, weekly.

Do not place articles containing liquids Do not allow young children or the infirm to

on top of the heater. Liquids spilt on sleep directly in front of the heater.

the controls may cause extensive

-8-

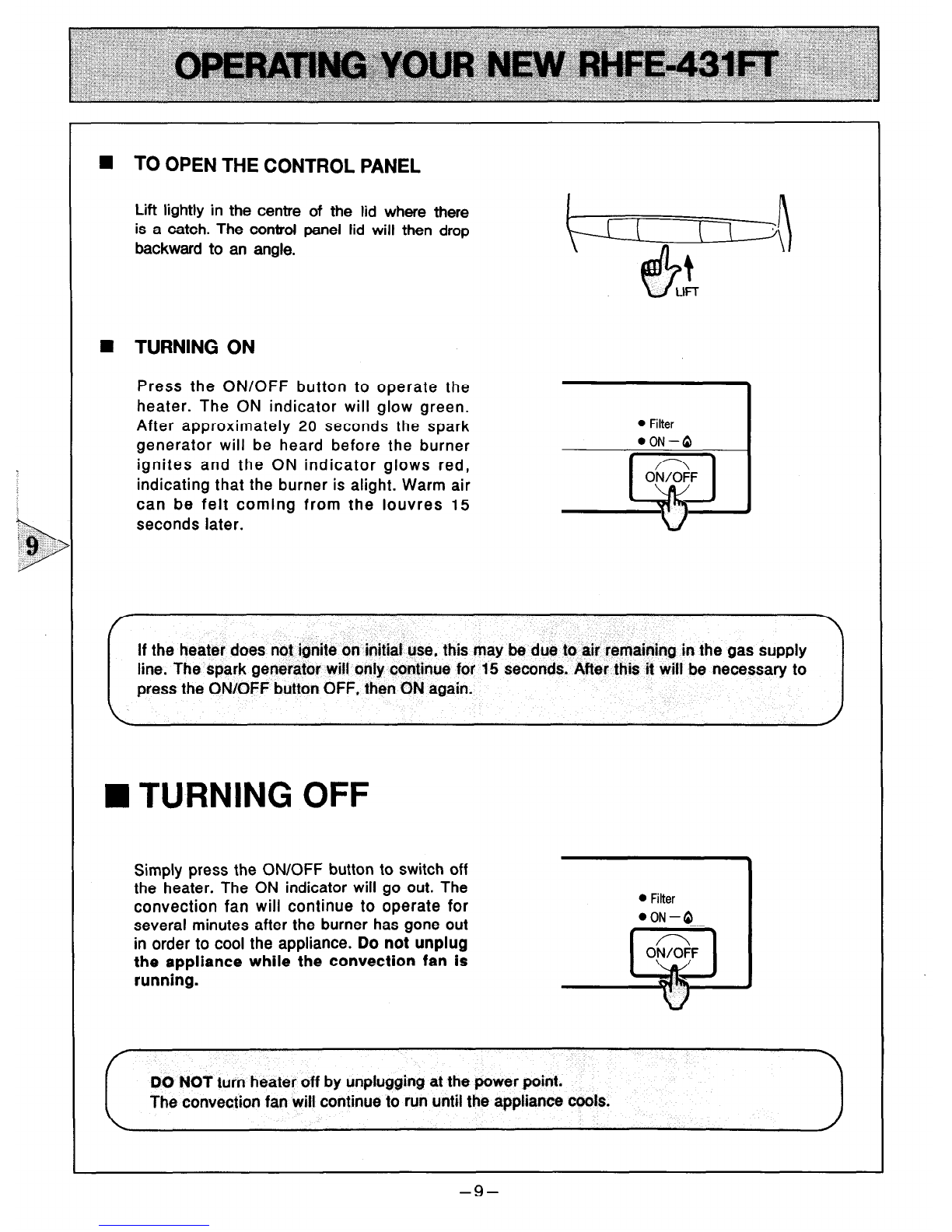

n TO OPEN THE CONTROL PANEL

Lift lightly in the centre of the lid where there

is a catch. The control panel lid will then drop

backward to an angle.

n TURNING ON

Press the ON/OFF button to operate the

heater. The ON indicator will glow green.

After approximately 20 seconds the spark

generator will be heard before the burner

ignites and the ON indicator glows red,

indicating that the burner is alight. Warm air

can be felt coming from the louvres 15

seconds later.

b=gd

LIFT

l Filter

@ON-&

If the heater does not ignite on initial use, this may be due to air remaining in the gas supplyIf the heater does not ignite on initial use, this may be due to air remaining in the gas supply

line. The spark generator will only continue for 15 seconds. After this it will be necessary toline. The spark generator will only continue for 15 seconds. After this it will be necessary to

press the ON/OFF button OFF, then ON again.press the ON/OFF button OFF, then ON again.

\ /

n TURNING OFF

Simply press the ON/OFF button to switch off

the heater. The ON indicator will go out. The

convection fan will continue to operate for

several minutes after the burner has gone out

in order to cool the appliance. Do not unplug

the appliance while the convection fan is

running.

0 Filter

*ON-Q

DO NOT turn heater off by unplugging at the power point.

The convection fan wilt continue to run until the appliance coots.

-9-

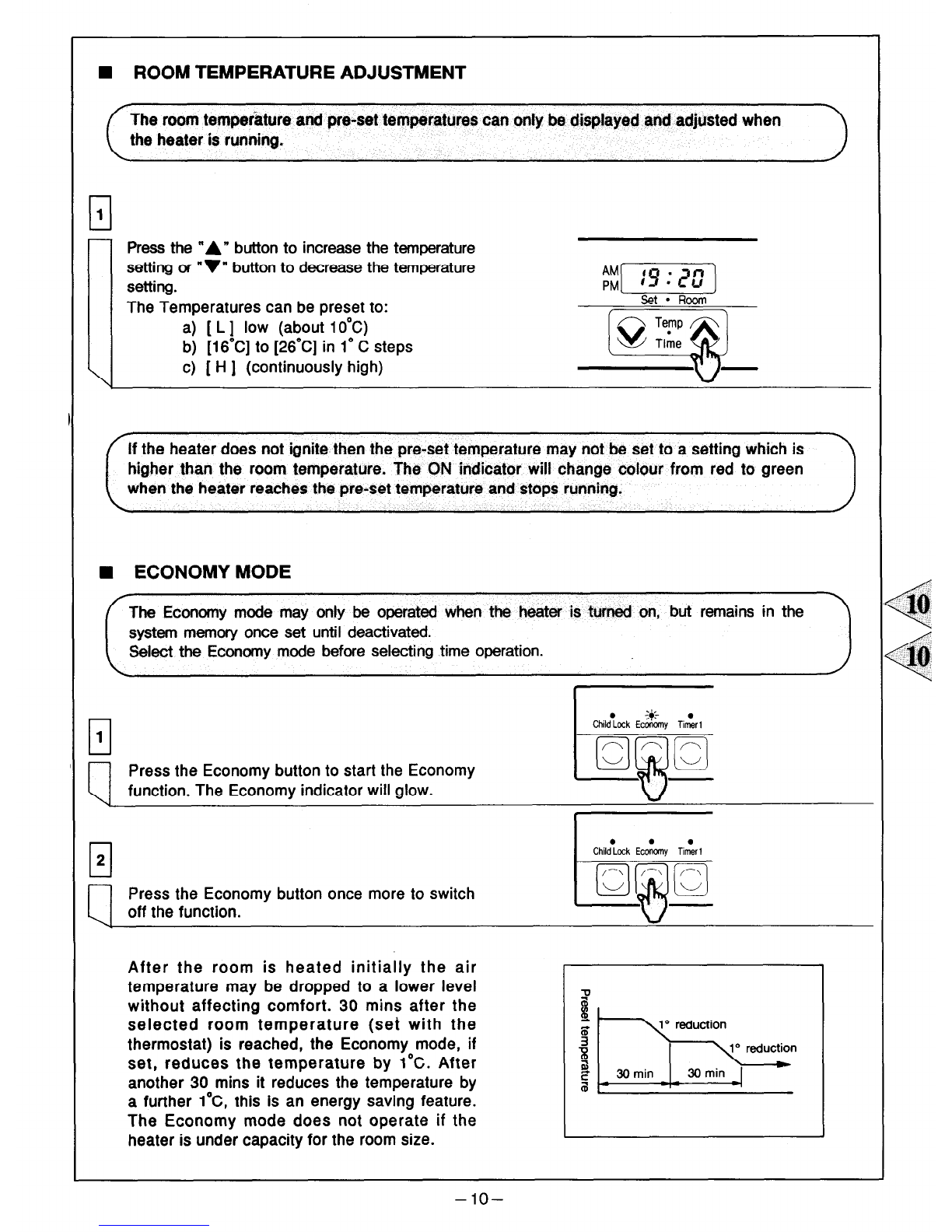

W ROOM TEMPERATURE ADJUSTMENT

e room temperature and pre-set temperatures can only be displayed and adjusted when

the heater is running.

Press the “A” button to increase the temperature

setting or “v” button to decrease the temperature

setting.

The Temperatures can be preset to:

a) [ L ] low (about 10°C)

b) [16’C] to [26’C] in 1’ C steps

c) [ H ] (continuously high)

f the heater does not ignite then the pre-set temperature may not be set to a setting which is

higher than the room temperature. The ON indicator will change colour from red to green

when the heater reaches the pm-set temperature and stops running.

H ECONOMY MODE

system memory once set until deactivated.

Select the Economy mode before selecting time operation.

Press the Economy button to start the Economy

function. The Economy indicator will glow.

Press the Economy button once more to switch

off the function.

After the room is heated initially the air

temperature may be dropped to a lower level

without affecting comfort. 30 mins after the

selected room temperature (set with the

thermostat) is reached, the Economy mode, if

set, reduces the temperature by 1°C. After

another 30 mins it reduces the temperature by

a further l”C, this is an energy saving feature.

The Economy mode does not operate if the

heater is under capacity for the room size.

-lO-
