Panduit NKFD1W6**DSC User manual
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2016 FS126
NetKey Pre-Loaded Fiber Drawers
Part Numbers: NKFD1W6**DSC, NKFD1W12**DSC, NKFD1W12**DLC,
NKFD1W24**DLC
NKFD1W12**DSC
NKFD1W24**DLC
NKFD1W6**DSC
NKFD1W12**DLC
Accessory Kit
(4) #12-24 x 1/2" Screws, (4) M6 Screws, (1) Fiber Caution Label, (1) Laser Warning Label, (2) Slack Spools and (1) PG11 Gland.
** Denotes adapter color/fiber type: EI (Electric Ivory/OM1 62.5/125µm), BL (Black/OM2 50/125µm), AQ (Aqua/OM3 10Gig 50/125µm),
or BU (Blue/OS1/OS2 9/125µm).
Knockouts for Blown Fiber Adapters
(4 places)
Knockouts for Rubber Grommets
(2 places)
30mm Diameter
Knockouts for PG11 Glands
(2 places)
20mm Diameter
Drawer Release
Latches
Provisions for Port
Identification Labeling
Page 1 of 4
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2016 FS126

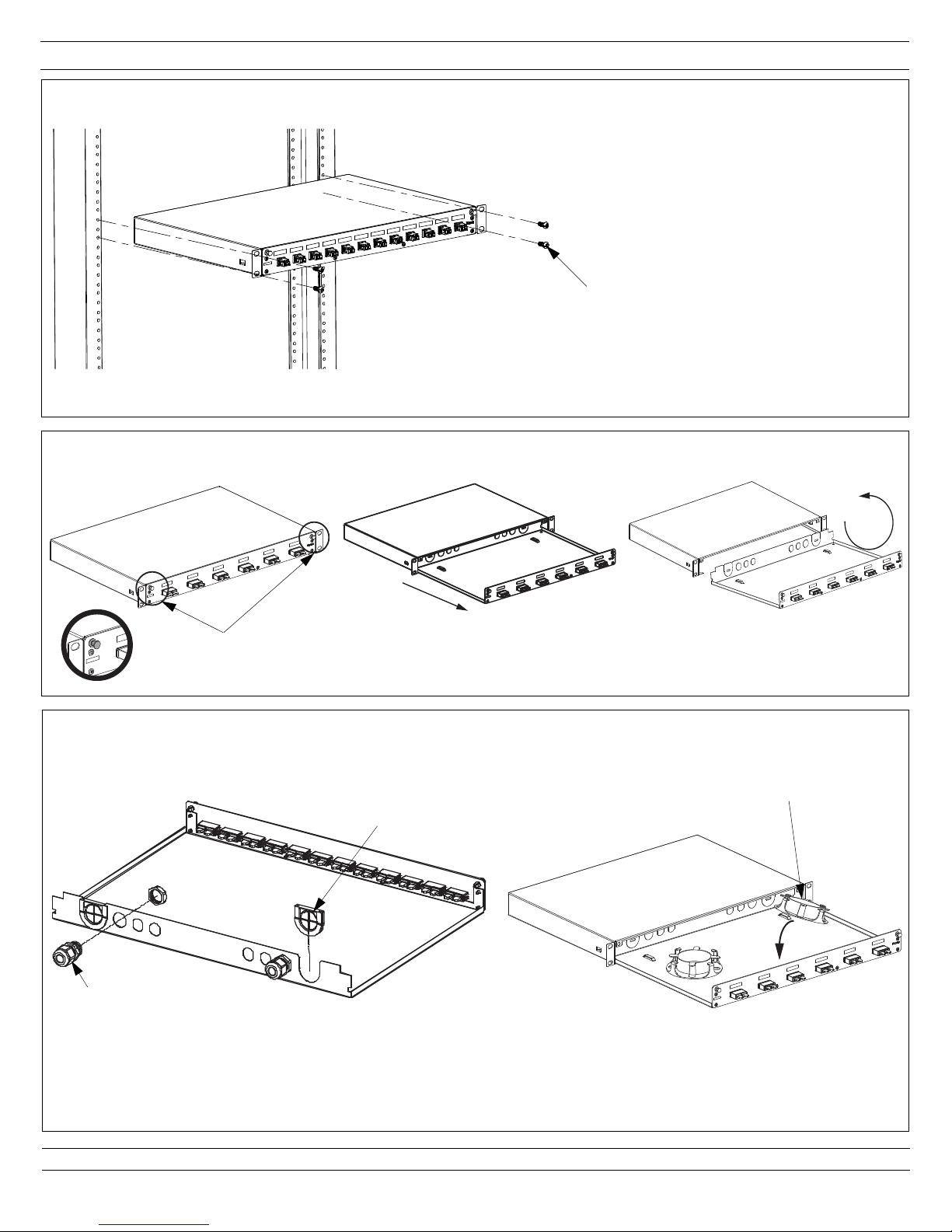

Mounting
6mm or #12-24 x 1/2" screws provided
(4 places)
Drawer Opening and Removal
Release latches
Grommet, Gland, and Spool Installation
Rubber Grommet
PG11 Gland
Remove knockouts and insert grommets and/or glands as shown
above.
Remove the liner from the tape underneath each fiber
management spool. Place the fiber management spools
inside the enclosure as shown above.
Note: Do not install spools if splicing with Fiber Optic Splice
Module (FOSM).
Spool
Slide drawer forward Rotate up and remove
Page 2 of 4
Mount the enclosure to rack using four (4) 6mm or #12-24 x 1/2" screws provided.
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2016 FS126
Typical Cable Routing Options
Grommet with Pre-Terminated Trunk
or Field Termination
PG11 Gland with splicing using the
FSC24 Splice Sleeve Holder
PG11 Gland with Pre-Terminated Trunk
or Field Termination
Grommet with splicing using the
FSC24 Splice Sleeve Holder
Page 3 of 4
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2016 FS126
E-mail:
Phone:
866-405-6654
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp www.panduit.com
Typical Cable Routing Options (continued)
Blown Fiber with splicing using
the FSC24 Splice Holder
Grommet with splicing using the
Fiber Optic Splice Module (FOSM)
PG11 Gland with splicing using the
Fiber Optic Splice Module (FOSM)
Blown Fiber with fusion splicing using the
Fiber Optic Splice Module (FOSM)
FOSM installation: Place double stick tape underneath
FOSM and locate the FOSM in the enclosure as shown.
Page 4 of 4
