Omega OM-ESW-105-POE User manual
OM-ESW-105-POE
Unmanaged Industrial
Ethernet POE Switch
Extended Warranty
Program
SM
®�
For latest product manuals:
www.omegamanual.info
Shop online at
omega.com®
User’s Guide
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
omega.com [email protected]
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.

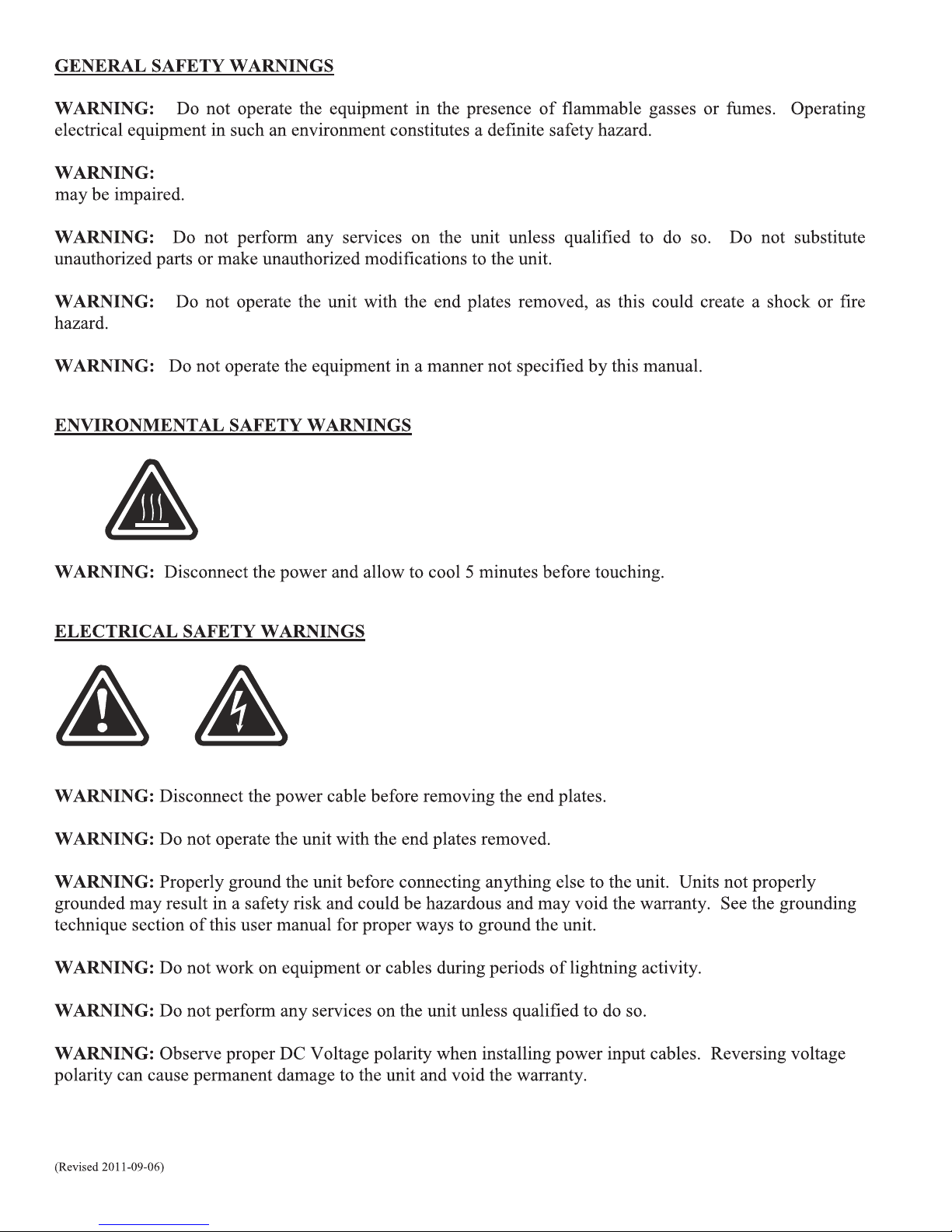

WARNING: These products are not designed for use in, and should not be used for, human applications.
If the equipment is used in a non-specified manner the protection provided by the equipment
1
2

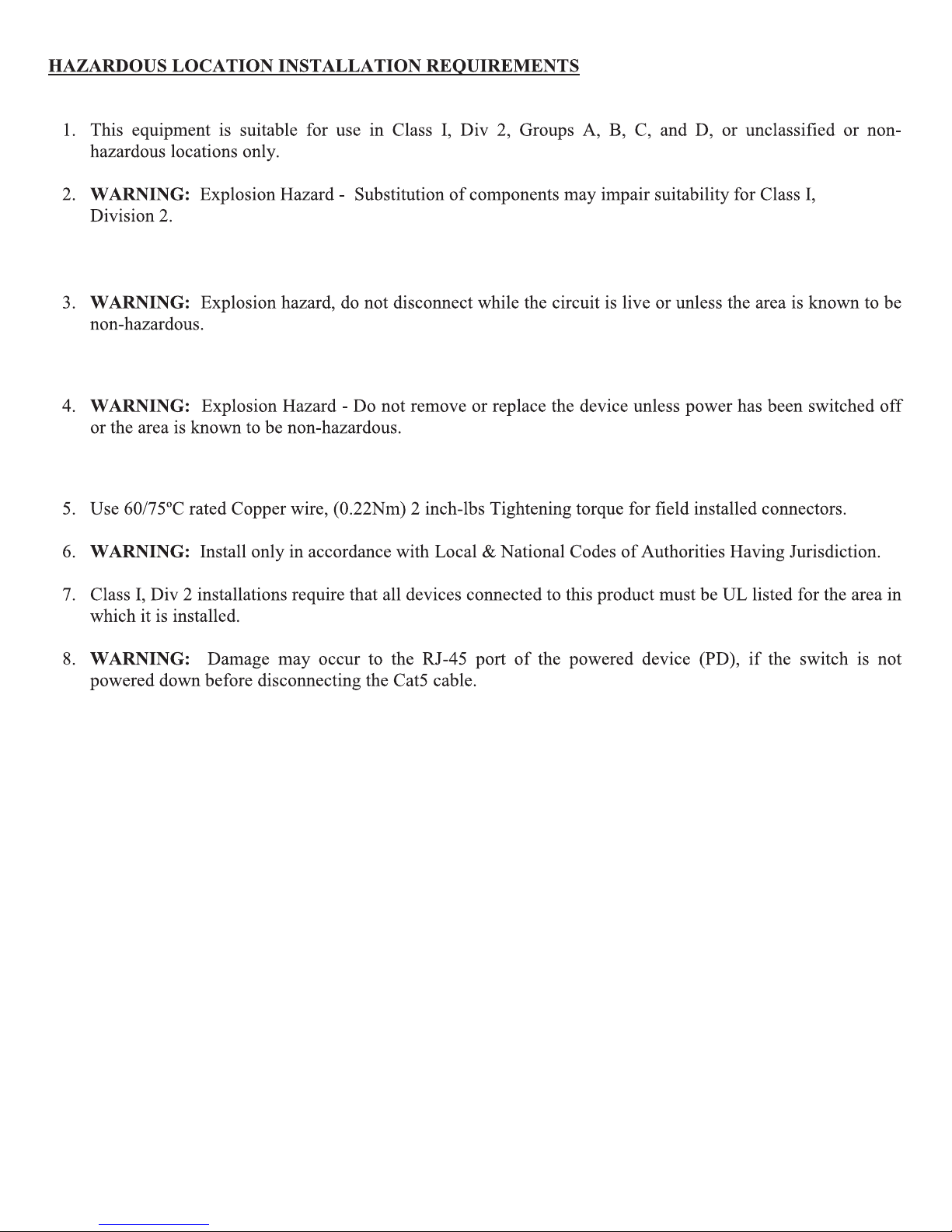

ALERTE: – Risque D’explosion – Remplacement d’un composant peut empêcher la conformité de Classe I,
Division 2.
ALERTE: – Risque D’explosion – Ne débranchez pas tant que le circuit est sous tension sauf si la zone est
connue pour être non dangereux.
ALERTE: – Risque D’expl osion – Ne pas remplacer le dispositif que l’alimentation est coupée ou que la
zone est connue pour être non dangereux.
(Revised 2013-12-13)

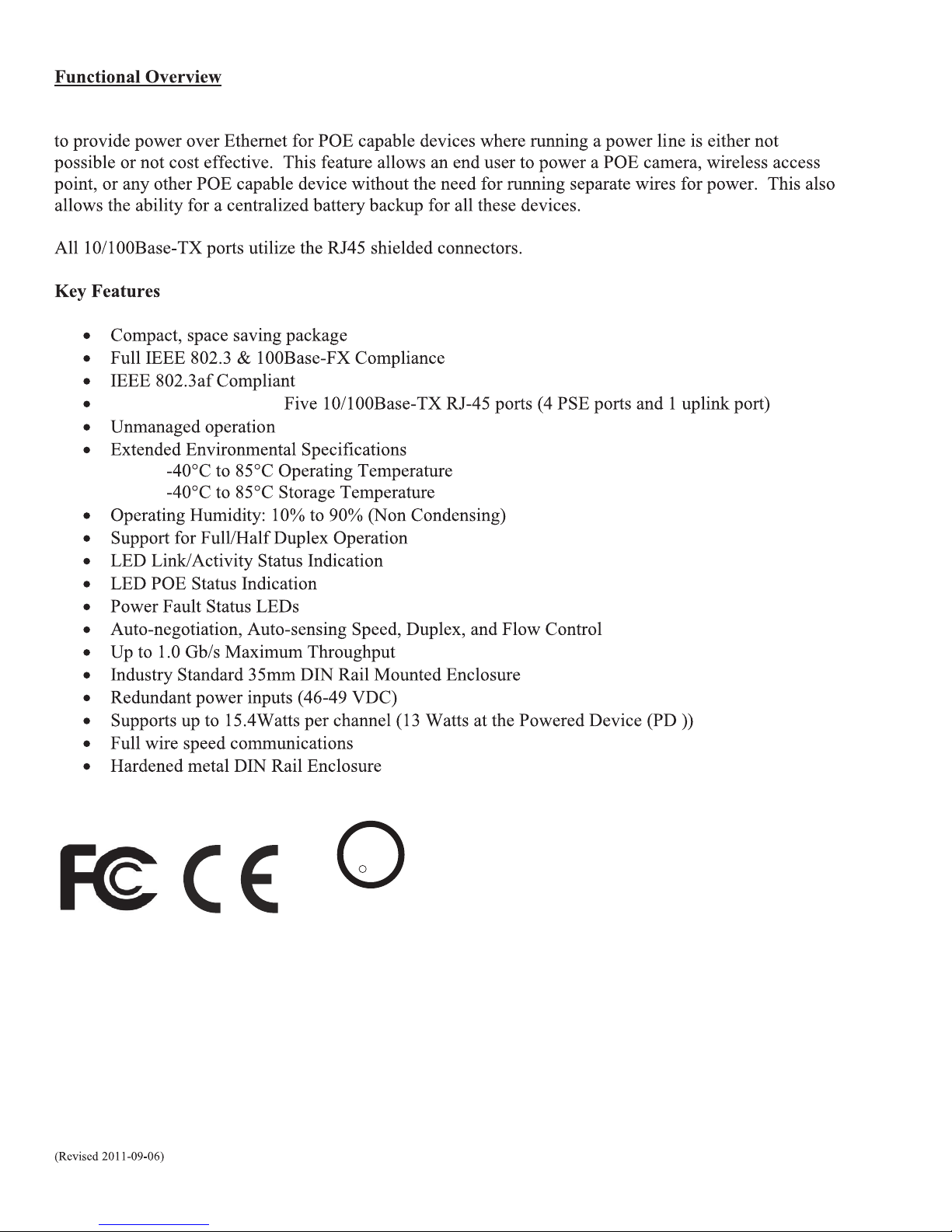

The OM-ESW-105-POE Power over Ethernet Unmanaged Industrial Ethernet Switch is designed

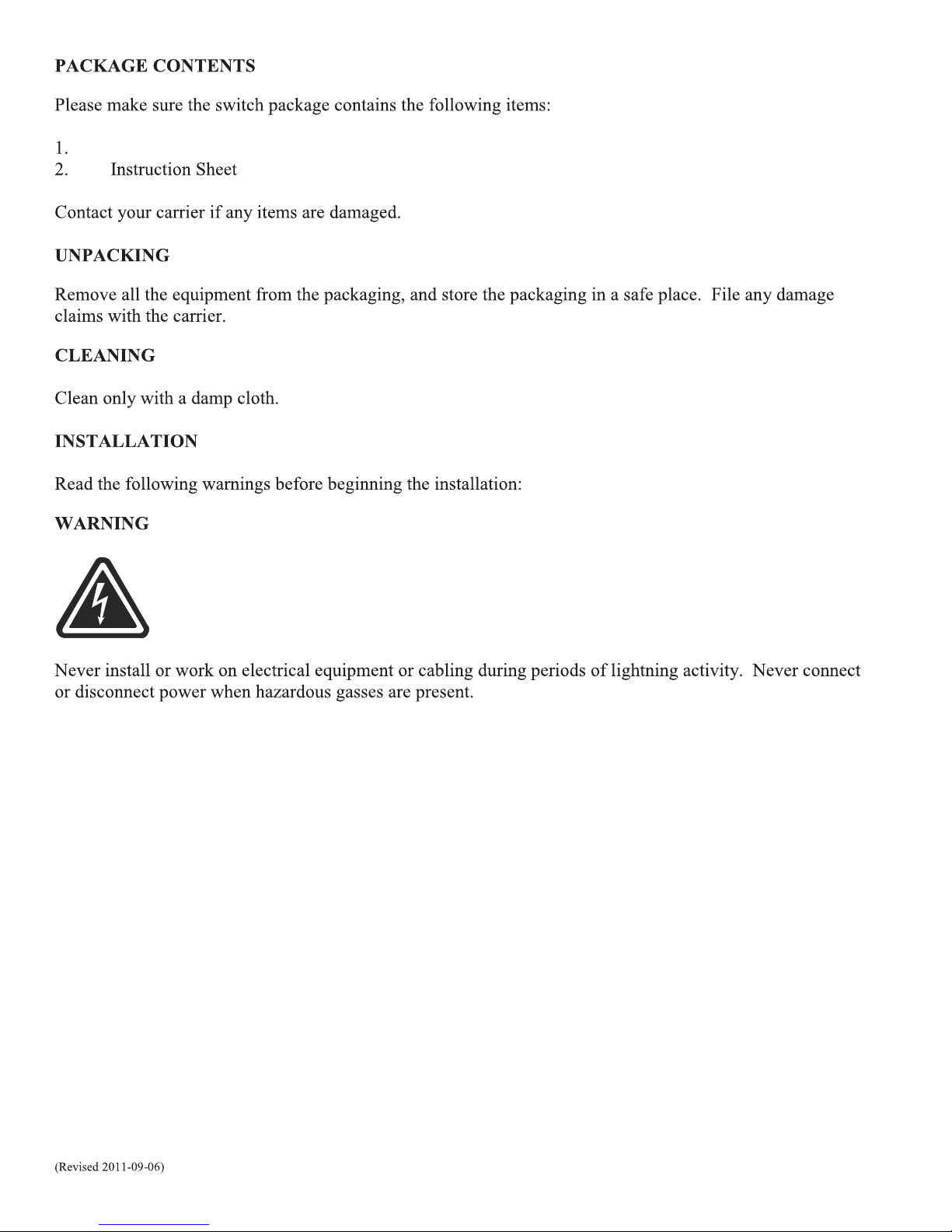

OM-ESW-105-POE -
3
CUS
UL
R
LISTED
65SN
E356443
OM-ESW-105-POE
4

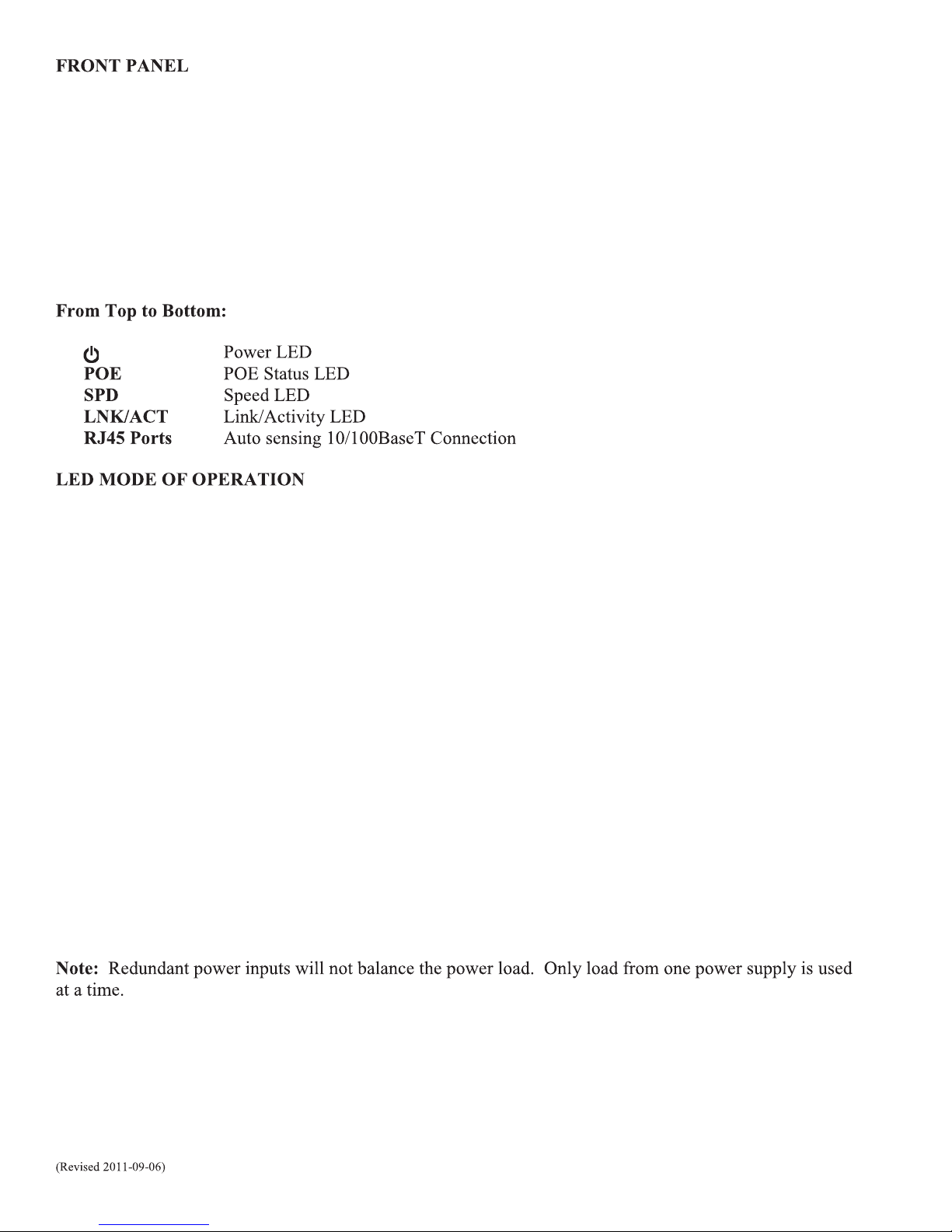

5
OM-EWS-105-POE
6
7
The grounding philosophy of any control system is an integral part of the design. OM-ESW-105-POE switches
are designed to be grounded, but the user has been given the flexibility to float the switch when required. The
best noise immunity and emissions (i.e. CE) are obtained when the OM-ESW-105-POE switch chassis is
connected to earth ground via a drain wire.
manufactured to EIA-568A or 568B specifications are required for use with the OM-ESW-105-POE switches.
GROUNDING TECHNIQUES FOR OM-ESW-105-POE
8
