ASSEMBLY INSTRUCTIONS.
IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
682746 SPIRIT CABINET
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple
step by step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly..
• We recommend the use of the wall attachment bracket for safety reasons.
Helpline
If you have any problems with this
product or require any replacement
fittings please contact Customer
Services Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed
unless the item is found to be faulty. Should you need to return the unassembled product,
please repack in the original packaging.
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down
the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
Avoid keeping furniturein direct sunlight or closeto any heat sources as this can cause cracking,
discolouration or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
All assembly fixings should always be tightened properly and periodically check all fixings and
tighten if necessary.
• The finish will mellow and change colour over time.
CARE INSTRUCTIONS
PRODUCT INFORMATION
Tools Needed
Made in Poland.
GLASS INFORMATION
This item contains glass. Please handle with extreme care.
Batch No: MM-42 , Date of Manufacture: May 2013
This unit contains safety film backed mirrored glass door panels of a nominal thickness of 3 mm
which are not required to be classified to BS 6206.
If a glass component is chipped or broken replace with glass of the type described on this label.
Consult the manufacturer, retailer or agent with regard to obtaining a manufacturing specification
and shape for replacement glass quoting the model number, and batch number or date of
manufacture.
1 of 15 PL--SP02
1 PERSON ASSEMBLY
ASSEMBLED DIMENSIONS
APPROXIMATE ASSEMBLY TIME
REQUIRED ASSEMBLY TOOLS
REQUIRED ASSEMBLY SPACE
FLOOR AREA
1.5 M x 1.5 M
1 h
Assembly
Instruction
682746 SPIRIT CABINET
2
676 mm
548 mm
160 mm
DESCRIPTION:
of 15 PL--SP02
PARTS LIST
NO PART LIST QTY
.
DESCRIPTION:
Assembly
Instruction
(1) VERTICAL DIVIDER R
(2) VERTICAL DIVIDER L
(3) SIDE
(4) MIRROR DOOR
(5) TOP OR BOTTOM PANEL
(6) BACK PANEL OF EXTERNAL
(7) BACK PANEL INNER
(8) NARROW SHELF
(9) WIDE SHELF

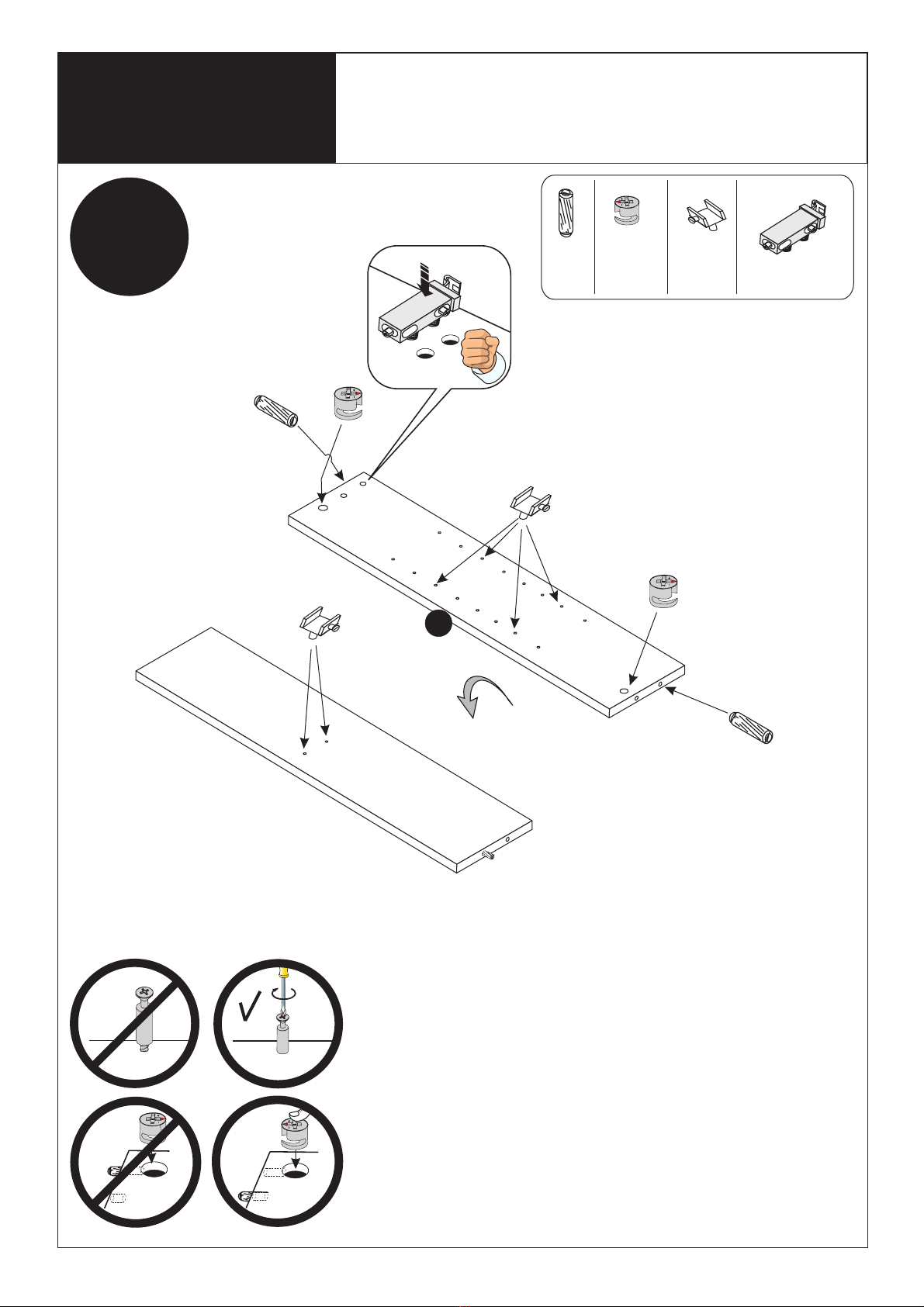

1
1
2
1
2
2
1
2
2
3
1
2
3
5
5
7
4
3
8
6
6
8
9
682746 SPIRIT CABINET
of 15 PL--SP02
HARDWARE LIST DO NOT MIX CONTENT OF HARDWARE BOXES
DESCRIPTION:
10 20 30 40 50 60 70 80 90 100 mm
Assembly
Instruction
A
x8
8x28
+
B
x12
15x12
DOWEL CAM LOCK
C
x16
D
x1L/x1R
E
x2
26
HINGE
F
x4 G
x12
5x39
CAM BOLT
SCREW
HI
x2 x4
4x13 6,3x13
SCREW
M
x2
N
x12
15mm
CAM COVER
O
x1L/x1R
4
J
x12
K
x8
L
x8
HINGE PLATE
SHELF
SUPPORT
BAG 1
BAG 2
BAG 3
PLASTIC
SUPPORT
Metal plate
Metal plate
HANGER
HANGER COVER
BAG 1 BAG 1
BAG 1
BAG 1
BAG 1
BAG 1
BAG 1
BAG 2
BAG 2
BAG 2
BAG 3
BAG 3
1:2
SCREW
3,5x18
1:2
P
x2
SILICON PEG
BAG 1
1:2
682746 SPIRIT CABINET
of 15 PL--SP02
DESCRIPTION:
Assembly
Instruction
Top Tips before you start!
1. Please check that all parts are present before you start the assembly of your furniture,
as once assembed, the furniture is exempt from our home approval policy.
2. For ease and speed of assembly, we recommend that before you commence each step
of the assembly, that you identify all the parts required for that step.
3. For larger items, please ensure that you have sufficient space and people (as indicated
on page1) to assemble your product safely.
4. We recommend that, where possible, all items are assembled near to the area in which
they will be placed in use, to avoid moving the product unnecessarily once assembled.
5. For the protection of your furniture, particularly items of high gloss finish, we recommend
that the product is placed on a protected surface during assembly to prevent any damage.
6. During assembly please take care not to over-tighten any fittings, as this may damage
the product ..
Care and Maintenance of your Furniture
Please periodically check all fittings and re-tighten as necessary.
Please do not jump on your furniture.
To clean your item, please use a damp cloth and wipe clean.
Never allow any kind of liquid to remain on your furniture.
Absorption can cause wood to warp or
finishes to de-laminate.
5
682746 SPIRIT CABINET
of 15 PL--SP02

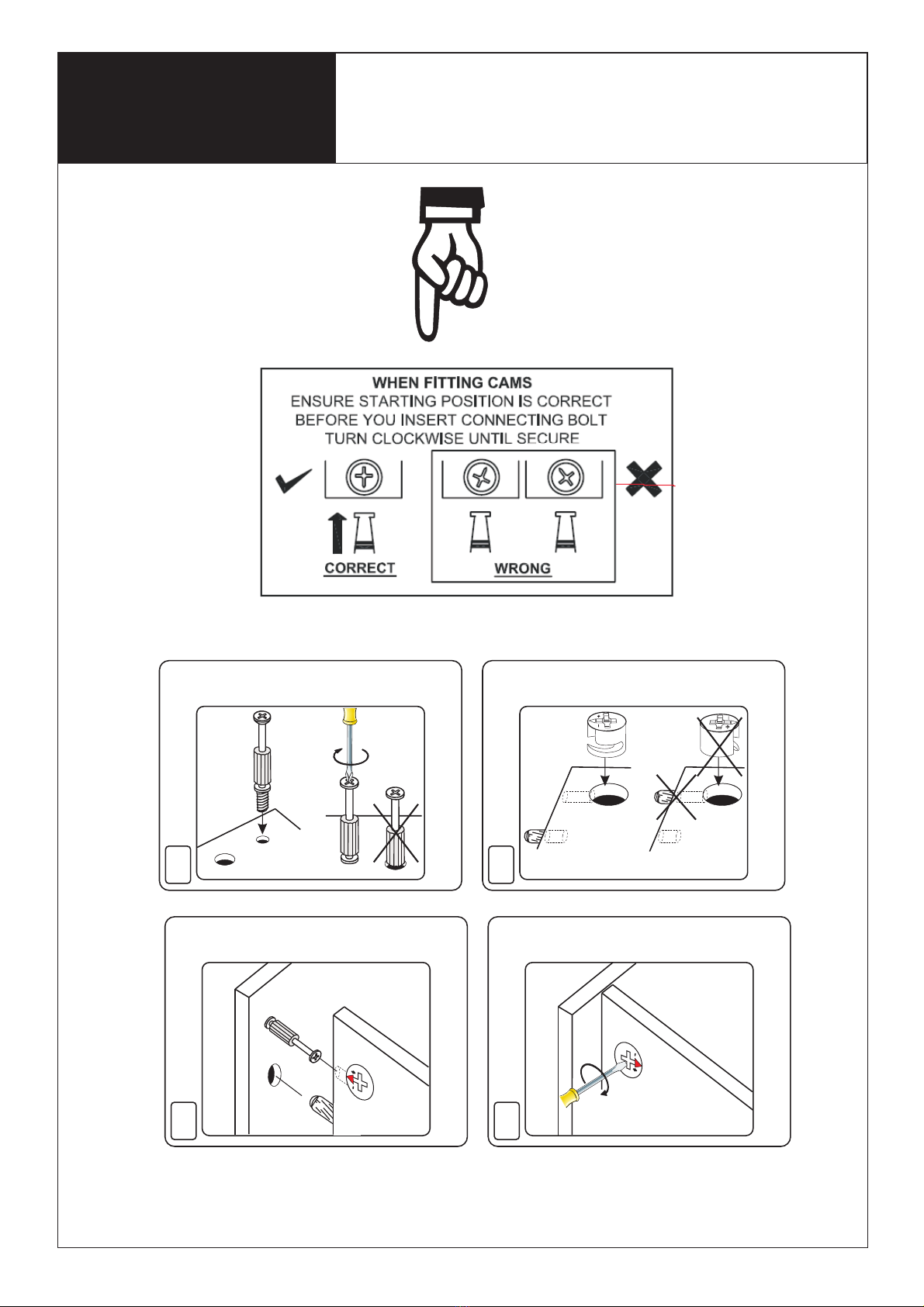

SCREW IN CAM SCREWS
ONLY D O W N TO F I R S T R I N G.
FLUSH
WITH
PANEL
1
PRESS PANELS TOGETHER ALIGNING
DOWEL WITH H O L E S , C A M S C R E W S W I T H L O C K S .
3
TO SECURE PA N E L S ,
TURN CAM LOCKS 1/2 TURN CLOCKWISE.
4
CAM SH OW N IN
LO CK ED P OS IT IO N.
+
+
PRESS IN CAM LOCKS. A R R O W O N C A M
LOCK MUST FA C E H O L E I N PA N E L EDGE.
DO N OT IN SE R T DO WEL S
IN C AM SC RE W / L OC K HOL ES .
2
+
+
DESCRIPTION:
Assembly
Instruction
6
682746 SPIRIT CABINET
of 15 PL--SP02
a)
B
A
b)
A
c)
C
C
Instructions for hinge adjustment
a) Side adjustment:
b) Depth adjustment:
c) Height adjustment:
Loosen fixing screw "A", adjust gap with screw "B" and retighten
screw "A".
Loosen fixing scerw "A", push hinge arm forwards or backwards,
Loosen screw "C", adjust height, retighten screw "C".
retighten screw "A", fix screw "B" with a 1/4-turn in clock-wise
direction.
DESCRIPTION:
Assembly
Instruction
7
682746 SPIRIT CABINET
of 15 PL--SP02
DESCRIPTION:
Assembly
Instruction
1
+
+
+
+
1
+
A B C D E
x2 x2 x6 x1 x2
RF
x4
8
A
A
B
B
C
D
C
E
F
front
E
E
682746 SPIRIT CABINET
of 15 PL--SP02
DESCRIPTION:
Assembly
Instruction
2
9
+
+
+
A B C D
x2 x2 x6 x1
L
+
+
A
A
B
B
C
D
2
C
682746 SPIRIT CABINET
of 15 PL--SP02
DESCRIPTION:
Assembly
Instruction

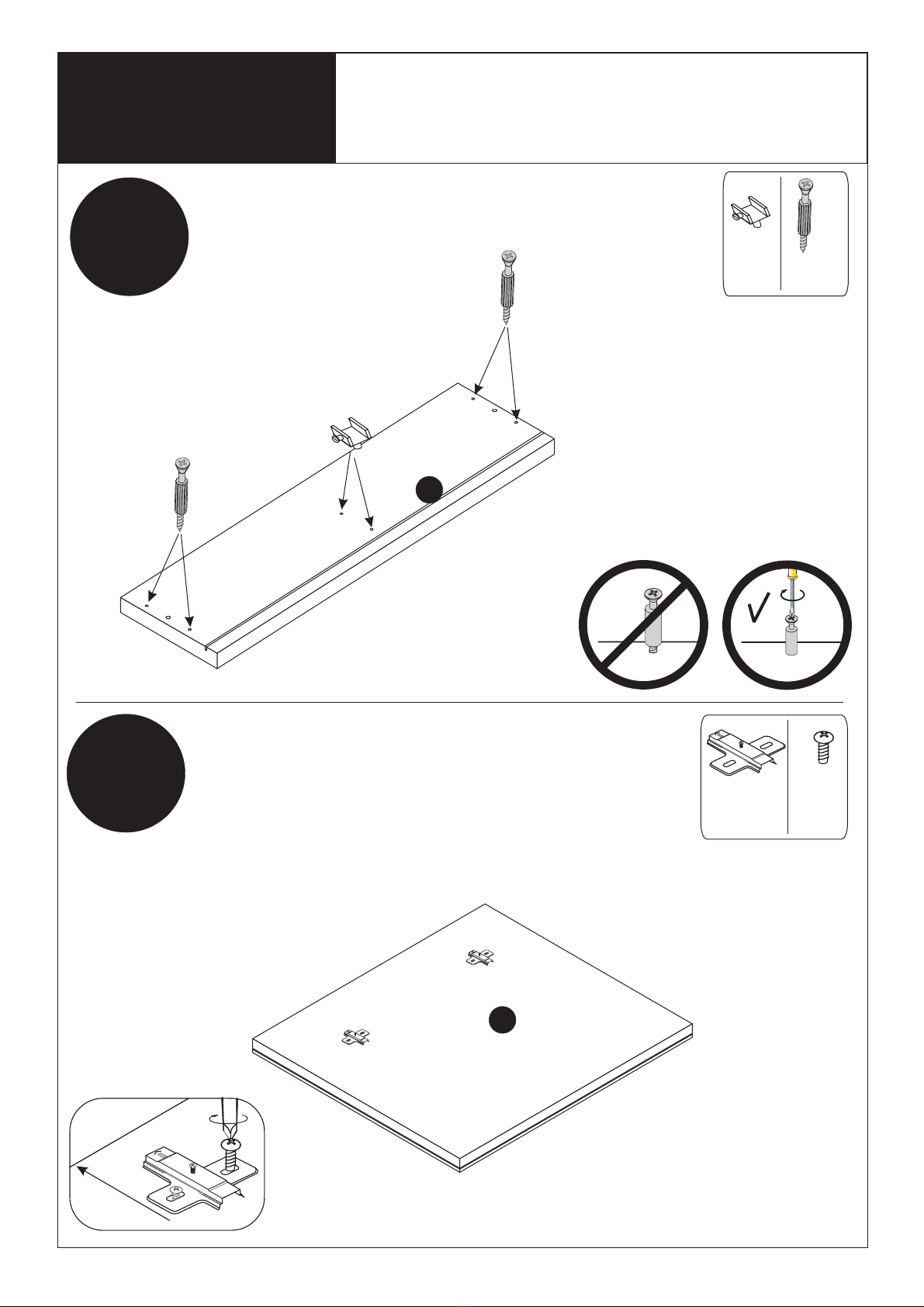

3
10
4
front
3
4
C
x4
G
x8
HI
x2 x4
C
G
H
H
H
I
G
DO THIS STEP TWICE (2x)
682746 SPIRIT CABINET
of 15 PL--SP02
