Newport ORIEL INSTRUMENTS OPS-A150 User manual

Family of Brands –ILX Lightwave® • New Focus™ • Ophir® • Corion • Richardson Gratings™ • Spectra-Physics®

90074224 MOPS-A, Rev C 7/25/19

Oriel®Arc Lamp

Power Supplies

User's Manual

OPS-A150, OPS-A500,

OPS-A1000

OPS-A
Arc Lamp Power Supplies
Page 2


GENERAL INFORMATION .........................................................................................5
2 GENERAL WARNINGS.............................................................................................................6
3 ELECTRICAL HAZARDS...........................................................................................................7
4 FIRE HAZARDS.........................................................................................................................7
5 LAMP HANDLING......................................................................................................................7
6 LIGHT HAZARDS ......................................................................................................................7
INTRODUCTION..........................................................................................................8
1 DESCRIPTION/FEATURES ......................................................................................................8
2 DIMENSIONS ............................................................................................................................9
3 ARC LAMP COMPATIBILITY ..................................................................................................10
SYSTEM SETUP........................................................................................................12
1 ITEMS INCLUDED WITH SYSTEM.........................................................................................12
2 UNPACKING............................................................................................................................12
3 CHOOSING A LOCATION.......................................................................................................13
4 POWER SUPPLY CONNECTIONS.........................................................................................14
4.1. Front Panel Controls/Connections..........................................................................14
4.2. Rear Panel Controls/Connections (OPS-A150, OPS-A500 models only)..............15
4.3 Rear Panel Controls/Connections (OPS-1000 model only)....................................19
5 INITIAL START-UP SCREEN..................................................................................................24
QUICK START GUIDE ..............................................................................................25
1 SETTING LAMP PARAMETERS.............................................................................................25
2 TURNING THE LAMP ON/OFF...............................................................................................25
3 LIGHT INTENSITY CONTROL................................................................................................26
OPERATING MODES................................................................................................27
1 POWER MODE........................................................................................................................27
2 CURRENT MODE....................................................................................................................27
3 INTENSITY MODE...................................................................................................................27
3.1. Dosed Mode............................................................................................................27
POWER AND CURRENT OPERATION MODES......................................................28
1 POWER OPERATION MODE .................................................................................................28
2 CURRENT OPERATION MODE .............................................................................................30
FIRMWARE AND MODEL INFORMATION...............................................................31
1 UPDATING THE FIRMWARE..................................................................................................32
INTERLOCK CABLES/CONNECTIONS TO LAMP HOUSINGS..............................34
1 CONNECTION TO A Q SERIES TYPE HOUSING.................................................................35
2 CONNECTION TO A RESEARCH LAMP HOUSING..............................................................36
2.2 Connecting the OPS-A250/OPS-A500 to a Research Lamp Housing ....................36
3.3 Connecting the OPS-A1000 to a Research Lamp Housing.....................................36
3 SAFETY INTERLOCK..............................................................................................................37
DETECTOR THERMOELECTRIC COOLING (APPLICABLE FOR LIK-LMP) .........38
INTENSITY OPERATION MODE (LIK-LMP REQUIRED).......................................40
1 Mounting the LIK-LMP to a Q Series or Research Lamp Housing........................................41
1 IDLE FUNCTION....................................................................................................................46
SHUTTER CONTROLLER .....................................................................................47
1 SHUTTER STATUS...............................................................................................................48
2 MANUAL SHUTTER MODE .................................................................................................48
3 TTL SHUTTER CONNECTION .............................................................................................49

OPS-A
Arc Lamp Power Supplies
Page 3


11.4 TTL SIGNAL POLARITY........................................................................................................50
11.5 TIMED SHUTTER MODE......................................................................................................50
11.6 DOSED SHUTTER MODE ....................................................................................................52
11.7 EXTERNAL SHUTTER CONTROL METHODS ....................................................................54
12 AUDIO WARNING ...................................................................................................55
12.1 AUDIO WARNING SETUP....................................................................................................56
13 MEMORY.................................................................................................................57
14 SAVING SETTINGS.................................................................................................57
14.1 LOADING SETTINGS............................................................................................................58
15 MAINTENANCE.......................................................................................................59
15.1 POWER SUPPLY CLEANING...............................................................................................59
15.2 LAMP CARE AND HANDLING..............................................................................................59
16 LAMP LIFETIME AND REPLACEMENT.................................................................60
17 DISPLAYING TOTAL LAMP HOURS .....................................................................61
17.1 RESETTING TOTAL LAMP HOURS.....................................................................................61
18 OPS-A SERIES OVERVIEW ...................................................................................63
19 TROUBLESHOOTING.............................................................................................64
EU DECLARATION OF CONFORMITY.......................................................................68
APPENDIX A: COMPUTER CONTROL......................................................................69
COMMAND SET...........................................................................................................70
CONTACTING ORIEL INSTRUMENTS........................................................................76
REQUEST FOR ASSISTANCE / SERVICE..................................................................77
REPAIR SERVICE........................................................................................................77
NON-WARRANTY REPAIR..........................................................................................77
WARRANTY REPAIR...................................................................................................78
LOANER / DEMO MATERIAL......................................................................................79

LIST OF FIGURES

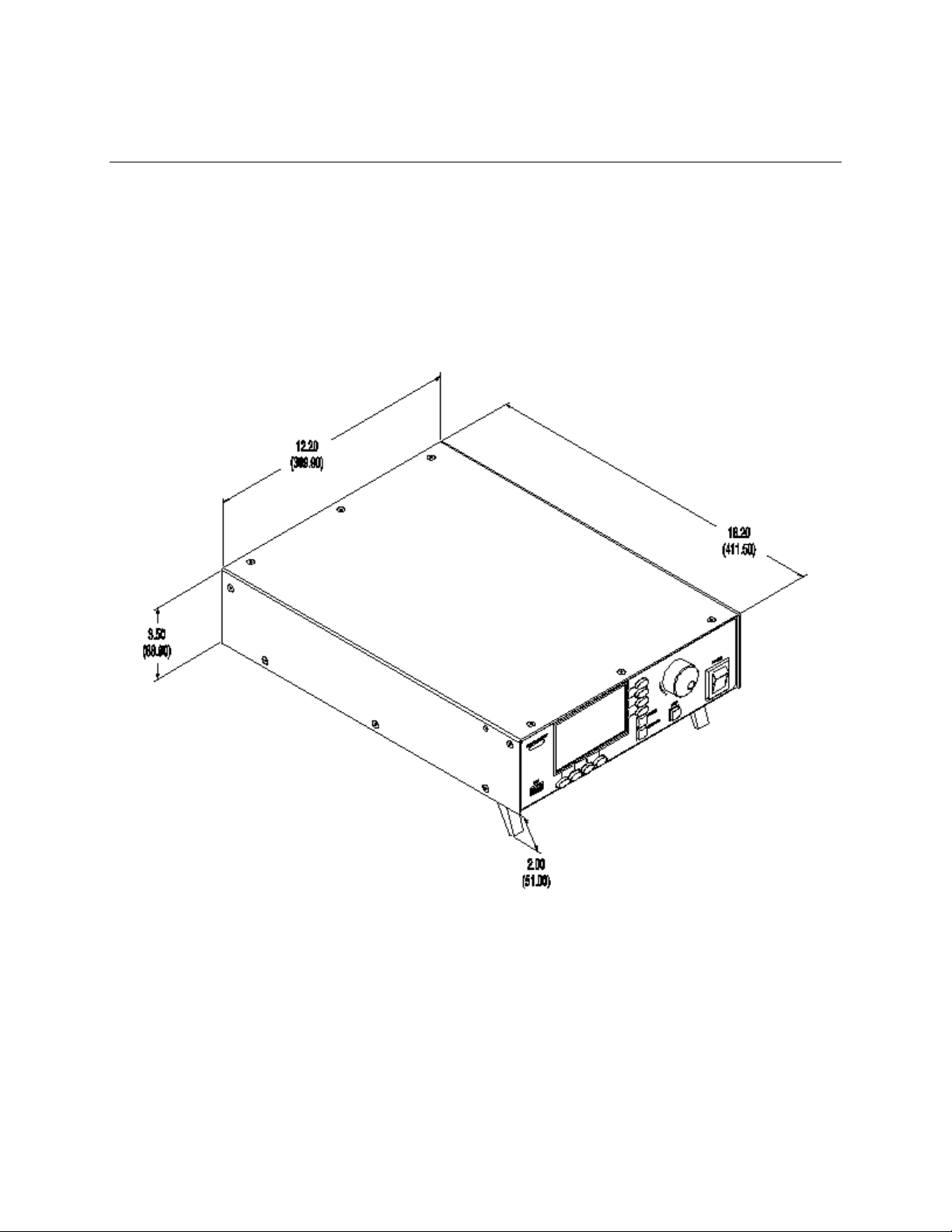

Figure 1 Dimensional drawing of the OPS Series Power Supplies. .............................................................9
Figure 2 OPS-A Power Supply Front Panel Connections...........................................................................14
Figure 3 OPS-A Power Supply Rear Panel Connections. ..........................................................................15
Figure 4 The LCD display of the OPS-A Model Power Supply...................................................................24
Figure 5 USB Connector for Firmware Updates.........................................................................................32
Figure 6 The LCD screen image displayed during firmware and LCD GUI interface updates...................33
Figure 7 The output connector on the rear panel of the OPS-A150/OPS-A500 Power Supply for interface
with Oriel Lamp Housing. The 70050 (Black) and 70051 (Grey) Lamp Housing Interconnection Cables
are also shown............................................................................................................................................34
Figure 8 Labels on the OPS-A1000 Power Supply and Research Lamp Housing indicating the proper
connector for each type lamp housing interconnection cable.....................................................................35
Figure 9 The Arc Lamp Interface with Ignitor with 5 pin connector for electrical connection to a suitable
power supply...............................................................................................................................................35
Figure 10 The electrical connector for interface with OPS-A Model Power Supply on an Oriel Research
Lamp Housing.............................................................................................................................................36

OPS-A
Arc Lamp Power Supplies
Page 4


Figure 11 The label directing which electrical connector to use for each lamp housing interconnection
cable on a 450-1000 W Research Lamp Housing......................................................................................36
Figure 12 The Interlock Open and warning symbol indicator of the power supply indicates a cable is
disconnected and/or the lamp housing is open. .........................................................................................37
Figure 13 The LIK-LMP Light Intensity Controller Kit couples to the Series Q or Research Lamp Housing
chosen by the user and includes the necessary cables to connect the LIK-LMP to the OPS-A Power
Supply. ........................................................................................................................................................38
Figure 14 Setting the TE Cooler Temperature............................................................................................39
Figure 15 Exploded view of 71582 mounting to a Q Series Housing using the 68954 Adapter Kit............41
Figure 16 Exploded view of 71582 mounting to a Research Lamp Housing using the 68952 Adapter Kit.42
Figure 17 The DETECTOR INPUT and TE COOLER output ports are for direct use of the LIK-LMP with
the OPS-A Power Supply............................................................................................................................43
Figure 18 The 70062 (left) and 70018 (right) required for interfacing the 71582 Detector Head with OPS-A
Arc Lamp Power Supply..............................................................................................................................43
Figure 19 Selecting Intensity Mode as the Operating Mode of the OPS-A Power Supply.........................45
Figure 20 Idle Function Setup.....................................................................................................................47
Figure 21 Shutter Status Indicator on Display. ...........................................................................................48
Figure 22 Shutter Status Symbols. .............................................................................................................48
Figure 23 Manual Shutter Mode (Shutter Closed)......................................................................................49
Figure 24 Manual Shutter Button................................................................................................................49
Figure 25 Shutter Output Connector...........................................................................................................50
Figure 26 Trigger Example..........................................................................................................................55
Figure 27 Warning Icon...............................................................................................................................56
Figure 28 Audio Warning Setup..................................................................................................................56
Figure 29 Saving Settings To Memory........................................................................................................57
Figure 30 Loading Saved Settings From Memory. .....................................................................................59
Figure 31 Arc Lamp Construction. ..............................................................................................................60
Figure 32 Displaying Lamp Hours...............................................................................................................61
Figure 33 RS232 Connector .......................................................................................................................69


OPS-A

Arc Lamp Power Supplies

Page 5

1 GENERAL INFORMATION

Thank you for your purchase of this OPS power supply from Oriel Instruments.

Please carefully read the following important safety precautions prior to unpacking and operating this

equipment. In addition, please read the complete User’s Manual for additional important notes and

cautionary statements regarding the use and operation of the system.

1.1 SYMBOLS AND DEFINITIONS

WARNING

Situation has the potential to cause bodily harm or death.

CAUTION

Situation has the potential to cause damage to property or equipment.

ELECTRICAL SHOCK HAZARD

Hazard arising from dangerous voltage. Any mishandling could result

in irreparable damage to the equipment, and personal injury or death.

EUROPEAN UNION CE MARK

The presence of the CE Mark on Newport Corporation equipment

means that it has been designed, tested and certified as complying

with all applicable European Union (CE) regulations and

recommendations.

NOTE:

Additional important information the user or operator should consider.

Please read all instructions that were provided prior to operation of the system.

The safety of any system incorporating the OPS power supply is the sole responsibility of the assembler

of the systems.

If the equipment is used in a manner not specified by Newport Corporation, the protection provided by the

equipment may be impaired.

If there are any questions, please contact Oriel Instruments or the representative through whom the

system was purchased prior to use.

OPS-A

Arc Lamp Power Supplies

Page 6

1.2 GENERAL WARNINGS

•Read all warnings and operating instructions for this system prior to setup and use.

•Do not use this equipment in or near water.

•To prevent damage to the equipment, read the instructions in the equipment manual for proper

input voltage.

•This equipment is grounded through the grounding conductor of the power cord.

•Route the power cord and other cables so they are not likely to be damaged.

•Disconnect power before cleaning the equipment.

•Do not use liquid or aerosol cleaners; use only a dry lint-free cloth.

•Lock out all electrical power sources before servicing the equipment.

•To avoid explosion, do not operate this equipment in an explosive atmosphere.

•Qualified service personnel should perform safety checks after any service.

•If this equipment is used in a manner not specified in this manual, the protection provided by this

equipment may be impaired.

•To prevent damage to equipment when replacing fuses, locate and correct the problem that

caused the fuse to blow before re-applying power.

•Do not block ventilation openings.

•Do not use or store flammable liquids near the power supply.

•Do not position this product in such a manner that would make it difficult to disconnect the power

cord.

•Use only the specified replacement lamp.

•This product should only be powered as described in the manual.

•Do not remove the cover for normal usage.

OPS-A

Arc Lamp Power Supplies

Page 7

1.3 ELECTRICAL HAZARDS

Make all connections to or from the power supply with the power off. There may be dangerous voltage

present at the output terminals.

Tighten all lamp housing interconnect cable connections to prevent arcing.

There are no user serviceable parts inside the power supply. Do not use the power supply without its

cover in place. Lethal voltages are present inside.

1.4 FIRE HAZARDS

Lamps are extremely hot during operation, and for several minutes after being shut off. Keep flammable

objects away from the lamp and lamp housing.

Each compatible Newport brand lamp housing is equipped with a condenser lens. The re-focused output

of this lens can cause ignition of flammable targets including but not limited to walls, certain chemicals.

Use only the line cord supplied with the power supply. A substitute line cord may not be rated for high

current.

1.5 LAMP HANDLING

Read all information and warnings provided with lamp.

Never touch any lamp or the reflector’s inner surface with bare fingers or other contaminates. Skin oil or

other substances can burn into the lamp envelope during operation and negatively affect the lamp’s

performance and lifetime.

Always wear appropriate gloves and impact-resistant goggles when handling any lamp. Avoid any

mechanical strain during handling. Do not operate the lamp without all housing panels in place.

Lamps become very hot after only a few minutes of operation (up to 150°C) and remain quite hot for at

least 10 to 15 minutes after being turned off.

Do not run the lamp at more than 10% above its current or power rating. Lamp lifetime will decrease

dramatically.

1.6 LIGHT HAZARDS

These lamps produce considerable ultraviolet and infrared radiation. Avoid excessive exposure of the

eyes or skin to radiation from these lamps.

Utilize protective eyewear and gloves when operating these lamps.

OPS-A

Arc Lamp Power Supplies

Page 8

2 INTRODUCTION

2.1 DESCRIPTION/FEATURES

The model OPS-A Power Supplies are designed to meet the needs of a regulated source of power or

current for proper operation of DC arc light sources. The OPS models provide constant power or constant

current operation of these sources of radiation, which is usually required whenever a radiometric

measurement is being made or whenever highly stable light output is needed.

Features Include:

•Adjustable output with preset so that the output can be set before running the lamp.

•Large LCD display for precise monitoring of current, voltage, power, and lamp running time as well as

light intensity and shutter timing characteristics when used with external light intensity controller kit

and TTL shutter.

•Four horizontal and four vertical menu buttons as well as rotating knob on front panel for easy

navigation of power supply features.

•LAMP and SHUTTER buttons located on front panel for manual control of lamp ignition and external

shutter. Icons on the LCD display show the ignition and open/close statuses of the lamp during

operation at all times.

•Safety interlock connector for safeguarding against accidental exposure to UV light when used with a

Newport lamp housing.

•USB interface located on front panel for firmware updates.

•RS232 and USB interfaces located on the rear of the power supply for user preference of RS232 or

USB external operation and monitoring.

•BNC connector on rear panel for sending electronic signals to open/close TTL shutter.

•BNC and D-SUB connector on rear panel for direct connection to LIK-LMP light intensity controller kit.

These connectors are used to regulate/control the temperature of the TE cooled detector in the LIK-

LMP and adjust current/power supplied to the lamp to ensure stable light output based on the current

output of the detector. The LIK-LMP is typically used when an additional level of stability is required

for the application.

•RoHS and CE compliance

OPS-A

Arc Lamp Power Supplies

Page 9

2.2 DIMENSIONS

Figure 1 Dimensional drawing of the OPS Series Power Supplies.

OPS-A

Arc Lamp Power Supplies

Page 10

2.3 ARC LAMP COMPATIBILITY

Newport Corporation offers all the components required to assemble a complete illumination system. The

minimum components include a lamp, lamp housing, power supply, and possibly a socket adapter. The

table below explains which components are compatible with each other to create an illumination system.

OPS-A150 Lamp Compatibility Table

Power

Supply

Lamp

Lamp Rating,

Description

Compatible Oriel Lamp Housings

Q Housing

[Socket Adapter]

Research

Lamp Housings

[Socket Adapter]

OPS-

A150

6282

Hg 50 W

60000 Housing

with

60025 Interface Kit

[60013]

66901, 66902, 66905,

67001, 67005

[66158]

6251NS

Xe 75 W

60000 Housing

with

60025 Interface Kit

[60014]

66901, 66902, 66905,

67001, 67005

[66150]

6263

Xe 75 W

(OZONE FREE)

60000 Housing

with

60025 Interface Kit

[60014]

66901, 66902, 66905,

67001, 67005

[66150]

6247

Xe 75 W

(HIGH STABILITY)

60000 Housing

with

60025 Interface Kit

[60021]

66901, 66902, 66905,

67001, 67005

[66148]

6257

Xe 100 W

(OZONE FREE)

60000 Housing

with

60025 Interface Kit

[60014]

66901, 66902, 66905,

67001, 67005

[66150]

6254

Xe 150 W

(UV ENHANCED)

n/a

66901, 66902, 66905,

67001, 67005

[66151]

6255

Xe 150 W

(OZONE FREE)

n/a

66901, 66902, 66905,

67001, 67005

[66151]

6256

Xe 150 W

(OZONE FREE,

SMALL ARC)

n/a

66901, 66902, 66905,

67001, 67005

[66152]
