Multimo NOVA A 250 User manual

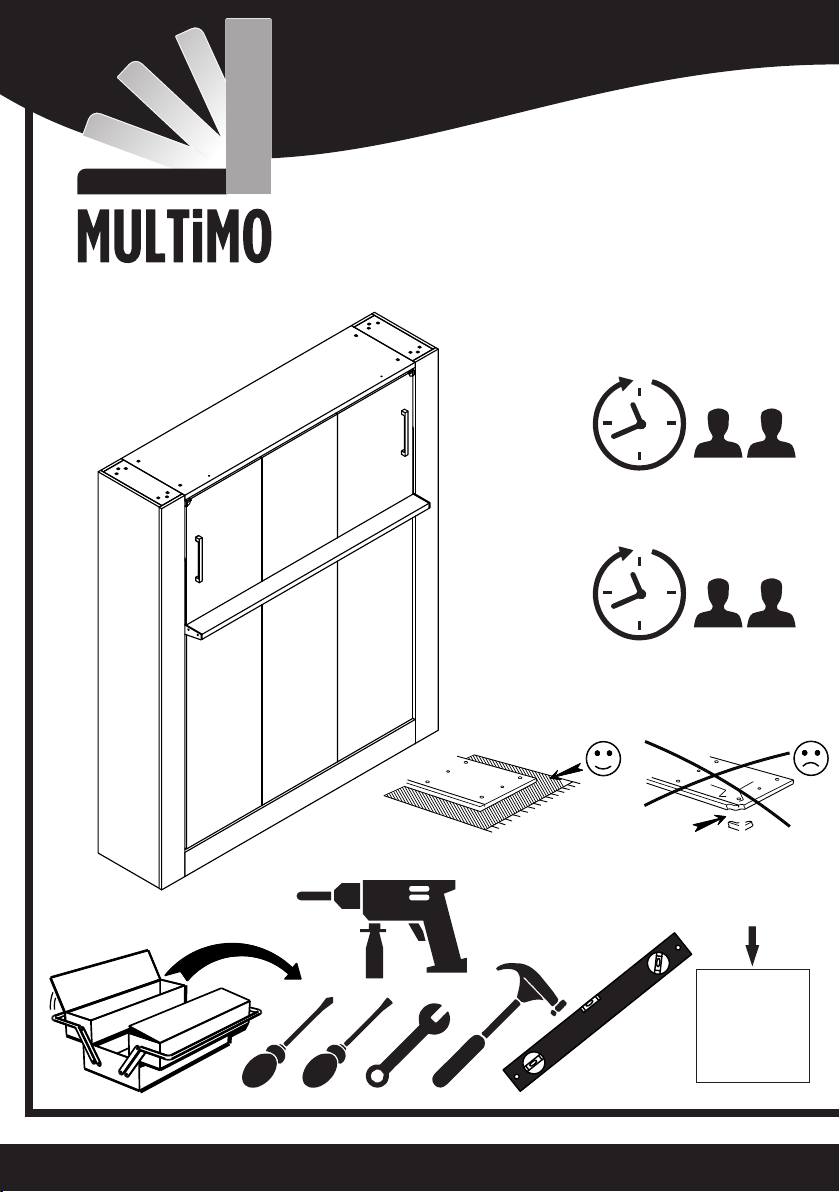

Assembly Instructions

VIDEO

link

4 hours

7 hours

Technical Service

End User

A 250 - NOVA QUEEN BED

Page 1 Page 2

KP - 01 ( 224 ) mm

2 / piece

VKP - 01 (22) mm

4 / piece

SG - 01

2 / piece2 / piece

OT-056D

SC - 92

2 / piece

VTB - 02 (4,2x16) mm

88 / piece 1 / piece

KMT-01

MKZ - 05/02

1 / piece

LTA - 01

26 / piece

1 / piece

PRF

KOR

1 / piece

YSB - 01 ( 3,9x16 ) mm

2 / piece

CTM - 02 ( 8x35 ) mm

2 / piece

CTA - 01 ( 8x15 ) mm

12 / piece

PL - 05 (8x16x2) mm

14 / piece

CTM - 05 ( 8x45 ) mm

2 / piece

OT-056PE

CT - 04 ( 6x20 ) mm

2 / piece

KKS - 01

2 / piece

AL - 01 (4MM)

1 / piece

AL - 02 (5MM)

1 / piece

TAP - 02

4 / piece

MNG - 01

104 / piece

CT - 01 ( 6x40 ) mm

2 / piece

DSE - 01 (40x90x32) mm

3 / piece

PL - 02 (8x22x1) mm

3 / piece

VDA - 01 ( 6,5x50 ) mm

4 / piece

VTB - 01 (4,8x16) mm

12 / piece

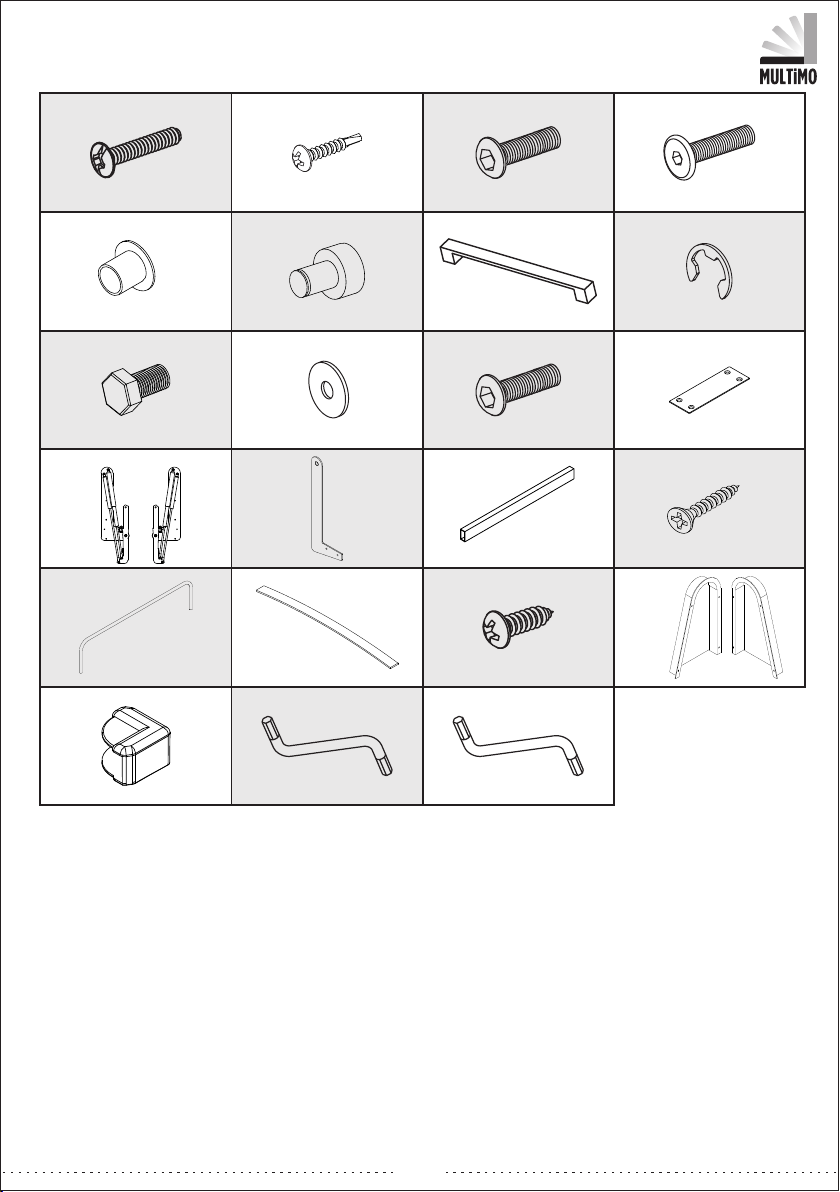

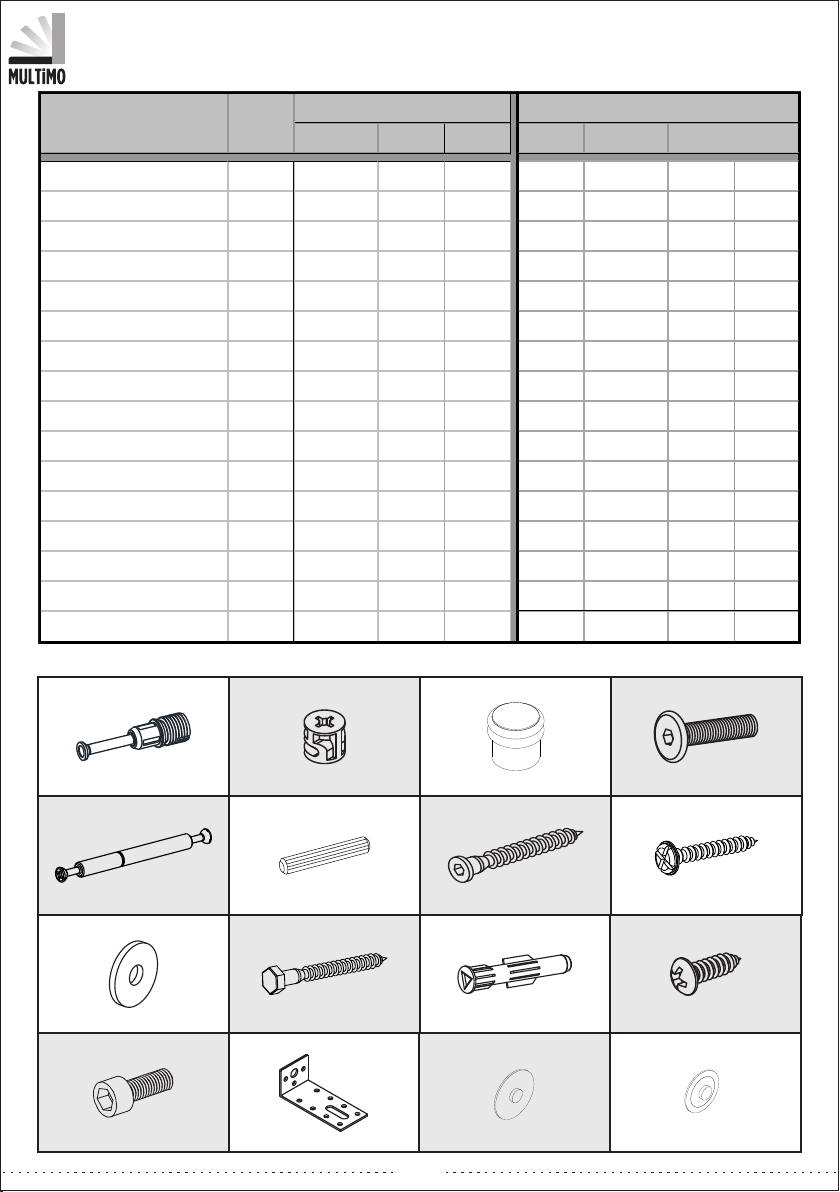

Accessories List

MNX 02

60 / piece

KVL 01

112 / piece

OT-054

2 / piece

TAP - 01

104 / piece

22 / piece

MNX - 03

IM - 02 (6x20) mm

4 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A-R / A-L 2 0,71 89,76 16,61 2 18 2280 422

B1 0,71 62,60 16,61 1 18 1590 422

C1 1,18 62,60 17,32 1 30 1590 440

D-R / D-L 2 0,71 89,76 5,55 2 18 2280 141

E-R / E-L 2 0,71 89,76 6,30 2 18 2280 160

F2 0,71 15,91 5,55 2 18 404 141

G2 1,18 15,91 5,55 2 30 404 141

H-R / H-L 2 0,71 15,91 36,30 2 18 404 922

K1 0,71 62,60 7,09 1 18 1590 180

L1 0,71 62,60 12,01 1 18 1590 305

M6 0,71 15,91 5,51 6 18 404 140

N1 1,18 61,73 4,33 1 30 1568 110

P1 0,71 62,60 5,67 1 18 1590 144

R-1 2 0,71 81,89 20,51 2 18 2080 521

R-2 1 0,71 81,89 20,51 1 18 2080 521

S (O P TIO N A L HE A DBO A RD)

0 1,97 62,40 37,87 0 50 1585 962

Track Title

(inch)

(mm)

BRK- 01

10 / piece

VD - 03 ( 3,5x18 ) mm

40 / piece

DD - 01 ( R10 )

3 / piece

TFC - 01(8x70) mm

3 / piece

VD - 02 (3,5x25) mm

2 / piece

Page 1 Page 2

KP - 01 ( 224 ) mm

2 / piece

VKP - 01 (22) mm

4 / piece

SG - 01

2 / piece2 / piece

OT-056D

SC - 92

2 / piece

VTB - 02 (4,2x16) mm

88 / piece 1 / piece

KMT-01

MKZ - 05/02

1 / piece

LTA - 01

26 / piece

1 / piece

PRF

KOR

1 / piece

YSB - 01 ( 3,9x16 ) mm

2 / piece

CTM - 02 ( 8x35 ) mm

2 / piece

CTA - 01 ( 8x15 ) mm

12 / piece

PL - 05 (8x16x2) mm

14 / piece

CTM - 05 ( 8x45 ) mm

2 / piece

OT-056PE

CT - 04 ( 6x20 ) mm

2 / piece

KKS - 01

2 / piece

AL - 01 (4MM)

1 / piece

AL - 02 (5MM)

1 / piece

TAP - 02

4 / piece

MNG - 01

104 / piece

CT - 01 ( 6x40 ) mm

2 / piece

DSE - 01 (40x90x32) mm

3 / piece

PL - 02 (8x22x1) mm

3 / piece

VDA - 01 ( 6,5x50 ) mm

4 / piece

VTB - 01 (4,8x16) mm

12 / piece

Accessories List

MNX 02

60 / piece

KVL 01

112 / piece

OT-054

2 / piece

TAP - 01

104 / piece

22 / piece

MNX - 03

IM - 02 (6x20) mm

4 / piece

Piece T hickness Length Width Piece T hick H eight M ost

A-R / A-L 2 0,71 89,76 16,61 2 18 2280 422

B1 0,71 62,60 16,61 1 18 1590 422

C1 1,18 62,60 17,32 1 30 1590 440

D-R / D-L 2 0,71 89,76 5,55 2 18 2280 141

E-R / E-L 2 0,71 89,76 6,30 2 18 2280 160

F2 0,71 15,91 5,55 2 18 404 141

G2 1,18 15,91 5,55 2 30 404 141

H-R / H-L 2 0,71 15,91 36,30 2 18 404 922

K1 0,71 62,60 7,09 1 18 1590 180

L1 0,71 62,60 12,01 1 18 1590 305

M6 0,71 15,91 5,51 6 18 404 140

N1 1,18 61,73 4,33 1 30 1568 110

P1 0,71 62,60 5,67 1 18 1590 144

R-1 2 0,71 81,89 20,51 2 18 2080 521

R-2 1 0,71 81,89 20,51 1 18 2080 521

S (O P TIO N A L HE A DBO A RD)

0 1,97 62,40 37,87 0 50 1585 962

Track Title

(inch)

(mm)

BRK- 01

10 / piece

VD - 03 ( 3,5x18 ) mm

40 / piece

DD - 01 ( R10 )

3 / piece

TFC - 01(8x70) mm

3 / piece

VD - 02 (3,5x25) mm

2 / piece

Page 3 Page 4

D-R/D-L

KVL-01 x 4

BACK

VIDEO

link

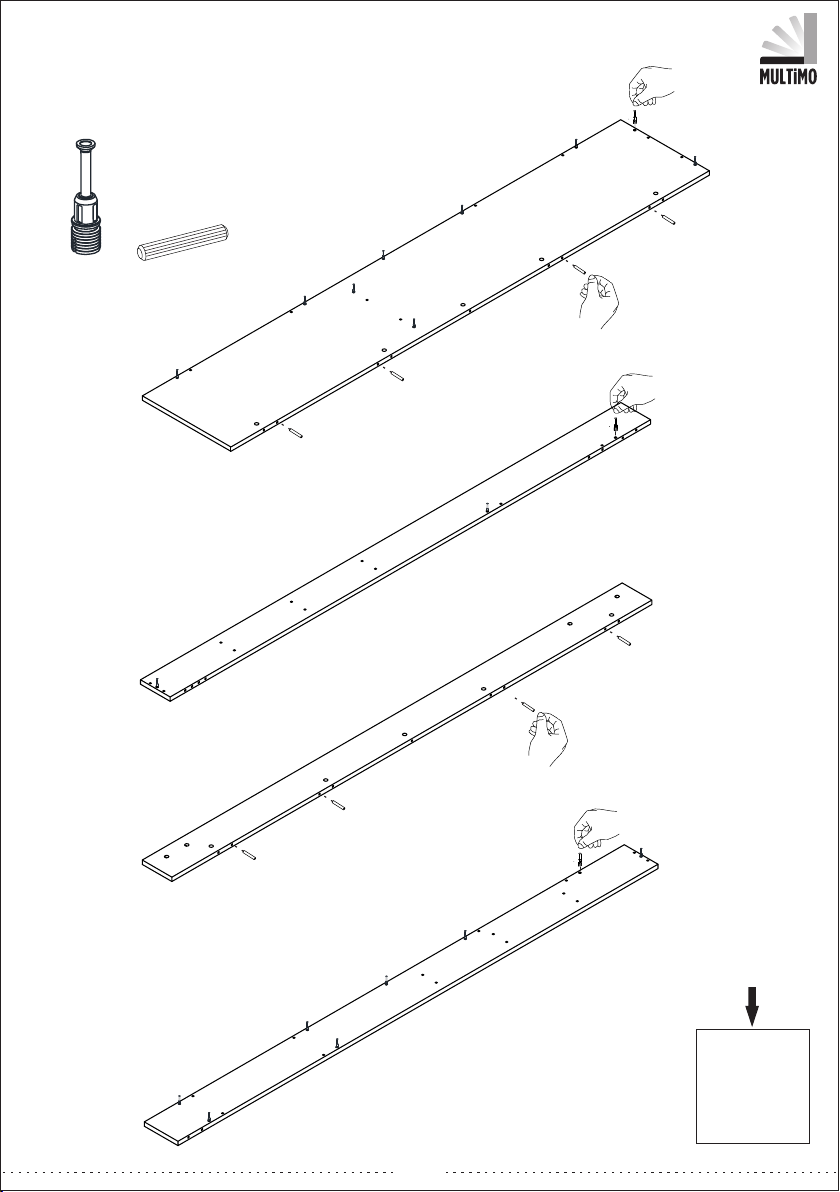

STEP 1

MNX - 02

KVL 01

D-R/D-L

FRONT

MNX-02 x 3

A-R/A-L

MNX-02 x 9

KVL-01 x 4

E-R/E-L

MNX-02 x 8

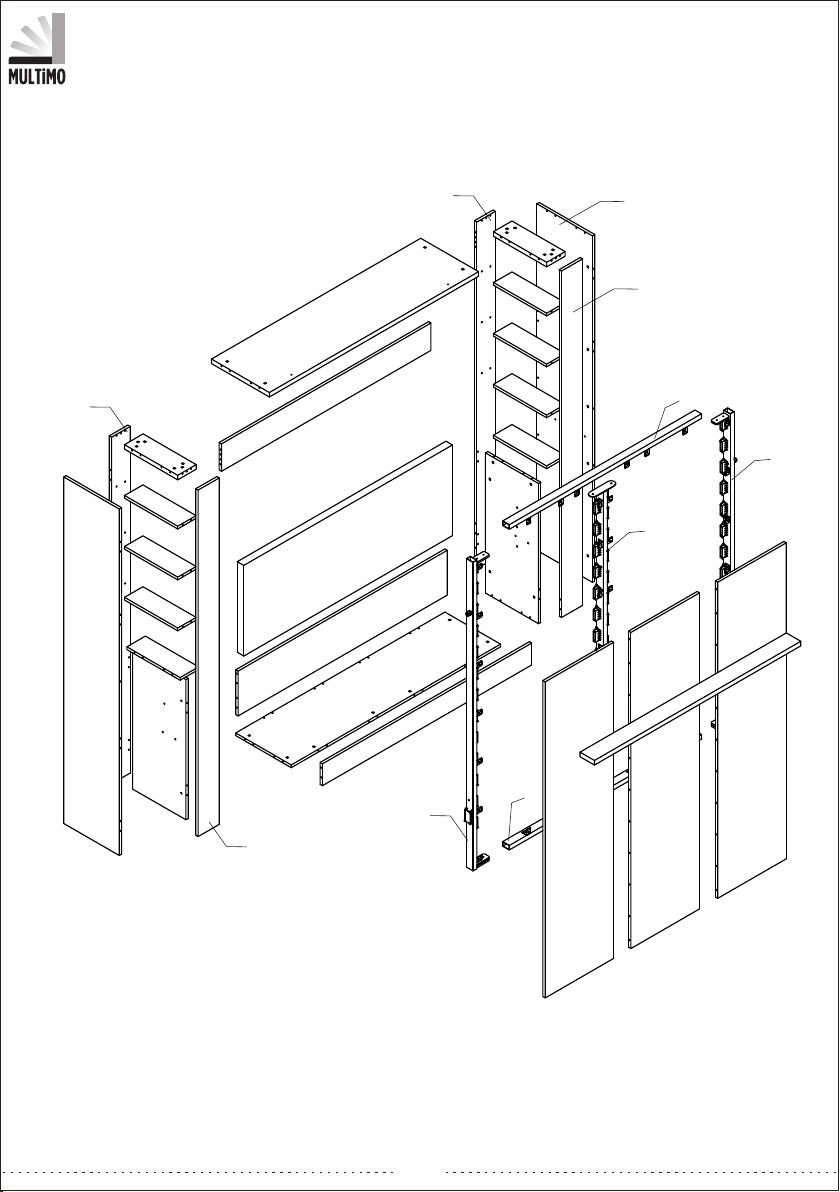

A-R

A-L

D-R

D-L

E-R

E-L

H-R

H-L

R-1

OPTIONAL

HEADBOARD

R-2

Page 3 Page 4

D-R/D-L

KVL-01 x 4

BACK

VIDEO

link

STEP 1

MNX - 02

KVL 01

D-R/D-L

FRONT

MNX-02 x 3

A-R/A-L

MNX-02 x 9

KVL-01 x 4

E-R/E-L

MNX-02 x 8

A-R

A-L

D-R

D-L

E-R

E-L

H-R

H-L

R-1

OPTIONAL

HEADBOARD

R-2

Page 5 Page 6

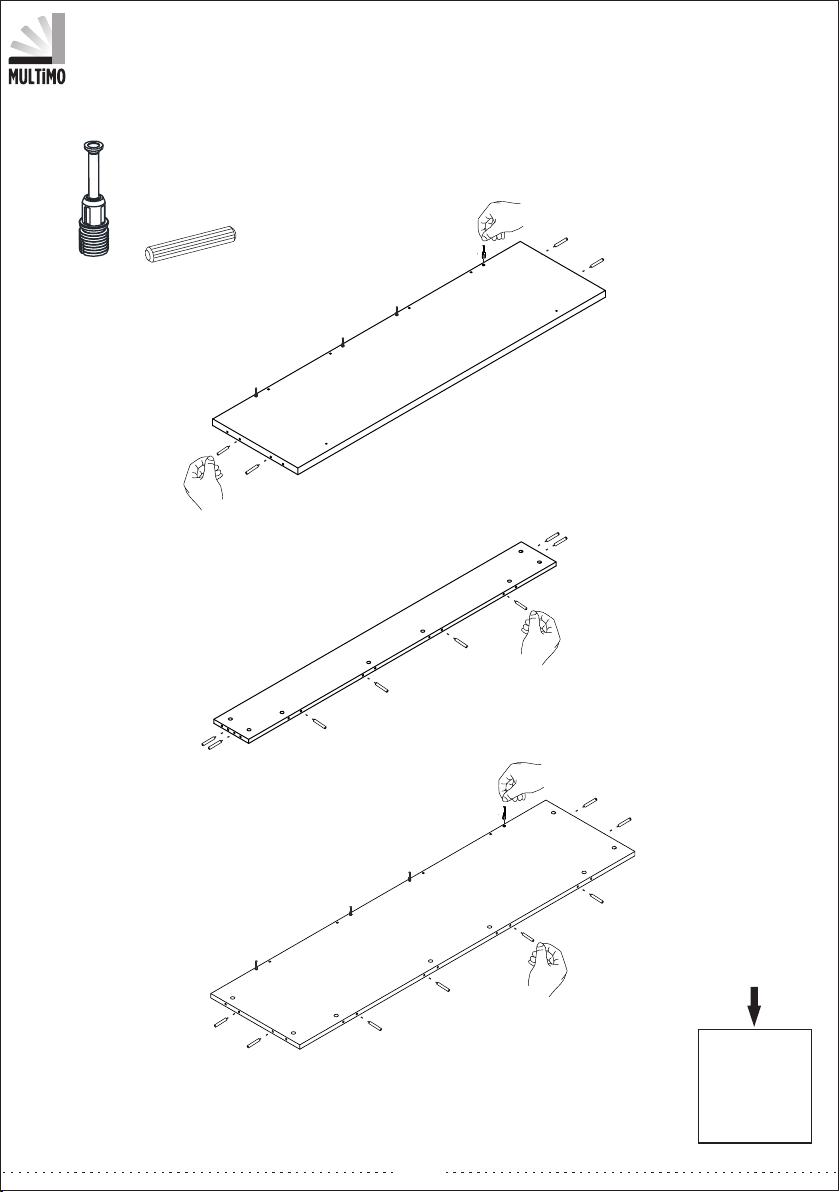

STEP 2 STEP 3

VIDEO

link

VIDEO

link

MNX-02 x 4

KVL-01 x 4

MNX - 02

KVL 01

KVL-01 x 8

MNX-02 x 4

KVL-01 x 8

LKVL-01 x 8

MNX-02 x 4

KVL-01 x 4

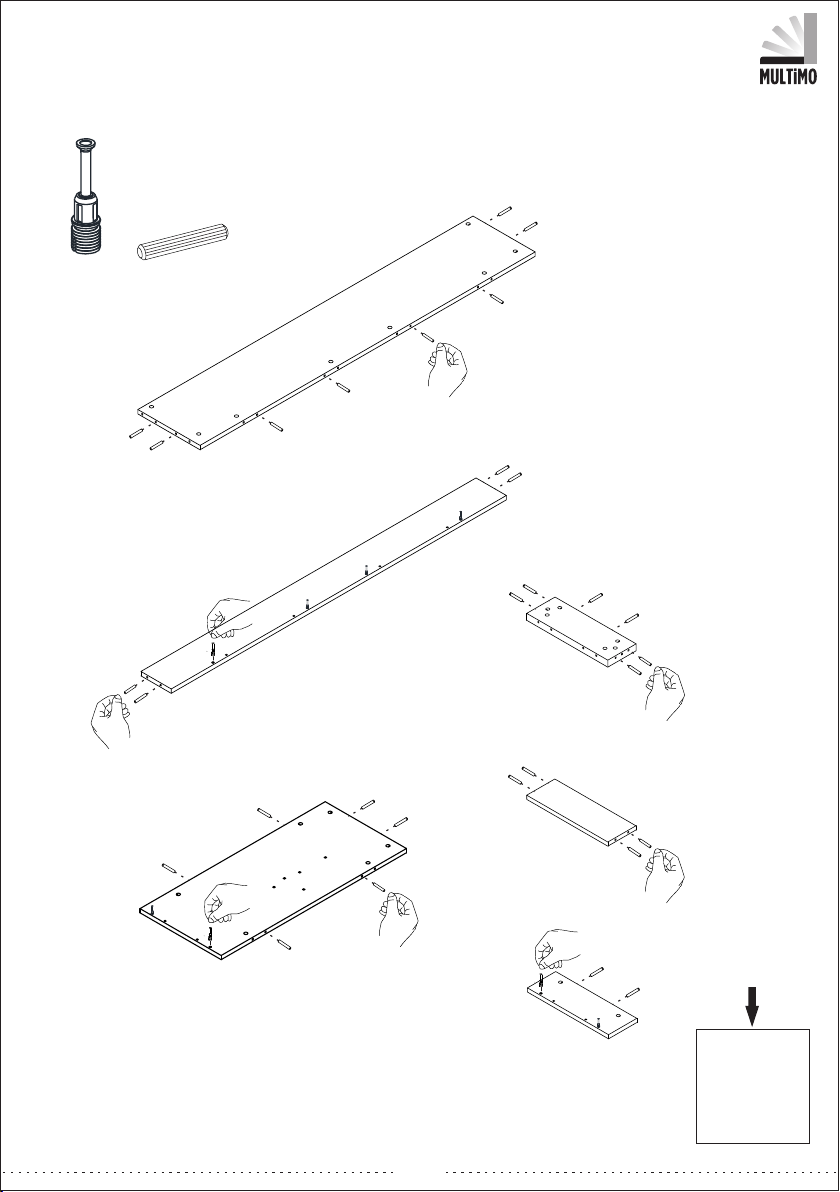

H-R/H-L

MNX-02 x 2

KVL-01 x 6

MNX - 02

KVL 01

Gx2

KVL-01 x 6

Mx6

KVL-01 x 4

Fx2

MNX-02 x 2 KVL-01 x 2

Page 5 Page 6

STEP 2 STEP 3

VIDEO

link

VIDEO

link

MNX-02 x 4

KVL-01 x 4

MNX - 02

KVL 01

KVL-01 x 8

MNX-02 x 4

KVL-01 x 8

LKVL-01 x 8

MNX-02 x 4

KVL-01 x 4

H-R/H-L

MNX-02 x 2

KVL-01 x 6

MNX - 02

KVL 01

Gx2

KVL-01 x 6

Mx6

KVL-01 x 4

Fx2

MNX-02 x 2 KVL-01 x 2

Page 7 Page 8

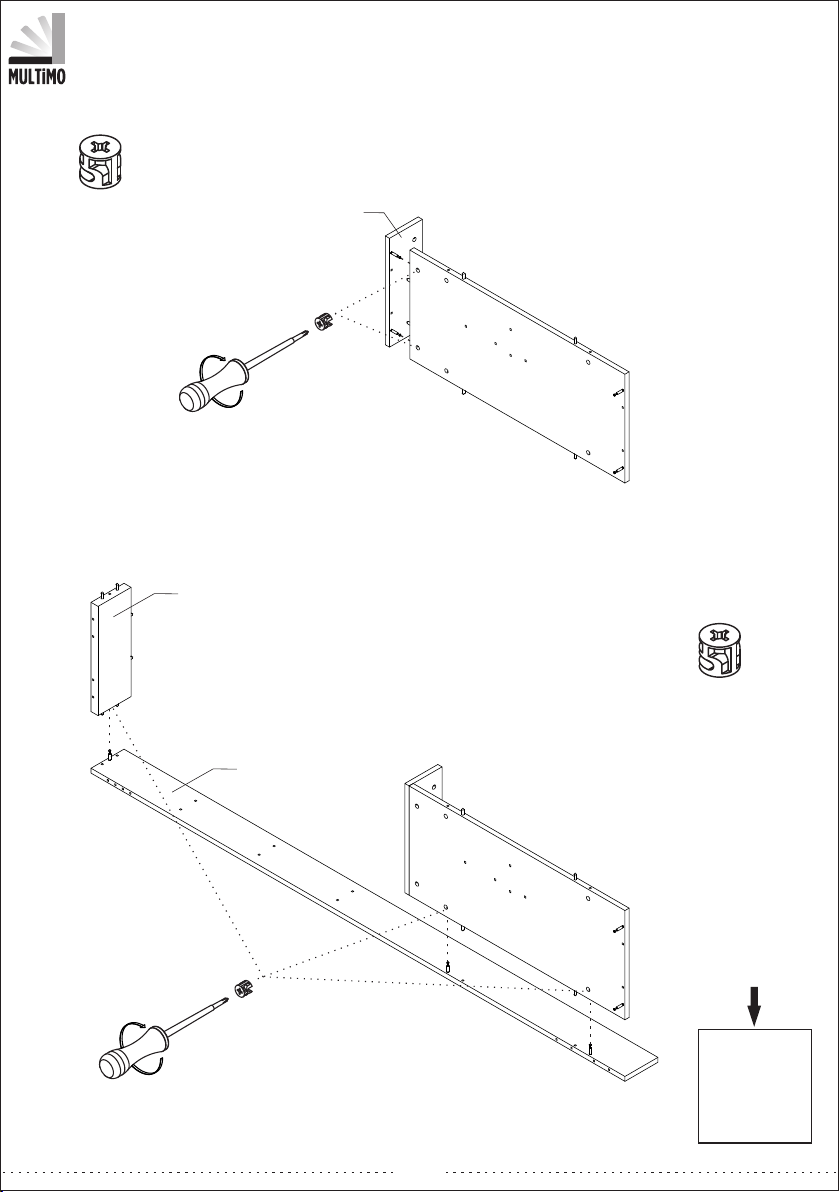

STEP 4 STEP 6

VIDEO

link

VIDEO

link

STEP 5

MNG - 01

MNG - 01 MNG - 01

H-R

MNG - 01 x 2

210°

A-R

MNG - 01 x 9

210°

MNG - 01 x 3

210°

D-R

H-R

GSTEP 7

RIGHT / LEFT

H-R

D-R

H-R

RIGHT / LEFT

RIGHT

Page 7 Page 8

STEP 4 STEP 6

VIDEO

link

VIDEO

link

STEP 5

MNG - 01

MNG - 01 MNG - 01

H-R

MNG - 01 x 2

210°

A-R

MNG - 01 x 9

210°

MNG - 01 x 3

210°

D-R

H-R

GSTEP 7

RIGHT / LEFT

H-R

D-R

H-R

RIGHT / LEFT

RIGHT

Page 9 Page 10

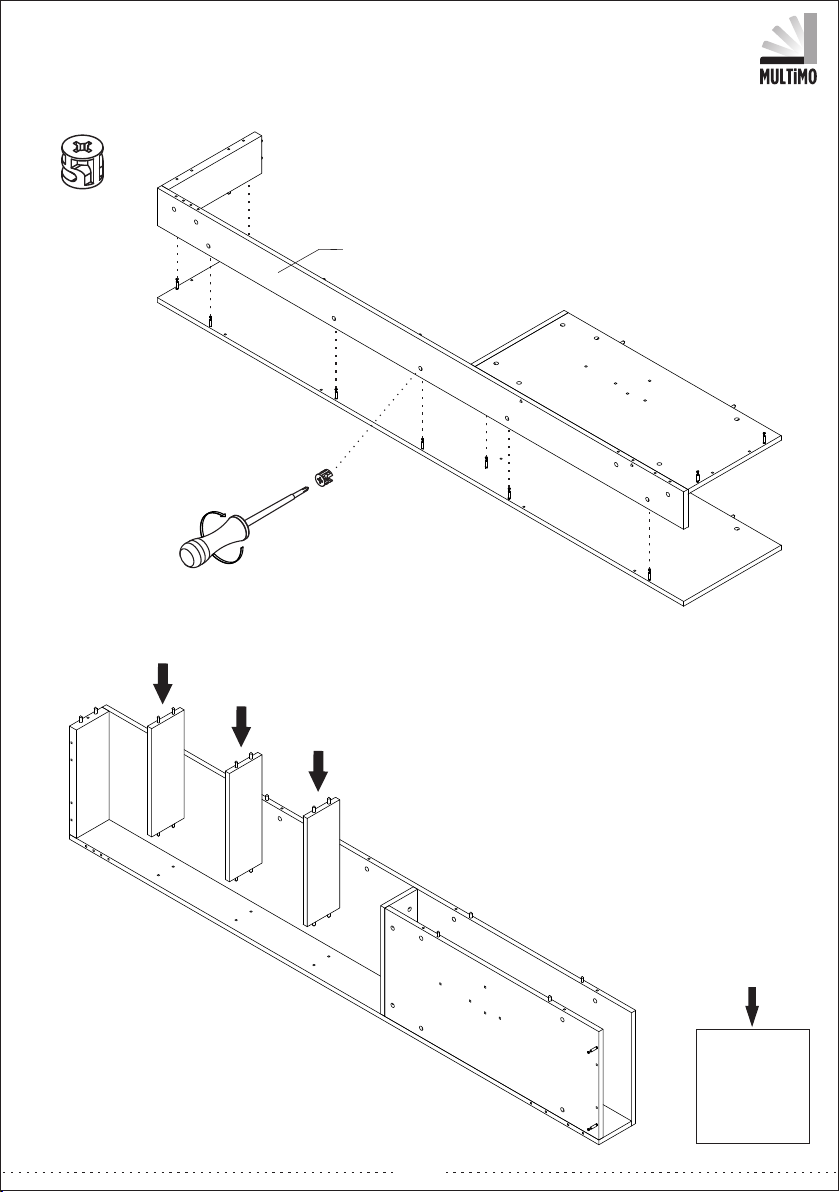

STEP 8

VIDEO

link

VIDEO

link

MNG - 01 MNG - 01

E-R

MNG - 01 x 4

210°

STEP 9

MNG - 01

MNG - 01 x 2

210°

MNG - 01 x 2

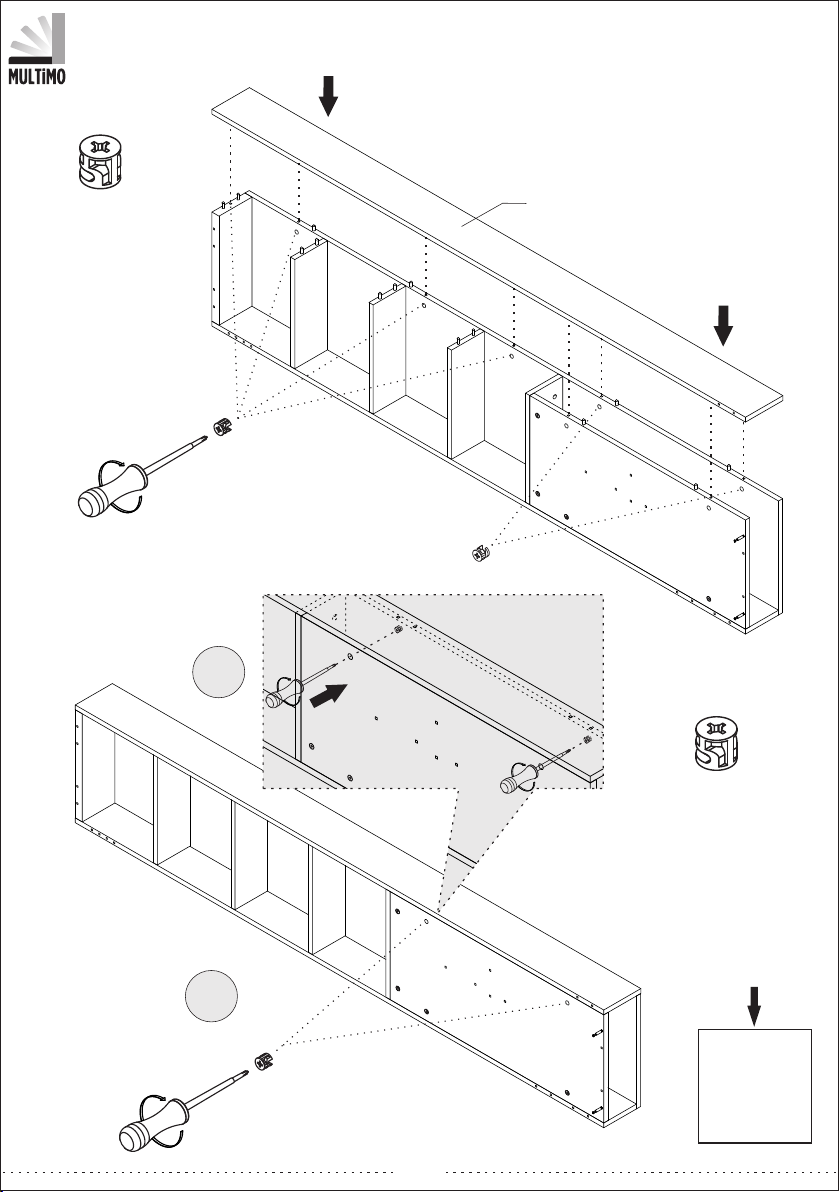

STEP 10

MNG - 01 x 4

C K

210°

MNG - 01 x 8

210°

STEP 11

MNG - 01

Don' t for get to add

MNG-01 before adjustig part ‘'E''

RIGHT / LEFT

RIGHT

Part "K" will not be used , when there are 2 headboards!
