Monessen Hearth DFS32 User manual

MCFS36, DFS32, DFS3224, DFS36 and DFS42 Vent Free Gas Fireplace Systems

The Monessen Vent Free Gas Fireplace Systems provide out-

standing design flexibility with the most desired product

features, for either a recessed or against the wall installation.

•Full size DFS fireplace system with 32", 36" and 42" hearth

openings

•DFS system features realistic emberblaze ceramic fiber logs

with glowing embers and dancing yellow flames

•MCFS 36" fireplace system with a 20" depth features realistic

kentucky stack log set (shown above)

•Large selection of field installed options including decorative faces

in several finishes

•Factory or field installed weathered firebrick

•Includes fixed screen, integrated burner assembly, concealed

controls, black louvers, flex connector and junction box

•New air duct design allows blower operation with radiant face

plates

•No venting required, all the heat stays in your home

Save

on Home

Heating with a

99% Heat

Efficient

Vent-Free

Fireplace

•Control options:

DFS Variable Manual, Thermostat, Remote-Ready

Millivolt and Variable Hi/Lo

MCFS Remote-Ready Millivolt

•CSA Design Certified

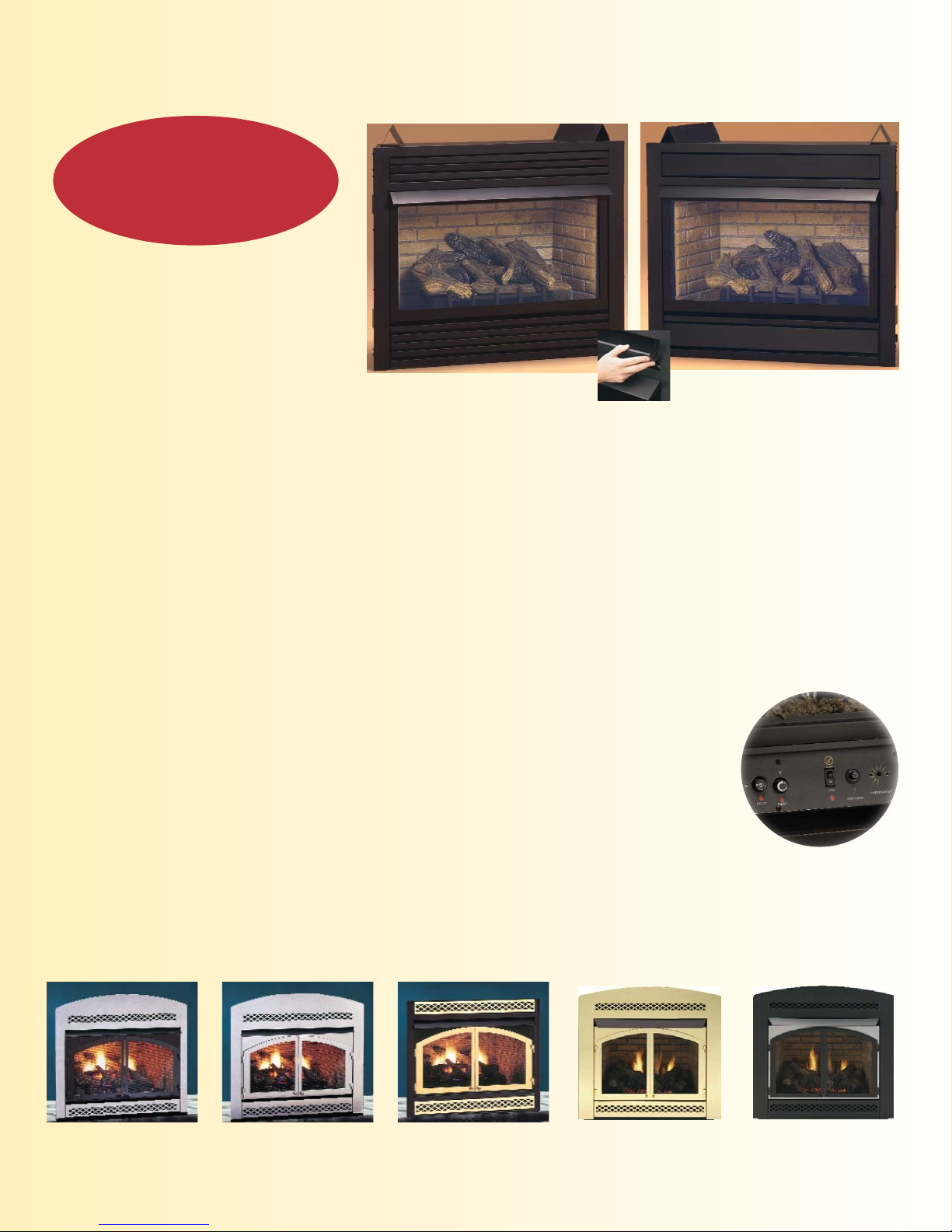

NEW AIR DUCT DESIGN ALLOWS BLOWER

OPERATION WITH RADIANT FACE PLATES

DFS and MCFS Systems

•Out-of-the-box ready for a circulating

installation

•Radiant plates included for easy field

conversion

•New air duct design allows blower

operations with radiant face plates

Circulating DFS Fireplace

System shown

DFS Fireplace System shown

with radiant plates

2-IN-1

FLEXIBLE FACE™

Converts from Circulating to

Radiant in Seconds!

•New air duct design allows blower operation with radiant face plate

•The DFS vent-free gas fireplace system features full size height and width builder dimensions, yet is

only 16 inches deep for those slim-profile installations.

•Monessen’s unique 2-IN-1 FLEXIBLE-FACE SYSTEM field converts from a circulating to a radiant

system in seconds, providing the ultimate in installation and design flexibility, and only three sizes

are required for virtually any installation need.

• Features a fixed safety screen, concealed controls and a modular burner system.

• Smartline designer accessories allow flexibility in customizing your fireplace through a variety of

factory or field installed options.

• There are no hot pull screens to open or close, no unsightly controls or unattractive punched

louvers.

MCFS System

Control Panel

DFS and MCFS Vent Free Gas Fireplace Systems

FACING OPTIONS

DFS shown with Brushed

Pewter Arched Front, Black

Door Frame and Black Fire

Screen Doors

DFS shown with Brushed Pewter

Arched Front, Brushed Pewter

Door Frame and Brushed Pewter

Fire Screen Doors

DFS shown with Gold Filigree

Panels, Black Door Frame and

Gold Fire Screen Doors

Vent-free gas appliances continue to be the sensible choice when looking for a supplemental heating source. Since no outside

venting is required, all the heat stays in your home and the high heating efficiency provides comfortable warmth for only pen-

nies an hour. And since vent-free appliances do not require electricity to operate, they are an excellent heat source during

power outages. Vent free gas appliances are environmentally clean, safe, and operate within industry indoor air quality stan-

dards as well as being design certified by CSA.

MCFS shown with Black

Arched Front, Pewter Door

Frame and Black Fire Screen

Doors

MCFS shown with Gold Arched

Front, Gold Door Frame and

Gold Fire Screen Doors

The

VENT•FREEADVANTAGE

OPTIONAL ACCESSORIES

DFS3224 with optional Dark Cherry

Surround and Hearth, brass louvers and

brass trim

MCFS36 with optional Honey Oak Surround

and Hearth, brass louvers, gold door frame,

gold fire screen doors and brass trim

DFS Fireplace System

32" and 36" HARDWOOD WALL AND CORNER

SURROUNDS AND HEARTHS ADD MORE DESIGN

FLEXIBILITY AND VALUE

Available in:

•Finished Honey Oak • Unfinished Oak

•Finished Dark Cherry • Unfinished birch

FACTORY INSTALLED OPTIONS

ALSO AVAILABLE AS FIELD INSTALLED ACCESSORIES

OPTIONAL ACCESSORIES FOR REMOTE

CONTROL MODELS

Variable Thermostat

Controlled Forced

Air Blower

Weathered Firebrick Brass Louvers

Hand Held

On/Off Remote

Control.

Standard or Hi/Lo

Flame Adjustable

Operation.

On/Off Hand

Held Remote

Control with

Receiver.

7-Day Programmable

On/Off Wireless Wall

Thermostat, Battery

or 110 Receiver.

FIELD INSTALLED ACCESSORIES

WeatheredFirebrick

Curved

Brass Trim

Curved

Pewter Trim

Brass Louvers

Pewter Louvers Curved Black

Trim

Decorative Ceramic

Fiber Embers

MCFS Fireplace System

36" HARDWOOD WALL SURROUNDS AND HEARTHS

ADD MORE DESIGN FLEXIBILITY AND VALUE

Available in:

•Finished Honey Oak

•Finished Dark Cherry

Dark Cherry

Finish

Honey Oak

Finish

Oak Unfinished

-Paint/Stain

Ready

Birch Unfinished

-Paint/Stain

Ready

Hand Held

Thermostat

Remote Control

with Receiver.

Standard or Hi/Lo

Flame Adjustable

Operation.

Touch Light™

Table Top/Wall

Mount

TLM On/Off and

TLT Thermostat

Remote Control

with Receiver.

Sold by:

DFS/MCFS36-MHS3704 Rev. 07-04

Warning:

•It is recommended that the screen be used during operation of this log

set. Always ensure the screen has adequate spaces to allow for passage

of combustion air to the gas log set.

•Correct installation of the ceramic fiber logs, proper location of the

heater and periodic cleaning are necessary to avoid potential service

problems with sooting.

•Keep small chidren and animals away from the open flame of the gas log

set at all times.

•There may be a start-up odor associated with the heating of the logs.

The odor should diminish in 2-3 hours of operation with the burner at its

highest setting with the fan in the off position.

REGULATORY APPROVAL

The DFS and MCFS series has been tested and approved by CSA as an

unvented room heater to the latest ANS Z21.11 requirements. Approved for

installation in an aftermarket manufactured (mobile) home, where not pro-

hibited by state or local codes. This unit complies with requirements to be

classified as a zero clearance unit.

SPECIFICATIONS

32" Corner 32" Corner 36" Corner 36" Corner

Surround Hearth Surround Hearth

Width of mantel 62-3/8" 62-3/8" 63-3/8" 63-3/8"

Height w/o hearth 48-1/4" 5" 48-1/4" 5"

Distance from

corner to front

center of mantel 35-1/2" – 37-1/2" –

Distance from

corner to front

edge along wall 44-1/8" – 47" –

Opening width 38" –

Hardwood Surround Dimensions

32" Wall 32" Wall 36" Wall 36" Wall *36" Wall *36" Wall

Surround Hearth Surround Hearth Surround Hearth

Width of mantel 50-1/2" 58" 54-3/8" 61-1/4" 58" 64-1/2"

Height w/o hearth 48" 5" 48-1/4" 5" 53" 5"

Depth 17-1/4" 21-3/8" 21-3/4" 25-1/2" 22" 25-1/2"

Opening width 38" – 42" – 42" –

Opening height 35-7/8" – 35-3/4" – 40-3/4" –

Width of mantel top 58" – 62" – 64-1/2" –

Depth of mantel top 21-1/8" – 25-1/2" – 25-1/2" –

149 Cleveland Drive • Paris, Kentucky 40361

www.monessenhearth.com

MADE IN U.S.A.

To avoid personal injury or property damage, the product described by this brochure must

be installed, operated and maintained in strict compliance with the instructions packaged

with the product and all applicable building or fire codes. Contact local building or fire

officials about restrictions and installation inspection requirements. All photographs and

drawings on this brochure are for illustrative purposes only and are not intended for, nor

should they be used as a substitute for the instructions packaged with the unit.

Appearance and specifications of the product are subject to change without notice.

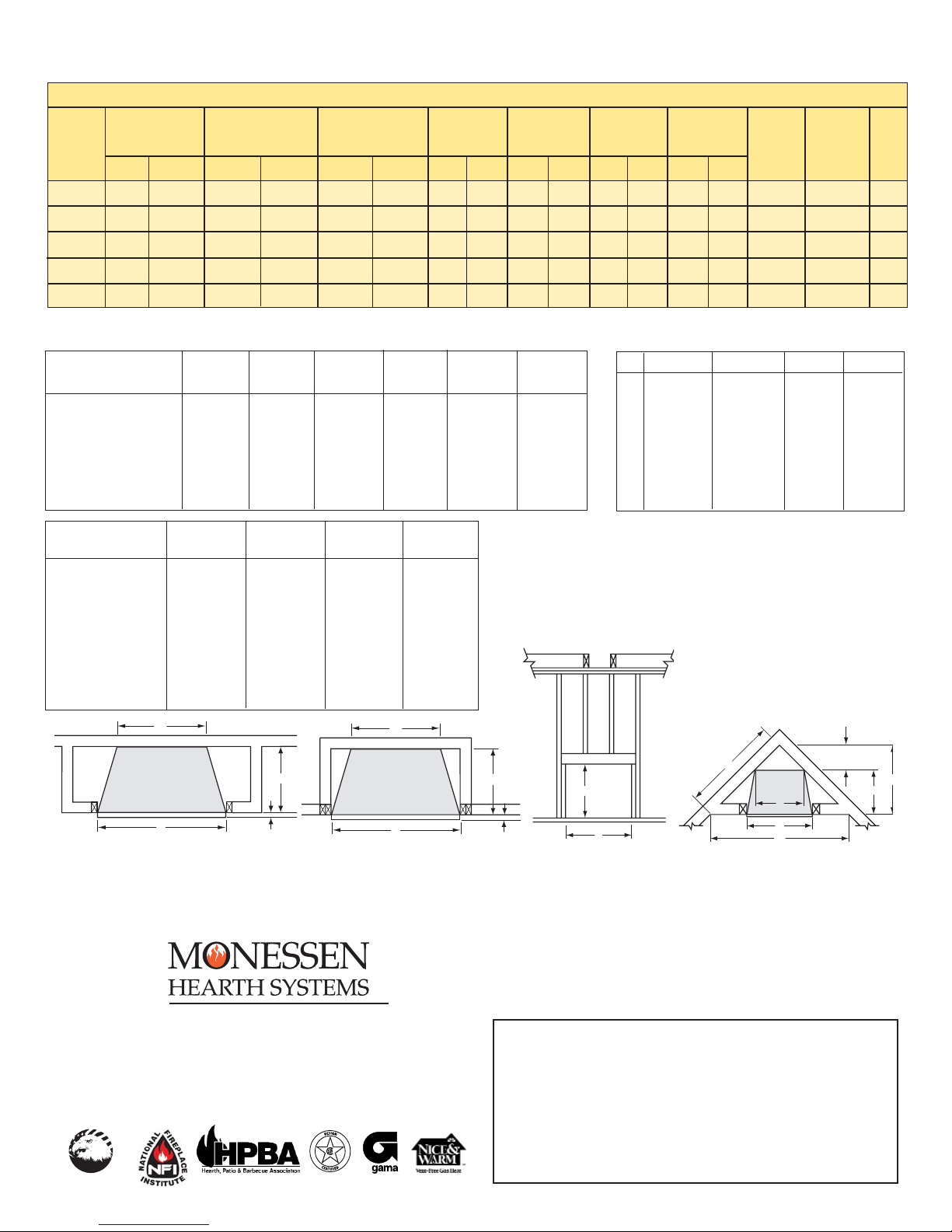

Stud Location
