Mitsubishi Electric CITY MULTI CMY-R100XLCBK User manual

Mitsubishi Electric Air Conditioner CITY MULTI

CMY-R100XLCBK

Twinning Kit Installation Manual

sFor your safety, thoroughly read the following instructions prior to installation.

Safety Precautions

sThoroughly read the following “Safety Precautions” to ensure proper installation.

sObserve the following important safety precautions at all times.

sHazards that can occur from incorrect handling are classified by the symbols below:

WARNING

CAUTION

Incorrect handling can result in death or serious injury.

Incorrect handling can result in bodily injury and/or structure damage.

WARNING

CAUTION

Only a dealer or qualiﬁed technician should

perform installation.

Properly install all parts according to the

instructions in the Installation Manual.

After installation, check for a refrigerant leak.

Do not make any modiﬁcations or alterations.

Consult your dealer for repair.

When installing or relocating the unit, check that

no substance other than the speciﬁed refrigerant

(R410A) enters the refrigerant circuit.

Do not touch the refrigerant pipes and refrigerant

circuit components with bare hands during and

immediately after operation.

In the event of a refrigerant leak, thoroughly

ventilate the room.

sImproper installation may result in refrigerant gas leakage and

equipment damage.

sIf the wrong twinning pipe or wrong size connecting pipe is used,

air conditioning performance will suffer.

sIf leaked refrigerant comes in contact with a heat source, such

as a fan heater, stove, or electric grill, toxic gases will be

generated.

sImproper installation may result in water leakage, electric shock,

or ﬁre. sAny presence of foreign substance or air can cause abnormal

pressure rise or explosion.

sDuring or immediately after operation, certain parts of the unit

such as pipes and compressor may be either very cold or hot,

depending on the state of the refrigerant in the unit at the time.

To reduce the risk of frostbites and burns, do not touch these

parts with bare hands.

sIf refrigerant leaks and comes in contact with an open ﬂame,

toxic gases will be generated.

Properly dispose of packing materials.

sPlastic bags can pose suffocation and choking hazards: keep

them out of the reach of children. Tear the plastics bags before

disposing of them.

* See the Installation Manual that came with the outdoor unit for installation instructions.

WT06205X03

2. Selecting the Correct Size Refrigerant Pipes and Using the Twinning Kit

(1) Pipe size

1Field-supply the pipes to be connected to the kit.

2Choose the correct size pipe using the table

below. Connect the ﬁeld-supplied pipe to the

twinning kit for the sizes in the table that are

marked with an asterisk (*).

3If the pipe was cut with a pipe cutter, remove

the burrs and eliminate foreign materials before

connecting.

* On the low-pressure side, the twinning kit connects

to the ﬁeld-supplied pipes inside the outdoor unit.

The distributor on the low-pressure side must be

placed in the outdoor unit that has a larger capacity

index of the two, regardless of the relative positions

of the outdoor units or their addresses.

If the distributor is placed in the outdoor unit that has

a smaller capacity, refrigerant will not be properly

distributed and compressor failure may result.

(If outdoor units that have the same capacity are

used in combination, the distributor can be placed in

either outdoor unit.)

Package unit name A0

Component unit name Outdoor unit 1 B0

Outdoor unit 2 C0

Outdoor Twinning Kit D0

BC controller ~ Twinning pipe High-pressure A E0

Low-pressure B F0

Unit model High-pressure Low-pressure

C or D E or F

Twinning pipe ~ Outdoor unit

A1 A2 A3

B1 B2 B3

C1 C2 C3

A0 B0 C0 D0 E0 F0

PURY-**

P216 P120 P96

CMY-R100XLCBK ø28.58

[1-1/8]

ø28.58(*)

[1-1/8]

P240 P120 P120

ø34.93(*)

[1-3/8]

P264 P144 P120

P288 P144 P144

A1 B1 C1

A2 B2 C2

A3 B3 C3

PURY-**

P96 P120 P144

ø19.05

[3/4]

ø19.05

[3/4]

ø22.2(*)

[7/8]

ø22.2(*)

[7/8]

ø28.58

[1-1/8]

ø28.58

[1-1/8]

(Unit: mm [in]) (Unit: mm [in])

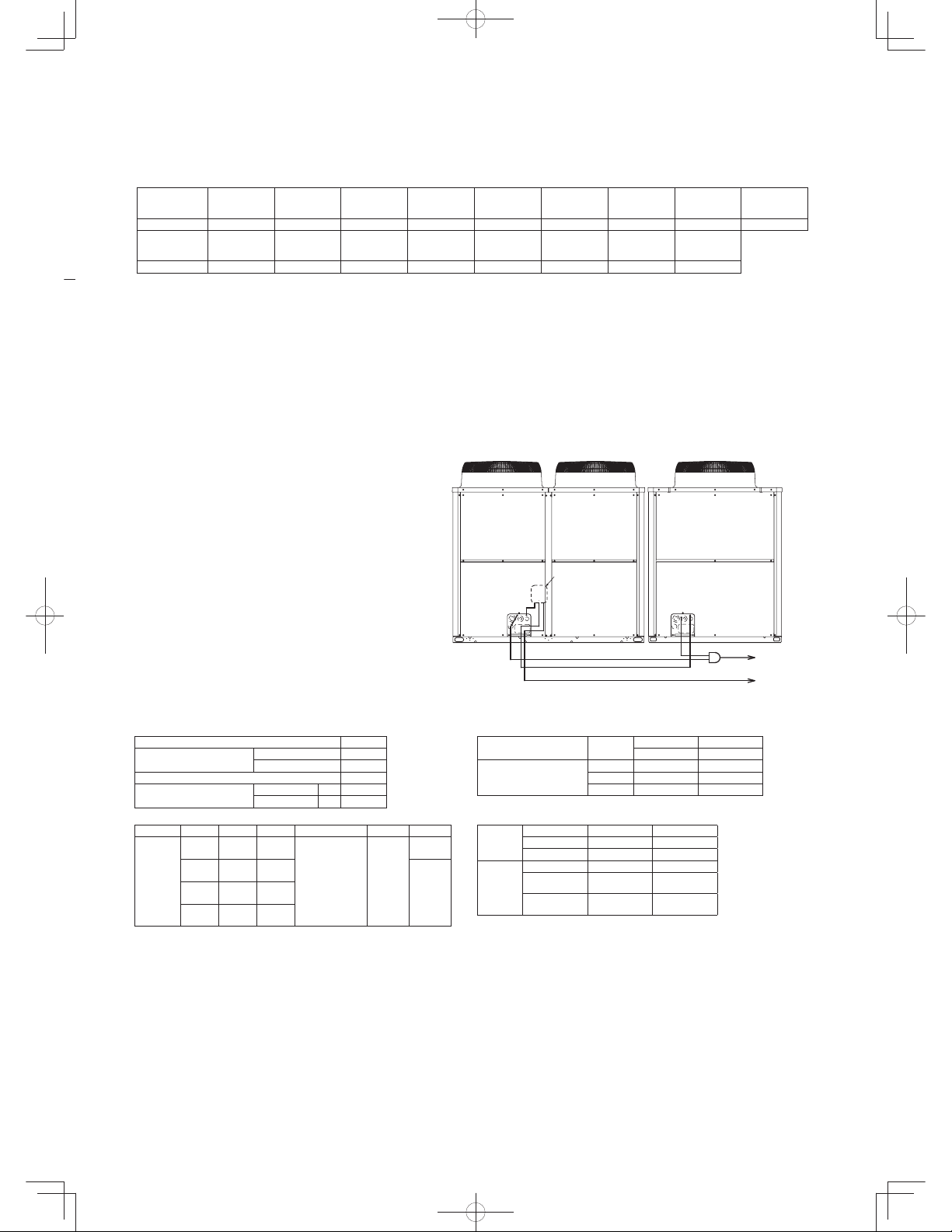

1. Conﬁrming the Package Contents

The following items are included with the Twinning Kit (CMY-R100XLCBK). Verify that all items are present before starting installation.

* Always use the twinning pipes included in the kit when preparing the twinning kit.

If the ﬁeld-supplied pipes do not ﬁt the parts in the kit, use the accessory piping parts listed below.

(1) Package contents

Model

1Low-pressure

twinning kit

2High-pressure

twinning pipe 3Fixing screw 4Cable tie 5Elbow pipe

ø28.58 [1-1/8]

6Elbow pipe

ø31.75 [1-1/4]

7High-pressure

pipe (for routing

through the bottom)

8High-pressure

pipe (for routing

through the front)

9Pipe cover

CMY-R100XLCBK 1 1 1 2 1 1 1 1 1

Model

0OD31.75 [1-1/4]

-ID28.58 [1-1/8]

aOD22.2 [7/8]

-ID19.05 [3/4]

bOD19.05 [3/4]

-ID22.2 [7/8]

cOD22.2 [7/8]

-ID28.58 [1-1/8]

dOD28.58 [1-1/8]

-ID22.2 [7/8]

e OD31.75 [1-1/4]

-ID34.93 [1-3/8]

fInstallation

Manual

(this booklet)

gInsulation cover

CMY-R100XLCBK 1 1 3 1 1 1 1 1

(2) List of ﬁeld-supplied parts

· Refrigerant pipes other than the ones provided in the kit.

· Heat-resistant insulation material (for field-supplied refrigerant pipes)

· Insulation cover tape

Outdoor unit 1 Outdoor unit 2

To BC controller

Twinning pipe (High pressure)

Twinning kit

(Low pressure)

See reverse.

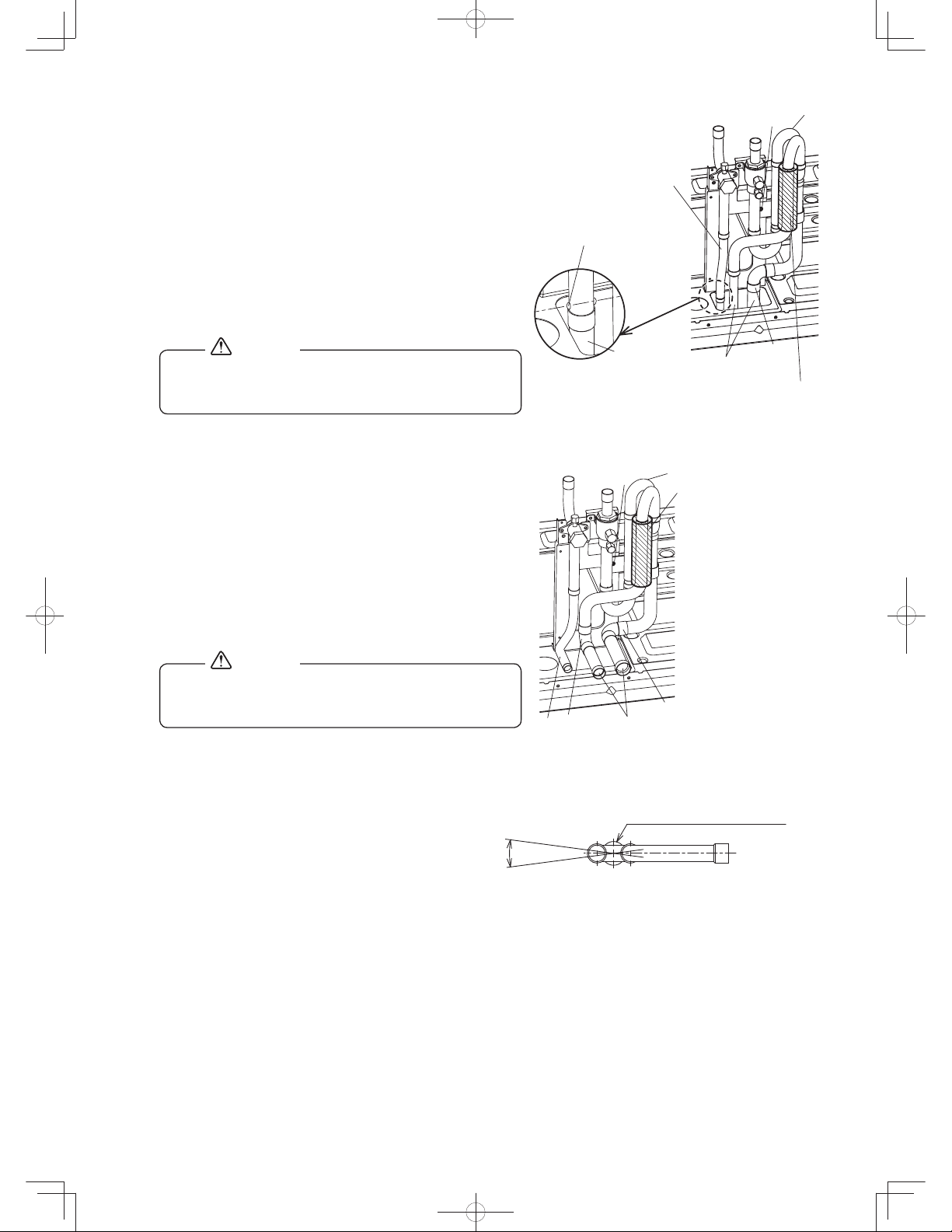

(2) Routing the pipe through the bottom

(1) Braze item 7high-pressure pipe to the refrigerant service valve so

that the dimples on the pipe are parallel to the edge of the cutout

hole. Expand the end of the ﬁeld-supplied pipes, and braze them to

item 7high-pressure pipe.

(2) Attach item 1low-pressure twinning kit to the sheet metal of the

refrigerant service valve with item 3screw, and braze it to the

refrigerant service valve.

(3) Braze item 6elbow pipe to the ﬁeld-supplied pipe ﬁrst, and then

braze it to item 1low-pressure twinning kit.

(4) Flare the ﬁeld-supplied pipe end, and braze the pipe to the low-

pressure pipe in the middle.

(5) Wrap the pipe in front of item 1low-pressure twinning kit with item

9pipe cover, and attach compressor cables to item 9pipe cover

with item 4cable tie to keep them out of direct contact with the

pipes.

(3) Routing the pipe through the front

(1) Braze item 8high-pressure pipe to the refrigerant service valve.

(2) Attach item 1low-pressure twinning kit to the sheet metal of the

refrigerant service valve with item 3screw, and braze it to the

refrigerant service valve.

(3) Braze item 6elbow pipe to the ﬁeld-supplied pipe ﬁrst, and then

braze it to item 1low-pressure twinning kit.

(4) Braze item 5elbow pipe to the low-pressure pipe in the middle.

(5) Wrap the pipe in front of item 1low-pressure twinning kit with item

9pipe cover, and attach compressor cables to item 9pipe cover

with item 4cable tie to keep them out of direct contact with the

pipes.

(4) Slope of twinning pipes (high-pressure side only)

Make sure the slope of the twinning pipes are at an angle

within ±15˚ to the horizontal plane.

If the slope exceeds the speciﬁed angle, the unit may be

damaged.

Note. Refer to the ﬁgure below for the installation position of the twinning pipe.

(5) The length of the straight pipe between indoor units and the twinning pipe (high-pressure pipe)

Use the pipes supplied in the twinning kit, and make sure the section of the ﬁeld-supplied pipe that connects to the twinning

pipe has at least 500 mm [19-11/16 in] of straight section. (The section of the ﬁeld-supplied pipe that connects to the twinning

pipe must have at least 500 mm [19-11/16 in] of straight section.) If the straight section is less than 500 mm [19-11/16 in], it

may result in equipment damage.

· Before heating the pipes, place a wet towel on the refrigerant service

valve to keep its temperature below 120

˚C [248˚F]

· Direct the flame away from the cables and sheet metals inside the unit

so as not to burn them.

CAUTION

· Before heating the pipes, place a wet towel on the refrigerant service

valve to keep its temperature below 120

˚C [248˚F]

· Direct the flame away from the cables and sheet metals inside the unit

so as not to burn them.

CAUTION

Connect the pipe so that the

dimples on the 7high pressure

pipe are parallel to the edge of

the cutout hole.

Wrap the pipe cover here.

Attach compressor cables to pipe

cover with cable tie to keep them

out of direct contact with the pipes.

Field-supplied pipes

Field-supplied

pipes

±15˚

Twinning pipe on the high-pressure side

Slope of the twinning pipe is at an angle within ±15° to the horizontal plane.

Wrap the pipe cover here.

Attach compressor cables to pipe

cover with cable tie to keep them

out of direct contact with the pipes.

Field-supplied pipes

5. Miscellaneous Notes

Secure the ﬁeld-supplied pipes with a pipe cover and a cable tie in place to keep them from coming in contact with other pipes as

necessary.

WT06205X03

See reverse.

3. Pipe Connection Example

Connect the pipes between outdoor units,

referencing the ﬁgure below.

1Low-pressure

twinning kit

2High-pressure twinning pipe

Low-pressure connecting pipe

(ﬁeld-supplied)

High-pressure connecting pipe

(ﬁeld-supplied)

Main high-pressure pipe

(ﬁeld-supplied)

Main low-pressure pipe

(ﬁeld-supplied)

(6) Pipe connection (high-pressure side)

· Make sure the pipes from the twinning pipe to the outdoor unit are sloped downwards.

· If high-pressure twinning pipe is installed above the base of the outdoor unit, it should be no more than 200 mm [7-7/8 in].

A B

To BC controller

High-pressure twinning pipe

Total pipe length = A + B < 5 m [16-7/16 ft]

To BC controller

Upward slope

Downward slope

100 mm [3-

15/16 in]

or more

BC controller

200 mm

[7-7/8 in]

max.

High-pressure

Twinning pipe

Outdoor unit 1 Outdoor unit 2

4. Insulation Cover Installation

Install the insulation cover on the twinning kit after brazing the pipes and twinning kit.

Insulate all refrigerant pipes. Insulate the high-pressure and low-pressure pipes separately, and pipes located inside the unit as well as

the outside. Use heat-resistant insulation material (Heat resistant : at least 120°C [248°F], Thickness: high-pressure = 10 mm [13/32 in],

low-pressure = 20 mm [13/16 in] ). Position the edges of the insulation cover and heat-resistant insulation material so as not to leave a

gap, and then wrap the exterior perimeter of the pipe joints and middle with tape (ﬁeld-supplied).

Tape (ﬁeld-supplied)

Insulation cover Heat-resistant insulation material (ﬁeld-supplied)

Tape (ﬁeld-supplied)

Insulation covers can shrink.

Overlap the tape as shown in the

left ﬁgure so that there will be no

gap in between the insulation cover

or ﬁeld-installed insulation material.

Heat-resistant insulation material (ﬁeld-supplied)

To be gap free

ﬁeld-supplied pipe

gInsulation cover

2High-pressure

twinning pipe

Overlap margin of the tape

Other Mitsubishi Electric Air Conditioner manuals

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PUHZ-FRP71VHA User manual

Mitsubishi Electric

Mitsubishi Electric MLZ-KP25VF User manual

Mitsubishi Electric

Mitsubishi Electric PCA-RP50GA User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-FB35VA User manual

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PWFY-P100VM-E-BU User manual

Mitsubishi Electric

Mitsubishi Electric MUZ-FH09NA User manual

Mitsubishi Electric

Mitsubishi Electric PLFY-P15VCM-E2 Operating manual

Mitsubishi Electric

Mitsubishi Electric MFZ-KA25VA User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-HC25VA User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PCY-M KAL-TH Series User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PUHZ-P100VKA User manual

Mitsubishi Electric

Mitsubishi Electric CITY MULTI CMY-R100NCBK User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PKA-RP60FAL User manual

Mitsubishi Electric

Mitsubishi Electric MXZ-3HA50VF2 User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-FH25VE User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PLA Series Operating manual

Mitsubishi Electric

Mitsubishi Electric MSZ-GL71VGD User manual

Mitsubishi Electric

Mitsubishi Electric City Multi PFFY-P User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-CGE22VA User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-AP42VGK User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PKH-2FKA Operating manual

Mitsubishi Electric

Mitsubishi Electric MXZ-3C24NA2 User manual

Mitsubishi Electric

Mitsubishi Electric City Multi PFFY-P-VLEM-E User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-GS25VFD User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
