Mitsubishi Electric AG-150A User manual

Air-conditioner Network System

Centralized Controller

Model: AG-150A InstructionBook

(Web browser for optional functions)

Contents

1 Introduction .........................................................................1

1-1 Conventions Used in This Manual........................................... 1

1-2 Computer Requirements ......................................................... 1

1-3 Notes on using AG-150A with the integrated centralized control

software (TG-2000A)................................................................ 1

2 Setting the Operating Environment......................................2

2-1 Setting the PC IP Address.......................................................2

2-2 Setting the Web Browser......................................................... 4

3 Performing Operations........................................................6

3-1 Opening the Option Setting screen.........................................6

3-2 Enabling the function that measures the electric power by the

outdoor unit ............................................................................ 10

3-3 Checking the electric power measured by the outdoor units 12

Before using the controller, please read this Instruction Book carefully to ensure prope

operation. Keep this manual for future reference. WT05493

Ver.1.0

1 Introduction

A special feature of Mitsubishi Electric Corporation’s “Centralized Controller AG-150A” is that a PC connected

to a LAN can be used to monitor the operation condition of air conditioners, perform air conditioner operations,

and make initial settings.

This document explains the procedures for making optional settings for the Centralized Controller AG-150A

using the web browser.

Hereinafter, "Centralized controller AG-150A", unless otherwise specified, will be called "AG-150A".

Note: License of "Web Monitor" or "Basic License Pack" is necessary to use the web browser and update program. Register the

license key on the AG-150A LCD screen.

A one-day license key can be registered on the LCD screen that allows the user to use the "Web Monitor" only on the day of

the registration. Use this license key to update the program or to use the initial setting browser, or in any other situations

when a temporary license key is necessary.

Note: The use of the function of the outdoor units that measures the electric power will require the "Energy Management License

Pack."

Note: Use a security device such as a VPN router when connecting the AG-150A to the Internet to prevent unauthorized access.

Note: "Air to water booster unit" and "Air to water HEX unit" are referred to as "Hot water supply".

1-1 Conventions Used in This Manual

- “Click” refers to the action of positioning the mouse cursor on the object (such as button or folder) and

pressing down and releasing the left mouse button once.

- Unless otherwise specified, the example screen images used in this manual are Windows XP®and Internet

Explorer 6.0 screen images.

Note: Windows is a registered trademark or trademark of Microsoft Corporation USA in the United States and other countries.

1-2 Computer Requirements

In order to monitor and operate air conditioners by web browser, your computer must meet the following

requirements. Table 1-1 Computer Requirements

Item Requirement

CPU Pentium 300MHz or faster

Memory 64M Bytes or more (128M Bytes or more recommended)

Screen resolution 1024 x 768 or higher recommended

Compatible browser

Microsoft® Internet Explorer 6.0 or later

Note: You must have a Java execution environment

(Sun Microsystems Java Plug-in Ver.1.6.0 or later).

Note: You can check the Sun Microsystems Java Plug-in version in

“Java” in a control panel.

On-board LAN port or LAN card One connector (100BASE-T)

Other Pointing device such as a mouse

Note: Microsoft is a registered trademark or trademark of Microsoft Corporation USA in the United States and other countries.

1-3 Notes on using AG-150A with the integrated centralized

control software (TG-2000A)

If the system is connected to the integrated centralized control software (referred to as TG-2000A hereafter),

make all settings and changes from the TG-2000A so that the data in TG-2000A and AG-150A will match.

2 Setting the Operating Environment

Given below is an explanation of the PC settings and web browser settings that are required for using a web

browser to monitor air conditioner units and perform operations.

2-1 Setting the PC IP Address

You need to set an IP address on the PC that will enable you to connect to the AG-150A using a web browser.

For instance, if the AG-150A IP address is [192.168.1.1], the PC IP address will need to belong to the same

system (for example [192.168.1.101]).

If the AG-150A is connected to an existing LAN, ask the LAN administrator to decide what PC IP address to

use.

Note: When using a AG-150A dedicated LAN, we recommend the AG-150A main unit be given an IP address within

the range [192.168.1.1] - [192.168.1.40] and the PCs that will be connected to the AG-150A be given an IP

address within the range [192.168.1.101] - [192.168.1.150]

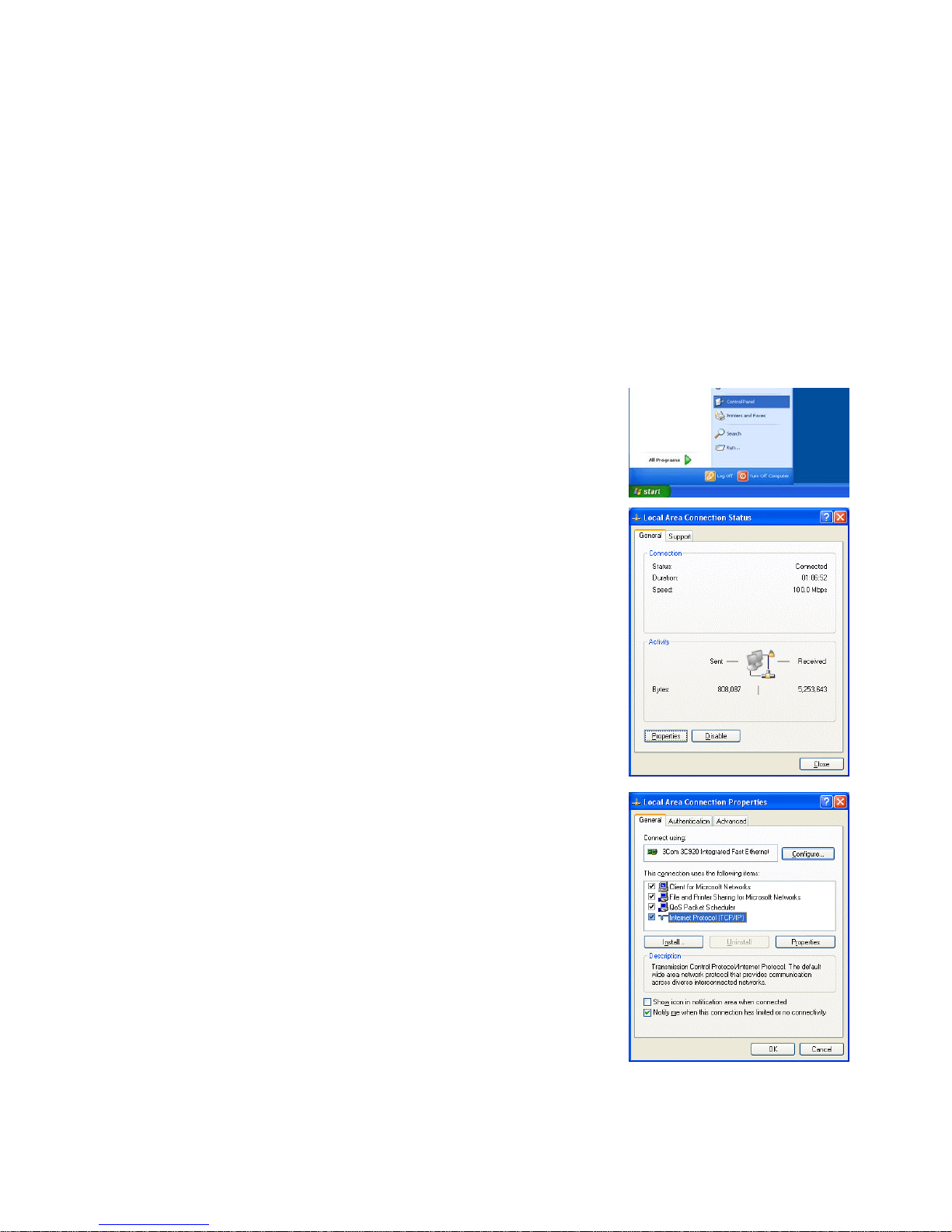

(1) Click on [Control Panel] under [Start] to open the Control Panel.

(2) In the Control Panel window, double click [Network and Dial-up

Connections] and the Network and Dial-up Connections window will

open. Double click on [Local Area Setting] and the [Local Area

Connection Status] dialog will open. Click [Properties].

(3) In the [Local Area Connection Properties] dialog, click [Internet

Protocol] to select it and click the [Properties] button.

(4) In the [Internet Protocol (TCP/IP) Properties] dialog, click [Use the

following IP address] and enter the IP address (for example,

“192.168.1.101”) that you want to set in the IP address field.

You normally set [255.255.255.0] as the subnet mask.

Note: Ask your LAN administrator to provide the IP addresses and subnet mask.

(5) Click the [OK] button to close this dialog, and then close the other open

dialogs to complete the network setting.

2-2 Setting the Web Browser

Perform the necessary web browser settings to enable the web browser to connect to the AG-150A.

Note: The settings and screen images used as examples in this manual are based on Internet Explorer 6.0.

2-2-1 Not connecting to the Internet

If the PC you use for monitoring air conditioners and performing operations is not going to be connected to the

Internet, use the procedure given below to set the web browser environment settings.

(1) Click the web browser menu item [Tools] and then click [Internet

Options…] to select that option.

(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to

display that page.

(3) Select [Never dial a connection] in the Dial-up settings section and

click the [OK] button to close the dialog.

2-2-2 Connecting to the Internet using a dial-up connection

If the PC you use for monitoring air conditioners and performing operations is going to connect to the Internet

via a dial-up connection, use the procedure given below to set the web browser environment settings.

By performing these settings, a message will appear asking whether or not to use a dial-up connection when

an Internet connection is necessary. In the case when you want to connect to the Internet, connect to the

Internet by following the directions of this message.

(1) Click the web browser menu item [Tools] and then click [Internet

Options…] to select that option.

(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to

display that page.

(3) Select [Dial whenever a network connection is not present] in the

Dial-up settings section and click the [OK] button to close the dialog.

2-2-3 Connecting to the Internet using a proxy server (Using an existing LAN)

If the PC you use for monitoring air conditioners and performing operations is going to access the Internet via

proxy server by connecting to an existing LAN such as a LAN within your company, use the procedure given

below to set the web browser environment settings.

By performing these settings, your PC will connect to a proxy server only when connecting to the Internet.

(1) Click the web browser menu item [Tools] and then click [Internet

Options…] to select that option.

(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to

display that page.

(3) Select [Never dial a connection] in the Dial-up setting section.

(4) Click the [LAN Setting . . .] button in the Local Area Network (LAN)

settings section to display the Local Area Network (LAN) Settings

dialog.

(5) In the Local Area Network (LAN) Settings dialog, check [Bypass proxy

server for local addresses] and click the [Advanced...] button.

(6) Enter the IP address for the AG-150A (e.g. 192.168.1.1) in the

Exceptions field of the Proxy Setting dialog and click the [OK] button to

close the dialog and then close the other open dialogs to complete the

setting.

Note: If connecting to more than one AG-150A, you can specify multiple IP

addresses like [192.168.1.1; 192.168.1.2], however, it is also possible to use

the asterisk (*) and specify [192.168.1*].

3 Performing Operations

Given below is an explanation of how to connect to the AG-150A and how to make various settings for the

AG-150A.

Note: If the AG-150A is restarted due to circumstances like a power interruption, wait until the screen on the AG-150A main unit

displays the normal operation screen (it takes several minutes before the normal operation screen is displayed) before

using a web browser to access the AG-150A. If access is attempted while the AG-150A is still starting up, the most recent

data might not be displayed or communication errors could occur.

Note: Default IP address of AG-150A is "192.168.1.1". (Factory setting)

3-1 Opening the Option Setting screen

3-1-1 Opening the Option Setting screen

(1) Enter the web page address in the address field of the web

browser as follows and press the [Enter] key on the keyboard. A

screen appears for login.

http:// [IP address of the AG-150A]/g-50

/administrator.html

Note: For example, type “http://192.168.1.1/g-50/administrator.html” if the

AG-150A IP address is [192.168.1.1].

(2) Enter the user name and the password in the login screen, and click the [Login] button. A screen will

appear in which various setting are made. Procedures for making proper settings on each screen will be

explained in the following pages.

The user name and password is same as the maintenance user of the Web for initial setting.

Note: The Web page is displayed in the same language as the computer uses and it is also possible to display the Web page in

other languages by entering the following Web page addresses.

English :http://[The IP address of the AG-150A]/g-50/en/administrator.html

German :http://[The IP address of the AG-150A]/g-50/de/administrator.html

French :http://[The IP address of the AG-150A]/g-50/fr/administrator.html

Spanish :http://[The IP address of the AG-150A]/g-50/es/administrator.html

Italian :http://[The IP address of the AG-150A]/g-50/it/administrator.html

Russian :http://[The IP address of the AG-150A]/g-50/ru/administrator.html

Chinese :http://[The IP address of the AG-150A]/g-50/zh/administrator.html

Japanese :http://[The IP address of the AG-150A]/g-50/ja/administrator.html

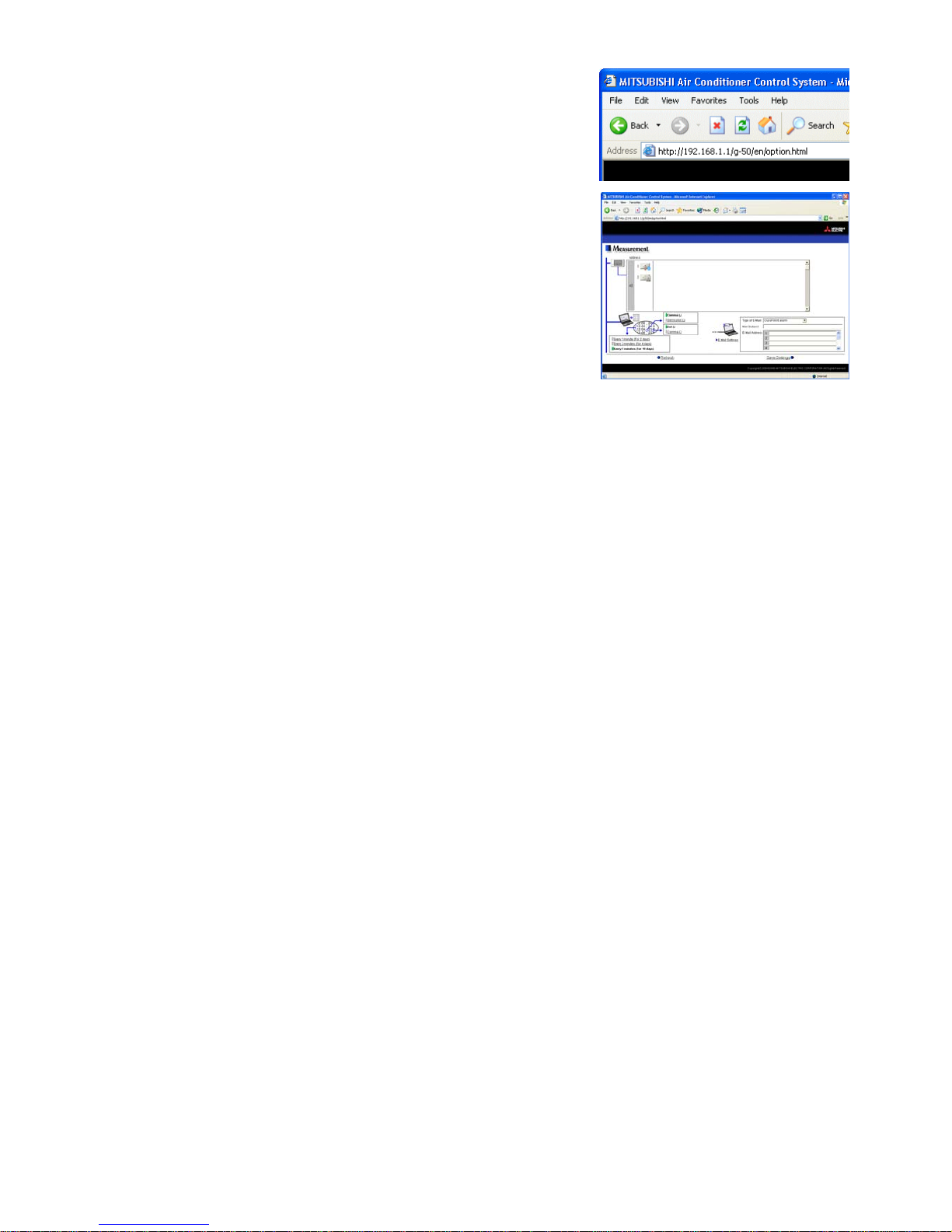

(3) Enter the web page address in the address field of the web

browser as follows and press the [Enter] key on the keyboard. A

screen appears for optional (measurement) settings.

http://[IP address of the AG-150A]/g-50/option.html

Note: For example, type “http://192.168.1.1/g-50/option.html” if the AG-150A

IP address is [192.168.1.1].

3-1-2 Encrypting the communication data and opening the Option Settings screen

AG-150A can encrypt communication data using HTTPS (SSL).

When connecting the AG-150A to the LAN that can be accessed by the general public, it is recommended

that the following settings be made so that the units are monitored and controlled on the encrypted Web page.

Note: Depending on the operating system or the version of Java, HTTPS encrypted messages may not be handled correctly. If

this happens, use a HTTP connection to monitor and control the units as noted in the section above.

(1) Go to [Tools]->[Internet Options]->[Advanced], and make the

following settings.

Item Checkbox setting

Use SSL 2.0 Uncheck the box.

Use SSL 3.0 Check the box.

Use TLS 1.0 Uncheck the box.

Do not save encrypted pages to disk Check the box.

Note: Some of the settings may have different names depending on the Web

browser version.

(2) Click on [Java] in the Control Panel, and make the settings for the

items under [Security] in the [Advanced] tab.

Item Checkbox setting

Use SSL 2.0 compatible Client Hello format Uncheck the box.

Use SSL 3.0 Check the box.

Use TLS 1.0 Uncheck the box.

Note: Some of the settings may have different names depending on the Java

version.

(3) Prefix the Web address with [https], enter the address, and hit the

[Enter] (Return) key on the keyboard.

https://[ IP Address of the AG-150A]/g-50

/administrator.html

Note: For example, type “https://192.168.1.1/g-50/administrator.html” if the

AG-150A IP address is [192.168.1.1].

If the security alert is disabled as described in the note in the

following and the subsequent sections, encrypted date

communication will begin, and the Login screen will appear. If the security alert has not been disabled, take

the following procedures.

(4) If the security alert has not been disabled, after entering the web address and hitting the Enter (Return) key,

a security alert message will alert asking if you want to proceed . This is because the AG-150A uses the

self-authentication system. Click [Yes] and proceed.

Note: Disable the security alert that appears every time the browser is opened, take the following two steps:

1) Register the security certificate and

2) Change the Web browser's option settings

To register the security certificate, click the [View Certificate] button on the security alert window to display the certificate,

click on the [Install Certificate] button, and add the certificate to the Trusted Root Certification Authorities store. Just follow the

prompts of the Import Wizard.

Go to [Tools]->[Internet Options]->[Advanced], and make the following

settings for the Web browser.

Item Checkbox setting

Warn about invalid site certificates Uncheck the box.

(5) A Java security alert message will appear after you click [Yes] in

step (4) above, click [Yes] again to proceed.

Note: To disable the security alert message that appears every time the

browser is opened, check the check box next to [Always trust content

from this publisher], and click [Yes]. The browser may need to be

restarted to reflect the change.

Note: If the window shown on the right does not appear and connection fails,

the certificate needs to be added to the Java certificate list. Click the

[View Certificate] button on the screen in step (4) to display the

certificate, click on the [Copy to File] on the [Details] page, and save the

certificate in any desired location in the DER format. Open [Java] in the Control Panel, click on the [Certificates] button on

the [Security] page to bring up the certificate registration screen. On the screen, select [Secure Site], click on the [Import]

button, change the File of type to [All Files], and select the saved certificate. Now the certificate has been added to the Java

certificate list.

(6) If a connection is successfully made, the login window will appear.

All communication with the AG-150A will be encrypted.

Enter the user name and the password in the login screen, and

click the [Login] button. A screen will appear in which various

setting are made. Procedures for making proper settings on each

screen will be explained in the following pages.

The user name and password is same as the maintenance user of

the Web for initial setting.

(7) Enter the web page address in the address field of the web

browser as follows and press the [Enter] key on the keyboard. A

screen appears for optional (measurement) settings.

https://[IP address of the AG-150A]/g-50/option.html

Note: For example, type “https://192.168.1.1/g-50/option.html” if the AG-150A

IP address is [192.168.1.1].

Other manuals for AG-150A

Table of contents

Other Mitsubishi Electric Air Conditioner manuals

Mitsubishi Electric

Mitsubishi Electric MSZ-FH12NA User manual

Mitsubishi Electric

Mitsubishi Electric City Multi PURY-EP-YJM-A User manual

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PUMY-P125 User manual

Mitsubishi Electric

Mitsubishi Electric NTXMMX A AA Series User manual

Mitsubishi Electric

Mitsubishi Electric MS-SGF09VC User manual

Mitsubishi Electric

Mitsubishi Electric Trane NTXWMT09A112A Series User manual

Mitsubishi Electric

Mitsubishi Electric Mr.SLIM PLA-A-BA4 Instruction manual

Mitsubishi Electric

Mitsubishi Electric PEH-MYB User manual

Mitsubishi Electric

Mitsubishi Electric MS-09SN-C1 User manual

Mitsubishi Electric

Mitsubishi Electric PLFY-P32VBM-E User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-EF22VEW User manual

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM PUZ-ZM71VHA-A User manual

Mitsubishi Electric

Mitsubishi Electric Mr. Slim PCA-M35 KA User manual

Mitsubishi Electric

Mitsubishi Electric MXZ-3A54VA User manual

Mitsubishi Electric

Mitsubishi Electric PLA-ZM-EA Series User manual

Mitsubishi Electric

Mitsubishi Electric PEAD-A24 User manual

Mitsubishi Electric

Mitsubishi Electric MXZ-8B48NA User manual

Mitsubishi Electric

Mitsubishi Electric R410A User manual

Mitsubishi Electric

Mitsubishi Electric EHPT17X-VM2E User manual

Mitsubishi Electric

Mitsubishi Electric City Multi PMFY-P-VBM-E User manual

Mitsubishi Electric

Mitsubishi Electric PFAV-P250VM-E User manual

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PFD-P250-A User manual

Mitsubishi Electric

Mitsubishi Electric PUHY-EP200 How to use

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PUZ-A18NHA4R1 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
