Metra Electronics 95-8153 User manual

INSTALLATION INSTRUCTIONS FOR PART 95-8153

APPLICATIONS

LEXUS LS SERIES

1995-2000

NOT FOR USE IN VEHICLES WITH FACTORY

NAVIGATION

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Mount Units Provision

A) Double DIN Radio Housing B) Double DIN Brackets

KIT COMPONENTS

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver • Socket Set

1-800-221-0932

www.metraonline.com

95-8153

Dash Disassembly

Lexus LS Series 1995-2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kit Assembly

-Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

-Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Final Assembly ........................................... 3

TABLE OF CONTENTS

95-8153

*Note:

Refer also to the instructions included with the aftermarket radio.

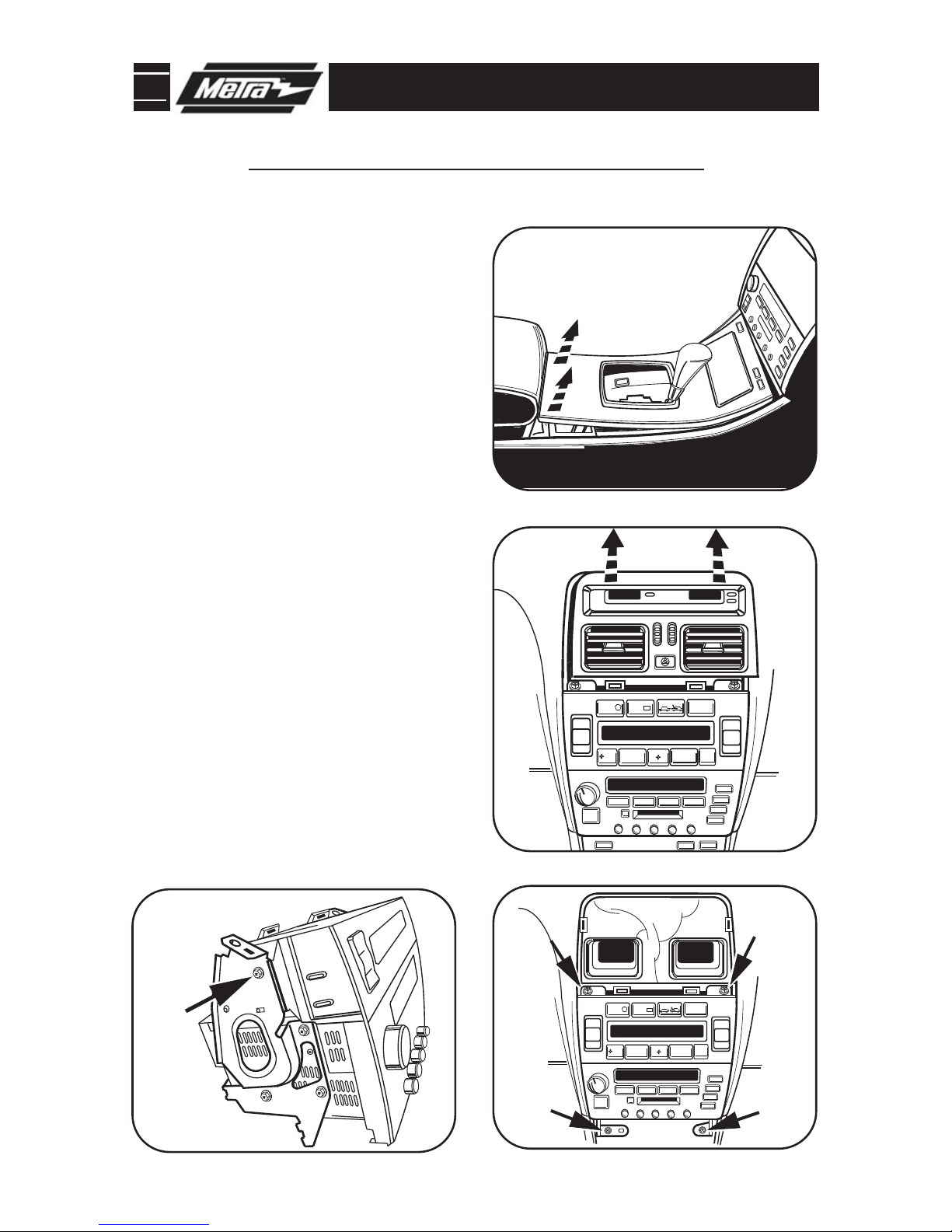

95-8153 DASH DISASSEMBLY

LEXUS LS SERIES 1995-2000

123456

SCAN P.SCAN

TUNE

SEEK

TRACK

BASS MID TREBLE BALANCE FADER

FM1/2

TAPE

TEMP TEMP

FRONT REAR A/C

OFF AUTO MODE DUAL

PASSENGER

123456

SCAN P.SCAN

TUNE

SEEK

TRACK

BASS MID TREBLE BALANCE FADER

FM1/2

TAPE

TEMP TEMP

FRONT REAR A/C

OFF AUTO MODE DUAL

PASSENGER

ONE SCREW

ON EACH

SIDE

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Starting at rear of panel surrounding

the shifter carefully pry up and out to

remove entire panel including ashtray.

(

Figure A)

Using a panel removal tool or small

flat blade screwdriver gently pry out

on the top of the A/C vent assembly

(including clock) and remove.

(Figure B)

Remove (4) screws securing the fac-

tory radio/climate control assembly.

Unplug and remove the assembly.

(Figure C)

Remove (2) screws securing factory

climate control to the assembly.

Remove the climate control from the

assembly and retain it for re-use dur-

ing kit assembly. (

Figure D)

Continue to kit assembly.

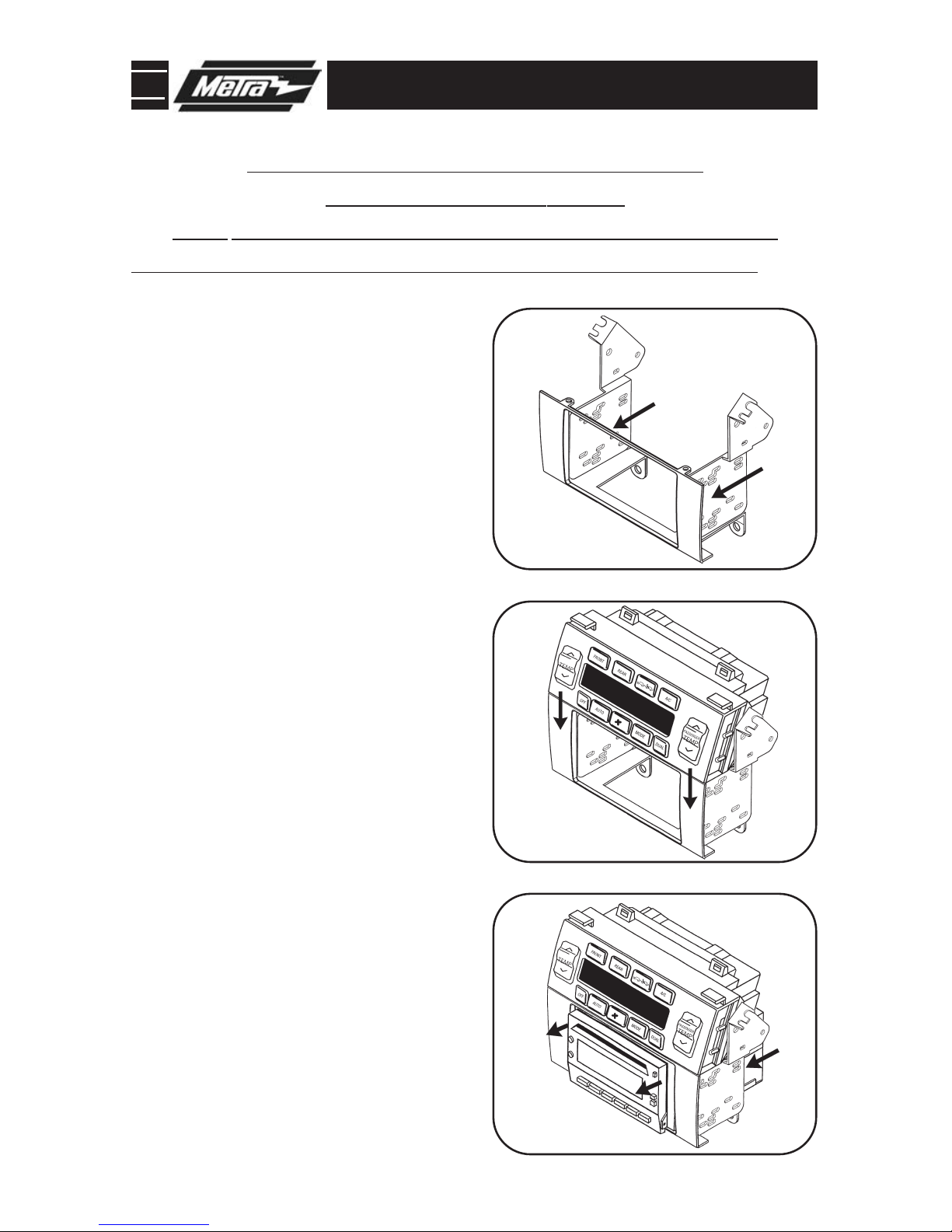

95-8153 KIT ASSEMBLY

Snap the Double DIN Brackets onto

the Double DIN Radio Housing.

(Figure A)

Slide the Double DIN or stacked ISO

mount units into the bracket/radio

housing assembly and securethe

Double DIN or stacked ISO mount

units to the assembly using the

screws supplied with the Double DIN

or stacked ISO mount units.

(Figure C)

Slide the factory climate controls into

the Bracket/Radio Housing assembly

aligning the top of the assembly with

alignment pins in the bottom of the

climate controls and secureusing the

factoryhardware.

(Figure B)

Continue to final assembly.

LEXUS LS SERIES 1995-2000

DOUBLE DIN RADIO

STACKED ISO MOUNT UNITS PROVISON

Note: Refer also to the instructions included with the aftermarket radio.

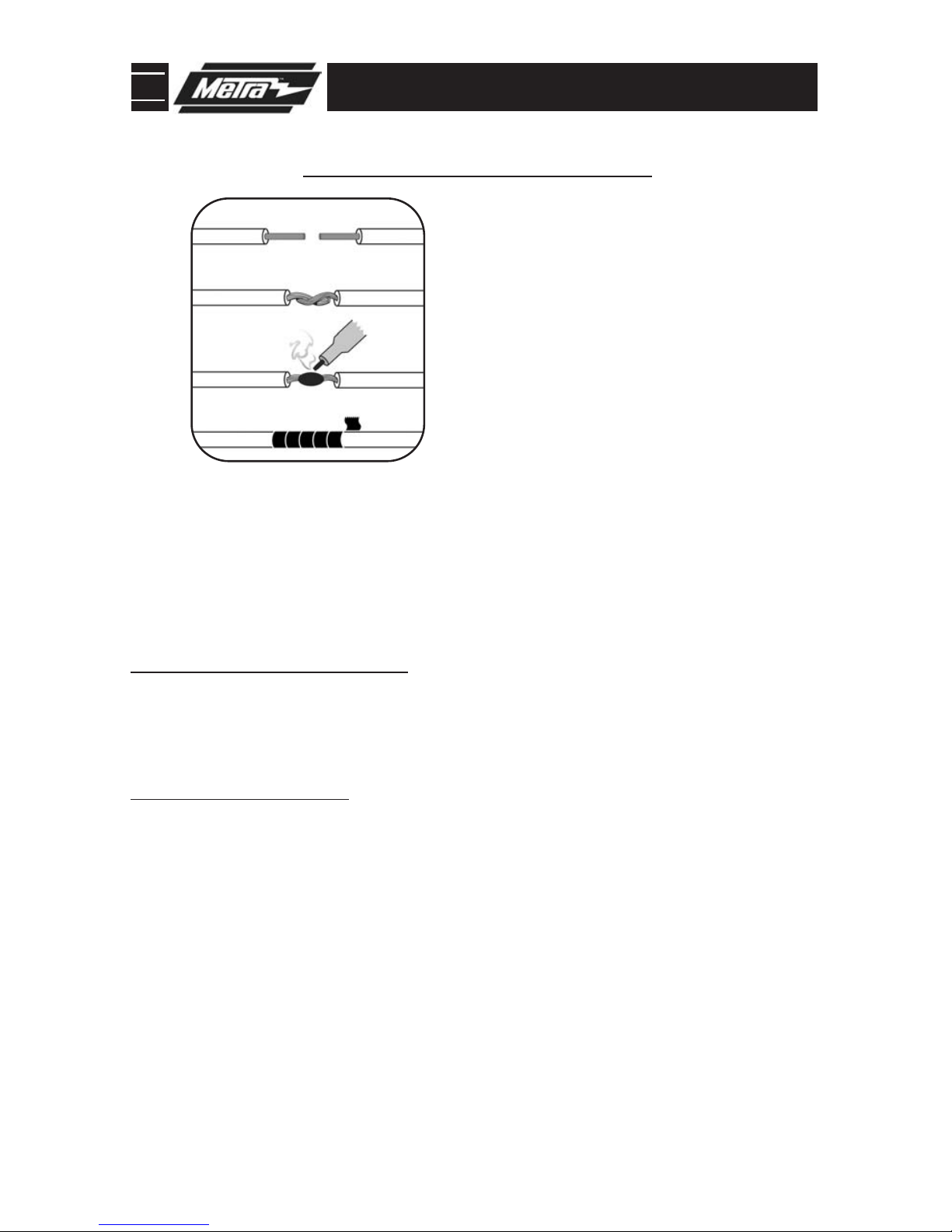

95-8153 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground..................Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination ..............Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) .............Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

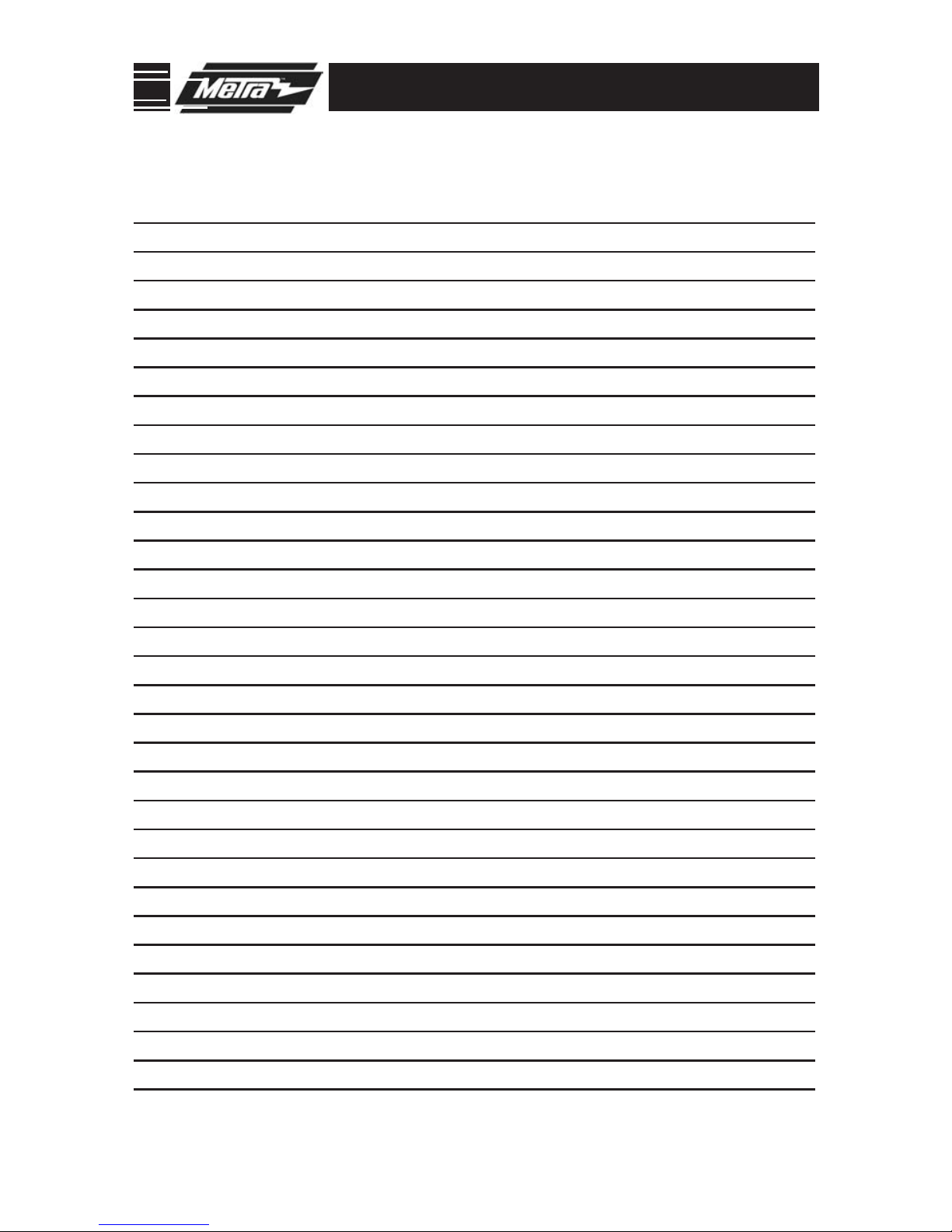

95-8153

NOTES

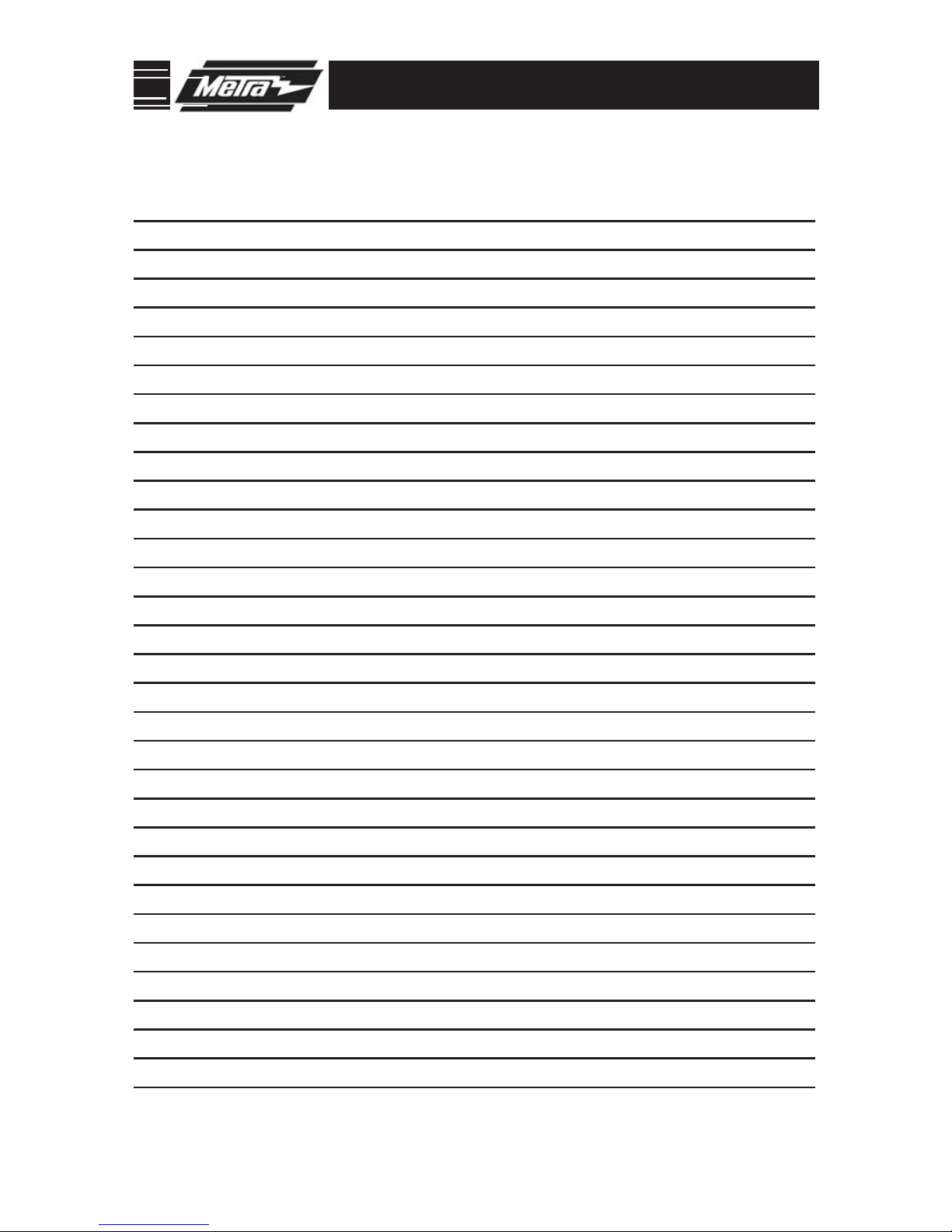

95-8153

NOTES

95-8153 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
