Manitowoc GROVE GMK4090 User manual

Operating manual

3 302 736 en

14.03.2018

xx.xx.xxxx

3 302 736 en Operating manual

GMK4090

Important note

Any type of duplication or excerpt from

this document, even in electronic form,

is not subject to the revision service of

Manitowoc Crane Group Germany GmbH.

Manitowoc Crane Group Germany GmbH

Industriegelände West

D-26389 Wilhelmshaven, Germany

Phone: [+49] (0)44 21 294-0

Fax: +[49] (0) 44 21 294-301

The passing on or reproduction of this document as well as the utilisation and disclosure of its contents is prohibited unless

expressly permitted. Infringement will incur liability for compensation. All rights pertaining to registration of patent or utility

model are reserved. The original language of this document is German.

Additional pages GMK 3 302 808 en 1

31.08.2018

In the Operating manual supplied, it is noted that special care must be taken when

telescoping in the emergency programe (1), as no automatic monitoring takes

place.

If you move the telescoping cylinder without a telescopic section (return run),

please also note all the information in these additional pages.

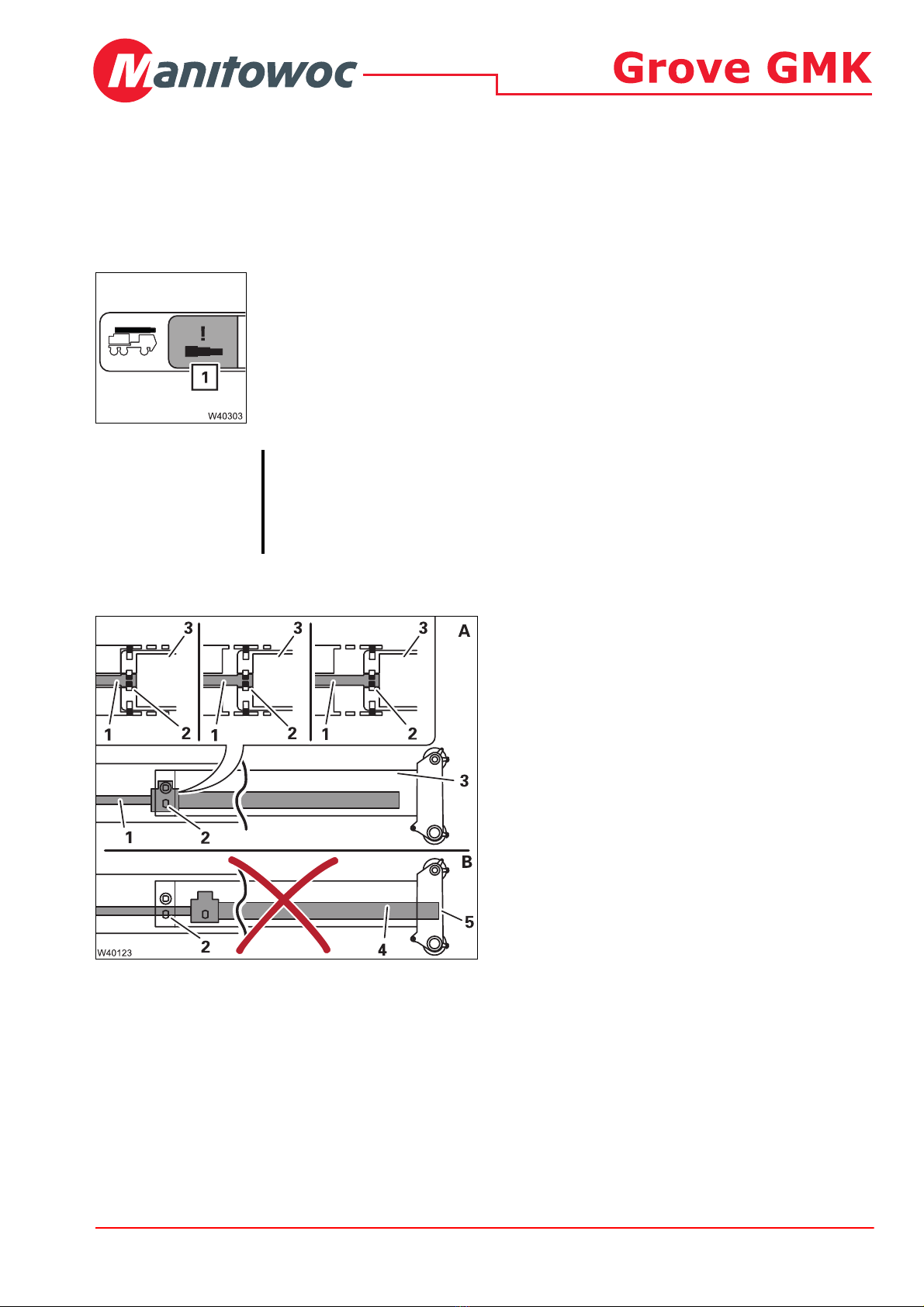

(A) – These specifications apply to the outermost

telescopic section (3) – on all fixed lengths.

•Always stop extending the telescopic cylin-

der (1) once the locking point (2) on the

outermost telescopic section (3) has been

reached.

There is no automatic shutdown.

(B) – If you move too far past the locking point (2),

the cylinder tube (4) will hit the main boom

head (5) at the front.

This can lead to damage which makes telescop-

ing the main boom no longer possible.

Telescoping emergency programe

Return run of the telescoping cylinder

SRisk of damage during return run of the telescopic cylinder!

Always stop extending once the locking point on the outermost telescopic section

has been reached.

This prevents damage to the boom system through a collision between the

telescoping cylinder and the main boom head.

31.08.2018

2 3 302 808 en Additional pages GMK

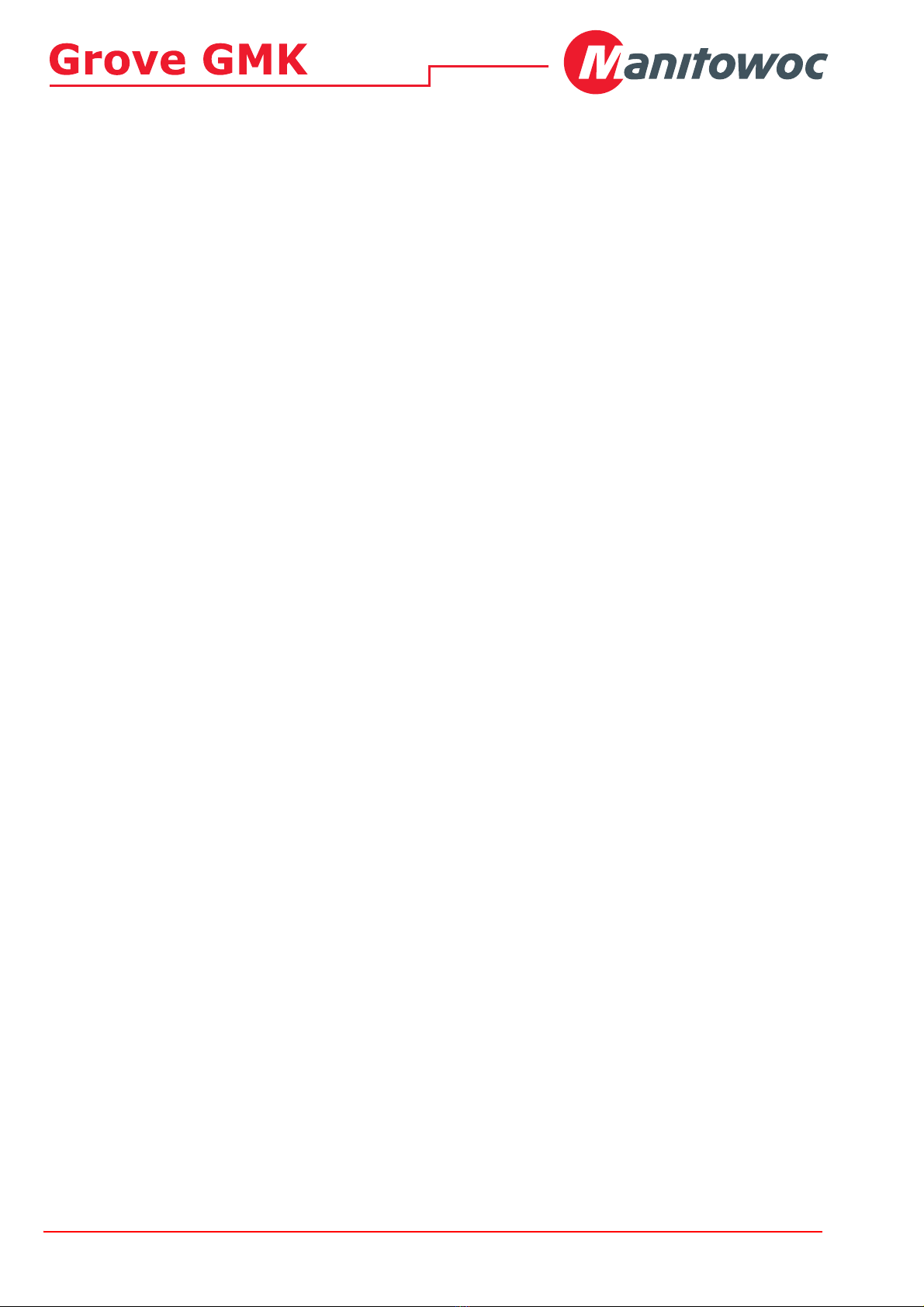

Blank page

Additional pages GMK4080-2/4090 3 302 829 en 1

19.11.2018

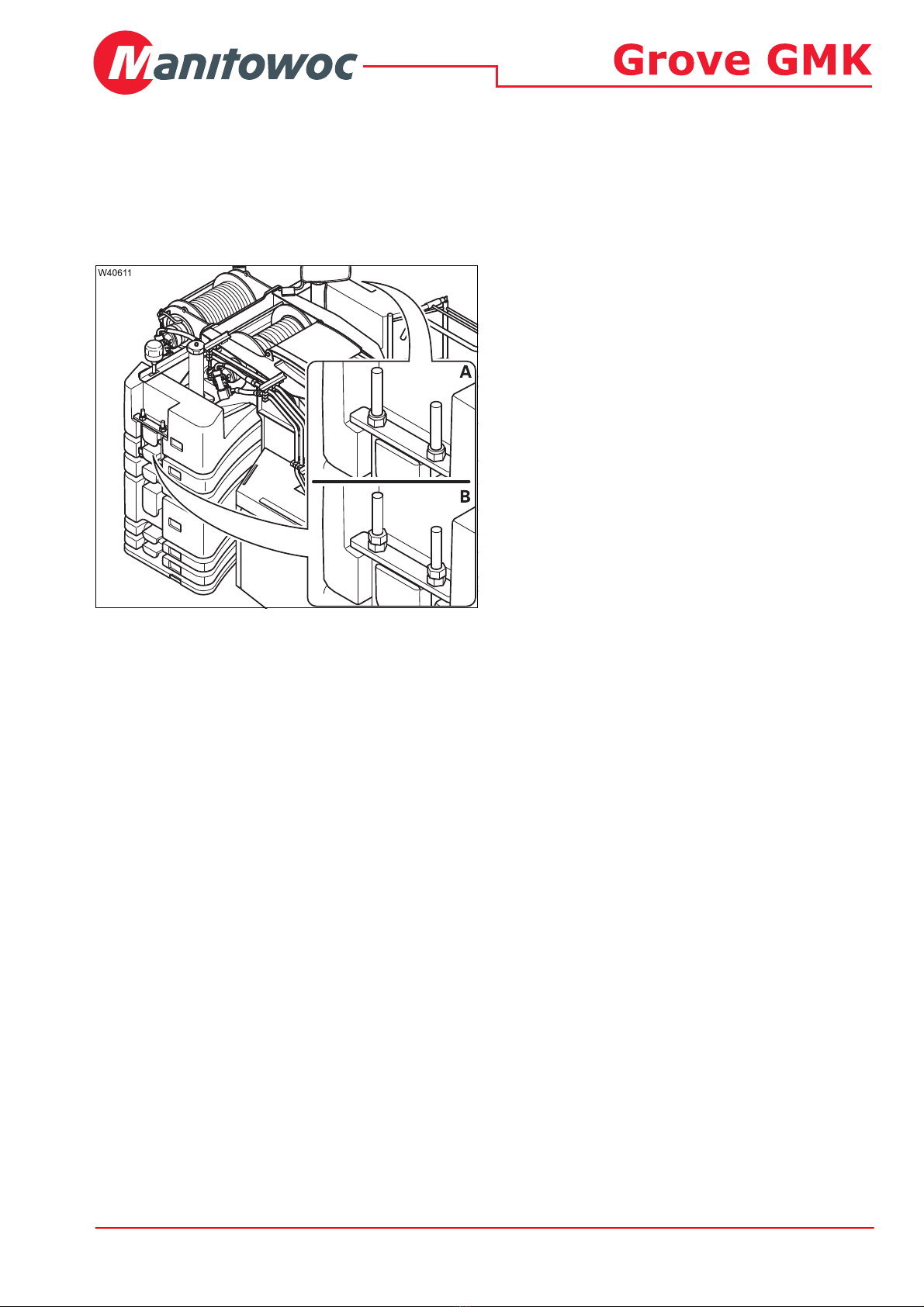

•Fasten the counterweight on the turntable

(A) – with a self-locking nut

(B) – with two nuts.

Tightening torque: 100 Nm

Mounting counterweight on the turntable

19.11.2018

2 3 302 829 en Additional pages GMK4080-2/4090

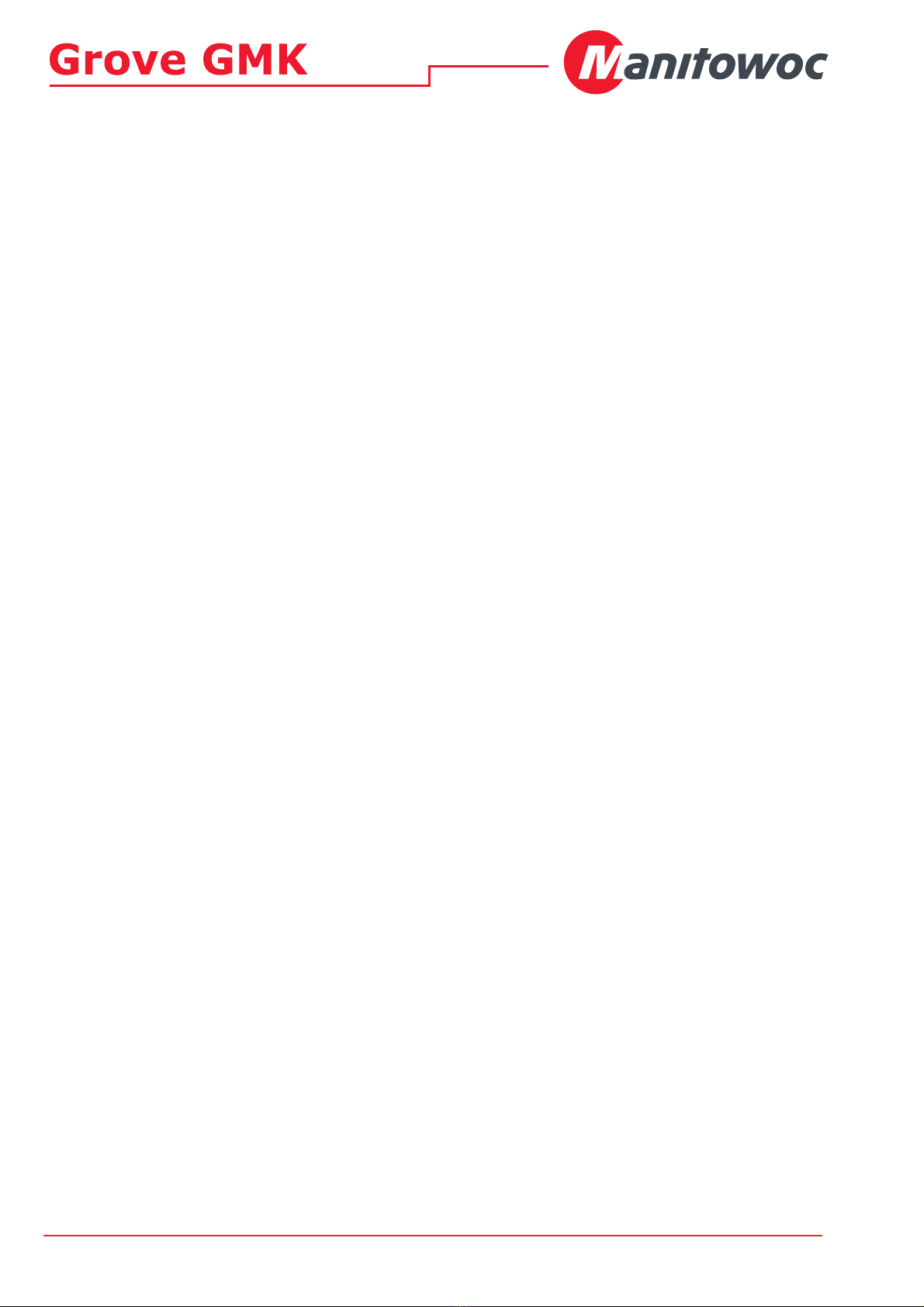

Blank page

Correction sheet GMK4080-2 / GMK4090 3 302 837 en 1

22/11/2018

Contrary to the information in the operating manual supplied, various hook

blocks are no longer available.

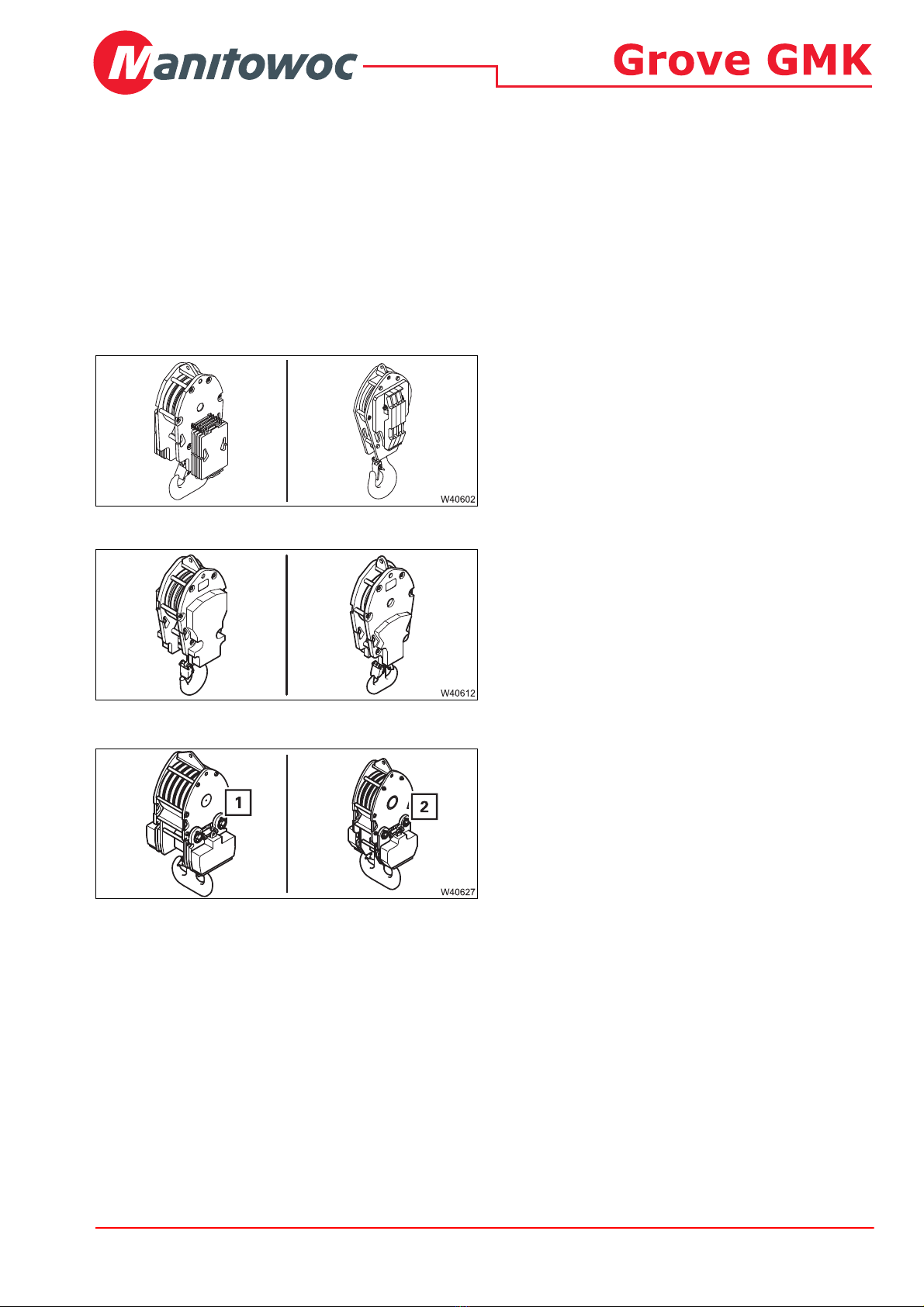

Hook blocks with ballast plates

The hook blocks with ballast plates are no

longer available.

A 3-sheave hook block (light) and a 1-sheave

hook block (light) are offered as replacements.

Separable hook block

The separable hook blocks (1) and (2) are no

longer available.

Hook blocks

Change

22/11/2018

2 3 302 837 en Correction sheet GMK4080-2 / GMK4090

Blank page

Additional pages GMK 3 302 839 en 1

28.11.2018

In addition to the information given in the operating instructions supplied, the

heating system and air-conditioning system in the crane cab can also be

operated from the driver's cab. This enables, for example, the crane cab to

be preheated while driving.

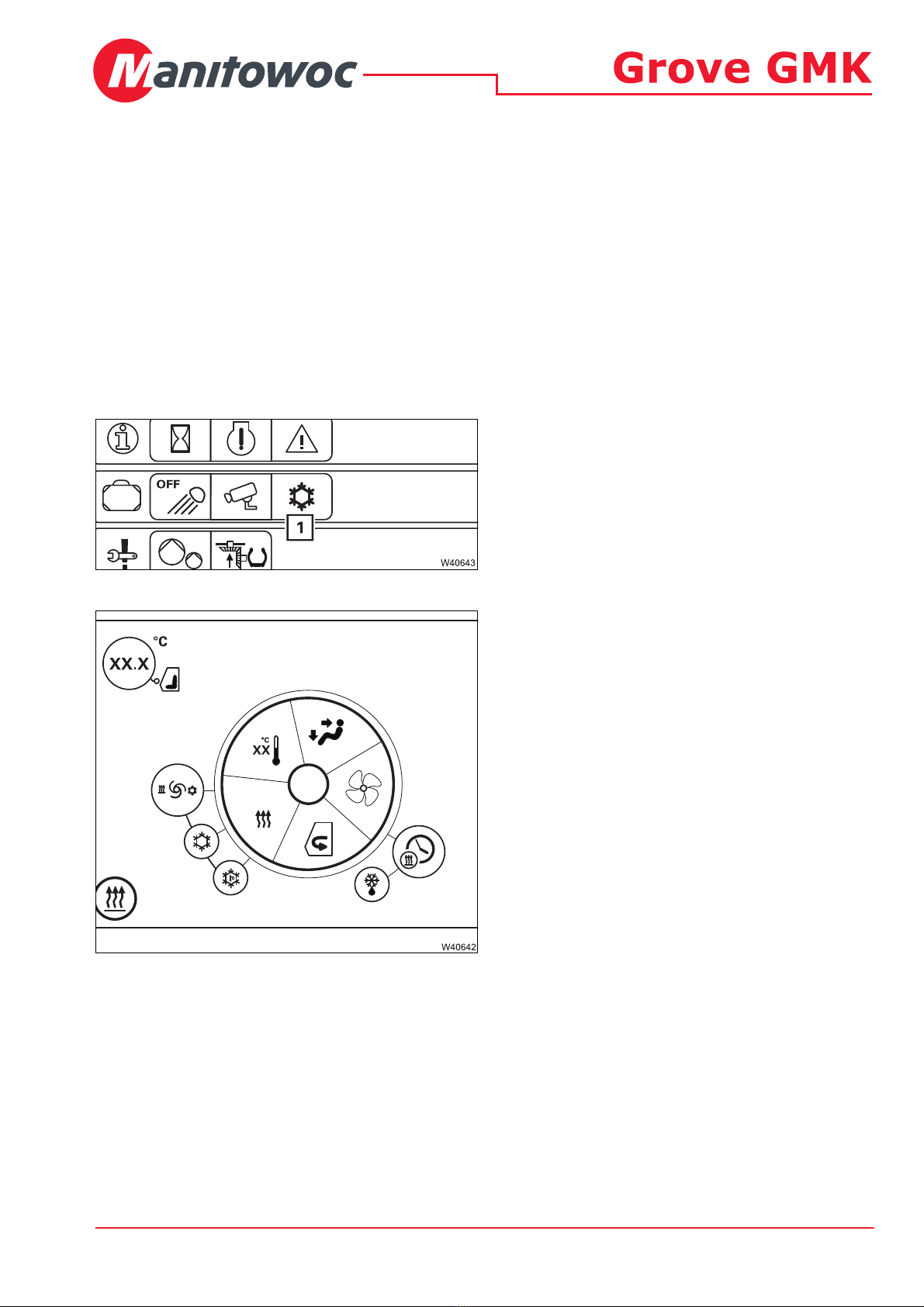

Additional operating elements

In the Various controls menu group – only in newer

program versions.

Operation

The Crane cab heating/air-conditioning system menu

is identical to the menu in the crane cab.

It is operated in the same way as in the crane cab

and is described in the supplied operating manual.

After switching on the ignition in the driver's cab,

the heating system and air-conditioning system in

the crane cab must always be switched off.

Crane cab heating and air-conditioning system

Operation from the driver's cab

1Crane cab heating/air-conditioning system

28.11.2018

2 3 302 839 en Additional pages GMK

Blank page
