Logik LWC59B12 User manual
59 Bottle Wine Cooler
Instruction Manual
LWC59B12
(Wine not included)
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 1 22/08/2012 11:58 AM
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 2 22/08/2012 11:58 AM
Contents
Unpacking.................................................................................................................................... 4
Installation ................................................................................................................................... 5
Location ..................................................................................................................................................................... 5
Reversing the Door Swing................................................................................................................................... 5
Rear Spacer ............................................................................................................................................................... 8
Levelling the Unit ................................................................................................................................................... 9
Cleaning Before Use .............................................................................................................................................. 9
Before Using Your Unit.......................................................................................................................................... 9
Product Overview...................................................................................................................... 10
Operation ................................................................................................................................... 11
Switching On Your Wine Cooler ......................................................................................................................11
Stacking the Wine Bottles .................................................................................................................................12
The Internal Light .................................................................................................................................................12
Noises Inside the Unit .........................................................................................................................................12
Storing Wine in Your Wine Cooler...................................................................................................................12
Filling Your Wine Cooler .....................................................................................................................................13
Keep the Door Closed.........................................................................................................................................13
Cleaning ..................................................................................................................................... 14
Cleaning the Inside of the Wine Cooler........................................................................................................14
Cleaning the Outside of the Wine Cooler....................................................................................................14
Cleaning Tips..........................................................................................................................................................14
Maintenance .............................................................................................................................. 15
Changing the Internal Light .............................................................................................................................15
Care When Handling ...........................................................................................................................................15
Installation ..............................................................................................................................................................15
Servicing..................................................................................................................................................................15
Switching O for Long Periods of Time........................................................................................................15
Disposal...................................................................................................................................... 15
Specication .............................................................................................................................. 16
Safety Warnings......................................................................................................................... 17
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 3 22/08/2012 11:58 AM
4
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
The Main Unit
Adjustable Bottle Shelf x 3
P.N.: 20022027
Instruction Manual
P.N.: LWC59B12-003
Bottom Bottle Shelf
P.N.: 20022028
Bottle Rack
P.N.: 20020091
Rear Spacer x 2
P.N.: 20016077
Thank you for purchasing your new Logik Wine Cooler.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: 0844 800 3456 for assistance.
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 4 22/08/2012 11:58 AM
Location
When selecting a position for your unit make sure the floor is flat and firm, and that the
room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid
locating your unit near a heat source, e.g. a cooker, boiler or radiator. Avoid direct sunlight.
If you are placing your unit in an outbuilding such as a garage or annex ensure that the unit
is placed above the damp course, otherwise condensation will occur on the cabinet. Never
place the unit in a wall recess or into fitted cabinets or furniture.
When installing the unit, ensure that 5 inches of free space is left at both sides, 5 inches at
the rear and 100 mm at the top of the unit. This will allow cold air to circulate around the
wine cooler and improve the efficiency of the cooling process. The door can open to the
right or the left, depending on what better suits the location. Please ensure there is adequate
space for the door to fully open.
• If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe
that you are qualified to do so.
• Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
• To take the door off it is necessary to tilt the unit backwards. You should rest the
unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to reinstall the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
1. Tilt the unit slightly towards the rear and
prop it securely. Two people are required
to tilt the unit during the door reversal
process.
Allow the unit to stand upright for at least 2 hours before connecting it to the
mains.
Reversing the Door Swing
Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner.
Installation
INSTALLATION
5
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 5 22/08/2012 11:58 AM
2. Remove the top right hinge cover.
3. Undo the screws. Then remove the hinge
bracket.
4. Remove the top left screw cover.
5. Move the core cover from left side to
right side. And then lift the door and
place it on a padded surface to prevent it
from scratching.
INSTALLATION
6
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 6 22/08/2012 11:58 AM

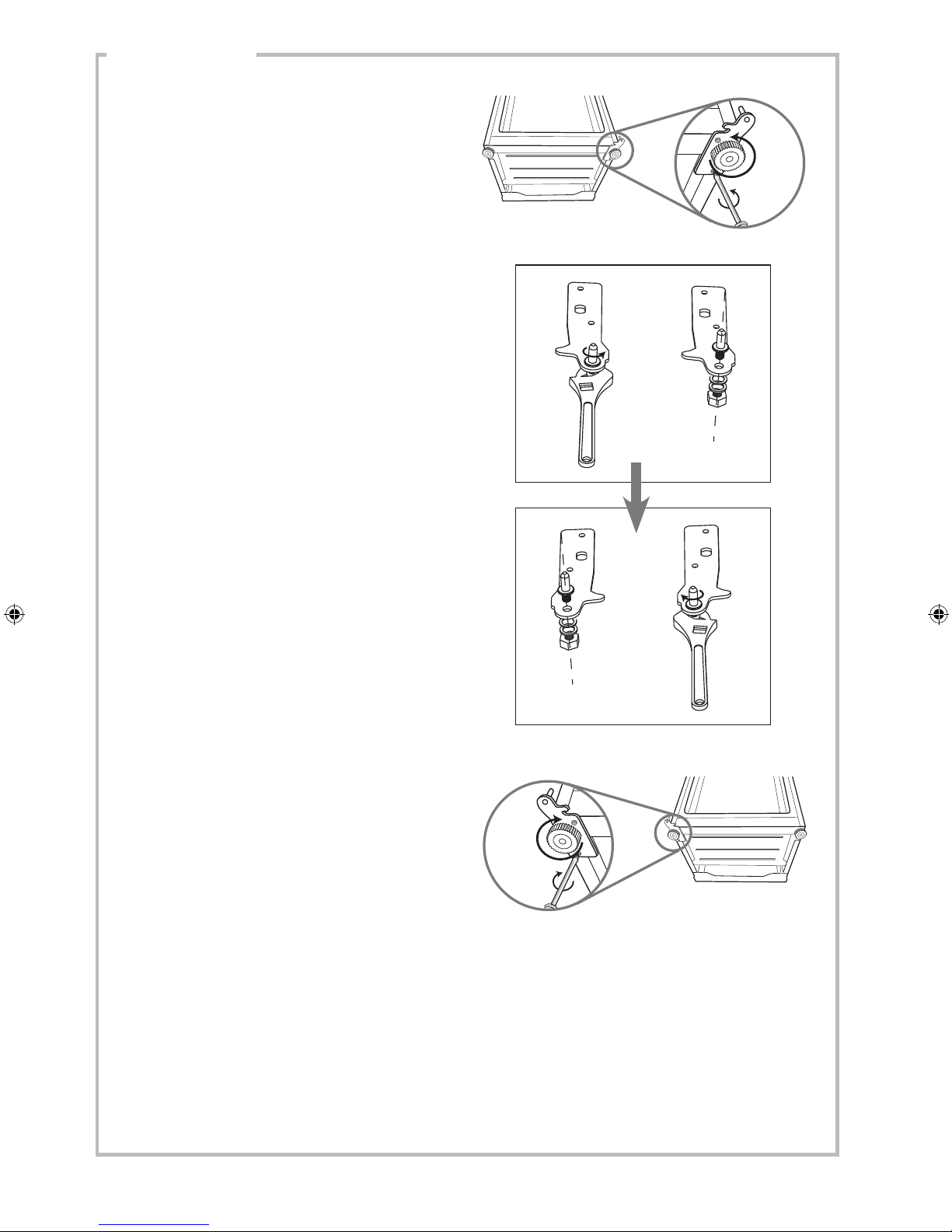

6. Remove the screws and bottom hinge.
Then remove the adjustable feet from
both side.
Unscrew
Unscrew
Screw
7. Unscrew and remove the bottom hinge
pin, turn the bracket over and replace it.
8. Refit the bracket fitting the bottom hinge
pin. Replace both adjustable feet.
Screw
INSTALLATION
7
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 7 22/08/2012 11:58 AM
Rear Spacer
Screw the rear spacers at the rear of the wine
cooler.
9. Place the door back on. Ensure the door
is aligned horizontally and vertically
so that the seals are closed on all sides
before finally tightening the top hinge.
10. Insert the hinge bracket and screw it to
the top of the unit.
11. Use a spanner to tighten it if necessary.
12. Put the hinge cover and the screw cover
back.
13. With the door closed, check that the
door is aligned horizontally and vertically
and that the seals are closed on all sides
before finally tightening the bottom
hinge. Re-adjust the levelling feet as
needed.
screw
INSTALLATION
8
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 8 22/08/2012 11:59 AM
Levelling the Unit
To do this adjust the two levelling feet at the front of the
unit.
If the unit is not level, the door and magnetic seal
alignments will not be covered properly.
Cleaning Before Use
Wipe the inside of the unit with a weak solution of warm water and bicarbonate soda. Then
rinse with warm water using a ‘wrung-out’ sponge or cloth. Wash the shelves and trays with
a mild detergent solution. Wipe completely dry before replacing the shelves and bottle rack.
Clean the exterior of the unit with a damp cloth, using mild detergent and warm water.
If you require more information refer to the Cleaning section.
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the
unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time
to settle.
Before Using Your Unit
Before placing any wine in the unit, turn it on and wait for 24 hours, to make sure it is
working properly and to allow it time to fall to the correct temperature. Your unit should not
be overfilled.
INSTALLATION
9
LWC59B12_IB_Running Change_120822_Edits_Pauline.indd 9 22/08/2012 11:59 AM
10

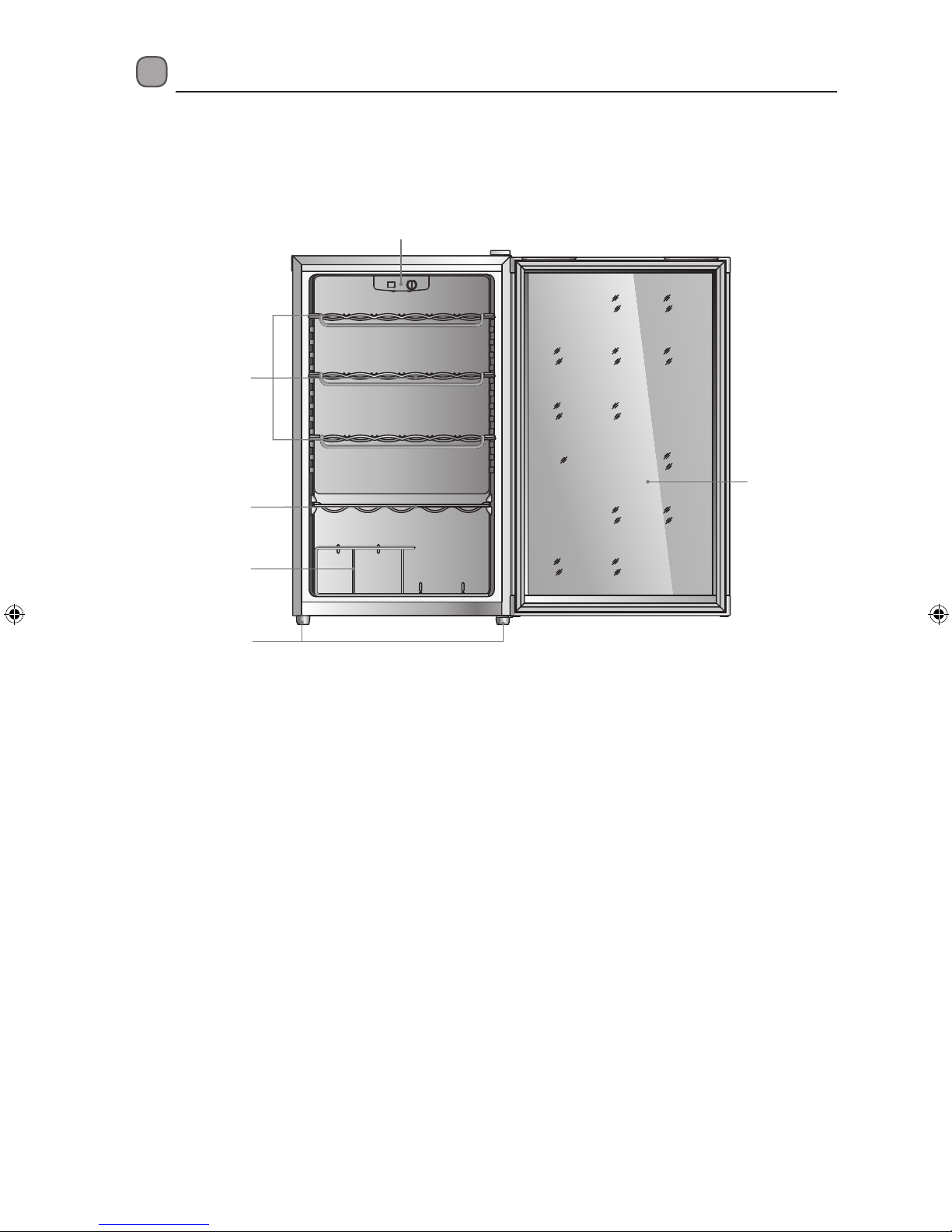

Product Overview
Light Switch &
Thermostat Knob
Glass Door
Adjustable
Bottle Shelves
Bottom
Bottle Shelf
Bottle Rack
Levelling
Feet
