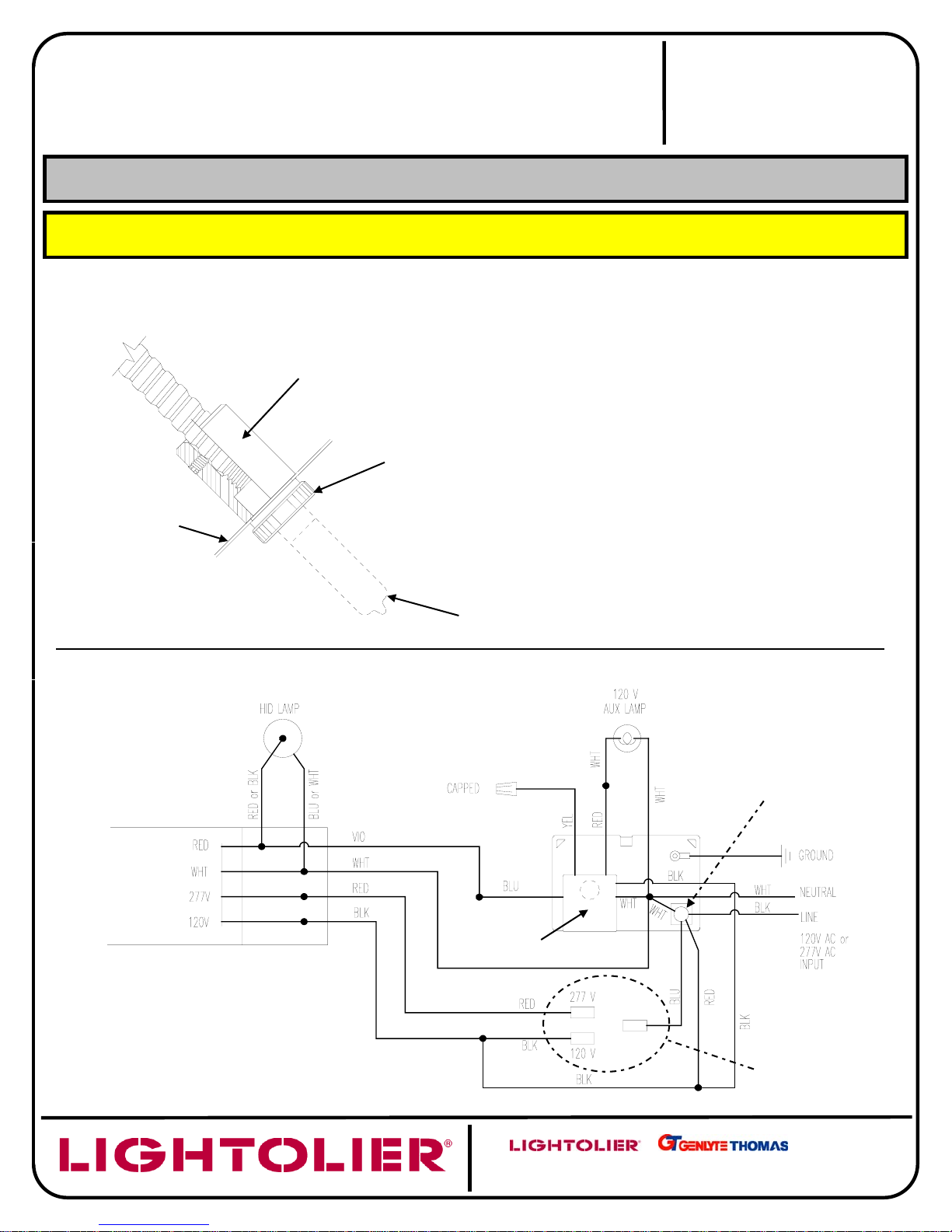

Lightolier H.I.D. FRAME-IN KITS User manual

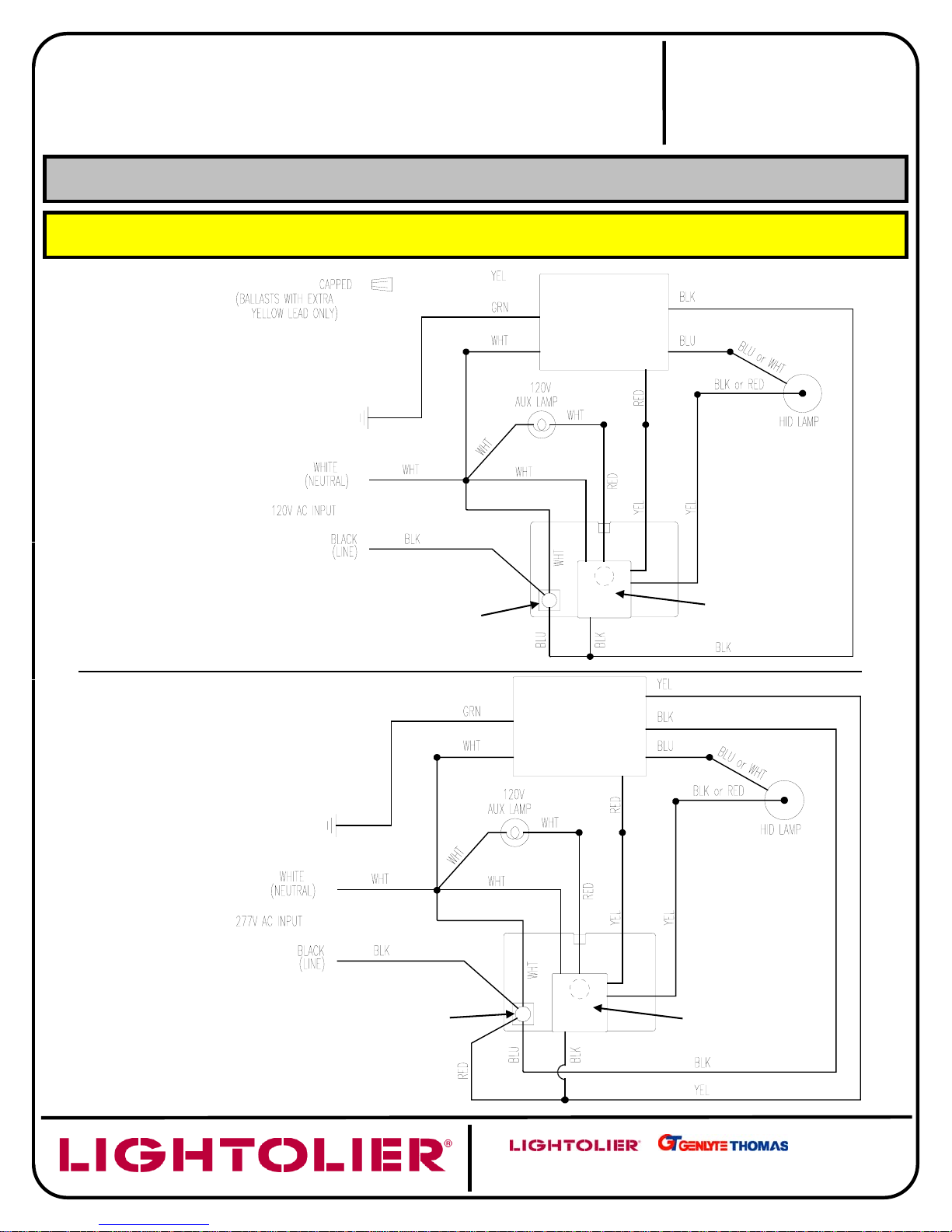

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTIONS FOR H.I.D. FRAME-IN KITS AND FINISHING SECTIONS WITH OPTIONAL

AUXILIARY AND EMERGENCY LIGHTING

INSTRUCTION SHEET NO.

IS: AUX-E

A0504 Page 1 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

CAUTION: (RISK OF FIRE) DO NOT INSTALL INSULATION ABOVE NOR WITHIN 3 INCHES (76mm) OF ANY

PART OF THE LUMINAIRE (LIGHTING FIXTURE)

SEE OPPOSITE SIDE FOR ELECTRONIC

BALLAST WIRING DIAGRAMS

Installing 120V Auxiliary Lampholder onto Reflector

(NOTE: For Emergency Lighting applications, use same Auxiliary

Lampholder Accessory without Auxiliary Lighting Control.)

1. Remove NUT from end of AUXILIARY LAMPHOLDER ASSEMBLY.

2. Insert threaded end of of AUXILIARY LAMPHOLDER ASSEMBLY into

hole in REFLECTOR.

3. Secure AUXILIARY LAMPHOLDER ASSEMBLY on inside of

REFLECTOR with NUT.

4. Some REFLECTORS are provided with a threaded insert. In these

cases, simply screw end of AUXILIARY LAMPHOLDER ASSEMBLY

directly into threaded insert, and discard NUT.

5. Follow directions included with Frame-in Kit and Trim to complete

installation.

6. Refer to REFLECTOR labeling for correct wattage information installing

auxiliary lamp.

120V AUXILIARY

LAMPHOLDER

NUT

REFLECTOR

120V Tungsten Halogen Lamp, D.C. Bayonet Base (not provided).

Refer to labeling on Frame and Trim for correct lamp and wattage

AUXILIARY LIGHTING WIRING DIAGRAM FOR

METAL HALIDE MAGNETIC BALLASTS

(120V/277V DUAL TAP)

UXILIAR

LIGHTING

CONTROL

CONNECT BLUE WIRE WITH

CONNECTOR TO APPROPRIATE

120V (BLK) OR 277V (RED)

BALLAST LEAD WITH

CONNECTOR

120V/277V

MAGNETIC

BALLAST

THERMAL PROTECTOR

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To

assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS: AUX-E

A0504 Page 2 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

CAUTION: (RISK OF FIRE) DO NOT INSTALL INSULATION ABOVE NOR WITHIN 3 INCHES (76mm) OF ANY

PART OF THE LUMINAIRE (LIGHTING FIXTURE)

INSTRUCTIONS FOR H.I.D. FRAME-IN KITS AND FINISHING SECTIONS WITH OPTIONAL

AUXILIARY AND EMERGENCY LIGHTING

AUXILIARY LIGHTING WIRING DIAGRAM FOR

120V METAL HALIDE ELECTRONIC BALLAST

AUXILIARY LIGHTING WIRING DIAGRAM FOR

277V METAL HALIDE ELECTRONIC BALLAST

120V ELECTRONIC

H.I.D. BALLAST

277V ELECTRONIC

H.I.D. BALLAST

AUXILIARY LIGHTING

CONTROL

THERMAL PROTECTOR

AUXILIARY LIGHTING

CONTROL

THERMAL PROTECTOR
