LG LT1430CNR User manual

Room Air Conditioner

SVC MANUAL(Exploded View)

MODEL : LT1430CNR

CAUTION

Before Servicing the unit, read the safety precautions in General SVC manual.

Only for authorized service personnel.

CONFIDENTIAL

Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means), publication, modification,

copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you have obtained the prior written consent of

the LG Electronics entity from which you received this Service Manual. The material covered by this prohibition includes, without

limitation, any text, graphics or logos in this Service Manual.

1. PREFACE

This SERVICE MANUAL provides various service information, including the mechanical and electrical

parts etc. This room air conditioner was manufactured and assembled under a strict quality control system.

The refrigerant is charged at the factory. Be sure to read the safety precautions prior to servicing the unit.

1.1 SAFETY PRECAUTIONS

1. When servicing the unit, turn o the air conditioner

and unplug the power cord.

2. Observe the original lead dress.

If a short circuit is found, replace all parts which

have been overheated or damaged by the short

circuit.

3. After servicing the unit, make an insulation

resistance test to protect the customer from being

exposed to shock hazards.

1.2

INSULATION RESISTANCE TEST

1. Unplug the power cord and connect a jumper

between 2 pins (black and white).

2. The grounding conductor (green or green & yellow)

is to be open.

3. Measure the resistance value with an ohm meter

between the jumpered lead and each exposed

metallic part on the equipment.

4. The value should be over 1M Ω.

2 Room Air Conditioner

Only training and service purpose.

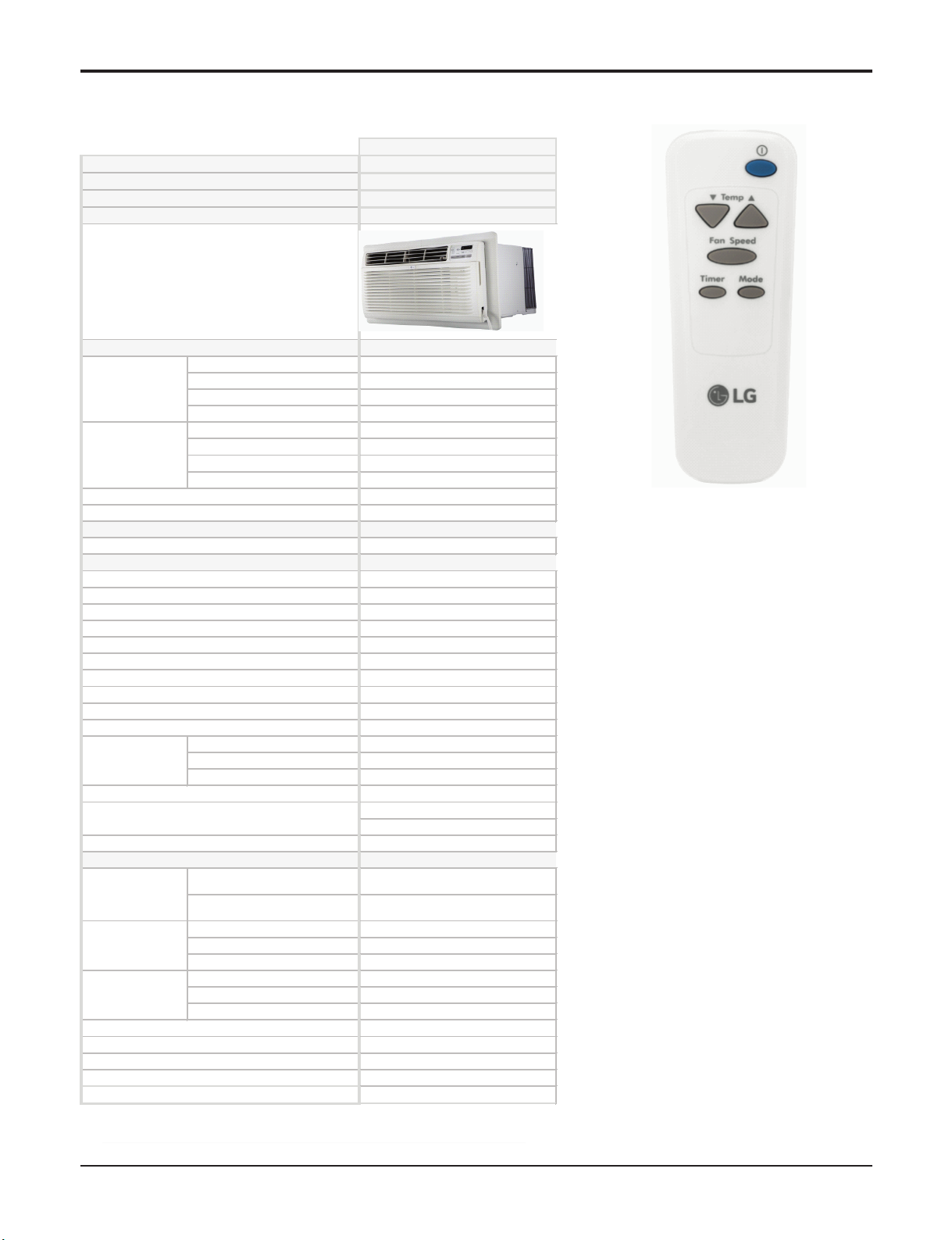

1.3 SPECIFICATIONS

1 Room Air Conditioner

Cooling

X3NC14BNLE0

AT3AHDS

LT1430CNR

On/Off

Capacity 14,000/14,000

Capa. Range (Btu/h) -

Power (W) 1500/1,500

Current (A) 7.6/6.9

Capacity -

Capa. Range (Btu/h) -

Power (W) -

Current (A) -

9.3/9.3

520 (R32)

208 / 230 V

Thermistor

4-Way

Yes

24Hr,On/Off

Yes

High / Mid / Low

Cooling 3

Heating -

Fan Only 3

Turbo/Axial

Top Down

TOP Discharge

Indoor dB(A)

(High/Mid/Low/Sleep)

62/57

Outdoor dB(A)

(High/Mid/Low/Sleep)

Height 442

Width 704

Depth 569

Height 366

Width 610

Depth 510

160/339/339

DKN127KAA

AKB73016012

Voltage / 60 Hz

Factory Model

Suffix

Buyer Model

Type

PERFORMANCE

Cooling

Heating

CEER (Btu/hW)

Refrigerant (g)

Electrical Ratings

Fan Speed

Features

WiFi Connection

Temp Control

Air Diflection

Remote controller

Auto Restart

Filter Alarm Function

Timer

Energy saver Fuction

Outdoor Vent / Exhaust

Mode

Remote

Fan Type (ID/OD)

Chassis Type

Type Air Discharge

Others

Noise

Carton

(mm)

Demension

(Include Front

Grille, mm)

Net Weight (kg)

Gross Weight (kg)

Stuffing quantity (20ft/40ft/40ft High)

Compressor

Only training and service purpose.

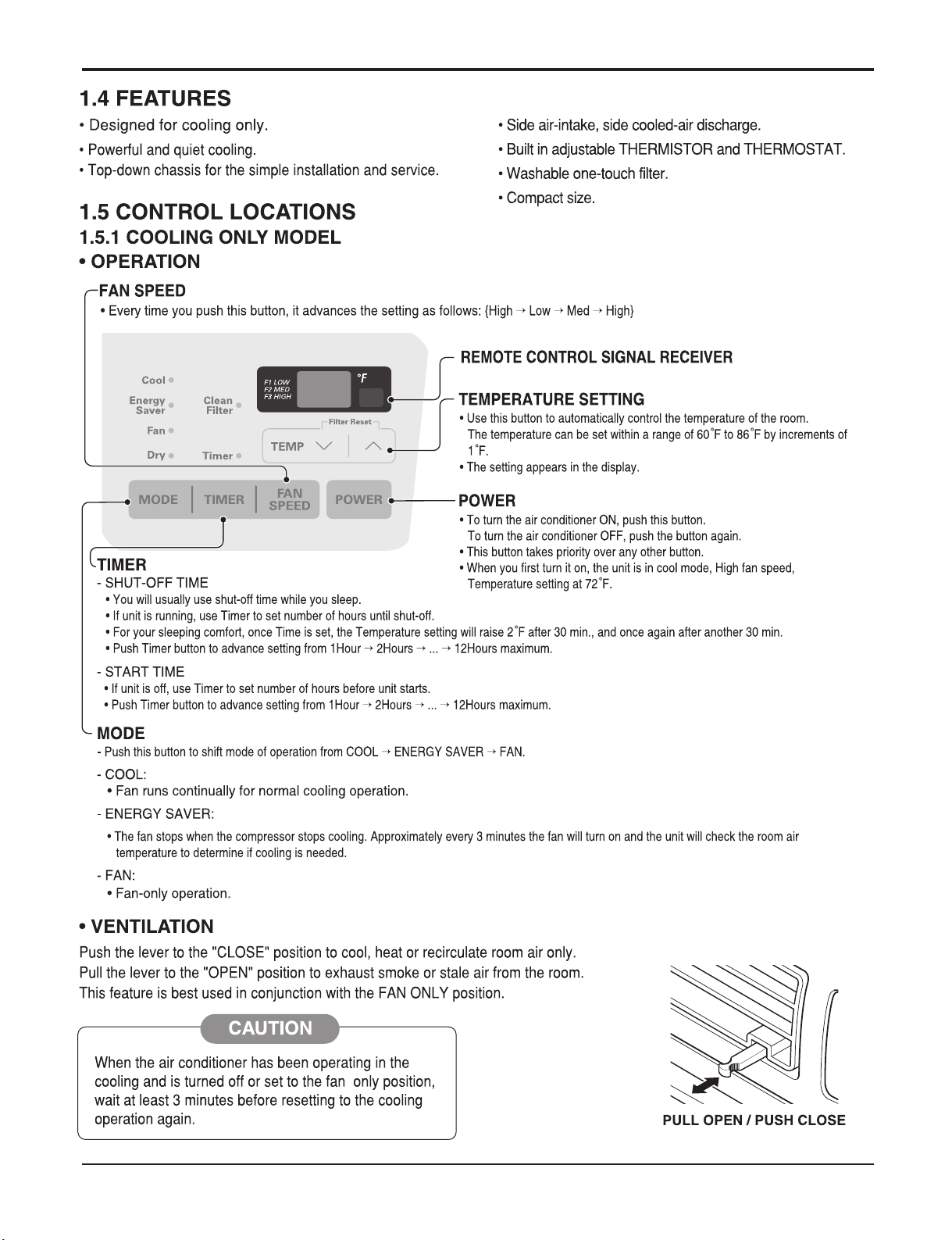

4 Room Air Conditioner

Only training and service purpose.

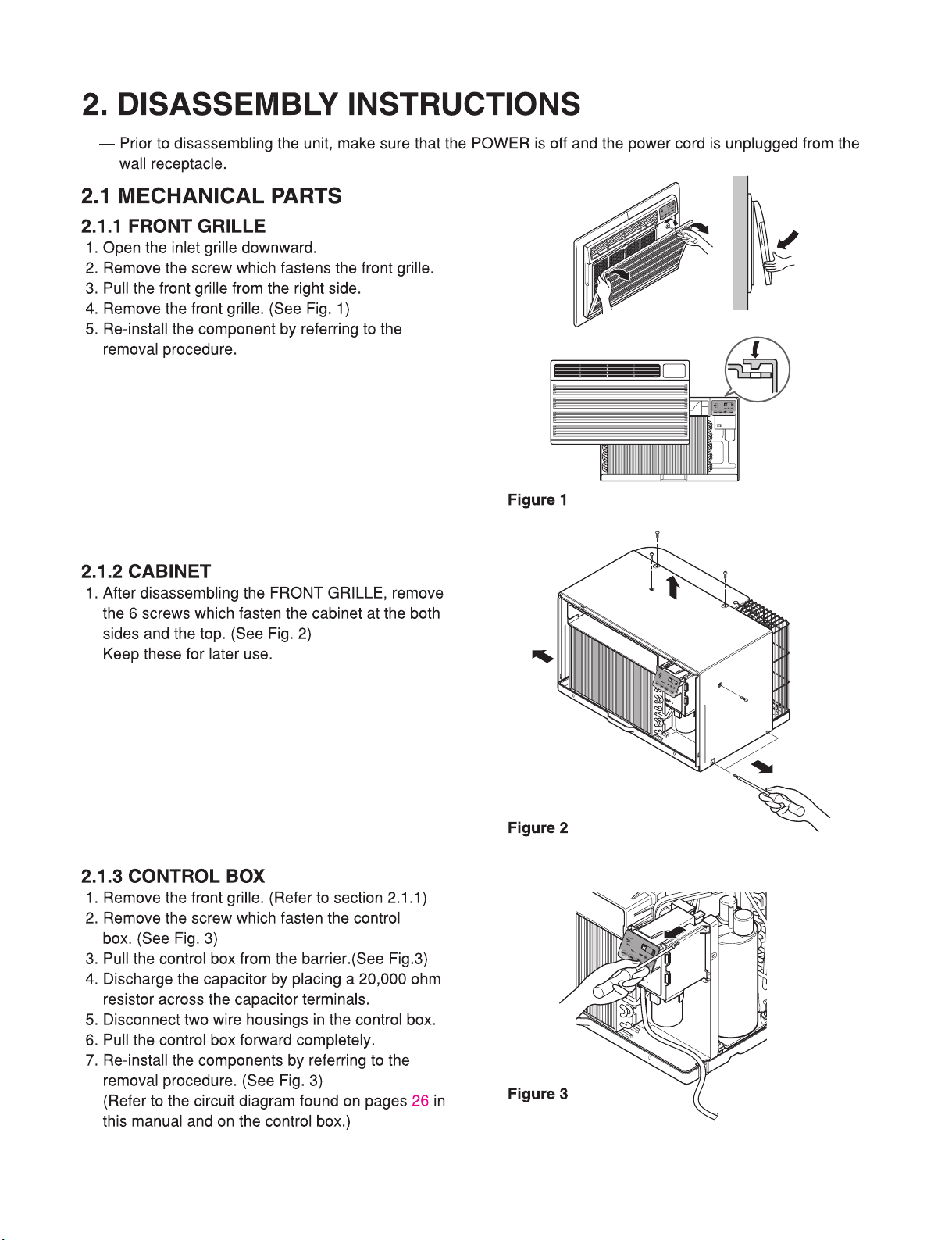

5 Room Air Conditioner

Only training and service purpose.

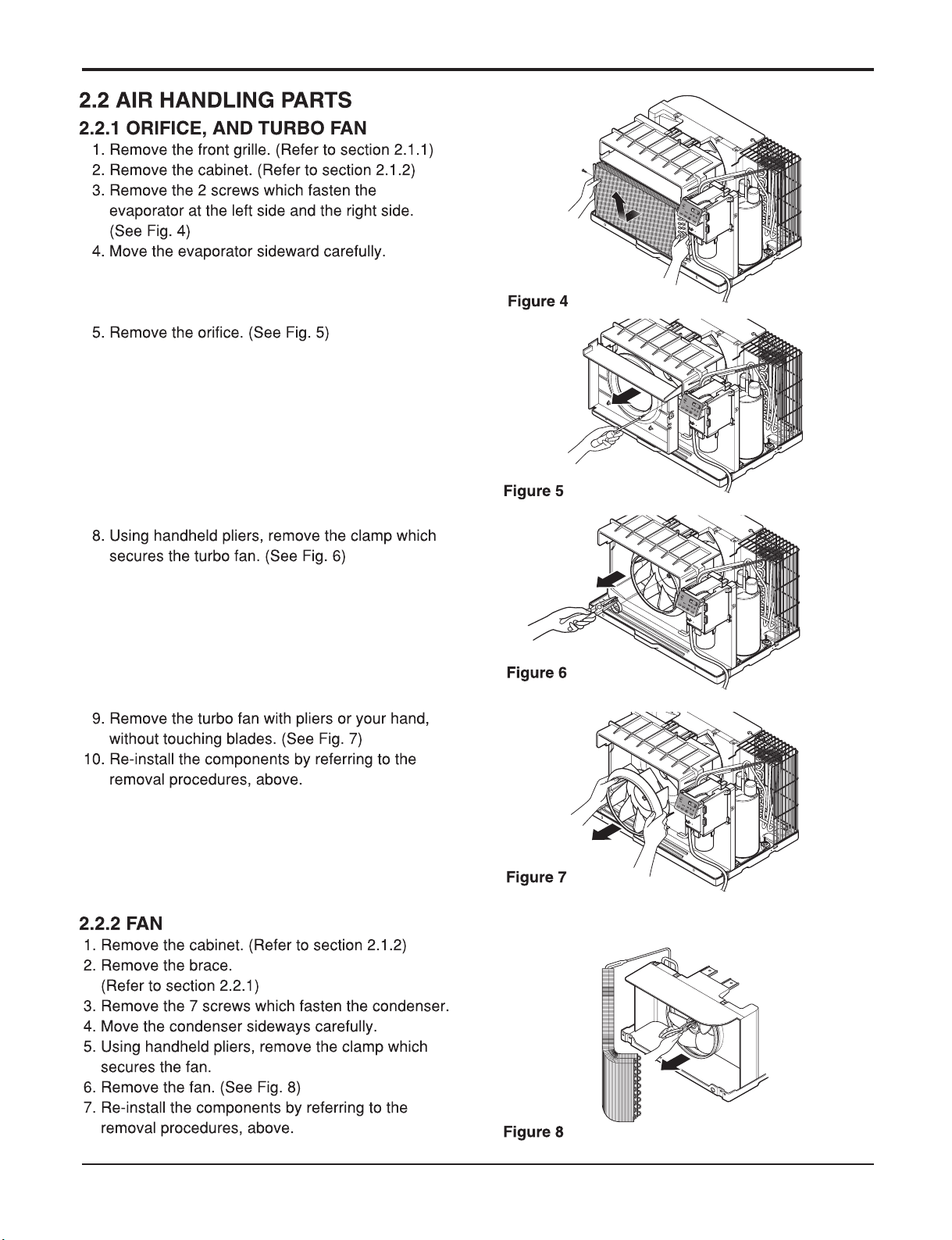

6 Room Air Conditioner

Only training and service purpose.

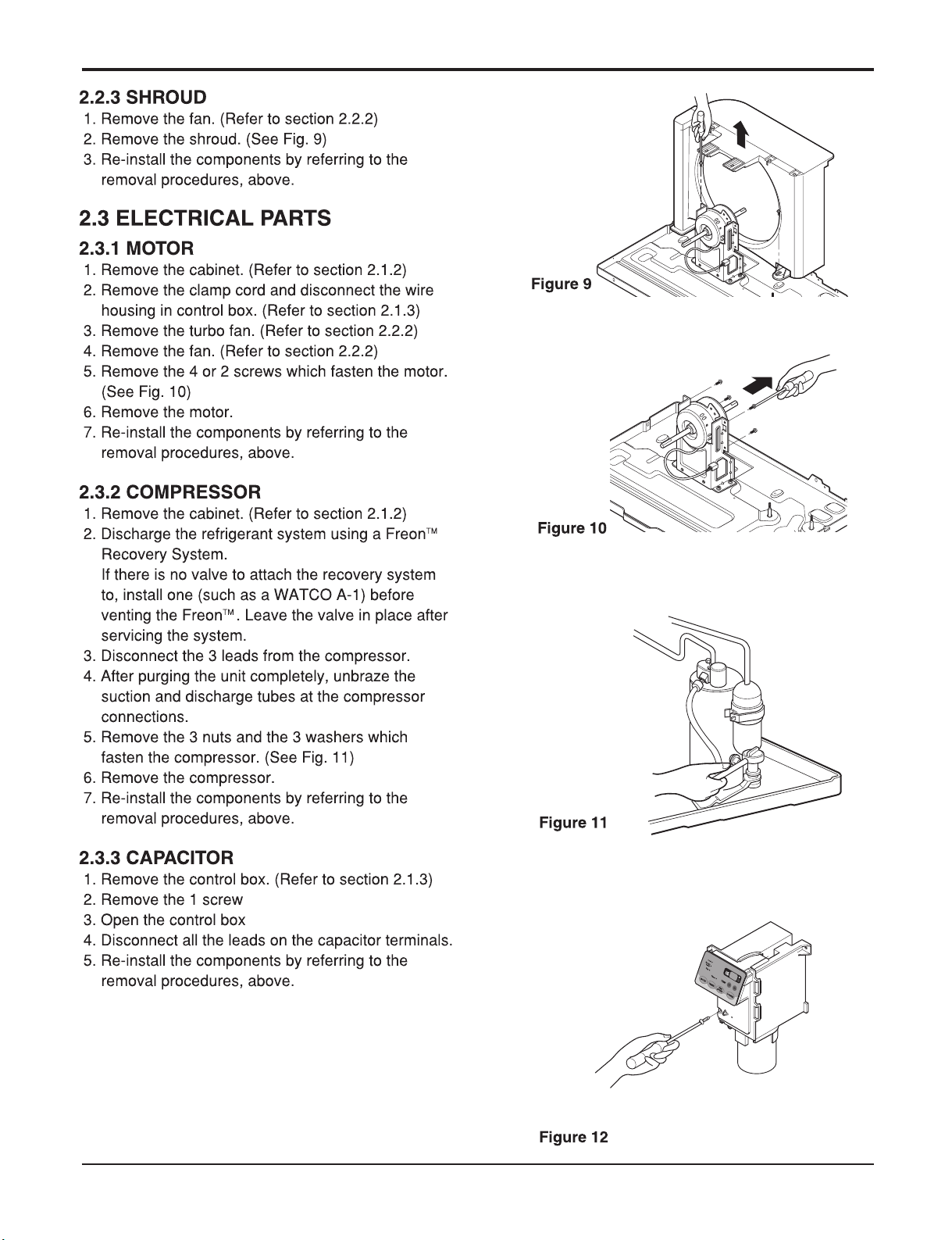

7 Room Air Conditioner

Only training and service purpose.

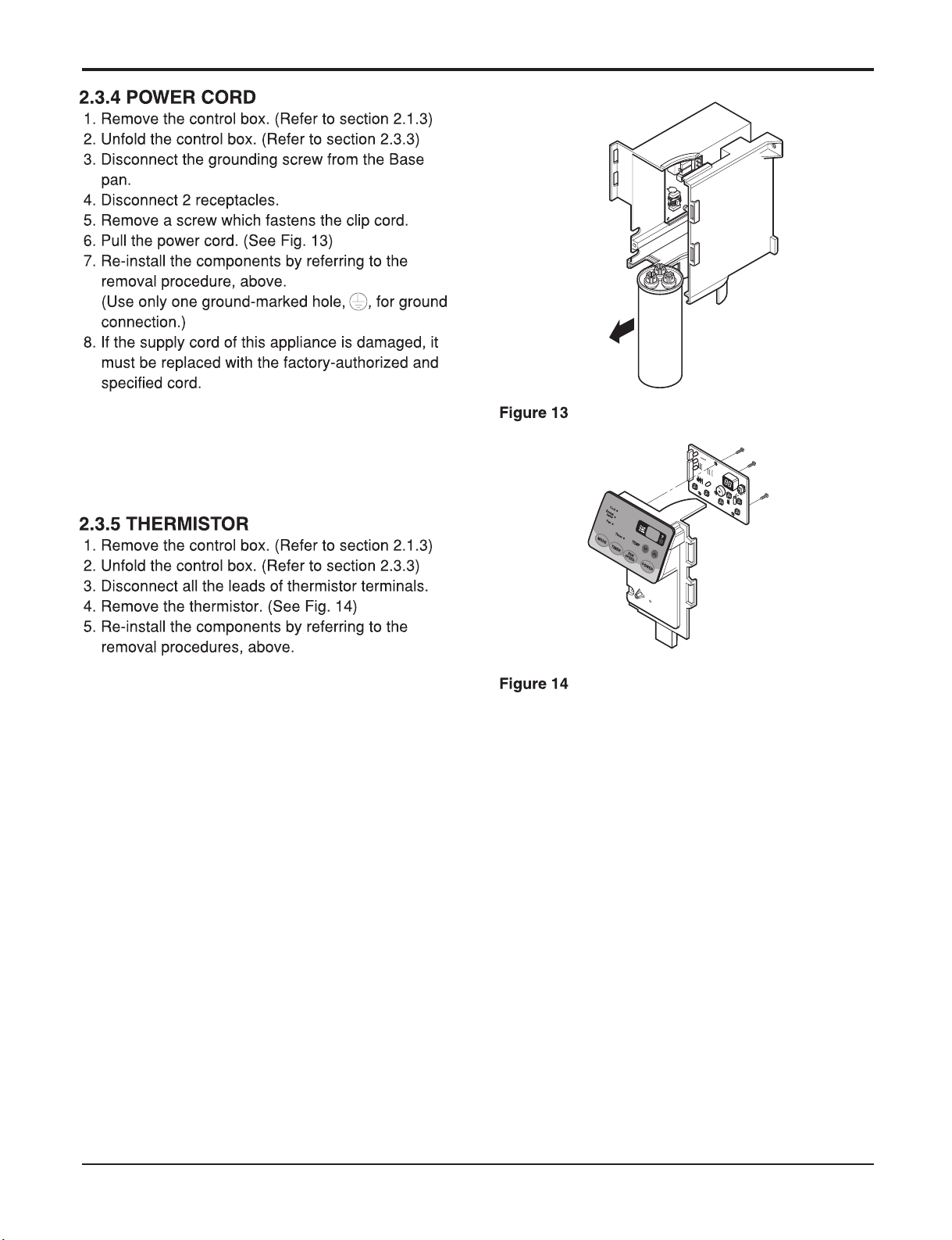

8 Room Air Conditioner

Only training and service purpose.

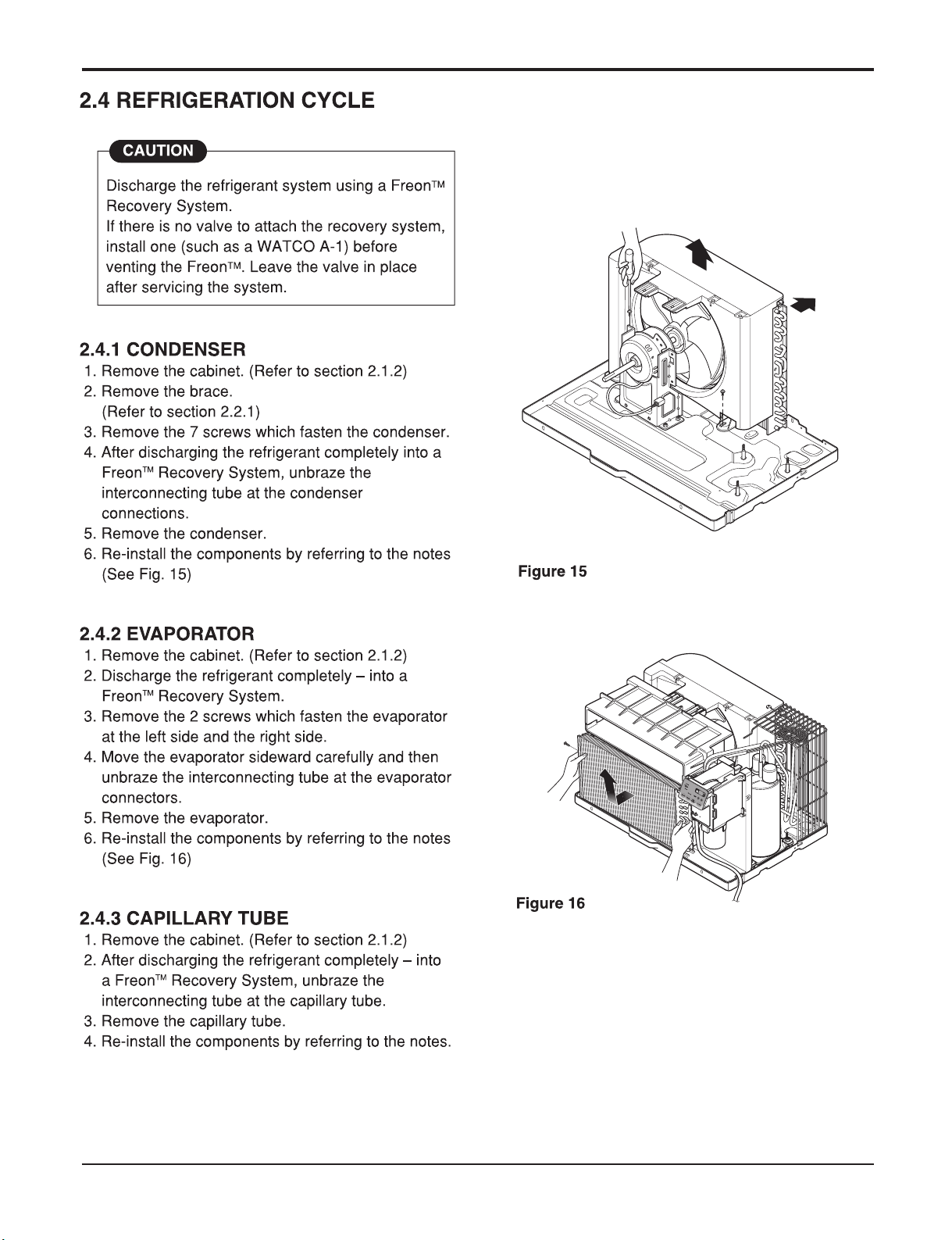

9 Room Air Conditioner

Only training and service purpose.

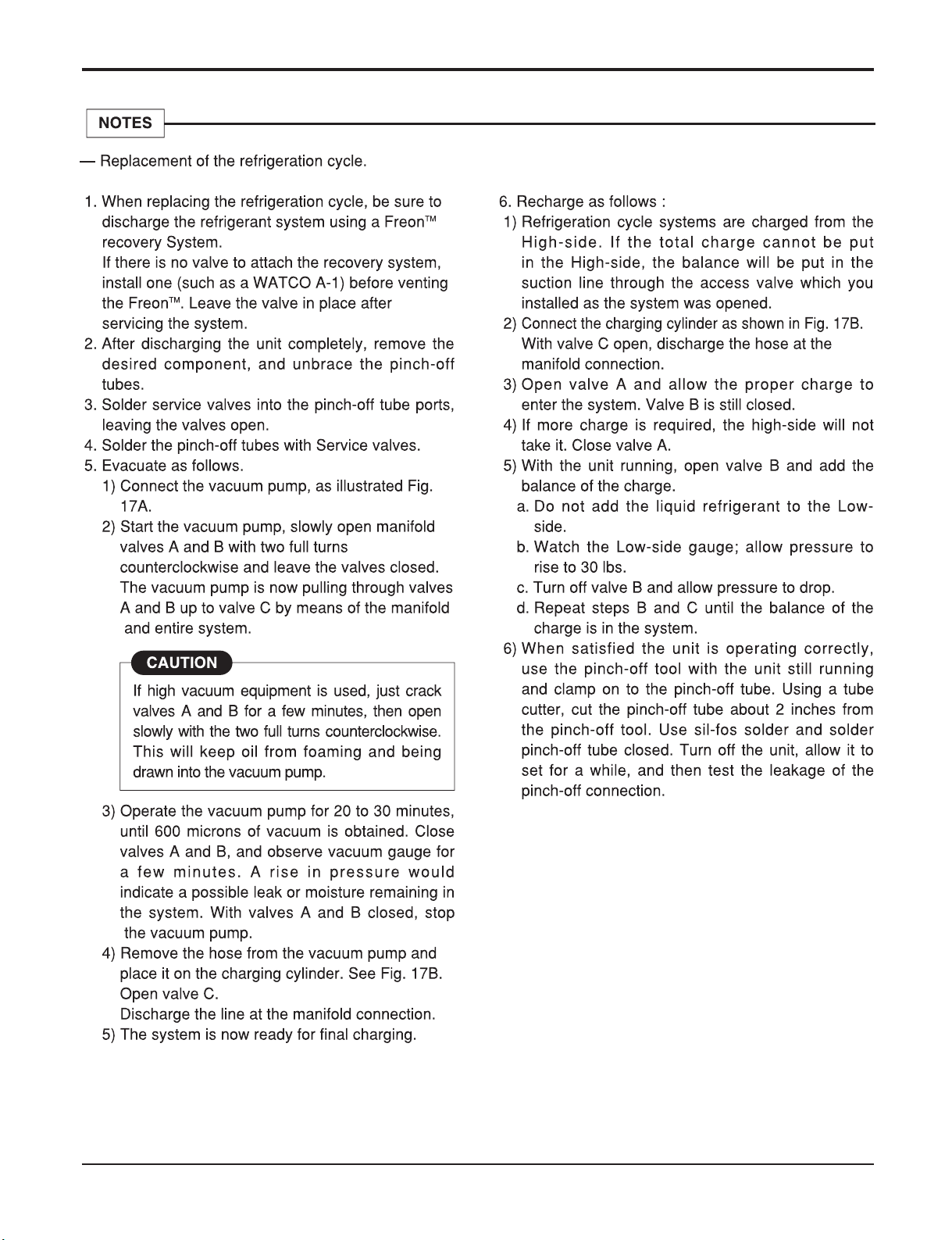

10 Room Air Conditioner

Only training and service purpose.
