Lenovo ThinkPad X131e User manual

2 ••© 2012 Lenovo Confidential. All rights reserved.

This document is intended to instruct a qualified Lenovo servicer on

performing a field repair to reseat the LCD cable of a ThinkPad X130e or

X131e.

Necessary items to complete the repairs outlined in this document:

−(FRU: 04Y2035) Tape kit (quantity = 20 pieces)

−Phillips head screwdriver

−Small scissors or straight edge

Important: This repair involves the removal and installation of non-

CRU’able items such as the system LCD. It is highly recommended an

experienced technician perform the repair in order to avoid damage that

could result in unnecessary parts replacements.

Please refer to the Hardware Maintenance Manual for any questions

regarding system disassembly/reassembly:

X130e (http://download.lenovo.com/ibmdl/pub/pc/pccbbs/mobiles_pdf/0a96359_01.pdf)

X131e (http://download.lenovo.com/ibmdl/pub/pc/pccbbs/mobiles_pdf/x131e_en_hmm_0b48698_01.pdf)

Purpose

3 ••© 2012 Lenovo Confidential. All rights reserved.

ThinkPad X130e:

−Machine Types 2338, 2339, 2340, 0622, 0627, and 0629

ThinkPad X131e:

−Machine Types 3371, 3372, 3374, 3367, 3368, and 3369

Affected Systems

System Disassembly

5 ••© 2012 Lenovo Confidential. All rights reserved.

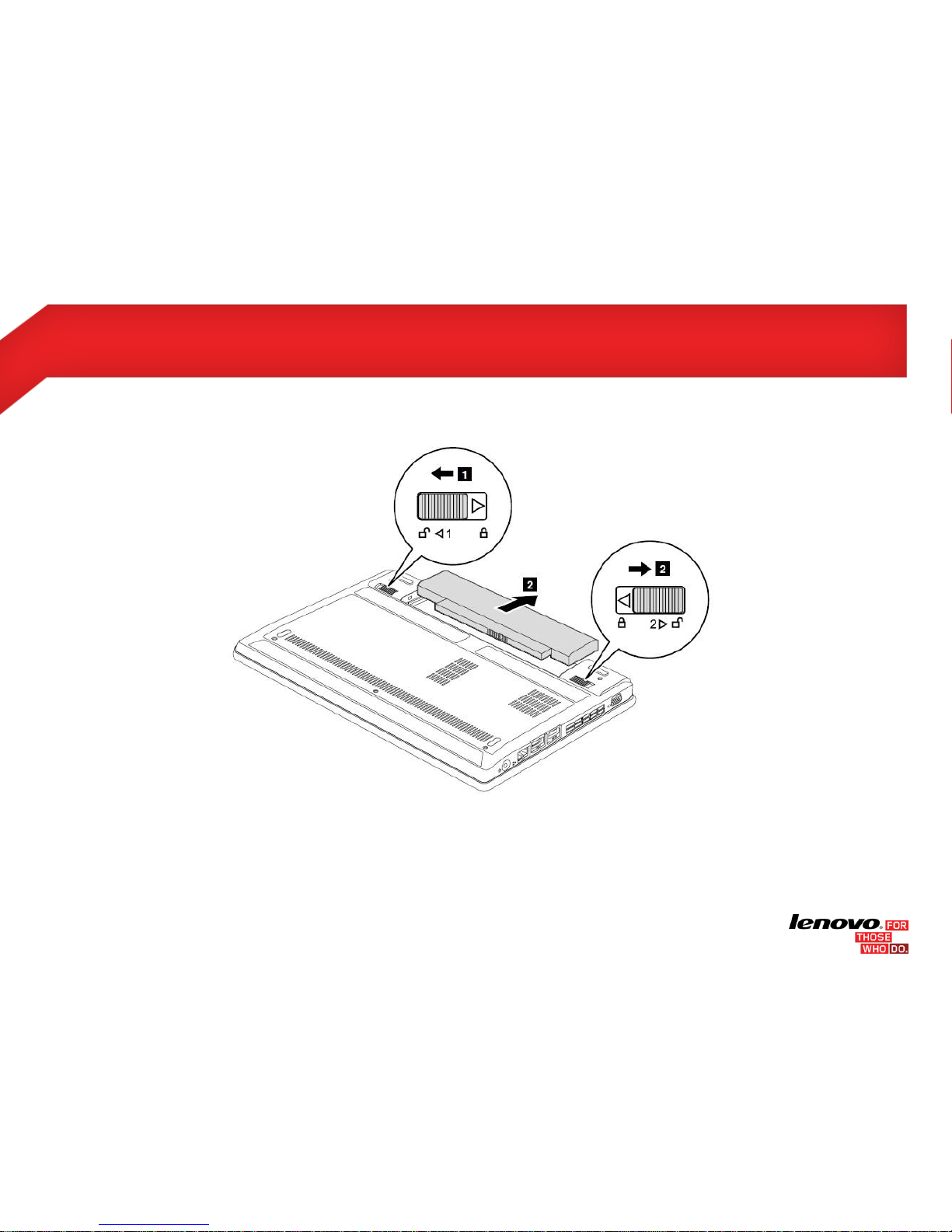

Remove Main Battery

This operation is common between X130e and X131e.

6 ••© 2012 Lenovo Confidential. All rights reserved.

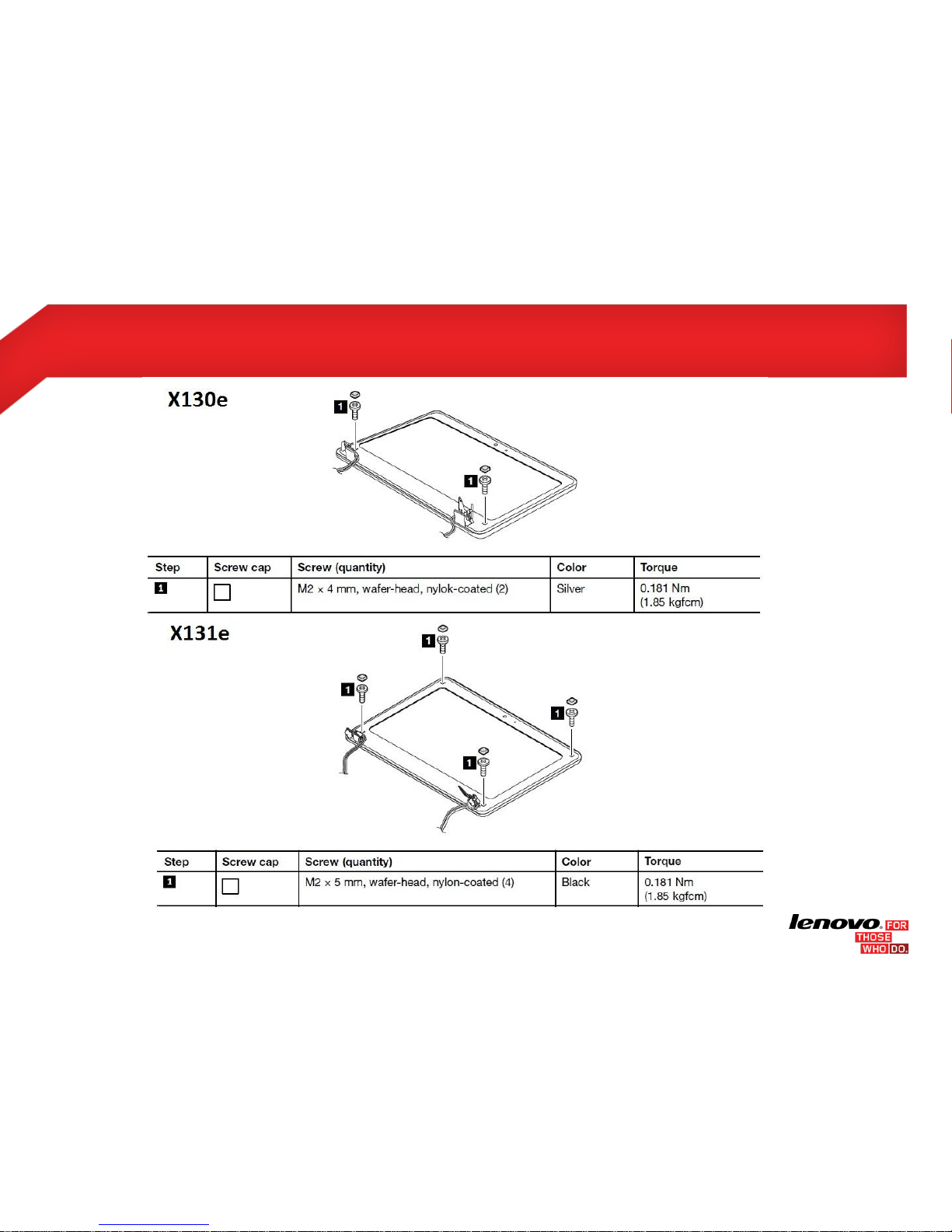

Remove LCD Bezel (1)

7 ••© 2012 Lenovo Confidential. All rights reserved.

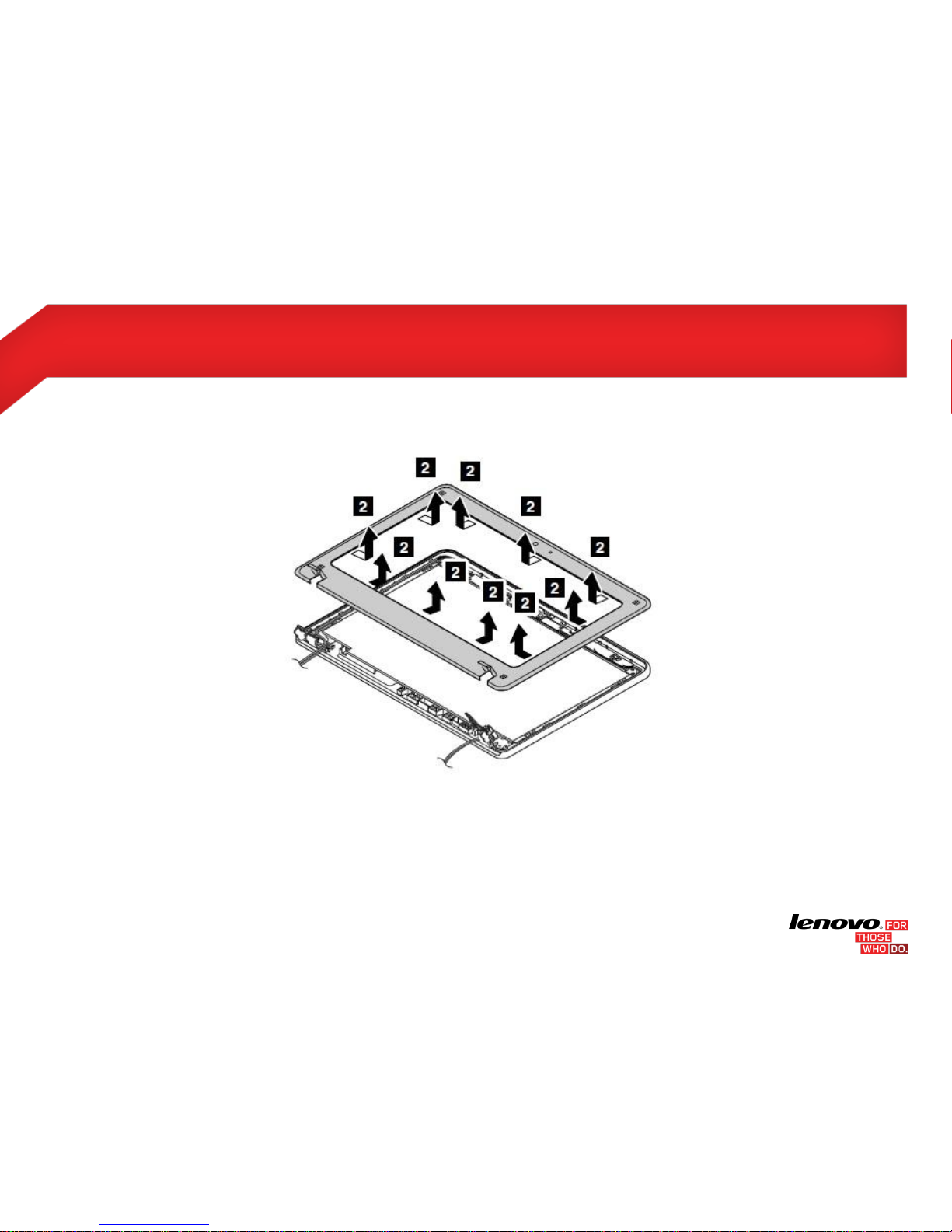

Remove LCD Bezel (2)

This operation is common between X130e and X131e.

8 ••© 2012 Lenovo Confidential. All rights reserved.

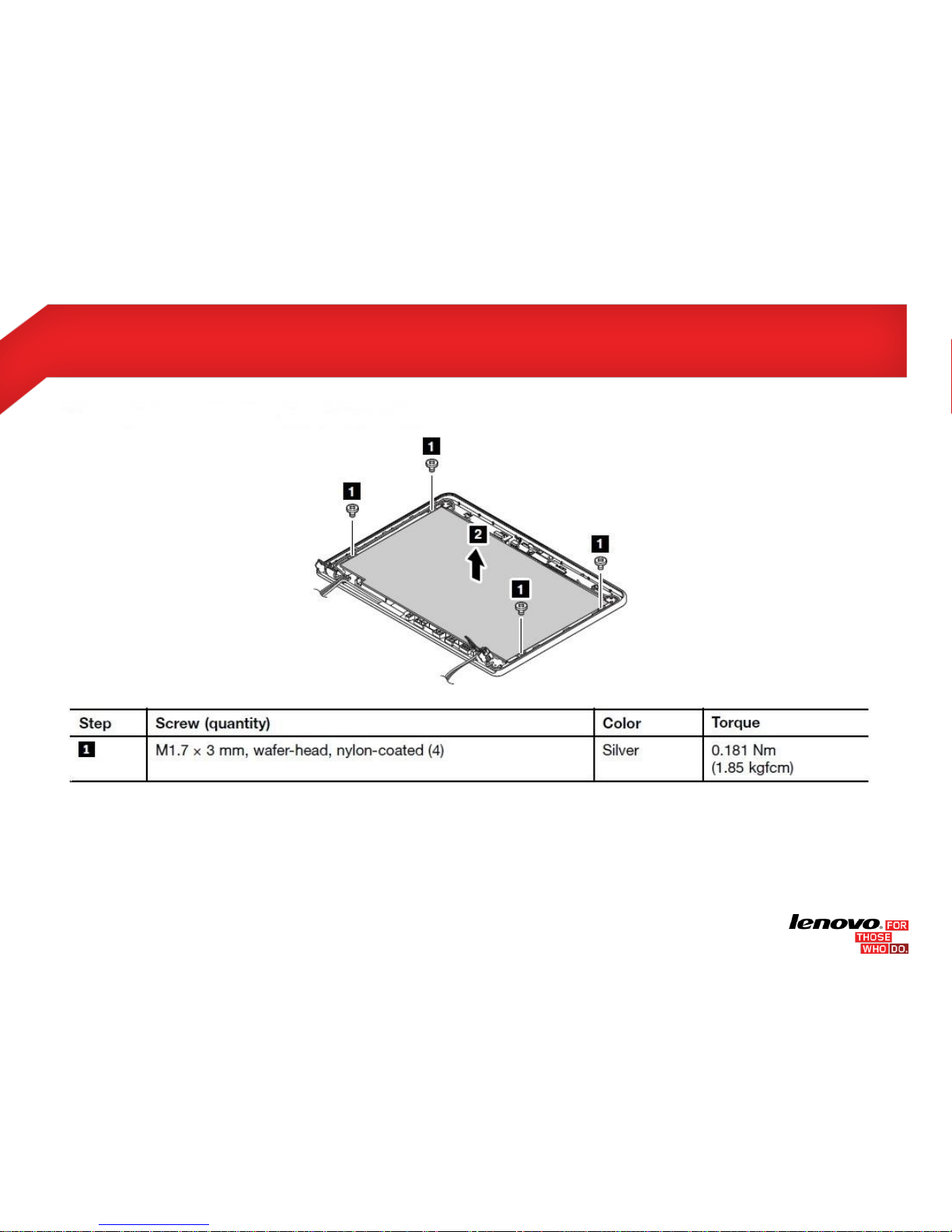

Remove LCD

This operation is common between X130e and X131e.

9 ••© 2012 Lenovo Confidential. All rights reserved.

Gently Lay LCD on Keyboard

X130e X131e

The entire procedure can be done with the LCD in this position.

No further system disassembly is necessary.

LCD Cable Reseat Procedure
