Lenovo IdeaCentre B520 Parts list manual

Version 3.0 2011.01

Machine type: 10064/7745

Lenovo

IdeaCentre B5 Series

Hardware Replacement Guide

31047244

Hardware Replacement Guide

LENOVO products, data, computer software, and services have been developed

exclusively at private expense and are sold to governmental entities as commercial

items as deﬁned by 48 C.F.R. 2.101 with limited and restricted rights to use,

reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer

software, or services are delivered pursuant a General Services Administration

“GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth

in Contract No. GS-35F-05925.

Contents

Overview...................................................................................... 1

Chapter 1 Locations ................................................................. 5

Locating components and connectors...........................................5

Chapter 2 Replacing hardware................................................ 9

General information........................................................................9

Removing the computer cover.......................................................9

Mounting the computer onto a wall..............................................11

Replacing a memory module .......................................................13

Replacing the optical drive ...........................................................15

Replacing the hard disk drive.......................................................17

Replacing the keyboard ...............................................................19

Replacing the mouse ...................................................................20

Replacing the power cord............................................................21

Chapter 3 Appendix ............................................................... 23

Hardware Replacement Guide

Overview

This guide is intended to be used by customers who are replacing Customer

Replaceable Units (CRUs) as well as trained service personnel who are replacing

Field Replaceable Units (FRUs). In this guide, CRUs and FRUs will often be referred

to as parts.

Note: Trained service personnel should refer to the Hardware Maintenance

Manual (HMM) for parts ordering information.

This guide does not include procedures for all parts. It is expected that cables,

switches, and certain mechanical parts can be replaced by trained service

personnel without the need for step-by-step procedures.

Note: Use only parts provided by Lenovo®.

The description of the TV-Tuner card in this manual applies only to those computer

models that have the TV-Tuner card installed. It does not apply to those computer

models that do not have the TV-Tuner card installed.

This guide contains procedures for replacing the following parts:

• Memorymodules

• Harddiskdrive

• Opticaldrive

• Keyboard,Mouse(wired)

• Powercord

Safety information for replacing CRUs

Do not open your computer or attempt any repairs before reading the “Important

safety information” in the Safety and Warranty Guide that was included with your

computer. If you no longer have this copy of the Safety and Warranty Guide, you

can obtain one online from the Support Web site at

http://consumersupport.lenovo.com.

Additional information resources

If you have Internet access, the most up-to-date information for your computer is

available from the World Wide Web.

2Hardware Replacement Guide

You can ﬁnd the following information:

• CRUremovalandinstallationinformation

• Publications

• Troubleshootinginformation

• Partsinformation

• Linkstootherusefulsourcesofinformation

To access this information, go to: http://consumersupport.lenovo.com

Tools required

To disassemble the computer, you need the following tools:

• Wristgroundingstrapandconductivematforpreventingelectrostatic

discharge

• Flatscrewdriver

• Phillipsscrewdriver

• Hexscrewdriver

• Plasticatscrewdriver

• Plastictweezers

Note: Thescrewsforthedifferentcomponentsvaryinsize.Duringthe

disassembly procedure, group the screws with their corresponding

components to avoid a mismatch when replacing the components.

Handling static-sensitive devices

Static electricity, although harmless to you, can seriously damage computer

components.

When you are replacing a part, do not open the static-protective package

containing the new part until the defective part has been removed from the

computer and you are ready to install the new part.

When you handle parts and other computer components, take these precautions

to avoid static-electricity damage:

• Limityourmovement.Movementcancausestatic-electricitytobuilduparound

you.

Hardware Replacement Guide

• Alwayshandlepartsandothercomputercomponentscarefully.Handle

adapters, memory modules, system boards, and microprocessors by the

edges. Never touch any exposed circuitry.

• Preventothersfromtouchingthepartsandothercomputercomponents.

• Beforeyoureplaceanewpart,touchthestatic-protectivepackagecontaining

the part to a metal expansion-slot cover or other unpainted metal surface on

the computer for at least two seconds. This reduces static electricity in the

package and your body.

• Whenpossible,removethenewpartfromthestatic-protectivepackaging,

and install it directly in the computer without setting the part down. When this

is not possible, place the static-protective package that the part came in on a

smooth, level surface and place the part on it.

• Donotplacethepartonthecomputercoverorothermetalsurface.

4Hardware Replacement Guide

Hardware Replacement Guide

Locations

Chapter

This chapter provides illustrations to help locate the various connectors, controls

and components of the computer.

Locating components and connectors

The following illustrations will help you to locate the various components and

connectors in your computer.

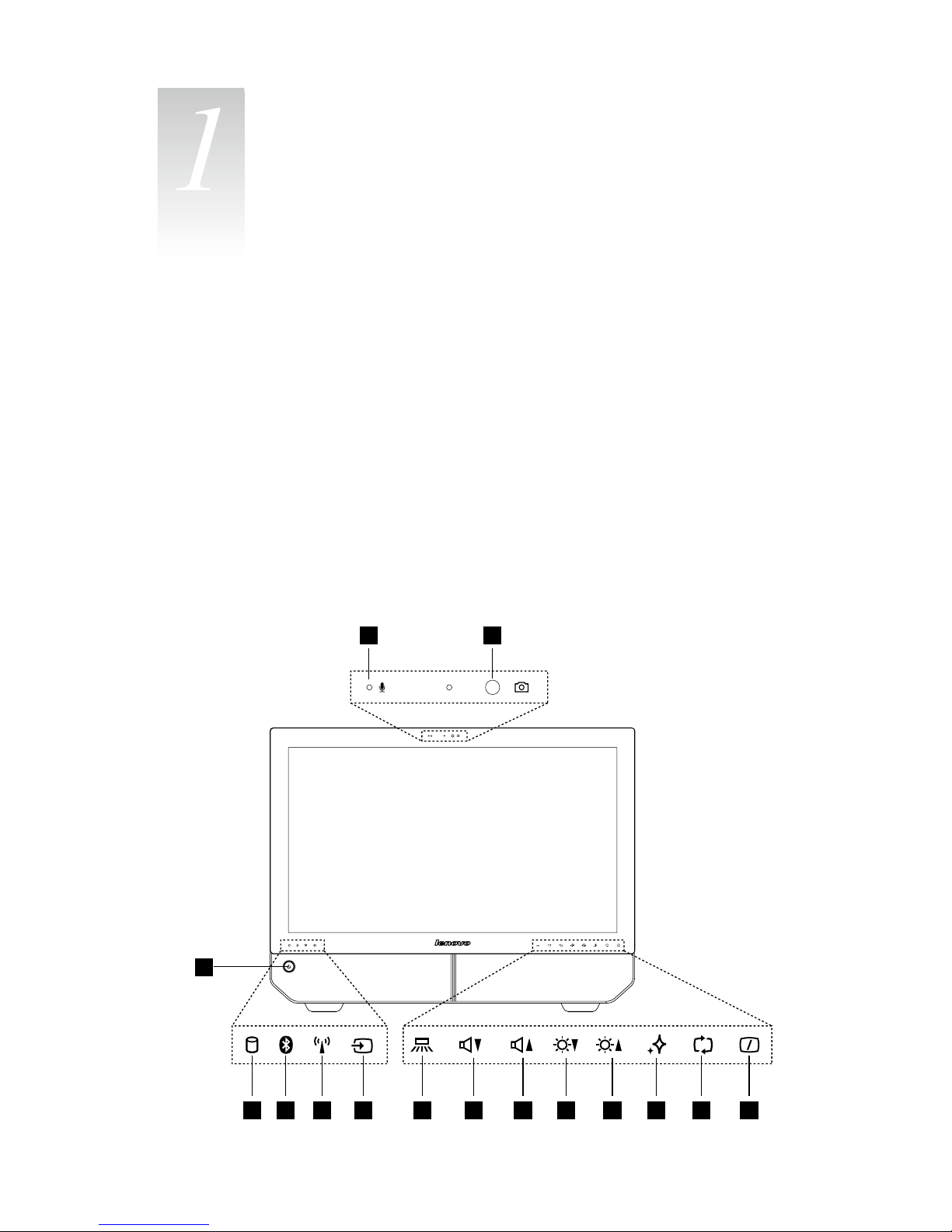

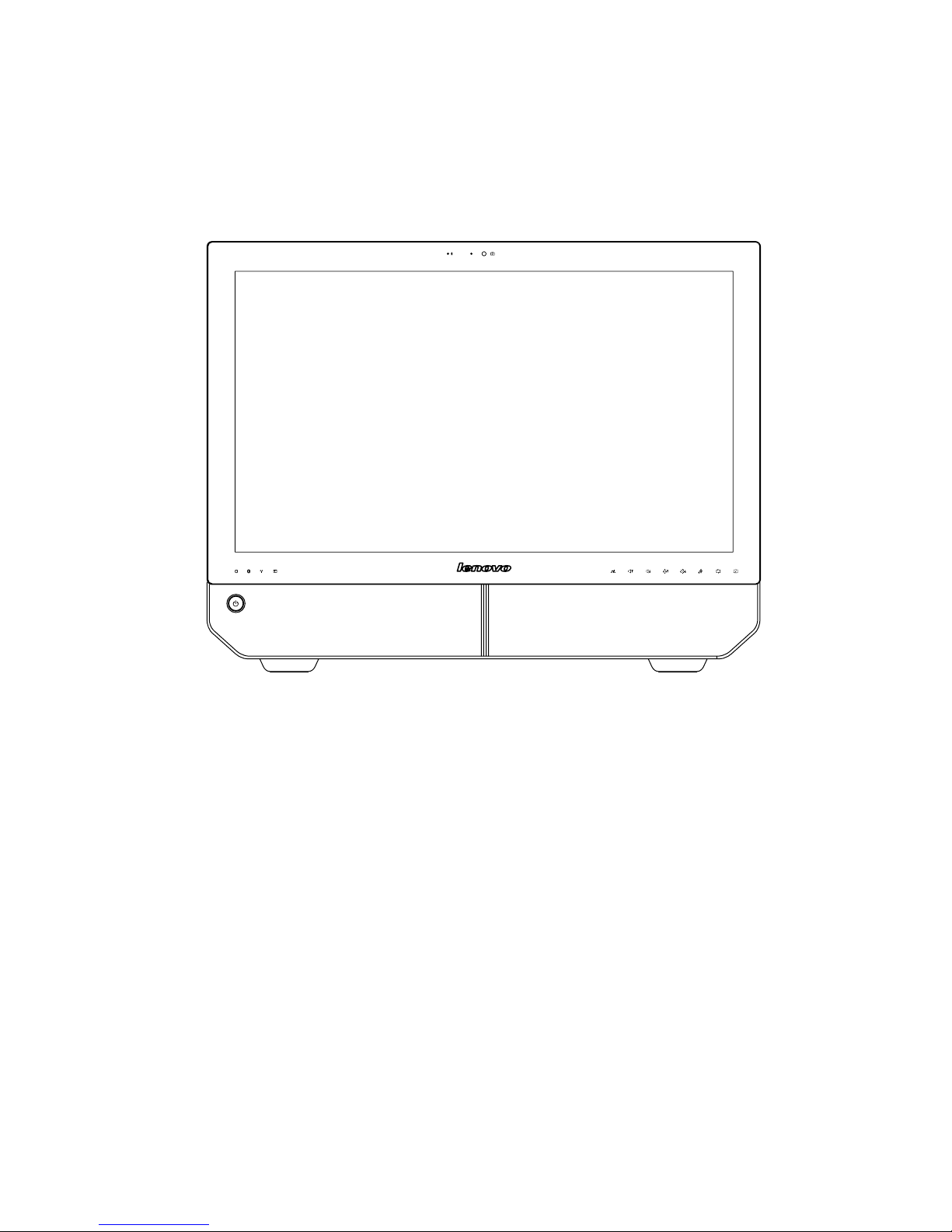

Font view

The following illustrations show the location of connectors on the front of the

computer.

1 2

5 6 7 8 9 10 11 12 13 14 15
