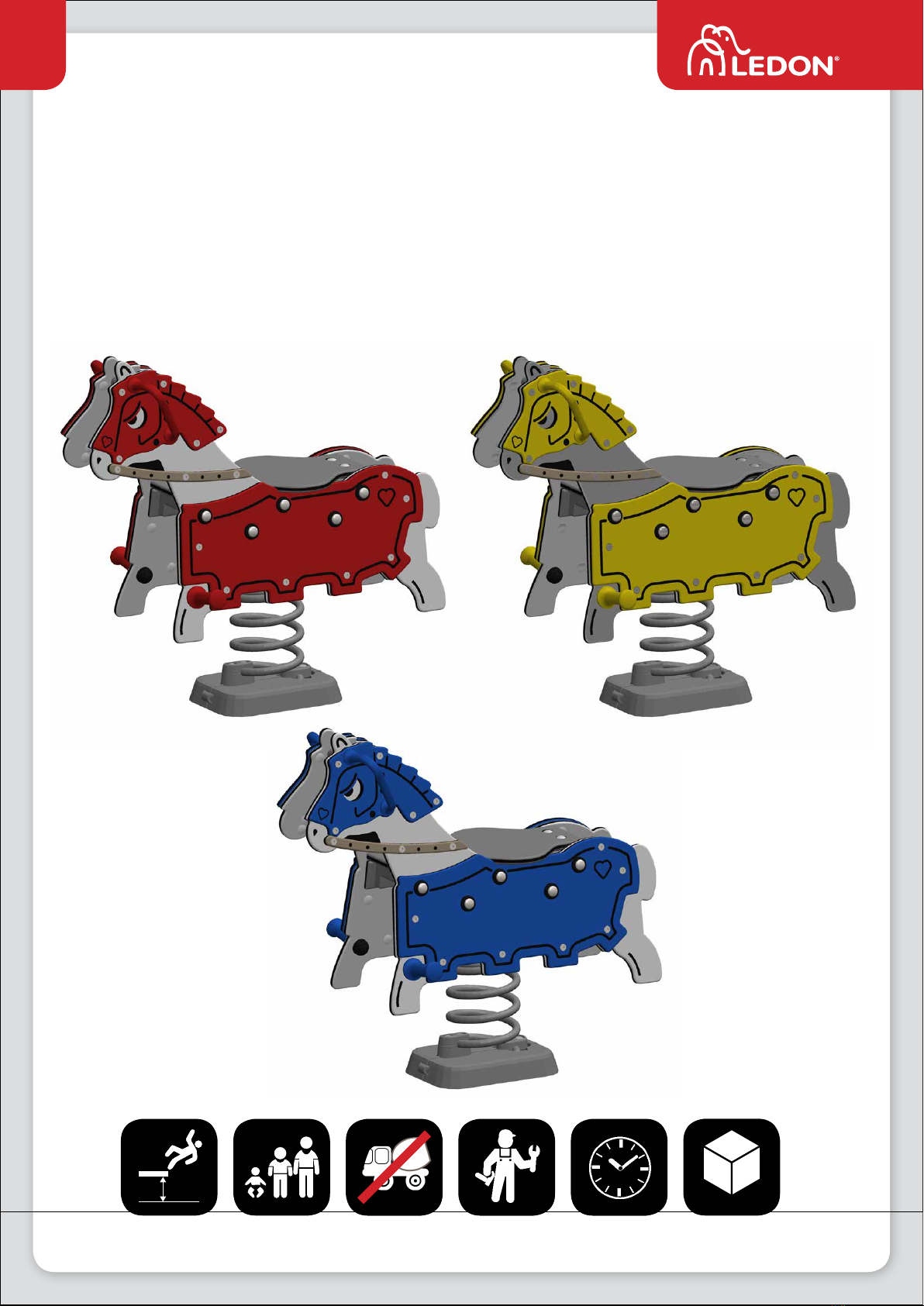

Ledon Moonlight User manual

Moonlight / Prince / Zaphir

LC042 / LC044 / LC046

Assembly instructions

Montageanleitung • Montagevejledning

1 H

MAX

49 cm 1 89 x 43 x 81 cm

LxBxH

2Indholdsfortegnelse

Gode råd og vink ................................................................................. 3

Komponentorientering ............................................................................ 4

Start ........................................................................................... 5

Montage 1 ...................................................................................... 6

Montage 2 ...................................................................................... 7

Montage 3 ...................................................................................... 8

Finish........................................................................................... 9

Some good advice and tips . ........................................................................ 3

Components overview ............................................................................ 4

Site preparation . ................................................................................. 5

Assembly 1 ..................................................................................... 6

Assembly 2 ..................................................................................... 7

Assembly 3...................................................................................... 8

Finish . ......................................................................................... 9

Ein paar gute Ratschläge und Tipps ................................................................... 3

Bauteileübersicht ................................................................................. 4

Vorbereitung .................................................................................... 5

Montage 1 . ..................................................................................... 6

Montage 2 . ..................................................................................... 7

Montage 2 ...................................................................................... 8

Finish . ......................................................................................... 9

3Gode råd og vink

1. Tag komponenterne af pallen og læg dem på jorden

2. Check efter komponentlisten om alle er med

3. Vær omhyggelig med afstande generelt

4. Pak én komponent ud af gangen og gør denne færdig

5. Vær omhyggelig med brug af vatterpas

6. Faldunderlag etableres til allersidst sammen med påsætning af mærkning med producent

Some good advice and tips

1. Take all components from the pallet and place them on the ground

2. Compare with components list – is everything there?

3. Be at all times precise when measuring

4. Unpack one component at a time and assemble it

5. Usage of a water-level will increase precision

6. Fall protection is the very last thing to be installed – along with the producer’s label

Ein paar gute Ratschläge und Tipps

1. Alle Bauteile von der Palette nehmen und auf den Boden legen.

2. Anhand der Bauteileliste überprüfen, ob alle Teile vorhanden sind

3. Beim Abmessen generell präzise arbeiten

4. Ein Bauteil nach dem anderen auspacken und montieren

5. Die Benutzung einer Wasserwaage erleichtert die Montage

6. Die Fallschutzunterlage wird erst ganz zum Schluss verlegt – dann, wenn das Produzentenetikett angebracht wird

4Komponentorientering • Components overview •

Bauteileübersicht

400,10

180061 / 180062

25028

400,002

180063

5Start • Site preparation • Vorbereitung

6,59 m²49 cm

289 cm

243 cm

6Montage 1 • Assembly 1 • Montage 1

400,10

10x20 MB

10 LM

6 LM

10x30 MB

MB 10 x 25

LM 10

400,xx

7Montage 2 • Assembly 2 • Montage 2

M10 LM

M10 X 25mm MB

M10 x 120mm MB

8Montage 3 • Assembly 3 • Montage 3

75 cm

40 cm

55 cm

9Montage 4 • Assembly 4 • Montage 4

M10 LM

M10 x 55mm BB

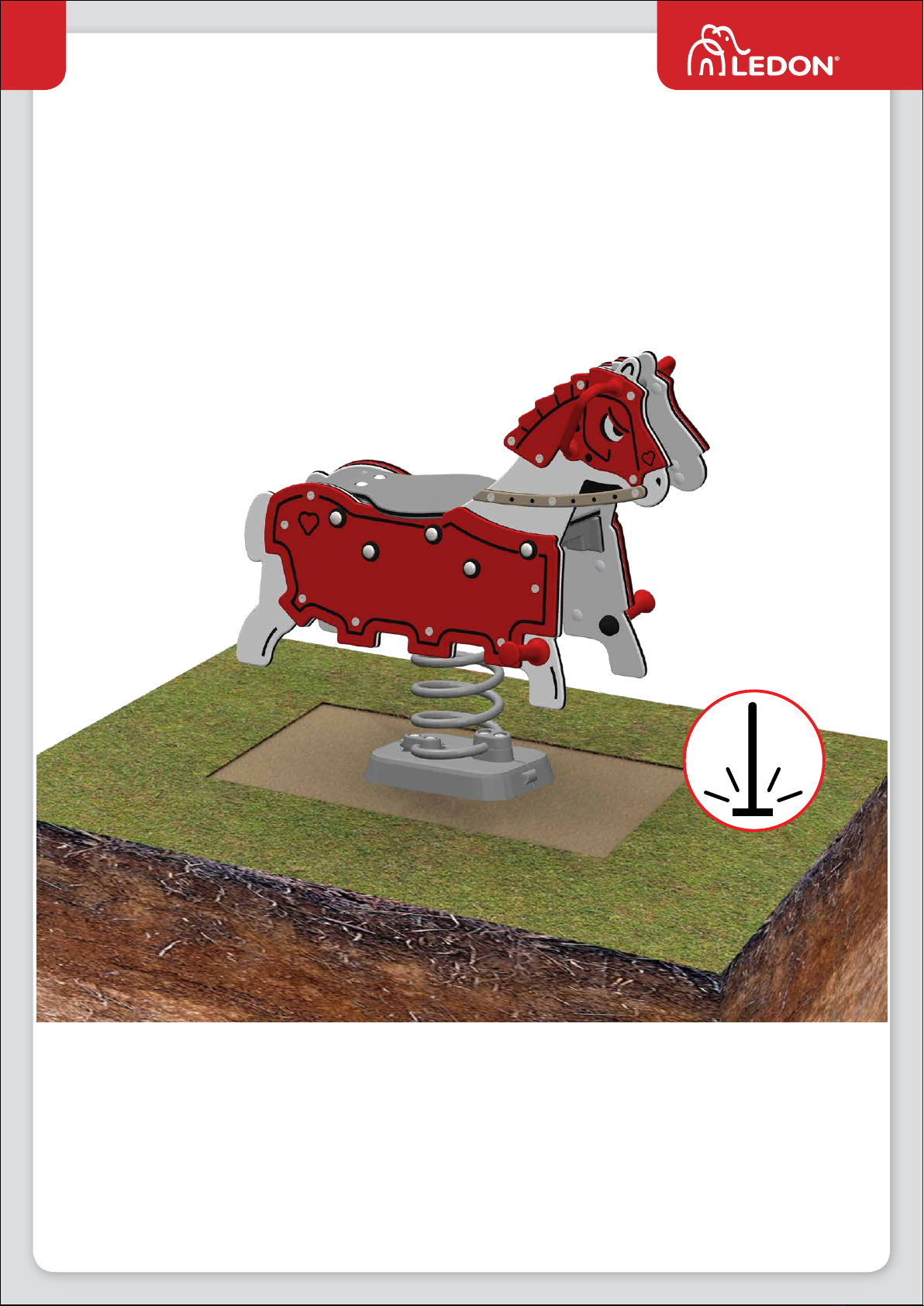

10 Finish • Finish • Finish

This manual suits for next models
