Kraus KBF-1401 User manual

IndyTM Single Lever Basin Faucet

KBF-1401

INSTALLATION MANUAL

Congratulations on the purchase of your new

Kraus plumbing fixture!

Please keep the box and packaging materials until your product is

completely installed. If you have any questions, require technical

assistance or have any problems with your product:

Please contact our Customer Service Team

1-800-775-0703 / [email protected]

Have the model number available and retain a copy of your

receipt with purchase date for reference.

If for any reason this product does not meet your expectations,

please be sure to repack this product in the original box and

packaging material to avoid damage during transit.

DO NOT RETURN TO STORE

STOP

Prior to Installation:

·Make sure you have all necessary parts by checking the diagram and

parts list. If any part is missing or damaged, please contact Kraus

Customer Service at 800-775-0703 for a replacement.

·Read all instructions and safety warnings and ensure you have all

tools, parts, and equipment necessary for a safe installation.

·Turn off the hot and cold water supply at the angle stops and turn on

the old faucet to release any built up pressure. Remove existing faucet.

Clean sink or countertop to remove any debris, plumber’s putty, or

silicone.

·Flush angle stops to release any debris prior to installation.

·Pre-drilled hole size requirement: 1 3/8" (min)

·Max countertop thickness: 1 3/8”

Care & Maintenance

* To keep the product clean & shining, follow the steps below:

1. Rinse with clean water & dry with a soft cloth

2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners

3. Do not use cloth with a coarse surface

4. Unscrew the aerator and clean when necessary

* This installation manual is subject to change without further notice.

For technical assistance or replacement parts, please contact Kraus

Customer Service and one of our representatives will be happy to help:

Toll-Free: 800-775-0703 or [email protected]

ACID

STOP

Tools Required

Adjustable Wrench Phillips Screwdriver Silicone Sealant

Safety Goggles Pipe Tape

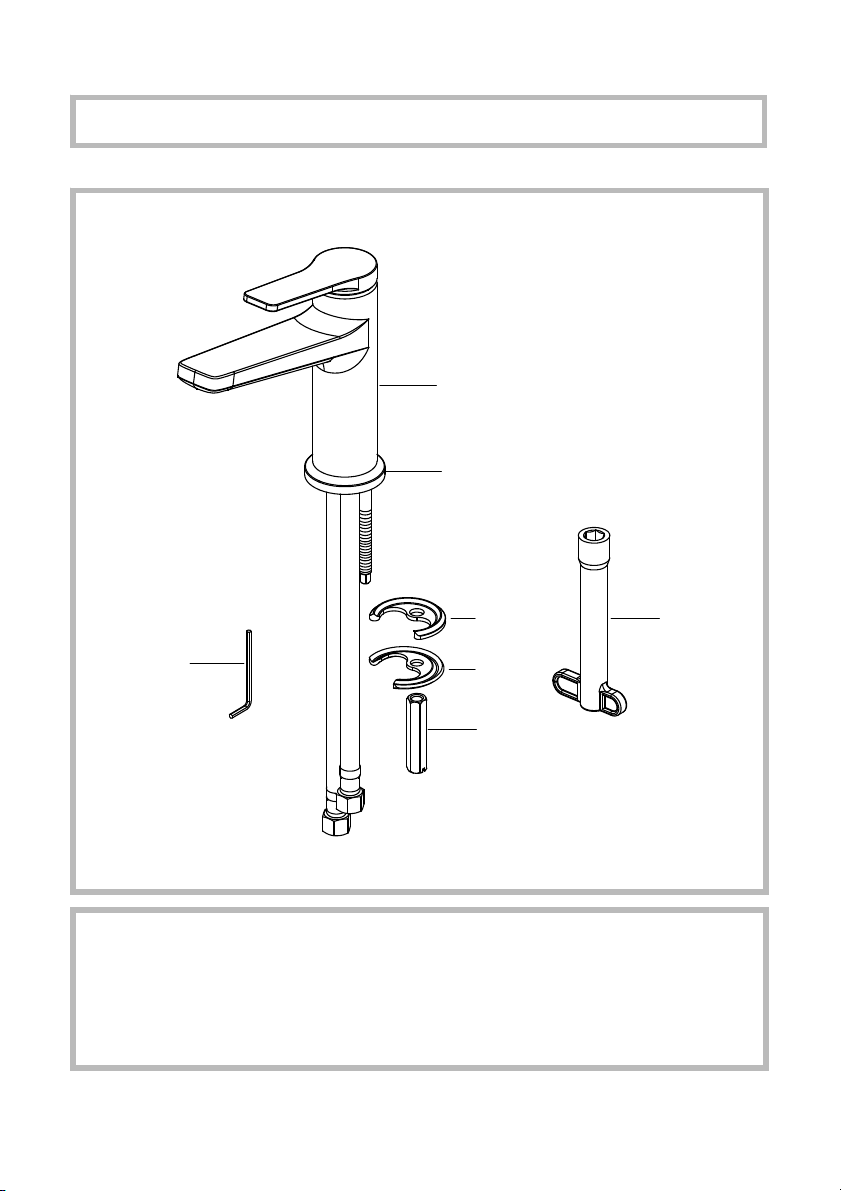

Diagram and Parts List

A. Faucet Body

B. Metal Base Ring

C. Rubber Washer

D. Metal Washer

E. Lock Nut

F. Wrench

G. Hex Wrench

Installer Tip:

Shut off main water supply before installing new faucet.

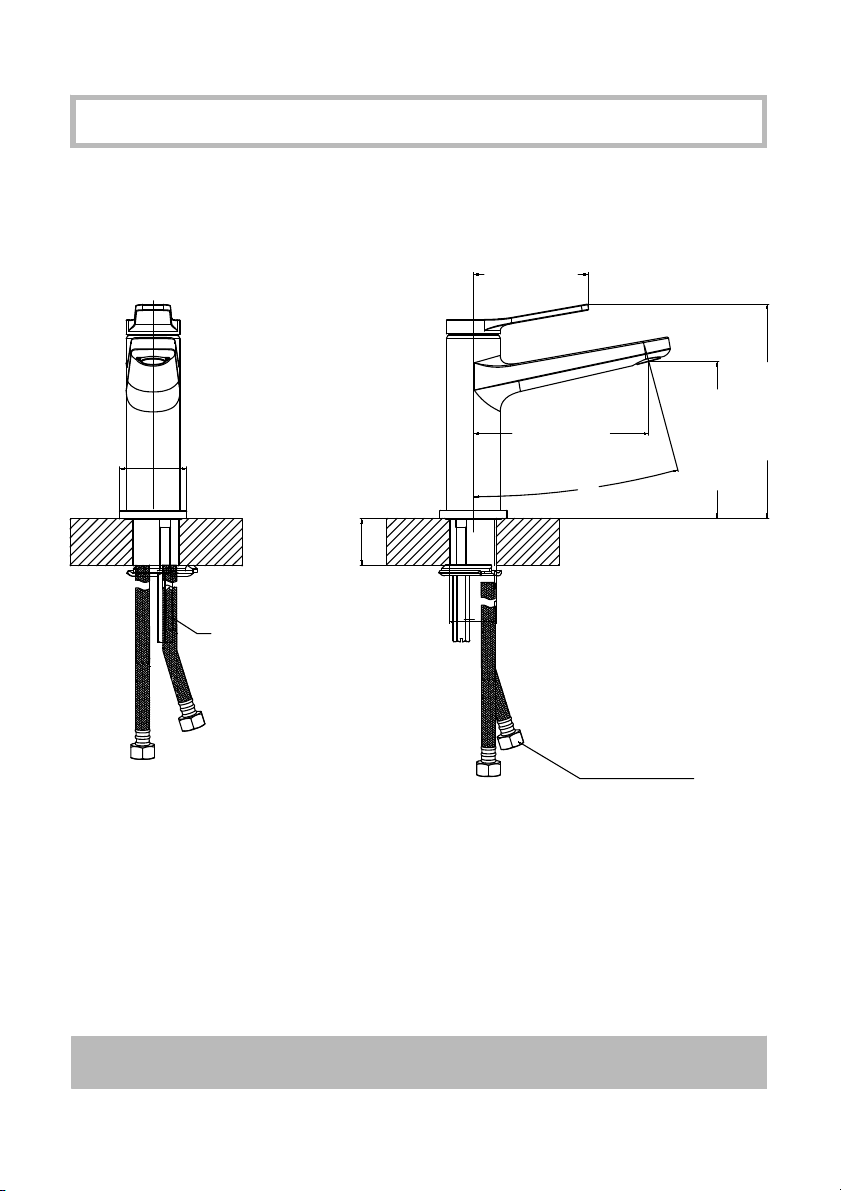

Faucet Dimensions

15°

Ø2" (50mm)

4 5/8" (117mm)

5 1/8" (131mm)

6 1/4" (159mm)

3 3/8" (86mm)

5/16-18UNC Ø1 3/8"

(35mm)

1 3/8" (35mm)

9/16"-UNEF-24

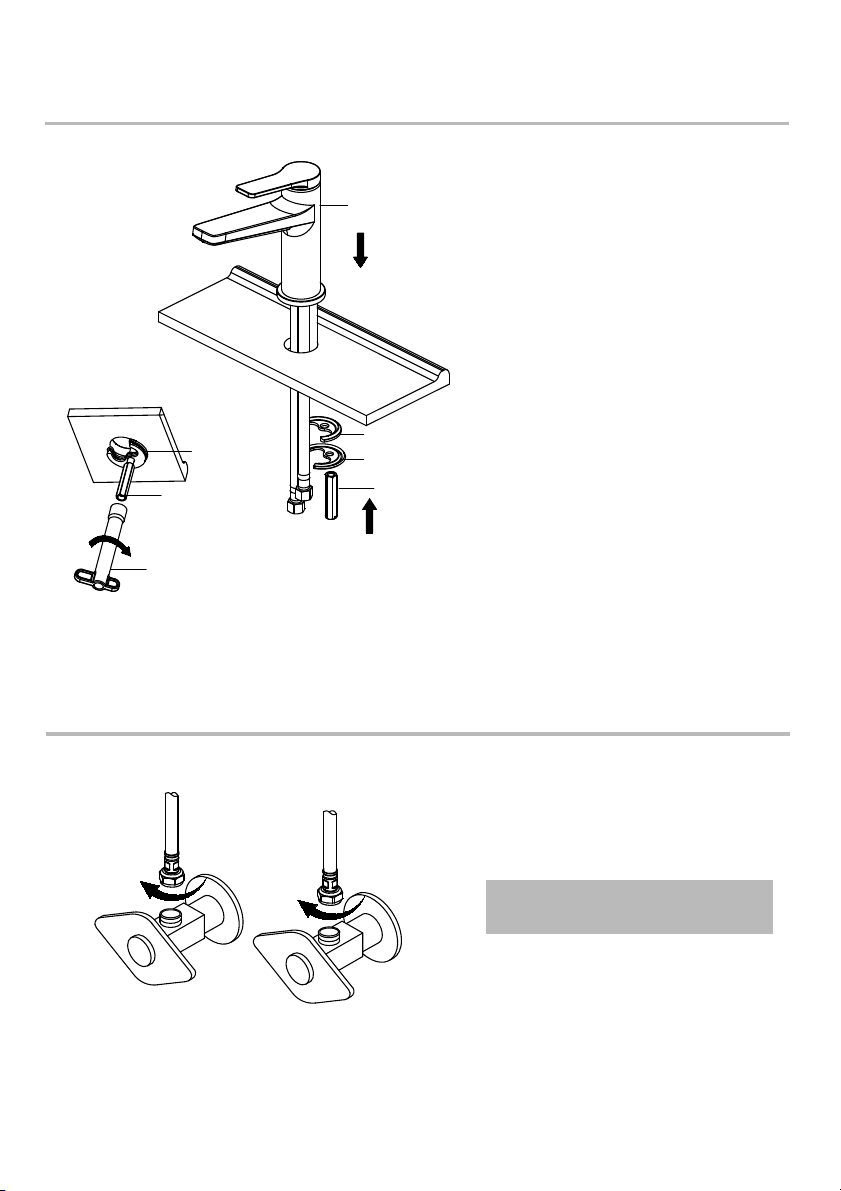

Step 1. Install faucet and mounting hardware

Place the faucet (A) through the

mounting holes in the sink until

the faucet (A) sits on top of the

sink. Secure the faucet (A) to the

sink using the rubber (C) and

metal washers (D) and lock nut (E)

provided. Ensure the washers

(C&D) and waterlines have no

interference.

Step 2. Connect waterlines to main valve

Attach waterlines to angle stops

and tighten until snug. Turn on

angle stops and check for leaks.

(DO NOT TURN FAUCET ON)

C & D C

NOTE: Make sure filter washers

are installed.

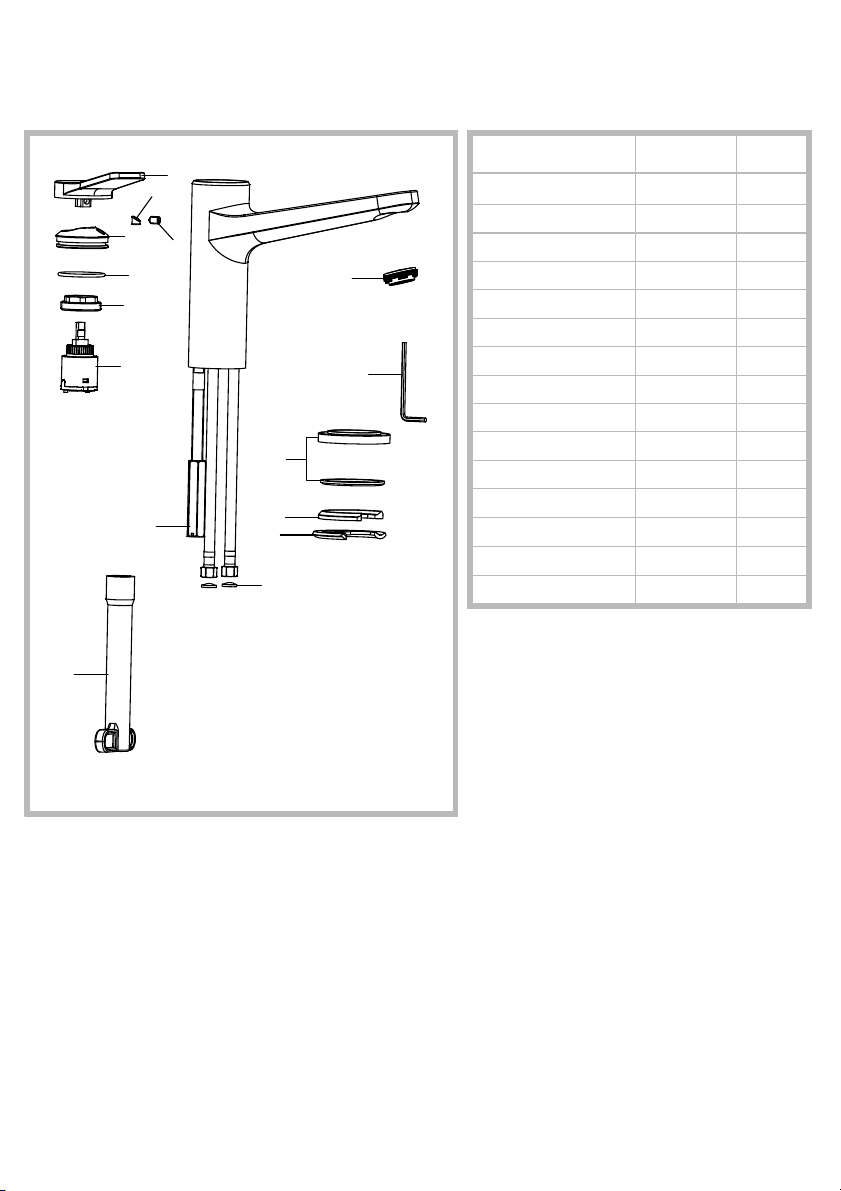

Replacement Parts

1. Metal Handle

2. Handle Button

3. Set Screw M5x6RB

4. Cartridge Cover

6. Locking Nut

7. Cartridge

8. Aerator

9. Metal Base Ring

10. Rubber Washer

12. Mounting Nut

Replacement Parts List Finish/Color Part #

KP06177

KP06026

KP06052

KP06080

KP06059

KP06176

KP06101

KP06183

KP06181

KP06179

KP06178

KP06182

KP06180

KP06050

KP06185

GR, BL, YL*

5. O-Ring

11. Metal Washer

SFS,MB,CH,BG*

*Denotes faucet component color options:

BG - Brushed Gold

CH- Chrome

MB - Matte Black

SFS - Spot Free Stainless Steel

BL - Black

GR - Grey

YL - Yellow

12 13. Spanner Key

15. Filter Washers

14. Hex Wrench

SFS,MB,CH,BG*

Trouble-Shooting

If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:

Leakage under the faucet

handle

Bonnet nut has come loose. Remove the index. Loosen set screw with

hex wrench. Remove the handle. Unscrew

cap (by hand only). Tighten bonnet nut

with an adjustable wrench.

Aerator drips or has inconsistent

water flow pattern

Aerator is dirty or not

seated properly.

Unscrew aerator with aerator wrench and

clean out debris.

Water does not shut off

completely

Cartridge may need to be

adjusted or replaced.

Remove the index. Loosen set screw with

hex wrench. Remove the handle. Unscrew

cap (by hand only). Tighten bonnet nut

with an adjustable wrench. Remove the

cartridge. Check for cracks.

There is leaking from the

sink drain at the base of

the sink

The sink has a rough or

irregular surface.

Apply additional silicone sealant to the

beveled side of the drain flange. Retighten

and test for leaks.

There is a low flow of water The screen filter in the hose

connectors is dirty.

Turn off the water supply at water valve

and unscrew the hose connectors from

water supply lines. Clean the screen

in the water lines with hot water, removing

any debris or calcium build up.

PROBLEM CAUSE ACTION

Codes/Standards Applicable:

Faucet - Lifetime Limited Warranty

Kraus USA Plumbing, LLC (“Kraus”) extends this warranty to the original purchaser for personal household use of the

Faucet when purchased from an authorized Kraus dealer and in the location of original installation. This warranty is

non-transferable.

Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal

usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.

Kraus warrants the Faucet's sprayhead assembly (including the engine, aerators, structure, restrictors, back flow

preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and stainless steel) of the product

to be free from defects in material and workmanship under normal usage for a period of one (1) year from the date of

purchase.

Kraus warrants the Faucet's cartridge to be free from defects in material and workmanship under normal usage for a

period of five (5) years from the date of purchase.

Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired

or replaced with a product of equal value at the option of Kraus.

Commercial Warranty

Kraus USA Plumbing, LLC (“Kraus”) warrants its Products for a period of one (1) year to commercial purchasers of

Products used in industrial, commercial and business applications.

Care and Cleaning Instructions

Certain cleaning products may cause damage to a Product's finish and use of the following on the Product will void this

warranty:

·Abrasive cleaners such as powders, bleach, ammonia, alcohol or chorine

·Abrasive pads, steel wool or wire brushes

What is Not Covered

This warranty does not cover Products that were discontinued when purchased or display Products, whether such

Products were purchased at discount outlets, unauthorized dealers, and/or sold on clearance. This warranty does not

cover any free gifts included with purchase.

This warranty does not cover damage resulting from neglect, misuse (including use for an unintended application),

abuse, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, improper maintenance,

alteration of the Product, or failure to follow care, cleaning or installation instructions enclosed with your Product. Kraus

recommends that all Kraus Products be installed by a fully licensed and insured trade professional with experience in the

installation of bathroom and/or kitchen manufactured goods.

UPC

IAP

NSF/ANSI 372 LEAD FREE

ASME A112.18.1

1.2GPM 4.5L/min maximum

MOR&T

NSF/ANSI 372

NSF/ANSI 61
