KOBE CH27 Series User manual
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 1 of 9
Version 20160725
CH27 SQB-1 Parts Location and Replacement
This basic guide is to show the parts location of the CH27 SQB-1 and how to remove or install certain parts.
To see more detailed guidelines, please visit: Kobe Service and Repair
For under cabinet models: CH2730SQB-1, CH2736SQB-1, CH2742SQB-1, CH2748SQB-1
For wall mount models: CH2730SQB-WM-1, CH2736SQB-WM-1, CH2742SQB-WM-1, CH2748SQB-WM-1
Overall Snapshot of CH27 SQB-1
1. Plastic Oil Tunnel (Manual Part #16 –See “Parts List” page on manual)
2. Safety Screen (Manual Part #17 –See “Parts List” page on manual)
3. LED Light (3W) (Manual Part #6 –See “Parts List” page on manual)
2
2
3
1
1
3
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 2 of 9
Version 20160725
Removing the Capacitor Support
Figure 1 Figure 2
Figure 3 Figure 4
4. Capacitor Support (Manual Part #9 –See “Parts List” page on manual)
4
4
4
4
Warning:
1. Loosen the screw first with a hand tool screw driver.
2. When pulling the wires from the capacitor support, press the ‘push
release’ at the back of the cord.
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 3 of 9
Version 20160725
Accessing the Processor Board
5. Capacitor 2 pcs (Manual Part #10 –See “Parts List” page on manual)
6. Processor Board (Manual Part #15 –See “Parts List” page on manual)
For a more detailed guideline, visit:
How to Replace Processor Board
6
5
5
6
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 4 of 9
Version 20160725

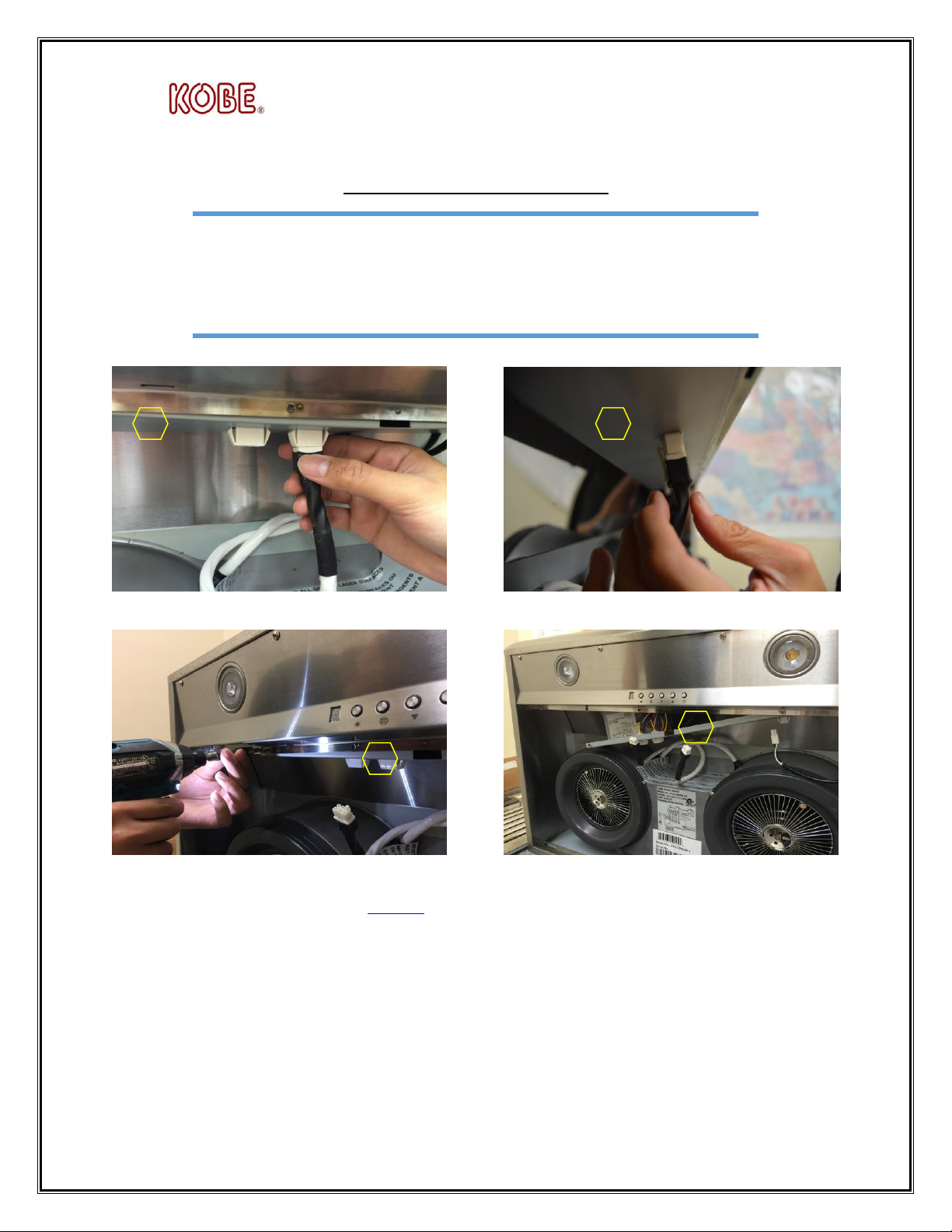

Accessing the Control Unit
Figure 1 Figure 2
Figure 3 Figure 4
7. Control Unit (Manual Part #8 –See “Parts List” page on manual)
For a more detailed guideline, visit: How to Replace Control Panel
Accessing the LED Light
For a more detailed guideline,
visit:
How to Replace LED Lights
7
7
3
7
Warning: For the
process above, loosen
the screw first with a
hand tool screw driver.
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 5 of 9
Version 20160725
Removing the Impeller
Figure 1 Figure 2
Figure 3 Figure 4
Figure 5 Figure 6
8. Turbine Impeller (Manual Part #13 and #14 –See “Parts List” page on manual)
9. Motor (Manual Part #11 and #12 –See “Parts List” page on manual)
8
8
9
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 6 of 9
Version 20160725
Removing the Motor
Attaching Back the Motor
Note: When placing back the motor, make sure that the wire is properly placed underneath the metal wiring
guard. This is to prevent the wire from turning loose and hitting the turbine impeller.
9
9
9
Warning: Loosen the screw first with a
hand tool screw driver.
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 7 of 9
Version 20160725
Attaching Back the Impeller
Figure 1 Figure 2
Figure 3 Figure 4
Figure 5
Note: When attaching back the impeller, make sure that the open tube in the middle of the impeller is aligned
evenly to the metal rod in the center of the motor. The metal rod should not be sticking out of the tube.
Warning: Do not
overtighten the
nut.
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 8 of 9
Version 20160725
More on attaching the impeller:
Figure 1 Figure 2
Figure 3
Figure 4
Warning: Make
sure to attach the
screw on the flat
surface of the
motor’s metal rod.
KOBE Range Hoods
“So Quiet…You Won’t Believe It’s On!”
Page 9 of 9
Version 20160725
Placing the Impellers in their Correct Positions
Left Side Impeller Right Side Impeller
(Turbine Impeller B—Part #: L1-0251-0747-B) (Turbine Impeller A—Part #: L1-0251-0747-A)
“
R” means motor
rotates clockwise (to
the Right)
Left Side
Right Side
“L
” means motor
rotates counterlockwise
(to the Left)
Right
Side
Motor:
Has “L”
Marking
Left Side
Motor:
Has No
Marking
