JVC KD-X561DBT User manual

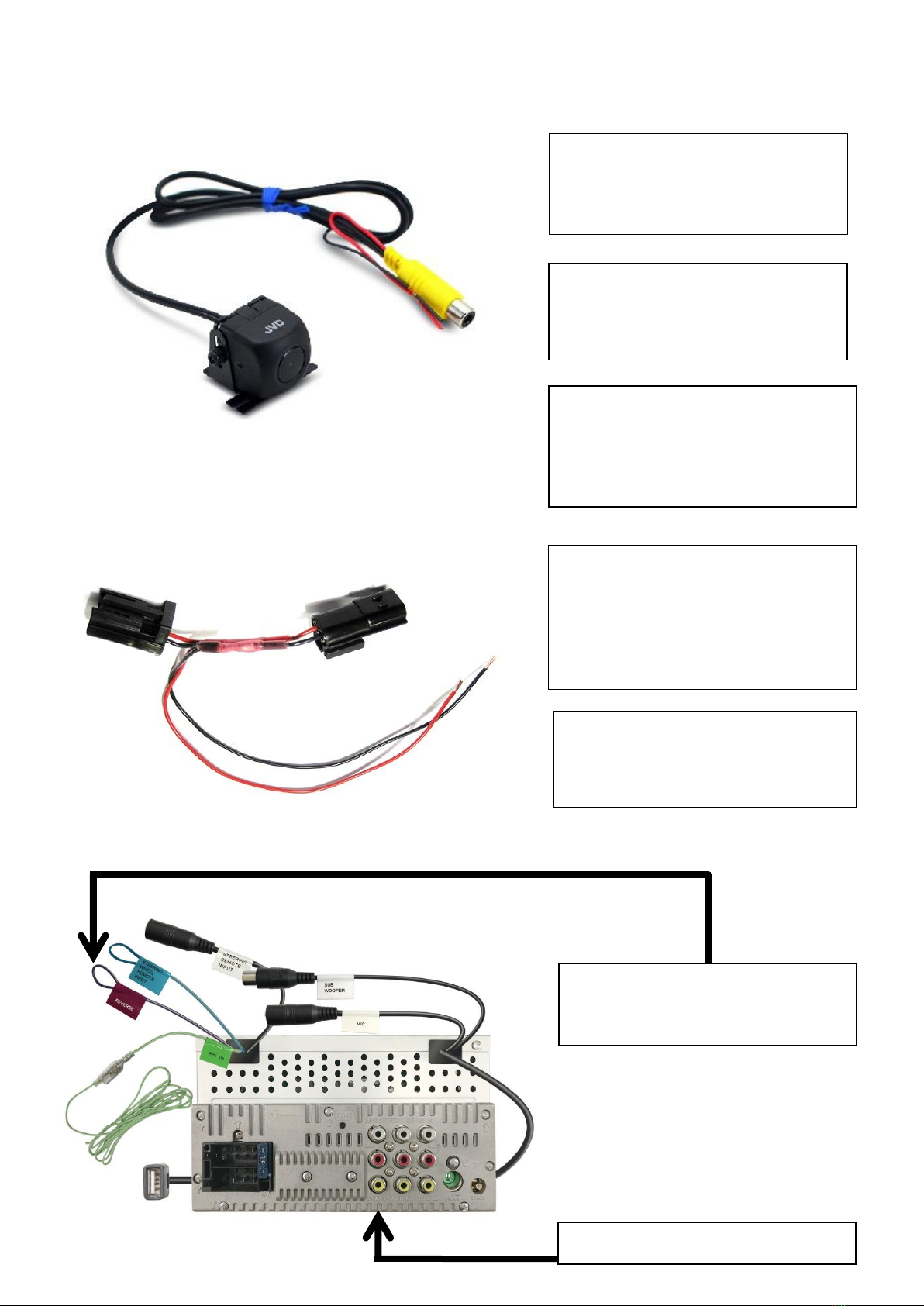

JVC KD-X561DBT (Single DIN) Reverse Camera installation
RED wire on Reverse Lamp Piggy Back
Loom.
Connect to the camera input wire on the
back of the head unit labelled ‘REVERSE’.
BLACK Wire on Piggy Back Loom.
Connect to the black /earth wire on
camera Harness.
RED Wire on Camera:
Connect to an ignition LIVE via fuse.
BLACK Wire on Camera:
Connect to black/earth wire on the
MUD Piggy-Back loom.
Yellow RCA Wire on Camera:
Connect to RCA extension cable and run
forwards to yellow RCA socket on the
back of the head-unit.
RCA cable input from camera
Camera
Reverse input from Piggy-Back loom/
Reverse lamp connects into
Purple/White wire marked ‘Reverse’.
JVC KW-M745DBT (Double DIN) Reverse Camera installation
RED wire on Reverse Lamp Piggy Back
Loom.
Connect to the Purple/White camera
input wire on the back of the head unit
labelled ‘REVERSE’.
BLACK Wire on Piggy Back Loom.
Connect to the black /earth wire on
camera Harness.
RED Wire on Camera:
Connect to an ignition LIVE via fuse.
BLACK Wire on Camera:
Connect to black/earth wire on the
MUD Piggy-Back loom.
Yellow RCA Wire on Camera:
Connect to RCA extension cable and run
forwards to yellow RCA socket on the
back of the head-unit.
Reverse input from Piggy-Back loom/
Reverse lamp connects into
Purple/White wire marked ‘Reverse’
RCA cable input from camera
