1 Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
1. Select Start >Computer >System properties.
2. In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing software, running
utilities, or changing Windows settings. Refer to Help and support more information.
1
2 Components

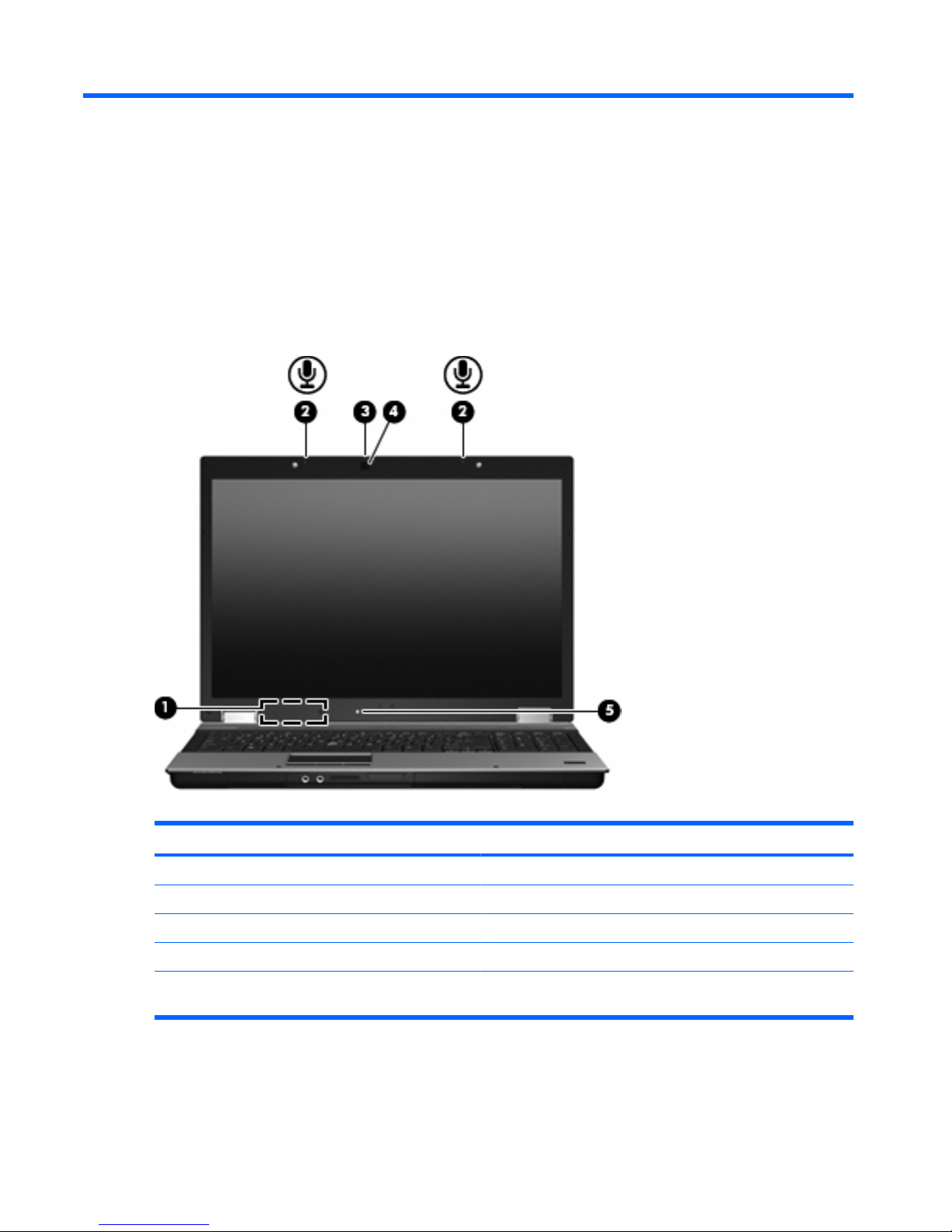

Display
Component Description
(1) Internal display switch Turns off the display if the display is closed while the power is on.
(2) Internal microphones (2) Record sound.
(3) Webcam light On: The webcam is in use.
(4) Webcam Records audio and video and captures still photographs.
(5) Ambient light sensor Automatically adjusts the display brightness based on the lighting
conditions in your environment.
2 Chapter 2 Components
Top components

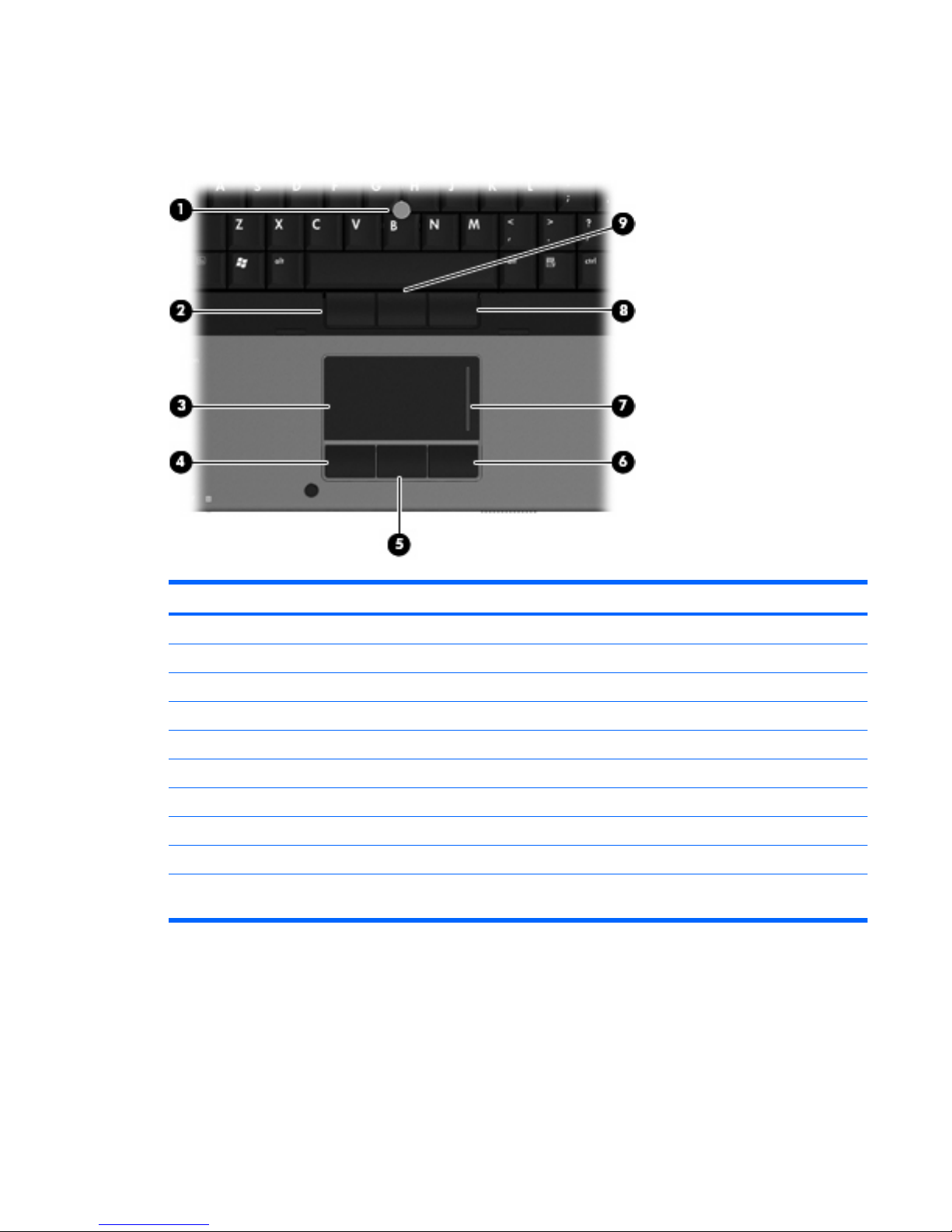

Pointing devices
Component Description
(1) Pointing stick* Moves the pointer and selects or activates items on the screen.
(2) Left pointing stick button* Functions like the left button on an external mouse.
(3) TouchPad* Moves the pointer and selects or activates items on the screen.
(4) Left TouchPad button* Functions like the left button on an external mouse.
(5) Center TouchPad button* Functions like the center button on an external mouse.
(6) Right TouchPad button* Functions like the right button on an external mouse.
(7) TouchPad scroll zone Scrolls up or down.
(8) Right pointing stick button* Functions like the right button on an external mouse.
(9) Center pointing stick button* Functions like the center button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, select Start >Control Panel >Hardware
and Sound >Mouse.
Top components 3

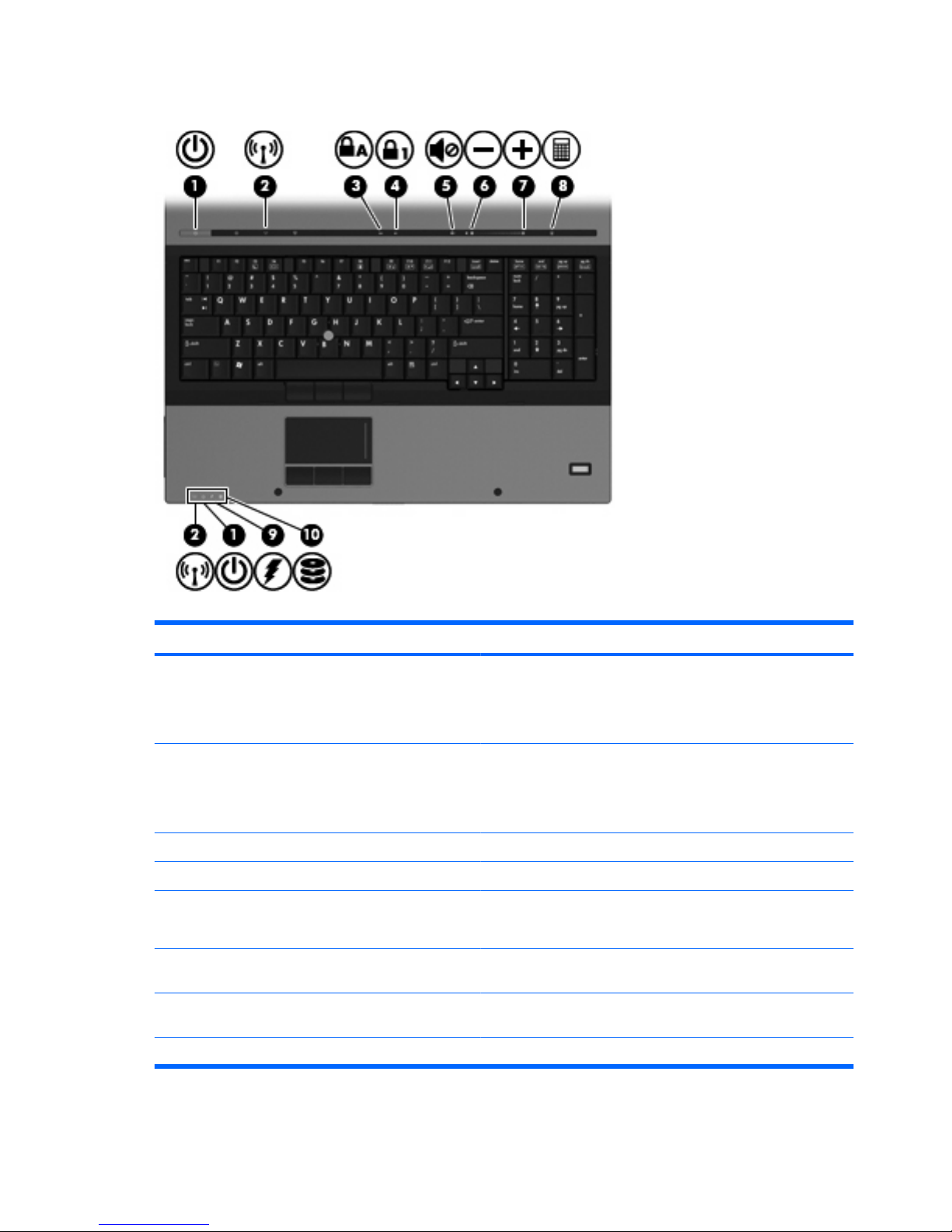

Lights
Component Description
(1) Power lights (2)* ●On: The computer is on.
●Blinking: The computer is in the Sleep state.
●Off: The computer is off or in Hibernation.
(2) Wireless lights (2)
†
●On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth® device, is
on.
●Amber: All wireless devices are off.
(3) Caps lock light On: Caps lock is on.
(4) Num lock light On: Num lock is on.
(5) Volume mute light ●On: Computer sound is on.
●Amber: Computer sound is off.
(6) Volume down light Blinking: The volume scroll zone is being used to decrease speaker
volume.
(7) Volume up light Blinking: The volume scroll zone is being used to increase speaker
volume.
(8) Calculator light On: The Windows calculator function is on.
